Pipe & Tube Notcher PNM-3

Description

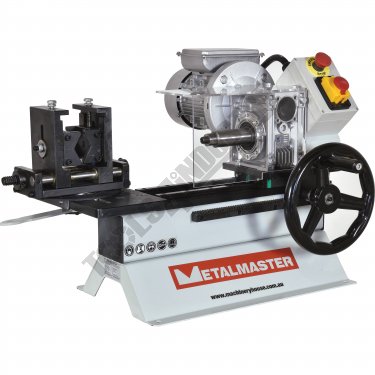

Bench mounted precision motorised notcher suitable for pipe & tube up to 76mm OD, it includes a 240-volt motor with a right-angle reduction box to ensure the cutter speed is running at the optimum speed for accurate notches as well as long cutter life. The double linear guideways ensure smooth operation whilst providing a solid base for minimal vibration. The material clamp offers quick & easy adjustment for both angle & offset height to give you a professional finish every time

Features

• Notches 12.7 – 76.2mm OD Tube and ½” – 2-1/2” NB schedule 40 pipe
• Double linear guide ways for smooth trouble-free operation.
• Adjustable notch angle up to 220 degrees with the ability to offset the height of the notch + 35mm
• Quick action angle adjustment handle with easy to see degree markings
• Self-centring vice with double V-Shaped jaws to securely clamp the material
