Code G666
Model LSG-3000
Capacity Up to 3000mm
Weight (kg) 25
Weight (m3) 0.042
Weight (Freight) 25
Dimensions (cm) 39.5 x 37 x 29
HAFCO
1 Year
Taiwan

LSG-3000 Lathe Leadscrew Cover Kit Up to 3000mm

Description

Manufactured in Taiwan

Exposed rotating leadscrew shafts on lathes now can be guarded with the new release of LSG covers, the cartridge roller blind system is designed to reduce the risk of the operator becoming accidentally entangled with the exposed rotating shafts.

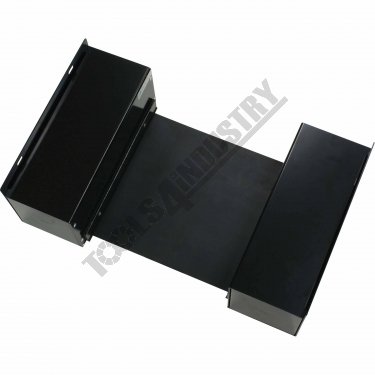

The cartridge roller blind consists of two steel rectangular boxes housing a robust neoprene nylon material, the nylon material is spring loaded and when extended out of the box it covers over the exposed shafts. A complete LSG system consists of 2 roller blind sets, 1 set of brackets. One box set is fitted to the tailstock end of the machine; the other is fitted to the left hand side of the saddle. Depending upon obstructions on certain types of machines, additional fixing brackets may be required.

Features

  • Suitable for bench & centre lathes
  • Neoprene material dust & oil proof & rated up to 120℃
  • Ease of installation - shafts do not need to be removed
  • Can be used on machines up to max bed length of 3000mm

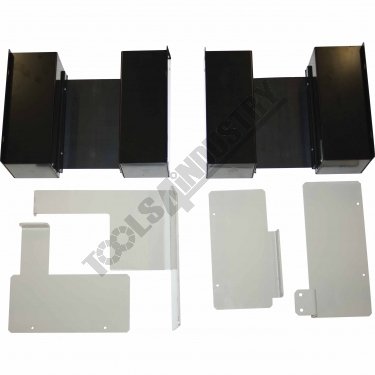

Includes

  • 2 x retractable leadscrew covers
  • 1 set of standard brackets, that may require modification to suit your machine

Specifications

ORDER CODELSG-3000
MODELSafety Leadscrew Cover
Guard TypeNeoprene-Retractable
Material Type250
Leadscrew Cover WidthmmUp to 3000
Suits Lathe - Distance Between Centresmm~
Suits Lathe Centre Heightmm~
Suits Lathe Chuck Size Max.mm
