Code G616
Model LG-13
Capacity 330mm Centre Height
Weight (kg) 9
Weight (m3) 0.035
Weight (Freight) 11.655
Dimensions (cm) 58 x 25.5 x 24
HAFCO
1 Year

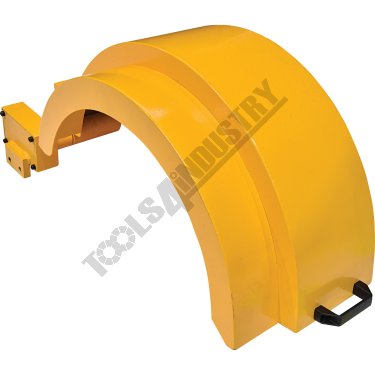

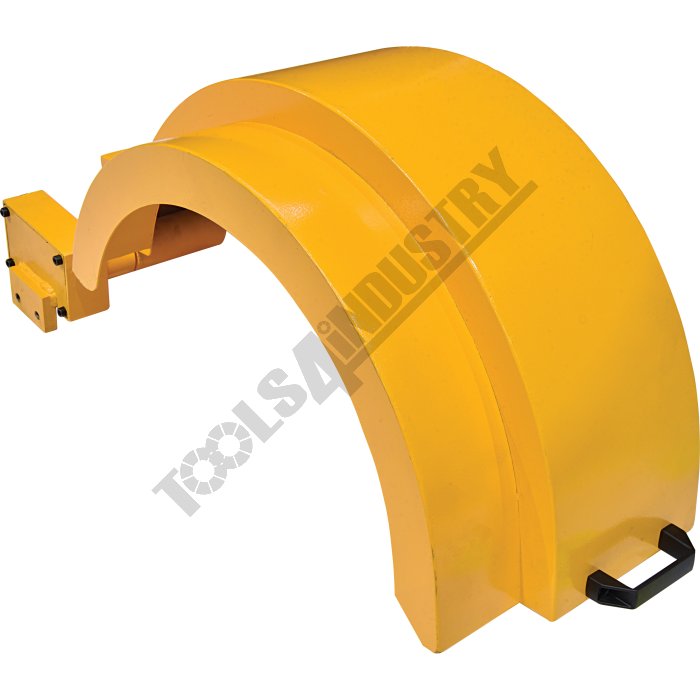

LG-13 Lathe Safety Chuck Guard 330mm Centre Height

Features

  • Retro fits to lathe headstock with a 330mm centre height
  • Suits up to Ø400mm lathe chucks
  • Swivel steel safety chuck guard with handle
  • Includes safety chuck guard, mounting bracket with micro switch and wiring
  • Micro switch recommended for 12V or 24V
  • Installation required by a licensed electrician

Specifications

ORDER CODELG-13
MODELSafety Chuck Guard
Guard TypeSteel
Material Type~
Leadscrew Cover Widthmm~
Suits Lathe - Distance Between Centresmm330
Suits Lathe Centre HeightmmØ400
Suits Lathe Chuck Size Max.mm
