Code G614
Model LG-10
Capacity 255mm Centre Height
Weight (kg) 8.5
Weight (m3) 0.027
Weight (Freight) 8.991
Dimensions (cm) 51.5 x 22 x 24
HAFCO
1 Year

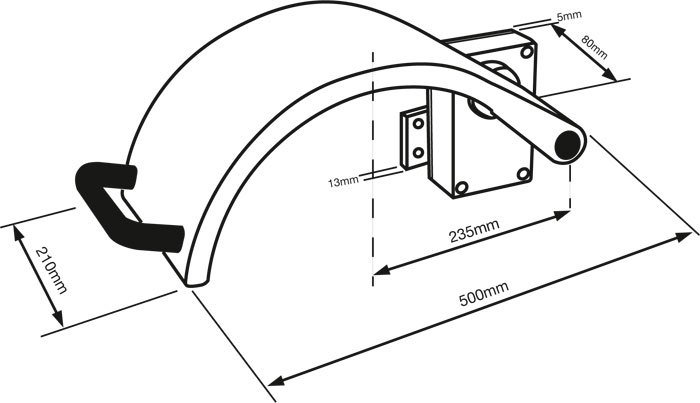

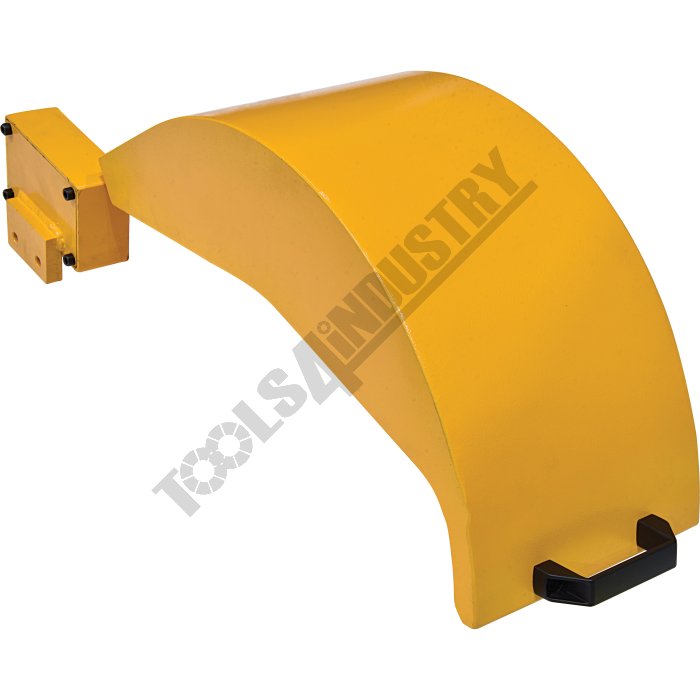

LG-10 Lathe Safety Chuck Guard 255mm Centre Height

Features

  • Retro fits to lathe headstock with a 255mm centre height
  • Suits up to Ø350mm lathe chucks
  • Swivel steel safety chuck guard with handle
  • Includes safety chuck guard, mounting bracket with micro switch and wiring
  • Micro switch recommended for 12V or 24V
  • Installation required by a licensed electrician

Specifications

ORDER CODELG-10
MODELSafety Chuck Guard
Guard TypeSteel
Material Type~
Leadscrew Cover Widthmm~
Suits Lathe - Distance Between Centresmm255
Suits Lathe Centre HeightmmØ350
Suits Lathe Chuck Size Max.mm
