Code G610
Model LG-7
Capacity 178mm Centre Height
Weight (kg) 5
Weight (m3) 0.009
Weight (Freight) 5
Dimensions (cm) 35 x 14.5 x 17
HAFCO
1 Year

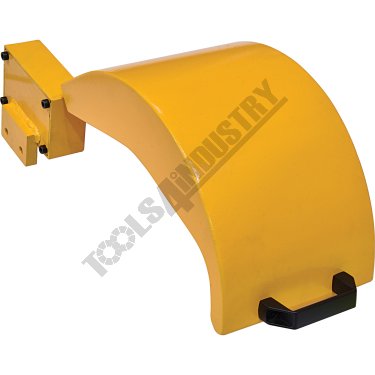

LG-7 Lathe Safety Chuck Guard 178mm Centre Height

Features

  • Retro fits to lathe headstock with a 178mm centre height
  • Suits up to Ø200mm lathe chucks
  • Swivel steel safety chuck guard with handle
  • Includes safety chuck guard, mounting bracket with micro switch and wiring
  • Micro switch recommended for 12V or 24V
  • Installation required by a licensed electrician

Specifications

ORDER CODELG-7
MODELSafety Chuck Guard
Guard TypeSteel
Material Type~
Leadscrew Cover Widthmm~
Suits Lathe - Distance Between Centresmm178
Suits Lathe Centre HeightmmØ200
Suits Lathe Chuck Size Max.mm
