| Code | D8294 |
|---|---|
| Model | CHR 40-4MT |
| Capacity | Suits CNC Lathes |
| Weight (kg) | 0.82 |
| Weight (m3) | 0.000 |
| Weight (Freight) | 0.82 |
| Dimensions (cm) | 14 x 5.5 x 5.5 |

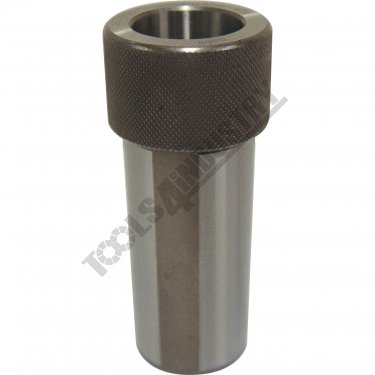

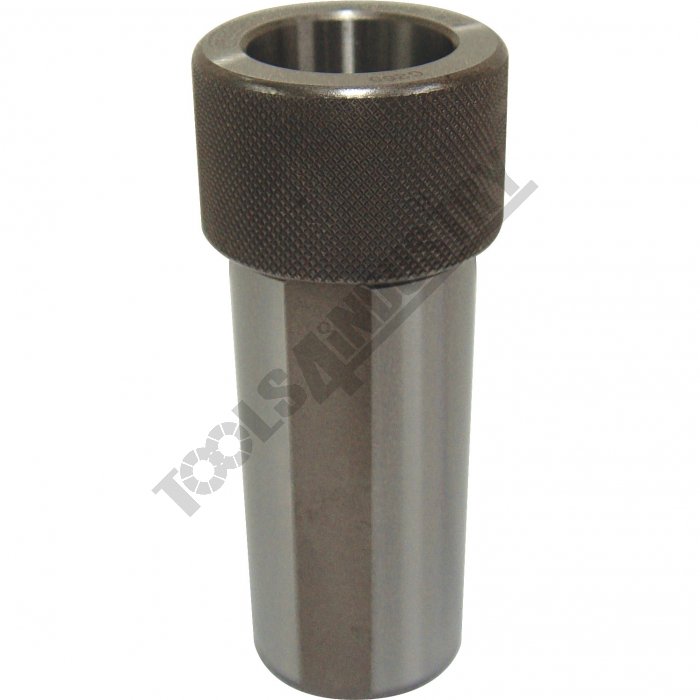

Boring Sleeve - Straight CHR 40-4MT Suits CNC Lathes
Description
Used in the turrets of CNC lathes to hold morse taper drills.Universal design allows these sleeves to be fitted to all CNC machines with turrets
Features
- Precision ground inside and out
- Clamping Flat for clamping the sleeve into the turret
- Drive slot for the tang of the taper shank drill

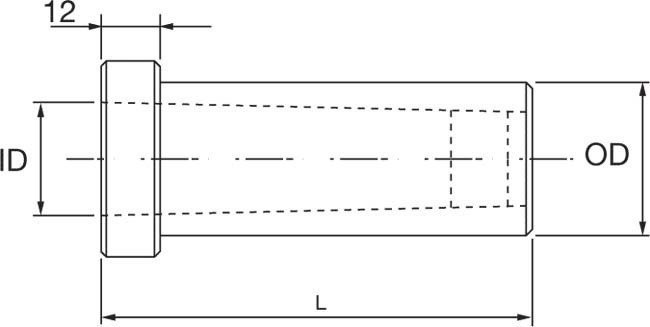

Specifications
- Compare 14 Products
- ORDER CODE
- MODEL
- Type
- ODmm
- IDmm
- Lmm
- L1mm
- D8294
- CHR 40-4MT
- Plain
- 40
- 4MT
- 88
- ~
- D819
- CHR 8-32
- Set Screws
- 32
- 8mm
- 86
- ~
- D820
- CHR 10-32
- Set Screws
- 32
- 10mm
- 86
- ~
- D821
- CHR 12-32
- Set Screws
- 32
- 12mm
- 86
- ~
- D822
- CHR 16-32
- Set Screws
- 32
- 16mm
- 86
- ~
- D823
- CHR 20-32
- Set Screws
- 32
- 20mm
- 86
- ~
- D824
- CHR 25-32
- Slot
- 32
- 25mm
- 86
- 56
- D826
- CHR 16-40
- Set Screws
- 40
- 16mm
- 96
- ~
- D827
- CHR 20-40
- Set Screws
- 40
- 20mm
- 96
- ~
- D828
- CHR 25-40
- Set Screws
- 40
- 25mm
- 96
- ~
- D829
- CHR 32-40
- Slot
- 40
- 32mm
- 96
- 66
- D825
- CHR 32-2MT
- Plain
- 32
- 2MT
- 88
- ~
- D8253
- CHR 32-2MT
- Plain
- 32
- 3MT
- 88
- ~
- D8293
- CHR 40-3MT
- Plain
- 40
- 3MT
- 88
- ~
| ORDER CODE | CHR 40-4MT |
|---|---|
| MODEL | Plain |
| Type | 40 |
| ODmm | 4MT |
| IDmm | 88 |
| Lmm | ~ |
| L1mm |
