| Code | D829 |
|---|---|
| Model | CHR 32-40 |
| Capacity | Suits CNC Lathes |
| Weight (kg) | 0.82 |
| Weight (m3) | 0.000 |
| Weight (Freight) | 0.82 |
| Dimensions (cm) | 14 x 5.5 x 5.5 |

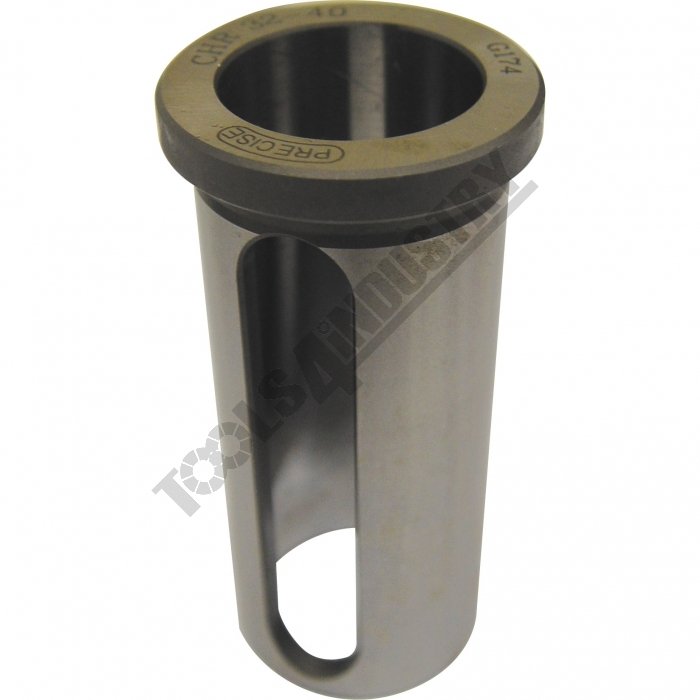

Boring Sleeve - Straight CHR 32-40 Suits CNC Lathes
Description
Used in the turrets of CNC lathes to hold boring bars and other cutting tools.Universal design allows these sleeves to be fitted to all CNC machines with turrets
Features
- Precision ground
- Slotted so that the turret clamp screws can clamp directly onto the boring bar or cutter

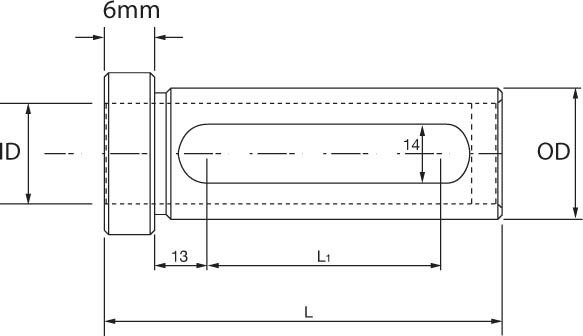

Specifications
- Compare 14 Products
- ORDER CODE
- MODEL
- Type
- ODmm
- IDmm
- Lmm
- L1mm
- D829
- CHR 32-40
- Slot
- 40
- 32mm
- 96
- 66
- D825
- CHR 32-2MT
- Plain
- 32
- 2MT
- 88
- ~
- D8253
- CHR 32-2MT
- Plain
- 32
- 3MT
- 88
- ~
- D8293
- CHR 40-3MT
- Plain
- 40
- 3MT
- 88
- ~
- D8294
- CHR 40-4MT
- Plain
- 40
- 4MT
- 88
- ~
- D819
- CHR 8-32
- Set Screws
- 32
- 8mm
- 86
- ~
- D820
- CHR 10-32
- Set Screws
- 32
- 10mm
- 86
- ~
- D821
- CHR 12-32
- Set Screws
- 32
- 12mm
- 86
- ~
- D822
- CHR 16-32
- Set Screws
- 32
- 16mm
- 86
- ~
- D823
- CHR 20-32
- Set Screws
- 32
- 20mm
- 86
- ~
- D824
- CHR 25-32
- Slot
- 32
- 25mm
- 86
- 56
- D826
- CHR 16-40
- Set Screws
- 40
- 16mm
- 96
- ~
- D827
- CHR 20-40
- Set Screws
- 40
- 20mm
- 96
- ~
- D828
- CHR 25-40
- Set Screws
- 40
- 25mm
- 96
- ~
| ORDER CODE | CHR 32-40 |
|---|---|
| MODEL | Slot |
| Type | 40 |
| ODmm | 32mm |
| IDmm | 96 |
| Lmm | 66 |
| L1mm |
