| Code | D826 |
|---|---|
| Model | CHR 16-40 |
| Capacity | Suits CNC Lathes |
| Weight (kg) | 0.82 |
| Weight (m3) | 0.000 |
| Weight (Freight) | 0.82 |
| Dimensions (cm) | 14 x 5.5 x 5.5 |

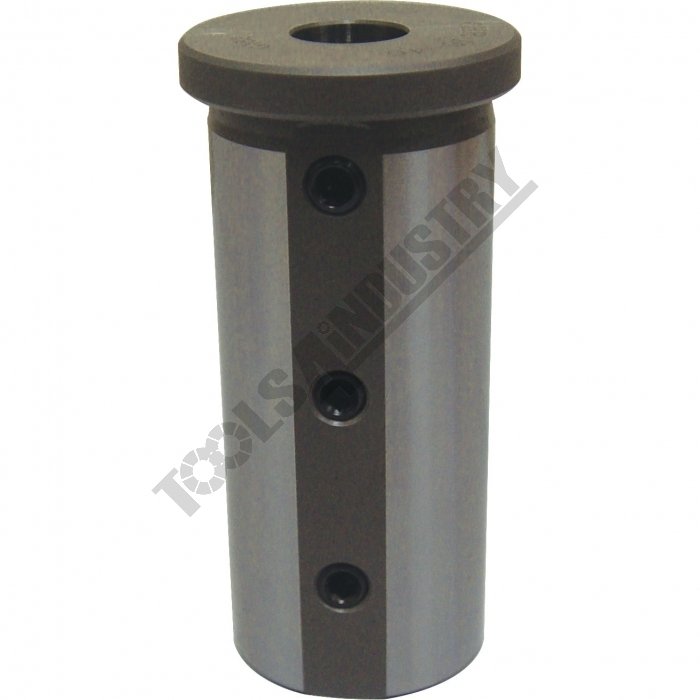

Boring Sleeve - Straight CHR 16-40 Suits CNC Lathes
Description
Used in the turrets of CNC lathes to hold boring bars and other cutting tools.Universal design allows these sleeves to be fitted to all CNC machines with turrets
Features
- Precision ground
- Clamping Flat for clamping the sleeve into the turret
- Recessed grub screws to clamp the item

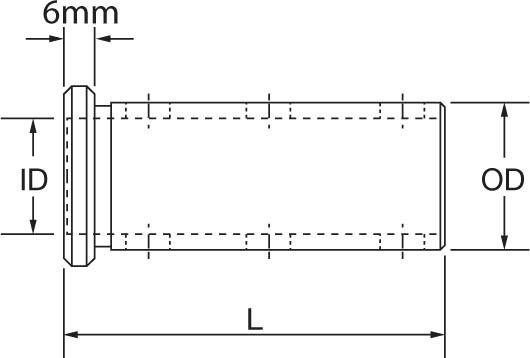

Specifications
- Compare 14 Products
- ORDER CODE
- MODEL
- Type
- ODmm
- IDmm
- Lmm
- L1mm
- D826
- CHR 16-40
- Set Screws
- 40
- 16mm
- 96
- ~
- D827
- CHR 20-40
- Set Screws
- 40
- 20mm
- 96
- ~
- D828
- CHR 25-40
- Set Screws
- 40
- 25mm
- 96
- ~
- D829
- CHR 32-40
- Slot
- 40
- 32mm
- 96
- 66
- D825
- CHR 32-2MT
- Plain
- 32
- 2MT
- 88
- ~
- D8253
- CHR 32-2MT
- Plain
- 32
- 3MT
- 88
- ~
- D8293
- CHR 40-3MT
- Plain
- 40
- 3MT
- 88
- ~
- D8294
- CHR 40-4MT
- Plain
- 40
- 4MT
- 88
- ~
- D819
- CHR 8-32
- Set Screws
- 32
- 8mm
- 86
- ~
- D820
- CHR 10-32
- Set Screws
- 32
- 10mm
- 86
- ~
- D821
- CHR 12-32
- Set Screws
- 32
- 12mm
- 86
- ~
- D822
- CHR 16-32
- Set Screws
- 32
- 16mm
- 86
- ~
- D823
- CHR 20-32
- Set Screws
- 32
- 20mm
- 86
- ~
- D824
- CHR 25-32
- Slot
- 32
- 25mm
- 86
- 56
| ORDER CODE | CHR 16-40 |
|---|---|
| MODEL | Set Screws |
| Type | 40 |
| ODmm | 16mm |
| IDmm | 96 |
| Lmm | ~ |
| L1mm |
