Code	C7161
Model	PS Series
Capacity	Ø400mm
Weight (kg)	85
Weight (m³)	0.011
Weight (Freight)	85
Dimensions (cm)	26.5 x 27 x 16

Product Brochure How to Mount a Lathe Chuck [837 KB] LATHE CHUCK - SAFETY NOTES [36 KB]

This Product Is No Longer Available

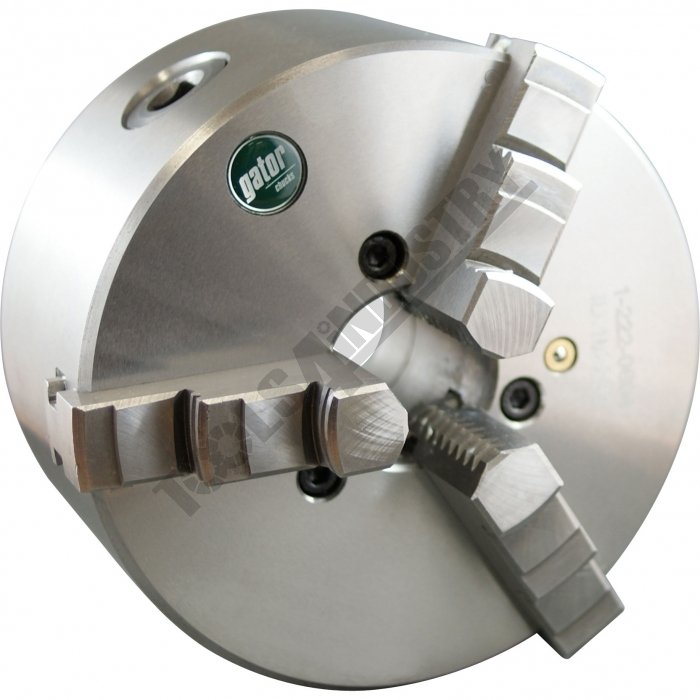

3 Jaw Self Centring Lathe Chuck PS Series Ø400mm

Description

PS Series semi steel body lathe chucks are supplied with one piece standard and reverse jaws.

Gator is a world class state of the art producer of manual lathe chucks with over 30 years of manufacturing experience and production excellence. Gator chucks are manufacturing to DIN 55029 standard and built to last for precision machining applications. The state of the art, ISO 9001-2000 manufacturing facility is quality focused producing chucks for the worldwide market.

The PS Series lathe chucks are available in direct mount or back plate mount.

Features

Comprehensive quality assurance and accuracy testing ensure standards remain high
Each chuck is supplied with a set of inside and outside jaws and a chuck key
All bearing surfaces are precisely machined
Scroll plate is drop forged from fine alloy steel and finished with case hardening
Jaw teeth, guideways & pinions are hardened & ground

Includes

Outside jaws
Inside jaws
Mounting screws
Chuck key

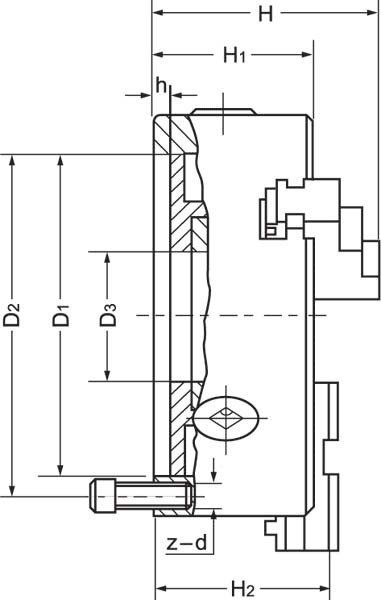

Specifications

Compare 22 Products
ORDER CODE
Mounting Type
Chuck Sizemm
Outside Jawmm
Inside Jawmm
Speedrpm
D1mm
D2mm
D3 (bore)mm
Hmm
H1mm
H2mm
h (lowercase)mm
z-dmm
Nett Weightkg

C7161
Back Plate Mount
Ø400
10 - 180
103 - 400
1000
330
362
136
160
105
~
5
6 x M16
85

C7081
Back Plate Mount
Ø200
4 - 90
60 - 200
2500
160
176
55
104
75
~
4
6 x M10
18

C7061
Back Plate Mount
Ø160
3 - 64
50 - 160
3000
125
140
42
96.5
64.5
~
4
6 x M10
10

C7101
Back Plate Mount
Ø250
5 - 118
77 - 250
2000
200
224
76
119
85
~
4
6 x M12
27

C7121
Back Plate Mount
Ø315
10 - 131
90 - 315
1500
260
286
103
137
94
~
5
6 x M16
50

ZC712
Back Plate Mount
Ø315
~
~
1800
265
290
108
140
100
~
6
4 x M12
47

C198
Back Plate Mount
Ø80
2 - 22
22 - 63
4000
55
66
16
66
50
~
3.5
3 x M6
2

C198
Back Plate Mount
Ø80
2 - 22
22 - 63
4000
55
66
16
66
50
~
3.5
3 x M6
2

C200
Back Plate Mount
Ø100
2 - 30
30 - 80
3500
72
84
22
74.5
55
~
3.5
3 x M8
3.5

C202
Back Plate Mount
Ø125
2.5 - 40
38 - 110
3000
95
108
30
84
58
~
4
3 x M8
5

C280
Front Mount
Ø130
3 - 40
40 - 130
3000
100
115
30
86
60.5
~
3.5
3 x M8
6

C198
Back Plate Mount
Ø80
2 - 22
22 - 63
4000
55
66
16
66
50
~
3.5
3 x M6
2

C203
Back Plate Mount
Ø160
3 - 55
55 - 145
2500
130
142
45
95
65
~
5
3 x M8
9.4

C198
Back Plate Mount
Ø80
2 - 22
22 - 63
4000
55
66
16
66
50
~
3.5
3 x M6
2

C2806
Front Mount
Ø160
3 - 55
55 - 145
2500
130
142
45
95
65
~
5
3 x M8
6

C205
Back Plate Mount
Ø200
4 - 85
65 - 200
2000
165
180
65
109
75
~
5
3 x M10
16.5

C198
Back Plate Mount
Ø80
2 - 22
22 - 63
4000
55
66
16
66
50
~
3.5
3 x M6
2

C281
Front Mount
Ø200
4 - 85
65 - 200
2000
165
180
65
109
75
~
5
3 x M10
19.3

C206
Back Plate Mount
Ø250
6 - 110
90 - 250
1600
206
226
80
120
80
~
5
3 x M12
26

C208
Back Plate Mount
Ø320
11.5 - 165
110 - 340
1200
270
290
100
142
95
~
11
3 x M16
47.5

C210
Back Plate Mount
Ø400
15 - 210
120 - 400
1000
340
368
145
154
106.5
~
6
3 x M16
71

Z00799
Back Plate Mount
Ø273
6 - 260
70 - 270 ?
1800
230
250
89
~
87
~
~
3 x M12
31.8
