C281 3 Jaw Self Centring Lathe Chuck K11 SERIES

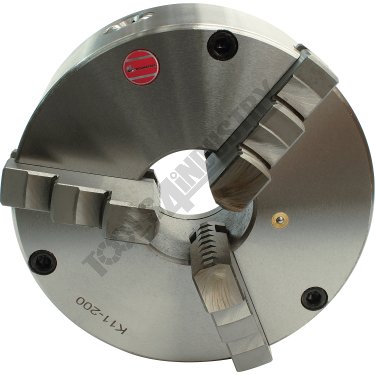

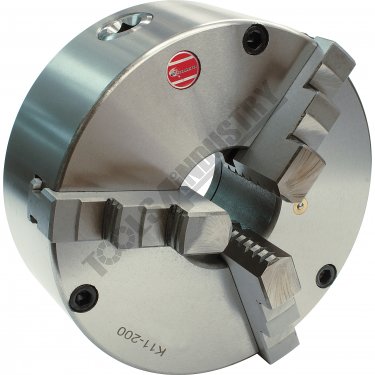

3 Jaw Self Centring Lathe Chuck

FUERDA
Code:C281
Model:K11 SERIES
Capacity:200mm
Weight (Nett):19.3 Kg
Weight (Cubic):0.016 m3
Weight (Freight):19.3 Kg
Dimensions:28 x 28 x 21
In Stock:Yes
Instruction Sheets
LATHE CHUCK - SAFETY NOTES [35.87 KB]
How to Mount a Lathe Chuck [911.52 KB]

3 Jaw Self Centring Lathe Chuck

Description
K11 SERIES Cast Iron Body

Standard GB/T 4346.2-2002

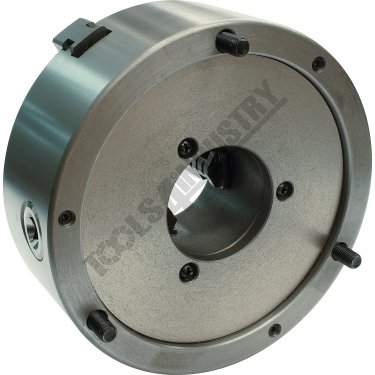

200mm FRONT MOUNTING 3-JAW SELF-CENTRING LATHE CHUCK - Back Plate Mount

Ideal for Rotary Tables

Features
- World-class and industry leader in the manual lathe chuck field with over 30 years of manufacturing
- Fuerda quality assurance and accuracy testing ensure standards remain high. Fuerda is ISO 9001-2000 approved
- Each chuck is supplied with a set of one piece inside and outside jaws and a chuck key
-
-

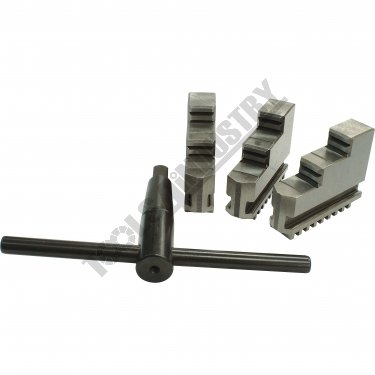

Includes
• Outside jaws
• Inside jaws
• Mounting screws
• Chuck key

Array
(
    [0] => C198
    [1] => C200
    [2] => C202
    [5] => C203
    [8] => C205
    [11] => C206
    [14] => C208
    [18] => C210
    [4] => C280
    [9] => C281
    [7] => C2831
    [24] => C2832
    [13] => C2833
    [17] => C2834
    [20] => C702
    [3] => C704
    [25] => C706
    [6] => C7061
    [23] => C708
    [10] => C7081
    [22] => C710
    [12] => C7101
    [21] => C712
    [16] => C7121
    [19] => C7161
    [15] => ZC712
)

All Sorts: Array
(
    [0] => C198
    [1] => C200
    [2] => C202
    [3] => C203
    [4] => C205
    [5] => C206
    [6] => C208
    [7] => C210
    [8] => C280
    [9] => C281
    [10] => C2831
    [11] => C2832
    [12] => C2833
    [13] => C2834
    [14] => C702
    [15] => C704
    [16] => C706
    [17] => C7061
    [18] => C708
    [19] => C7081
    [20] => C710
    [21] => C7101
    [22] => C712
    [23] => C7121
    [24] => C7161
    [25] => ZC712
)

All Codes +  All Sorts: Array
(
    [C198] => C198
    [C200] => C200
    [C202] => C202
    [C203] => C203
    [C205] => C205
    [C206] => C206
    [C208] => C208
    [C210] => C210
    [C280] => C280
    [C281] => C281
    [C2831] => C2831
    [C2832] => C2832
    [C2833] => C2833
    [C2834] => C2834
    [C702] => C702
    [C704] => C704
    [C706] => C706
    [C7061] => C7061
    [C708] => C708
    [C7081] => C7081
    [C710] => C710
    [C7101] => C7101
    [C712] => C712
    [C7121] => C7121
    [C7161] => C7161
    [ZC712] => ZC712
)

Current: 10
Max: 20
Back: -1
Next: 1
First: C280
Second: C281
Third: C2831
Fourth: C2832

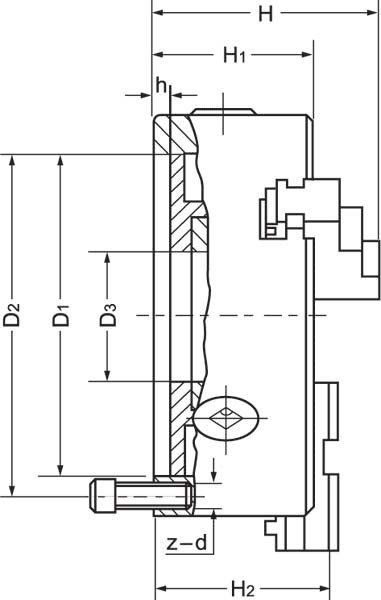

CODESizeOutside JawInside JawSpeedD1D2D3 (bore)HH1H2hz-dWeight (nett)
C19880mm2-22mm22-63mm4000rpm55mm66mm16mm66mm50mm-3.5mm3 x M62.2kg
C200100mm2-30mm30-80mm3500rpm72mm84mm22mm74.5mm55mm-3.5mm3 x M83.7kg
C202125mm2.5-40mm38-110mm3000rpm95mm108mm30mm78mm55mm-3.5mm3 x M86kg
C203160mm3-55mm55-145mm2500rpm130mm142mm45mm95mm65mm-6mm3 x M89kg
C205200mm4-85mm65-200mm2000rpm165mm180mm65mm109mm75mm-5mm3 x M1016.8kg
C206250mm6-110mm90-250mm1600rpm206mm226mm80mm130mm80mm84mm5mm3 x M1225kg
C208320mm11.5-165mm110-340mm1200rpm272mm296mm100mm154.5mm96mm102.5mm6mm3 x M1646kg
C210400mm15-210mm120-400mm1000rpm340mm368mm130mm172mm100mm108mm6mm3 x M1671kg
C280130mm3-40mm40-130mm3000rpm115mm115mm30mm97mm60mm-5mm3 x M85.6kg
C281200mm4-85mm65-200mm2000rpm180mm180mm65mm109mm75mm~5mm3 x M1015.5kg
C2831160mm3-55mm55-145mm4000rpm125mm140mm45mm94mm65mm-5mm6 x M109kg
C2832200mm4-85mm65-200mm3500rpm160mm176mm65mm109mm75mm-5mm6 x M1016.8kg
C2833250mm6-110mm90-250mm3000rpm200mm224mm80mm120mm80mm84mm5mm6 x M1229kg
C2834315mm11.5-165mm110-340mm2300rpm260mm286mm100mm156.5mm90mm102.5mm6mm6 x M1650kg
C704125mm3-49mm38-125mm4500rpm100mm110mm28mm77mm58mm-4mm3 x M84.8kg
C7061160mm3-64mm50-160mm3000rpm125mm140mm42mm96.5mm64.5mm-4mm6 x M1010kg
C7081200mm4-90mm60-200mm2500rpm160mm176mm55mm104mm75mm-4mm6 x M1018kg
C7101250mm5-118mm77-250mm2000rpm200mm224mm76mm119mm85mm-4mm6 x M1227kg
C7121315mm10-131mm90-315mm1500rpm260mm286mm103mm137mm94mm-5mm6 x M1650kg
C7161400mm10-180mm103-400mm1000rpm330mm362mm136mm160mm105mm-5mm6 x M1685kg

Recommended Accessories

C2853 - Soft Jaws Suit 200mm Lathe Chuck
C2876 - Standard Hard Jaw Set Suits 200mm 3 Jaw Lathe Chuck
C2877 - Reverse Hard Jaw Set Suits 200mm 3 Jaw Lathe Chuck
C2864 - Chuck Key 12mm
C2886 - Suits 200mm K11 Fuerda Chuck Replacement Scroll
C1974 - Suit 200mm Chuck Replacement Pinion 200mm
L287 - D1-4 Camlock Back Plate 200mm
L289 - D1-6 Camlock Back Plate 320mm
L286 - D1-8 Camlock Back Plate 400mm
L2884 - D1-11 Camlock Back Plate 400mm
L288 - D1-11 Camlock Back Plate 500mm
