L2875 Camlock Back Plate D1-5

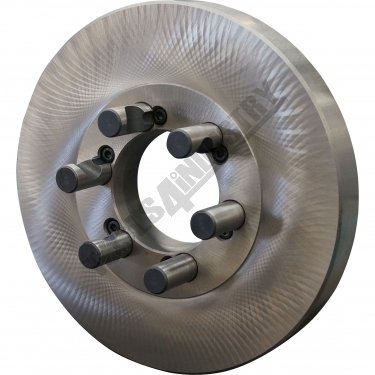

Camlock Back Plate

Code:L2875
Model:D1-5
Capacity:250mm
Weight (Nett):8 Kg
Weight (Cubic):0.004 m3
Weight (Freight):8 Kg
Dimensions:25 x 25 x 6
In Stock:Contact your Dealer
Instruction Sheets

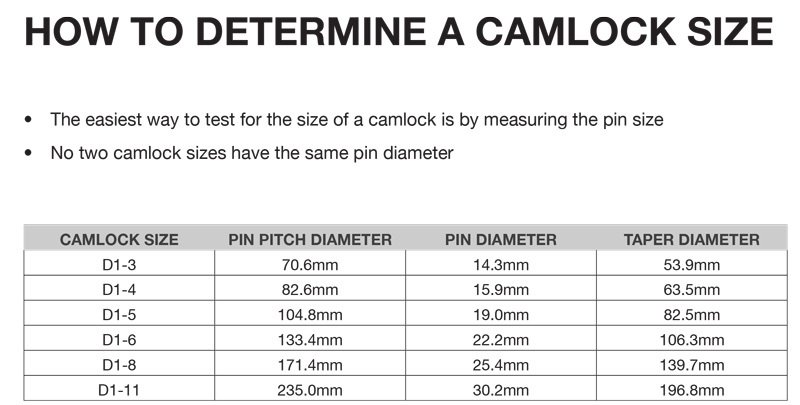

How to determine a Camlock Size [49.95 KB]

Camlock Back Plate

Description
Cast iron back plate finished machined on one side to fit D1-5 spindle nose. The other face and outside diameter need to be machined to suit chuck size.
