This Product Is No Longer Available
| Code | C7061 |
|---|---|
| Model | PS Series |
| Capacity | Ø160mm |
| Weight (kg) | 10 |
| Weight (m3) | 0.004 |
| Weight (Freight) | 10 |
| Dimensions (cm) | 17 x 17.5 x 13.4 |
Product Brochure
This Product Is No Longer Available

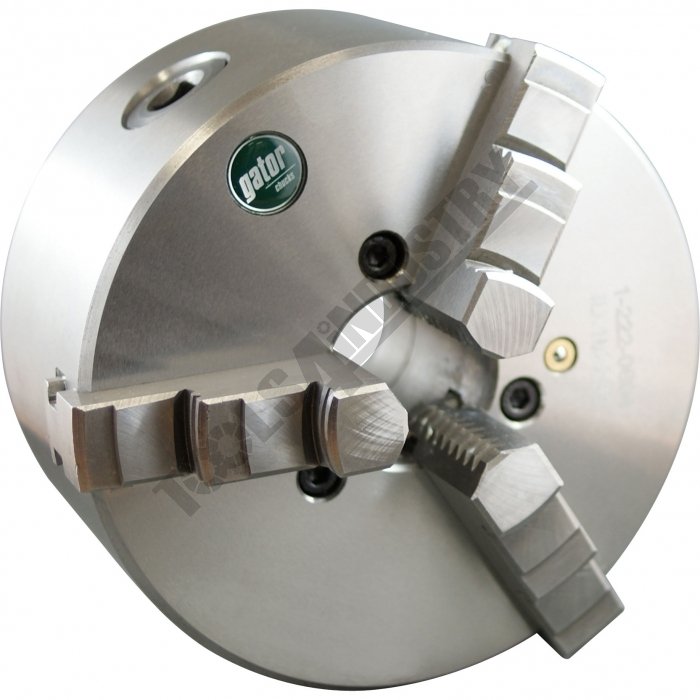

3 Jaw Self Centring Lathe Chuck PS Series Ø160mm
Description
PS Series semi steel body lathe chucks are supplied with one piece standard and reverse jaws.Gator is a world class state of the art producer of manual lathe chucks with over 30 years of manufacturing experience and production excellence. Gator chucks are manufacturing to DIN 55029 standard and built to last for precision machining applications. The state of the art, ISO 9001-2000 manufacturing facility is quality focused producing chucks for the worldwide market.
The PS Series lathe chucks are available in direct mount or back plate mount.
Features
- Comprehensive quality assurance and accuracy testing ensure standards remain high
- Each chuck is supplied with a set of inside and outside jaws and a chuck key
- All bearing surfaces are precisely machined
- Scroll plate is drop forged from fine alloy steel and finished with case hardening
- Jaw teeth, guideways & pinions are hardened & ground
Includes
- Outside jaws
- Inside jaws
- Mounting screws
- Chuck key

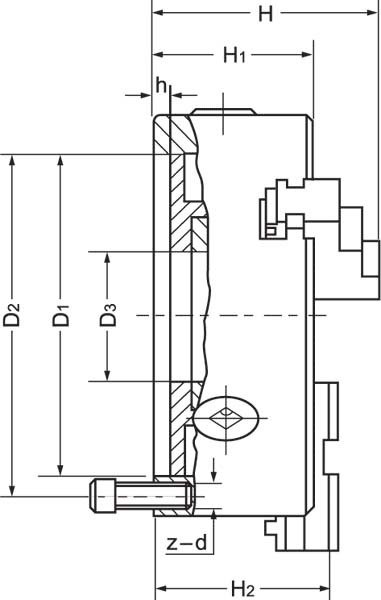

Specifications
- Compare 22 Products
- ORDER CODE
- Mounting Type
- Chuck Sizemm
- Outside Jawmm
- Inside Jawmm
- Speedrpm
- D1mm
- D2mm
- D3 (bore)mm
- Hmm
- H1mm
- H2mm
- h (lowercase)mm
- z-dmm
- Nett Weightkg
- C7061
- Back Plate Mount
- Ø160
- 3 - 64
- 50 - 160
- 3000
- 125
- 140
- 42
- 96.5
- 64.5
- ~
- 4
- 6 x M10
- 10
- C7101
- Back Plate Mount
- Ø250
- 5 - 118
- 77 - 250
- 2000
- 200
- 224
- 76
- 119
- 85
- ~
- 4
- 6 x M12
- 27
- C7121
- Back Plate Mount
- Ø315
- 10 - 131
- 90 - 315
- 1500
- 260
- 286
- 103
- 137
- 94
- ~
- 5
- 6 x M16
- 50
- ZC712
- Back Plate Mount
- Ø315
- ~
- ~
- 1800
- 265
- 290
- 108
- 140
- 100
- ~
- 6
- 4 x M12
- 47
- C198
- Back Plate Mount
- Ø80
- 2 - 22
- 22 - 63
- 4000
- 55
- 66
- 16
- 66
- 50
- ~
- 3.5
- 3 x M6
- 2
- C198
- Back Plate Mount
- Ø80
- 2 - 22
- 22 - 63
- 4000
- 55
- 66
- 16
- 66
- 50
- ~
- 3.5
- 3 x M6
- 2
- C200
- Back Plate Mount
- Ø100
- 2 - 30
- 30 - 80
- 3500
- 72
- 84
- 22
- 74.5
- 55
- ~
- 3.5
- 3 x M8
- 3.5
- C202
- Back Plate Mount
- Ø125
- 2.5 - 40
- 38 - 110
- 3000
- 95
- 108
- 30
- 84
- 58
- ~
- 4
- 3 x M8
- 5
- C280
- Front Mount
- Ø130
- 3 - 40
- 40 - 130
- 3000
- 100
- 115
- 30
- 86
- 60.5
- ~
- 3.5
- 3 x M8
- 6
- C198
- Back Plate Mount
- Ø80
- 2 - 22
- 22 - 63
- 4000
- 55
- 66
- 16
- 66
- 50
- ~
- 3.5
- 3 x M6
- 2
- C203
- Back Plate Mount
- Ø160
- 3 - 55
- 55 - 145
- 2500
- 130
- 142
- 45
- 95
- 65
- ~
- 5
- 3 x M8
- 9.4
- C198
- Back Plate Mount
- Ø80
- 2 - 22
- 22 - 63
- 4000
- 55
- 66
- 16
- 66
- 50
- ~
- 3.5
- 3 x M6
- 2
- C2806
- Front Mount
- Ø160
- 3 - 55
- 55 - 145
- 2500
- 130
- 142
- 45
- 95
- 65
- ~
- 5
- 3 x M8
- 6
- C205
- Back Plate Mount
- Ø200
- 4 - 85
- 65 - 200
- 2000
- 165
- 180
- 65
- 109
- 75
- ~
- 5
- 3 x M10
- 16.5
- C198
- Back Plate Mount
- Ø80
- 2 - 22
- 22 - 63
- 4000
- 55
- 66
- 16
- 66
- 50
- ~
- 3.5
- 3 x M6
- 2
- C281
- Front Mount
- Ø200
- 4 - 85
- 65 - 200
- 2000
- 165
- 180
- 65
- 109
- 75
- ~
- 5
- 3 x M10
- 19.3
- C206
- Back Plate Mount
- Ø250
- 6 - 110
- 90 - 250
- 1600
- 206
- 226
- 80
- 120
- 80
- ~
- 5
- 3 x M12
- 26
- C208
- Back Plate Mount
- Ø320
- 11.5 - 165
- 110 - 340
- 1200
- 270
- 290
- 100
- 142
- 95
- ~
- 11
- 3 x M16
- 47.5
- C210
- Back Plate Mount
- Ø400
- 15 - 210
- 120 - 400
- 1000
- 340
- 368
- 145
- 154
- 106.5
- ~
- 6
- 3 x M16
- 71
- Z00799
- Back Plate Mount
- Ø273
- 6 - 260
- 70 - 270 ?
- 1800
- 230
- 250
- 89
- ~
- 87
- ~
- ~
- 3 x M12
- 31.8
- C7161
- Back Plate Mount
- Ø400
- 10 - 180
- 103 - 400
- 1000
- 330
- 362
- 136
- 160
- 105
- ~
- 5
- 6 x M16
- 85
- C7081
- Back Plate Mount
- Ø200
- 4 - 90
- 60 - 200
- 2500
- 160
- 176
- 55
- 104
- 75
- ~
- 4
- 6 x M10
- 18
| ORDER CODE | Back Plate Mount |
|---|---|
| Mounting Type | Ø160 |
| Chuck Sizemm | 3 - 64 |
| Outside Jawmm | 50 - 160 |
| Inside Jawmm | 3000 |
| Speedrpm | 125 |
| D1mm | 140 |
| D2mm | 42 |
| D3 (bore)mm | 96.5 |
| Hmm | 64.5 |
| H1mm | ~ |
| H2mm | 4 |
| h (lowercase)mm | 6 x M10 |
| z-dmm | 10 |
| Nett Weightkg |
