| Code | W07880 |
|---|---|
| Model | WT16-VB90120 |
| Weight (kg) | 1 |
| Weight (m3) | 0.000 |
| Weight (Freight) | 1 |
| Dimensions (cm) | 10 x 5 x 5 |

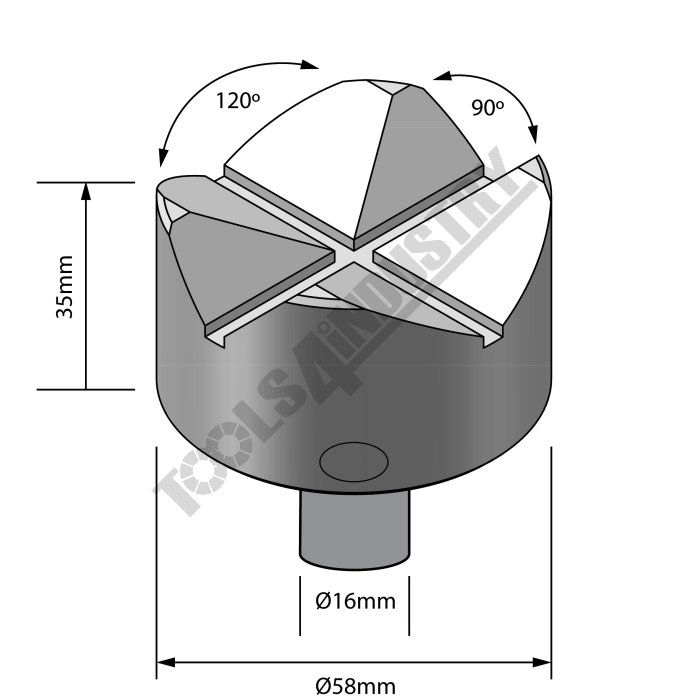

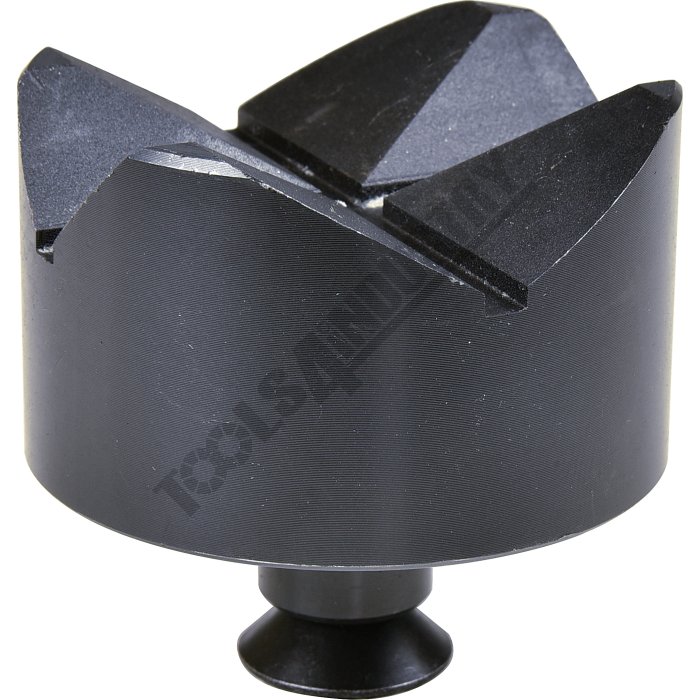

Cross Type 90 / 120º V-Pad WT16-VB90120
Description
These precision machined cross type V-Pad for use on any welding table with 16mm fixturing holes. They can be used to hold round material up to 80mm to allow for infinite adjustments in fixturing.Features
- Precision machined with cross type V
- 90 Degree V to hold up to 50mm round or square on its edge
- 120 Degree V to hold up to 80mm round

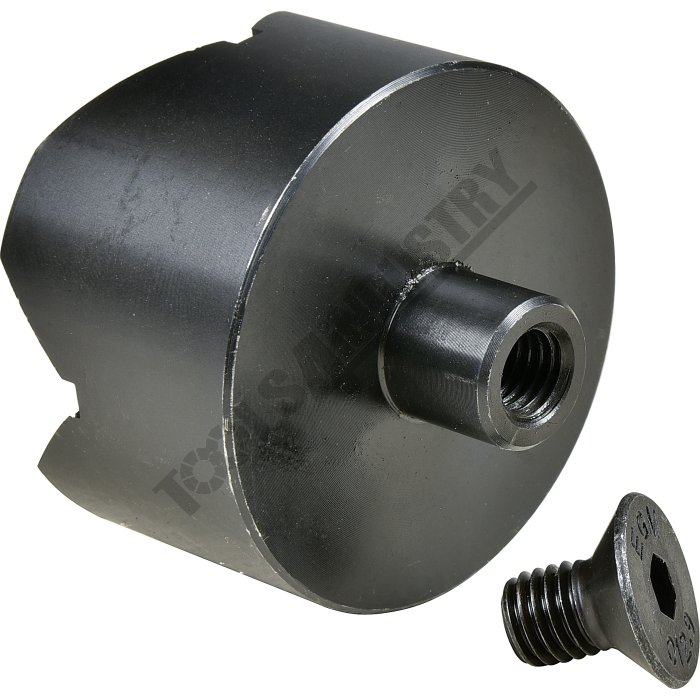

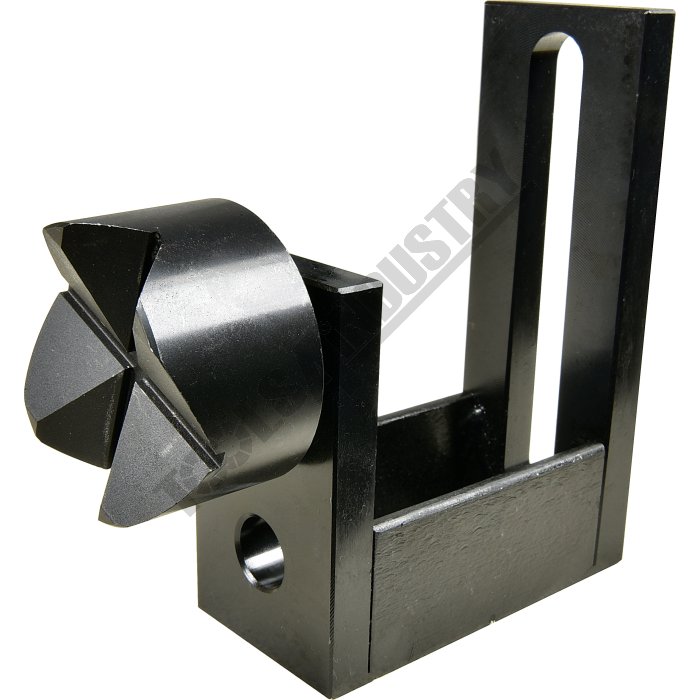

- Includes countersunk screw for horizontal use

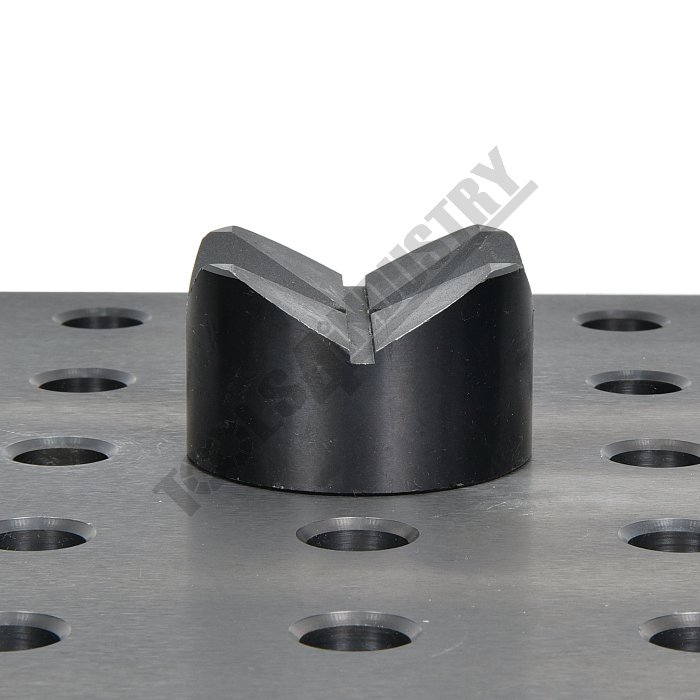

- Suits Ø16mm Welding Tables Holes
Specifications
- Compare 8 Products
- ORDER CODE
- MODEL
- Suits Table Hole DiameterØ
- Type
- Degree Opening
- Size
- Quantity Per PackNo.
- Suits
- Nett Weightkg
- W07880
- WT16-VB90120
- 16mm
- Cross V-Pad
- 90 + 120 Degree
- ~
- 1
- ~
- 1.0
- W07885
- WT16-VB65130
- 16mm
- V-Pad
- 130 Degree
- ~
- 1
- ~
- 3.0
- W07884
- WT16-VSS90
- ~
- V-Square Support
- 90
- ~
- ~
- ~
- 1.0
- W08012
- T64211
- ~
- BuildPro
- ~
- Ø38 x 27.5mm
- 1
- ~
- 0.09
- W08015
- T64310
- 16mm
- V-Pad
- 120 Degree
- Ø61 x 43mm
- 1
- ~
- 0.6
- W08360
- WT28-VB90120
- 28mm
- Cross V-Pad
- 90 & 120 Degree
- 58mm OD
- ~
- ~
- 0.51
- W08506
- SCVM-90135
- ~
- Magnetic Cross V-Pad
- 90 + 135 Degree
- ~
- 4
- Welding Tables & Swivel
Clamp Pads - 1.0
- W08507
- SCV-90135
- 16mm
- Cross V-Pad
- 90 + 135 Degree
- ~
- 4
- ~
- 1.0
| ORDER CODE | WT16-VB90120 |
|---|---|
| MODEL | 16mm |
| Suits Table Hole DiameterØ | Cross V-Pad |
| Type | 90 + 120 Degree |
| Degree Opening | ~ |
| Size | 1 |
| Quantity Per PackNo. | ~ |
| Suits | 1.0 |
| Nett Weightkg |
