| Code | W08507 |
|---|---|
| Model | SCV-90135 |
| Weight (kg) | 0.52 |
| Weight (m3) | 0.001 |
| Weight (Freight) | 0.52 |
| Dimensions (cm) | 20 x 14 x 3 |

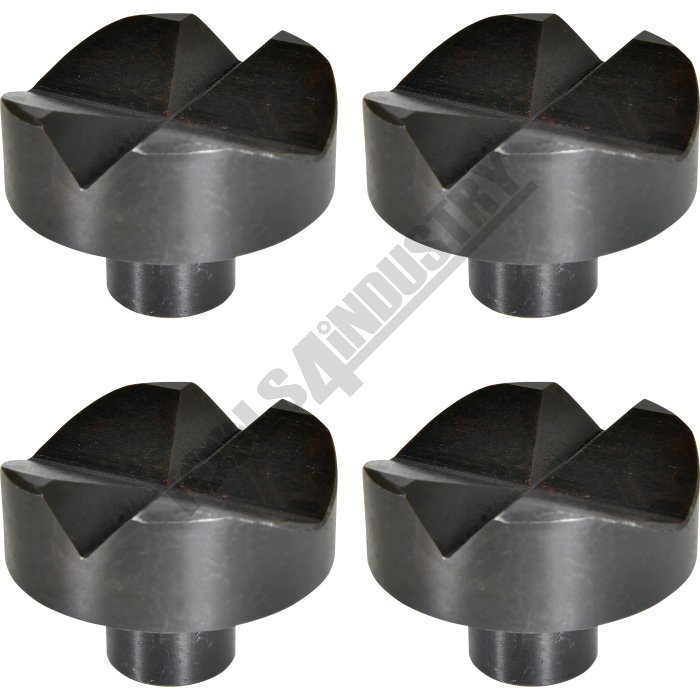

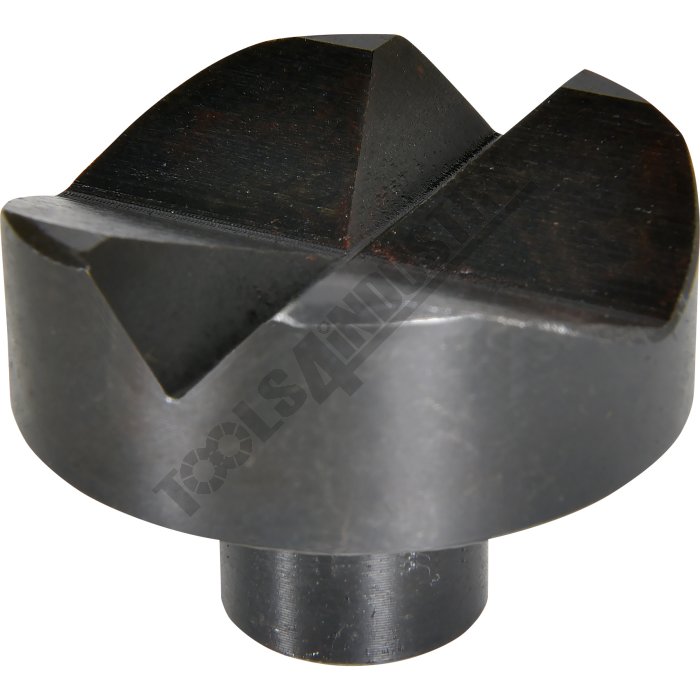

Cross Type 90 / 135º V-Pad (4 Piece Pack) SCV-90135
Description
V blocks are used as a support between the table surface and round workpieces & can be used in any of the 16mm table or fixture element holes. The cross-type design allows you to hold round material or square on its edge giving you endless flexibility in your clamping tasks. The spigot also has an M10 internal thread if it needs to be bolted in a vertical plane.Features

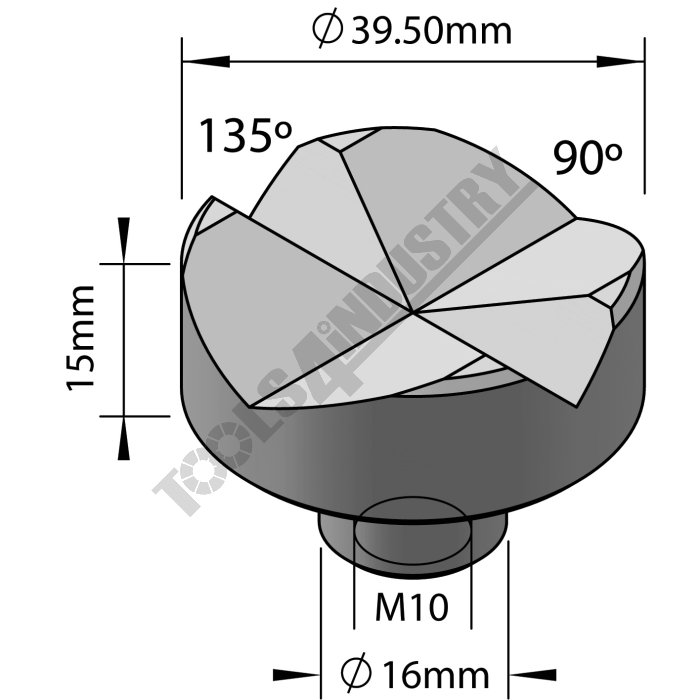

- 16mm spigot to suit table or fixture element holes
- 90 Degree V to hold up to 20mm round or square on its edge
- 135 Degree V to hold up to 50mm round
- CNC machined surfaces to ensure precision tolerances
- Burnished finish surface treatment to prevent rust

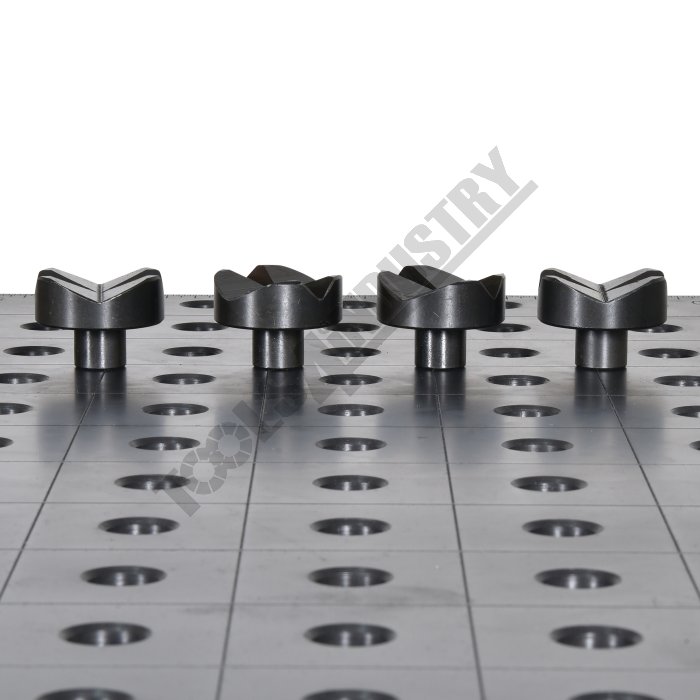

- Suits Ø16mm Welding Tables Holes
Specifications
- Compare 8 Products
- ORDER CODE
- MODEL
- Suits Table Hole DiameterØ
- Type
- Degree Opening
- Size
- Quantity Per PackNo.
- Suits
- Nett Weightkg
- W08507
- SCV-90135
- 16mm
- Cross V-Pad
- 90 + 135 Degree
- ~
- 4
- ~
- 1.0
- W07880
- WT16-VB90120
- 16mm
- Cross V-Pad
- 90 + 120 Degree
- ~
- 1
- ~
- 1.0
- W07885
- WT16-VB65130
- 16mm
- V-Pad
- 130 Degree
- ~
- 1
- ~
- 3.0
- W07884
- WT16-VSS90
- ~
- V-Square Support
- 90
- ~
- ~
- ~
- 1.0
- W08012
- T64211
- ~
- BuildPro
- ~
- Ø38 x 27.5mm
- 1
- ~
- 0.09
- W08015
- T64310
- 16mm
- V-Pad
- 120 Degree
- Ø61 x 43mm
- 1
- ~
- 0.6
- W08360
- WT28-VB90120
- 28mm
- Cross V-Pad
- 90 & 120 Degree
- 58mm OD
- ~
- ~
- 0.51
- W08506
- SCVM-90135
- ~
- Magnetic Cross V-Pad
- 90 + 135 Degree
- ~
- 4
- Welding Tables & Swivel
Clamp Pads - 1.0
| ORDER CODE | SCV-90135 |
|---|---|
| MODEL | 16mm |
| Suits Table Hole DiameterØ | Cross V-Pad |
| Type | 90 + 135 Degree |
| Degree Opening | ~ |
| Size | 4 |
| Quantity Per PackNo. | ~ |
| Suits | 1.0 |
| Nett Weightkg |
