Code	T349
Capacity	Ø20mm
Weight (kg)	0.8
Weight (m³)	0.000
Weight (Freight)	0.8
Dimensions (cm)	14 x 5.5 x 5.5

TOOLMASTER

1 Year Warranty

Taiwan

Product Brochure

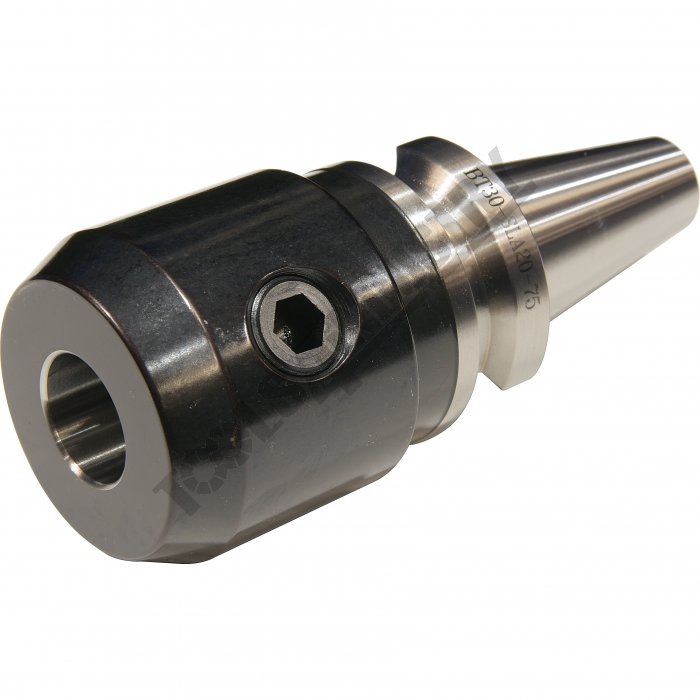

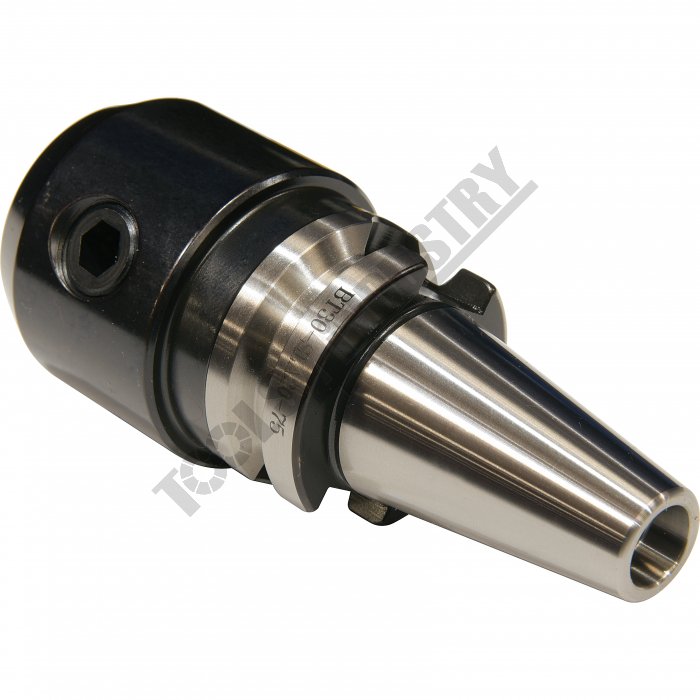

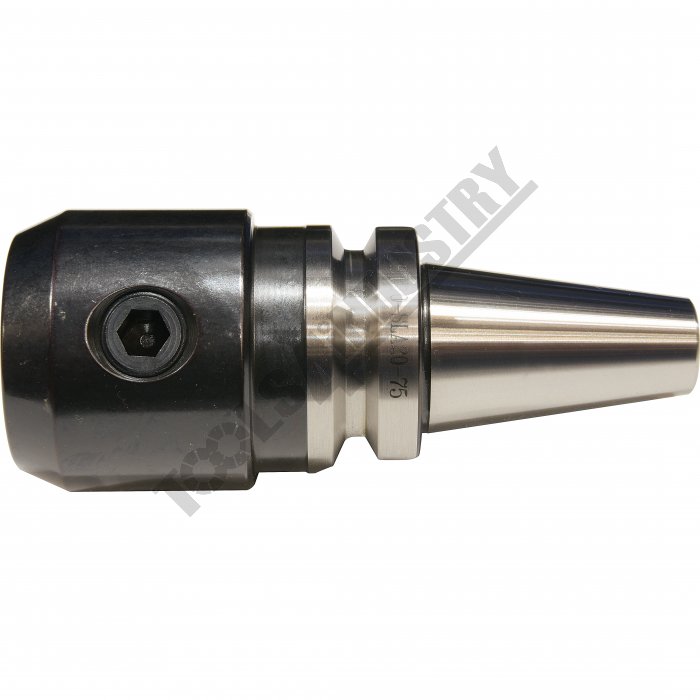

BT30-SLA20-75 Side Lock Holder (BT30) Ø20mm

Description

Precision ground holder for use with 'Ripper' cutters and shank milling cutters where heavy milling is required

Features

Precision ground
Manufactured to MAS403BT30 standards
M12 Pull Stud thread

Specifications

Compare 7 Products

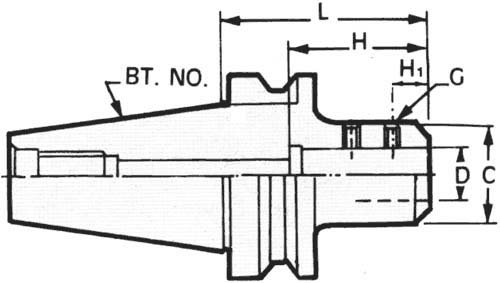

ORDER CODE
MODEL
TaperBT
Dmm
Cmm
Hmm
Lmm
H1mm
Gmm
Nett Weightkg

T349
BT30-SLA20-75
BT30
20
52
60
75
25
M12
0.8

T164
BT40-SLN12
BT40
12
42
40
75
20
M12
1.3

T165
BT40-SLA16
BT40
16
48
50
75
20
M14
1.5

T167
BT40-SLA20
BT40
20
50
60
90
23
M16
1.5

T169
BT40-SLA25
BT40
25
62
65
90
25
M18
1.5

T171
BT40-SLA32
BT40
32
60
70
90
25
M14
1.5

T348
BT30-SLA16-75
BT30
16
48
60
75
25
M12
0.8

ORDER CODE	BT30-SLA20-75
MODEL	BT30
TaperBT	20
Dmm	52
Cmm	60
Hmm	75
Lmm	25
H1mm	M12
Gmm	0.8
Nett Weightkg

Recommended Accessories

T142

Pull Stud
MAS P40T 45º
BT-40

Code: T142

T144

Pull Stud
OTT SYSTEM
BT-40

Code: T144

T145

Pull Stud

BT-40

Code: T145

M519

End Mill - Ø12mm
E9DAP10-D12
Carbide Inserts
Insert tip not included

Code: M519
