Code	T167
Capacity	Ø20mm
Weight (kg)	1.98
Weight (m³)	0.001
Weight (Freight)	1.98
Dimensions (cm)	21 x 7 x 7

TOOLMASTER

1 Year Warranty

Taiwan

Product Brochure

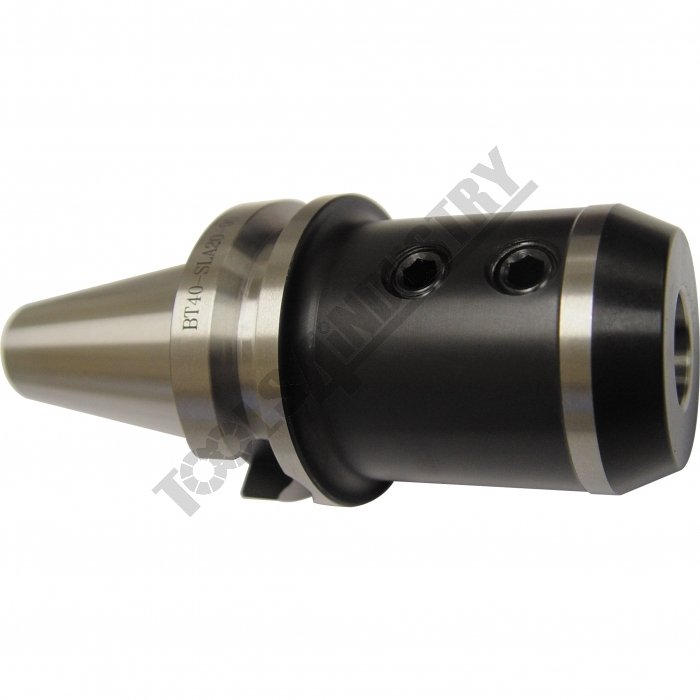

BT40-SLA20 Side Lock Holder (BT40) Ø20mm

Description

Precision ground holder for use with 'Ripper' cutters and shank milling cutters where heavy milling is required

Features

Precision ground
Manufactured to MAS403BT40 standard
M16 Pull Stud thread

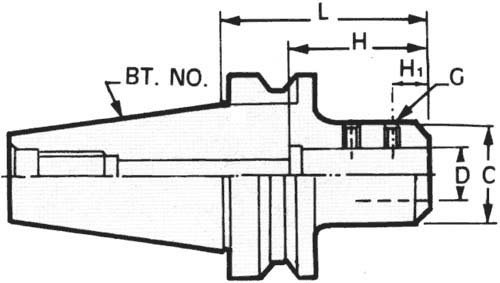

Specifications

Compare 7 Products
ORDER CODE
MODEL
TaperBT
Dmm
Cmm
Hmm
Lmm
H1mm
Gmm
Nett Weightkg

T167
BT40-SLA20
BT40
20
50
60
90
23
M16
1.5

T169
BT40-SLA25
BT40
25
62
65
90
25
M18
1.5

T171
BT40-SLA32
BT40
32
60
70
90
25
M14
1.5

T348
BT30-SLA16-75
BT30
16
48
60
75
25
M12
0.8

T349
BT30-SLA20-75
BT30
20
52
60
75
25
M12
0.8

T164
BT40-SLN12
BT40
12
42
40
75
20
M12
1.3

T165
BT40-SLA16
BT40
16
48
50
75
20
M14
1.5

ORDER CODE	BT40-SLA20
MODEL	BT40
TaperBT	20
Dmm	50
Cmm	60
Hmm	90
Lmm	23
H1mm	M16
Gmm	1.5
Nett Weightkg
