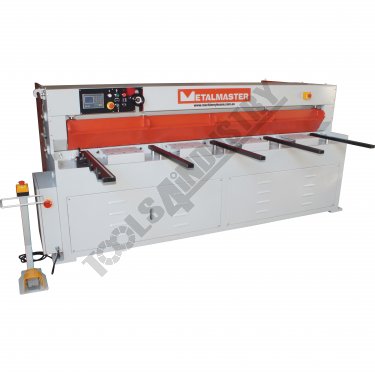

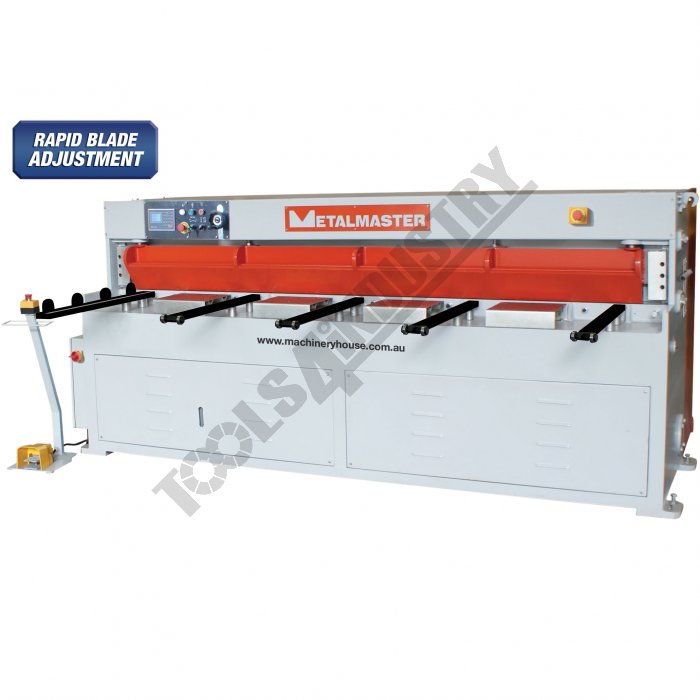

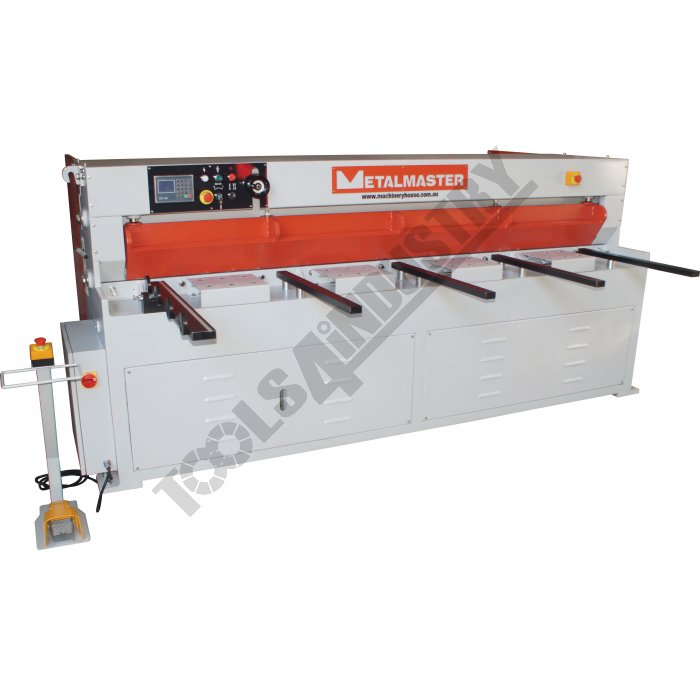

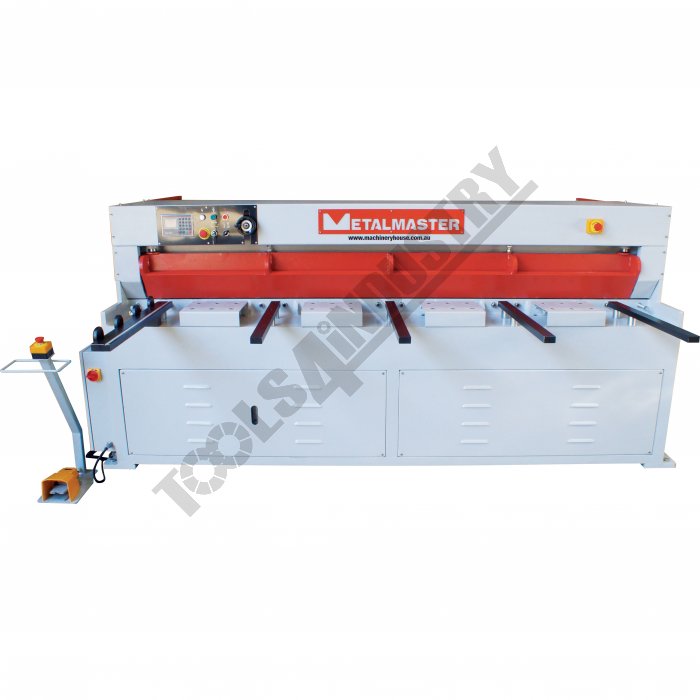

Hydraulic NC Guillotine HG-840B 2500 x 4mm Mild Steel Shearing Capacity

Features

• 2500mm x 4mm cutting capacity
• 5.5kW / 7.5hp 415V motor

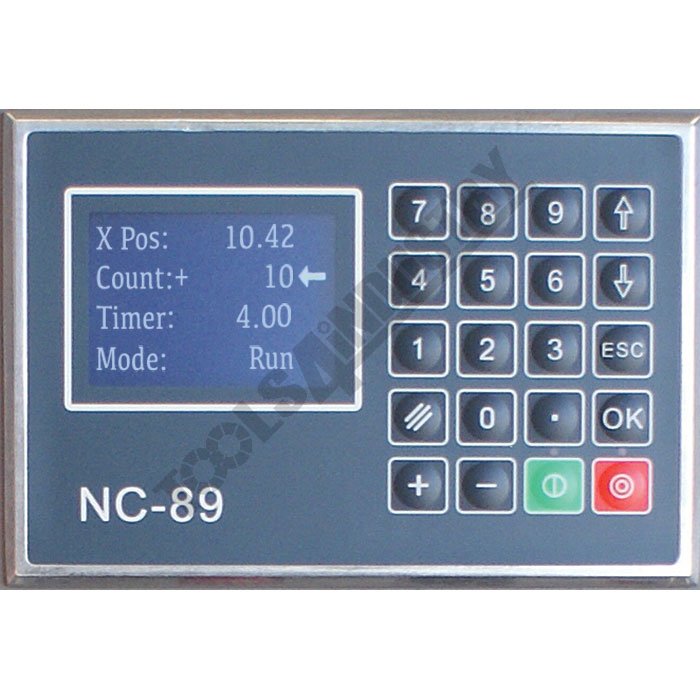

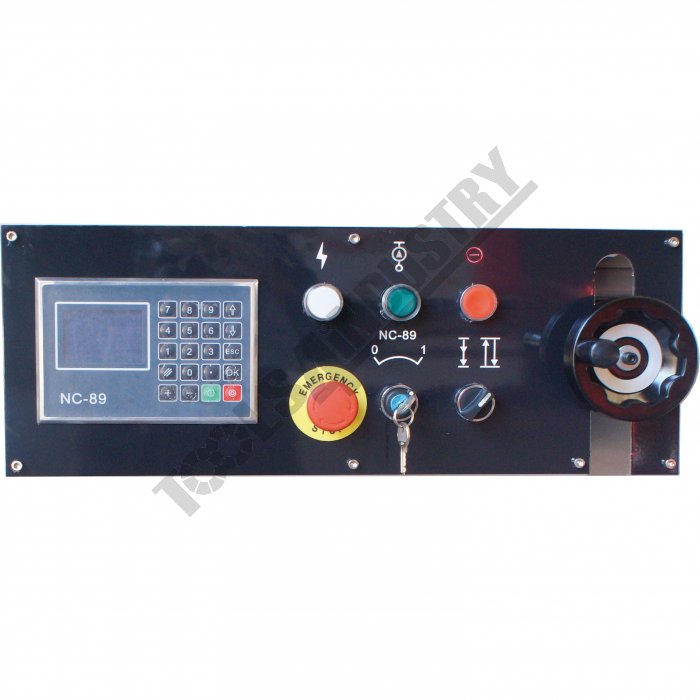

• Ezy-Set NC-89 Go-To digital display controlled backgauge with DRO counter

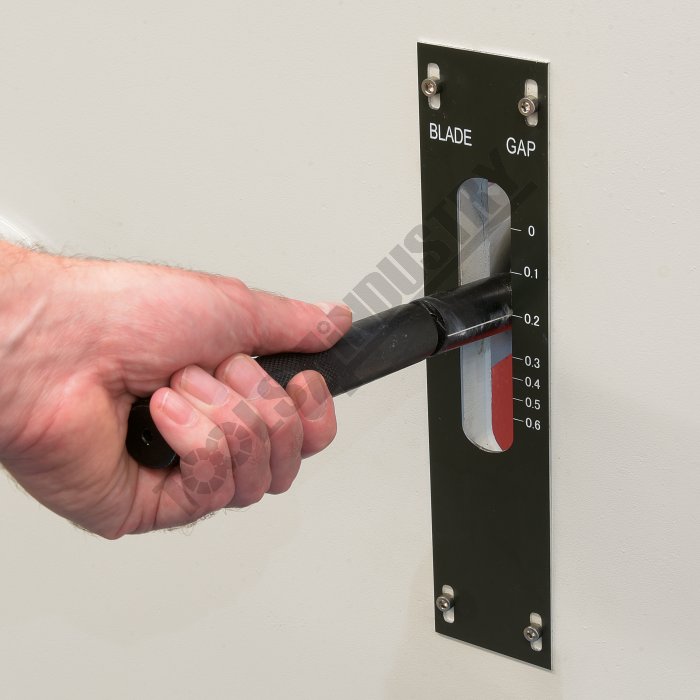

• Quick action blade clearance adjustment for shearing material 1 - 4mm
• Hydraulic material clamping for accurate shearing

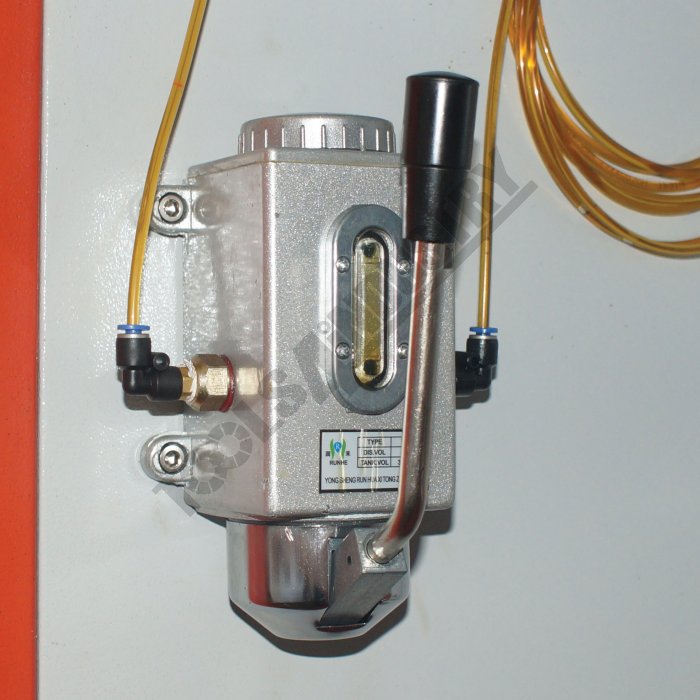

• One shot lubrication pump & reservoir for slideway protection

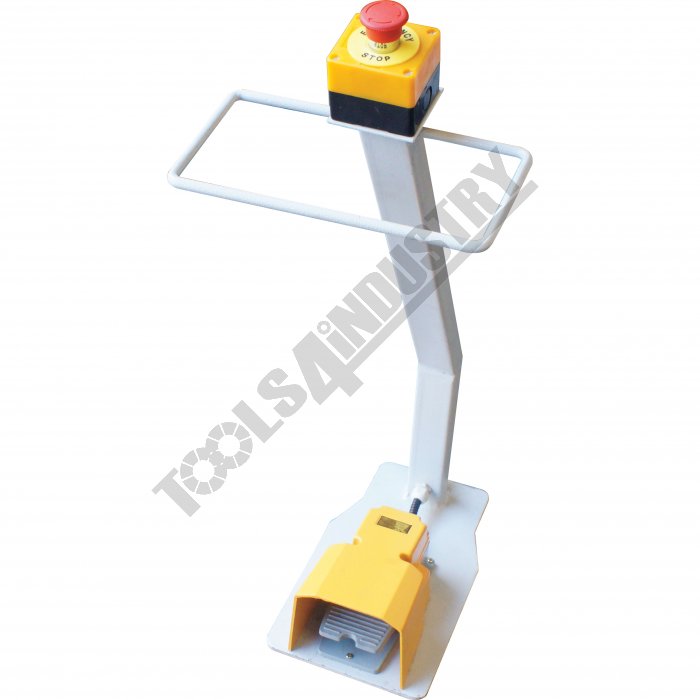

• Roving foot pedal control
• Clamp beam design allows clear view to shadow line on material
• Blades made from 9CrSi material suitable for cutting stainless steel

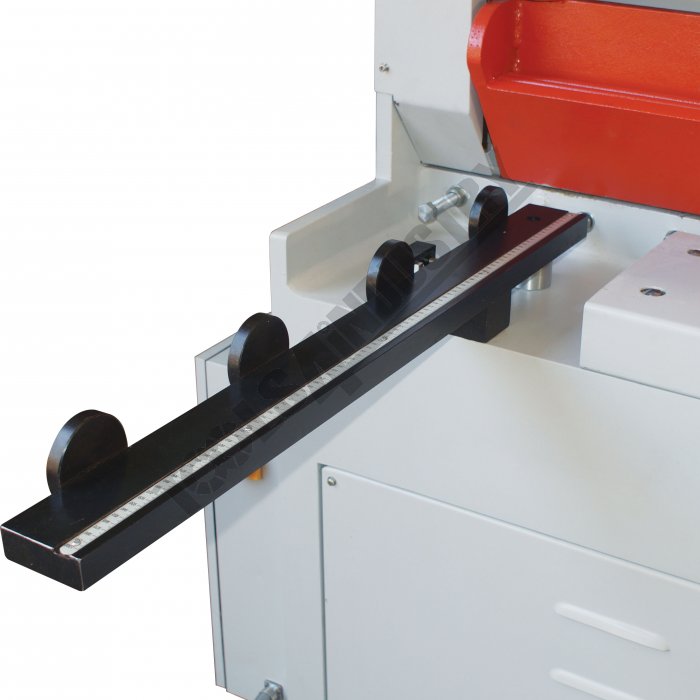

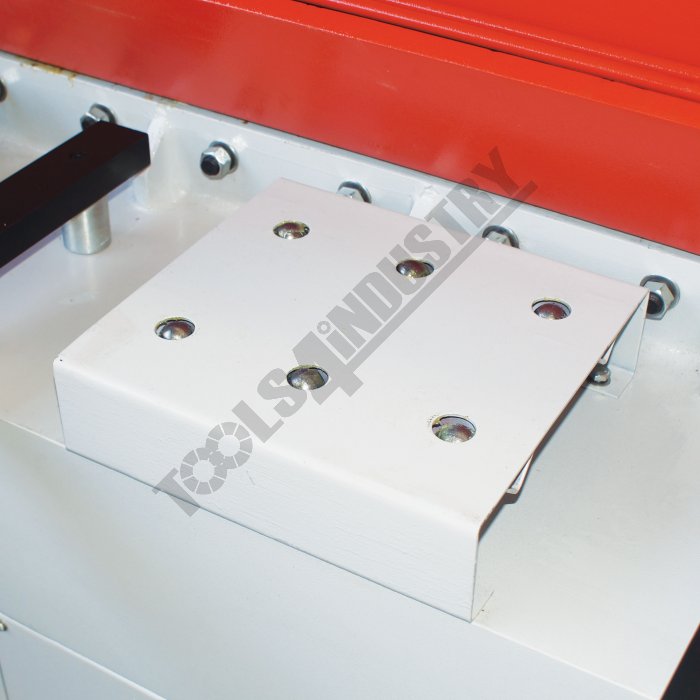

• Transfer balls inserted into work table allowing larger sheets to be easily positioned to the cut position and squaring arm.

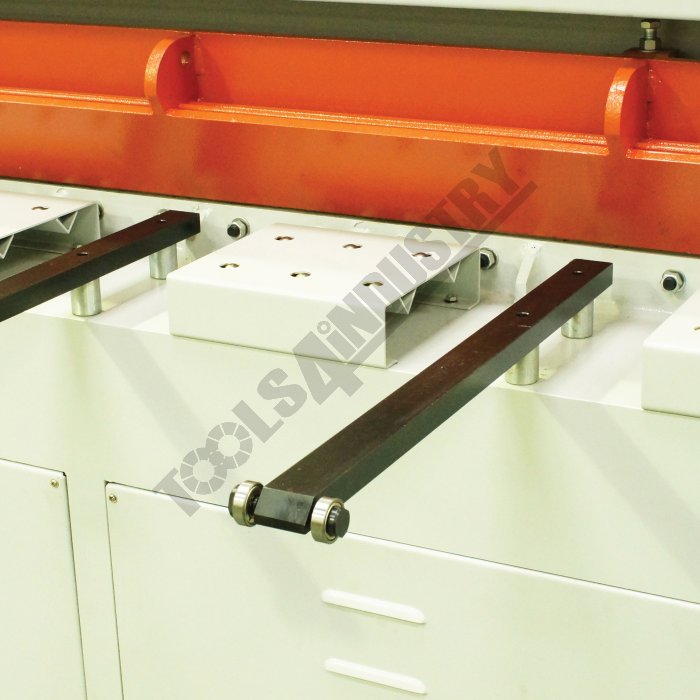

• Front sheet supports with ball bearing guides preventing material damage when setting up

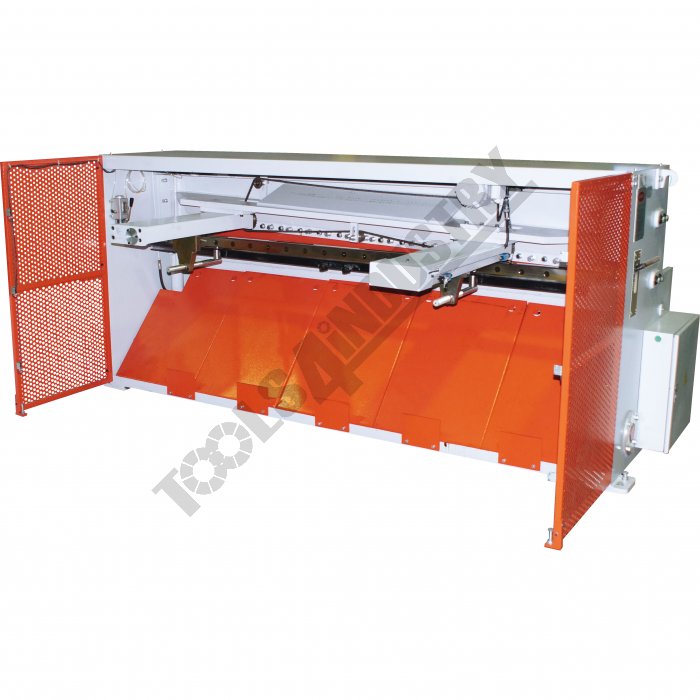

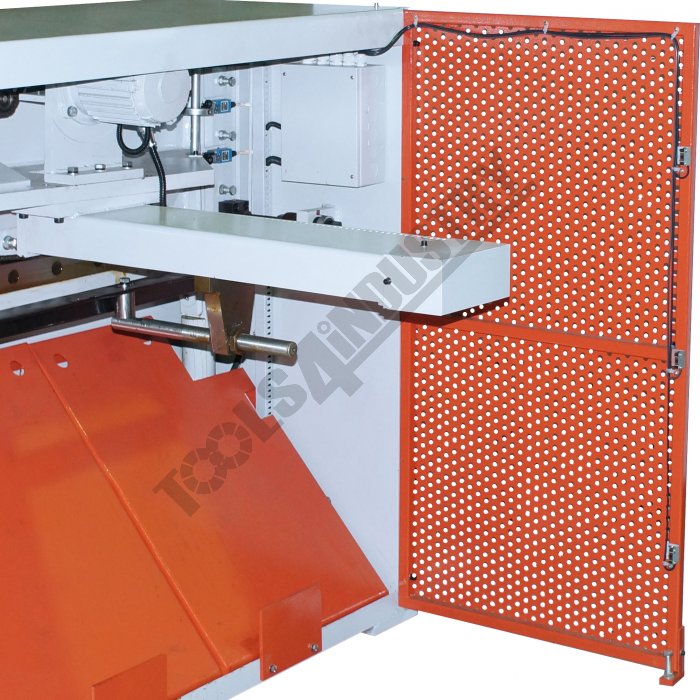

• Safety three photo electric light beams on rear guarding
• Safety reset rear guarding button mounted to back of electrical box
• Heavy duty under driven machine construction
• Equipped with shadow line lighting-alignment device
• Mild steel capacity is rated on hot rolled material with 250MPA


• Pre-Commissioning:
• 1. Guillotine is run & tested prior delivery
• 2. Hydraulic oil is included with machine
