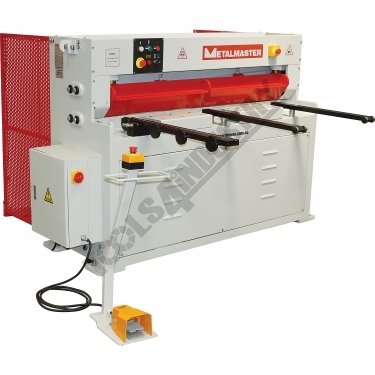

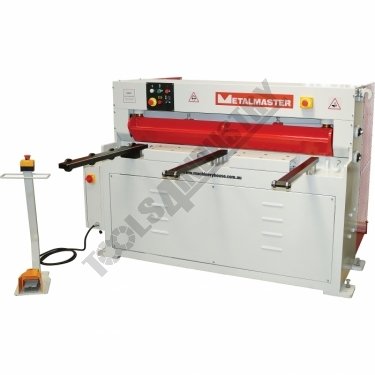

Mechanical Guillotine MG-440 1300 x 4mm Mild Steel Shearing Capacity

Features

• 1300mm x 4mm cutting capacity
• 4kW / 5.3hp 415V brake motor

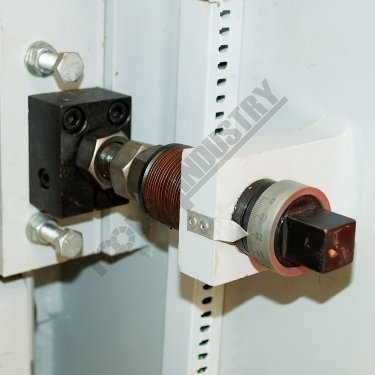

• Quick action blade clearance adjustment for shearing material 1 - 4mm
• Full length material clamp bar load spring assisted

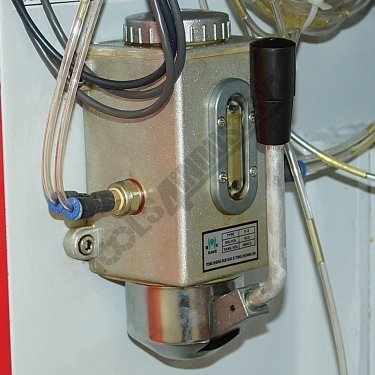

• One shot lubrication pump & reservoir for slideway protection

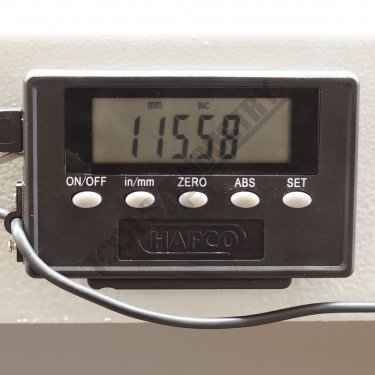

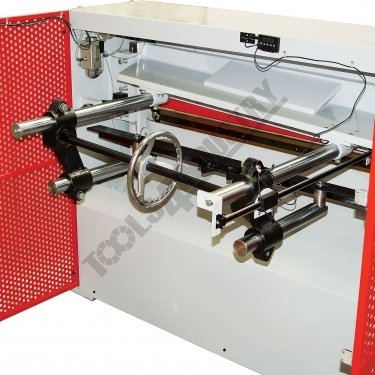

• Manual backgauge with digital scale display unit
• Equipped with shadow line lighting-alignment device
• Roving foot pedal control
• Clamp beam design allows clear view to shadow line on material
• Blades made from 9CrSi material suitable for cutting stainless steel

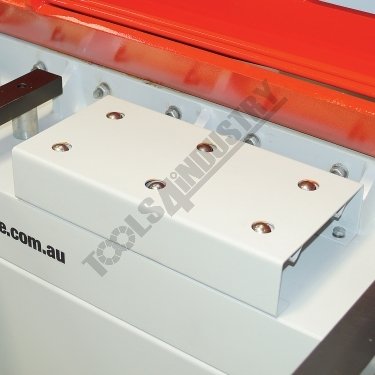

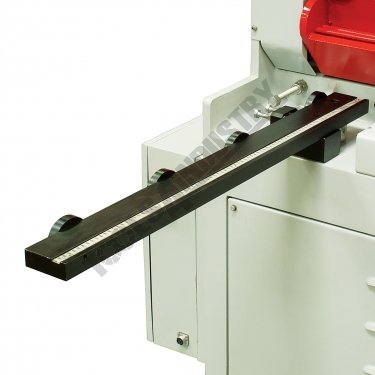

• Transfer balls inserted into work table allowing larger sheets to be easily positioned to the cut position and squaring arm

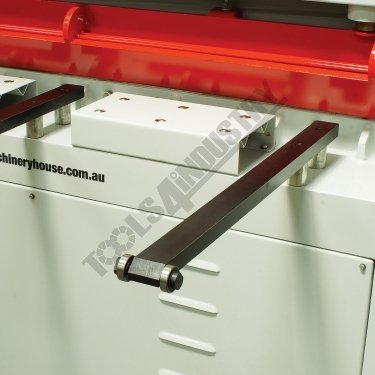

• Front sheet supports with ball bearing guides preventing material damage when setting up

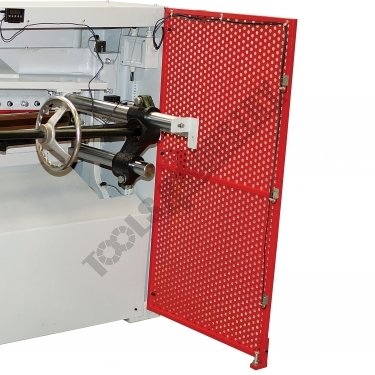

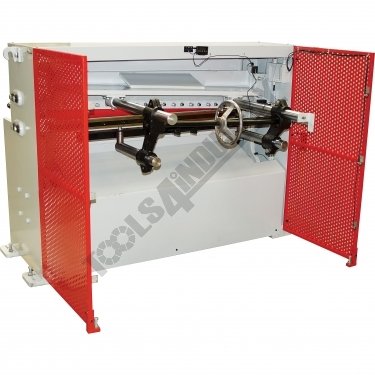

• Three safety photo electric light beams on rear guarding
• Safety reset rear guarding button mounted to back of electrical box


• Mild steel capacity is rated on hot rolled material with 250MPA


• Pre-Commissioning:
• 1. Guillotine is run & tested prior delivery
