| Code | K8737 |
|---|---|
| Model | QLD Schools / TAFE |
| Capacity | QLD Contract |
| Weight (kg) | 1140 |
| Weight (m3) | 2.521 |
| Weight (Freight) | 1140 |
| Dimensions (cm) | 184 x 103 x 133 |

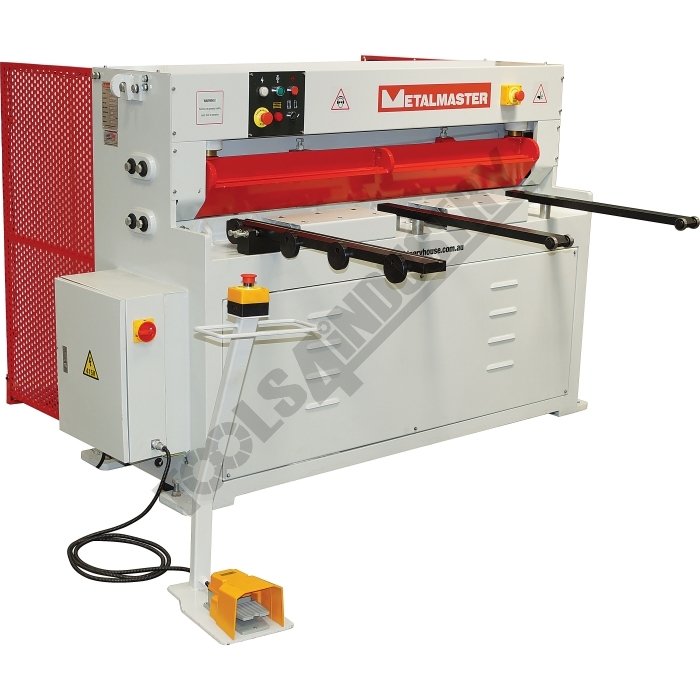

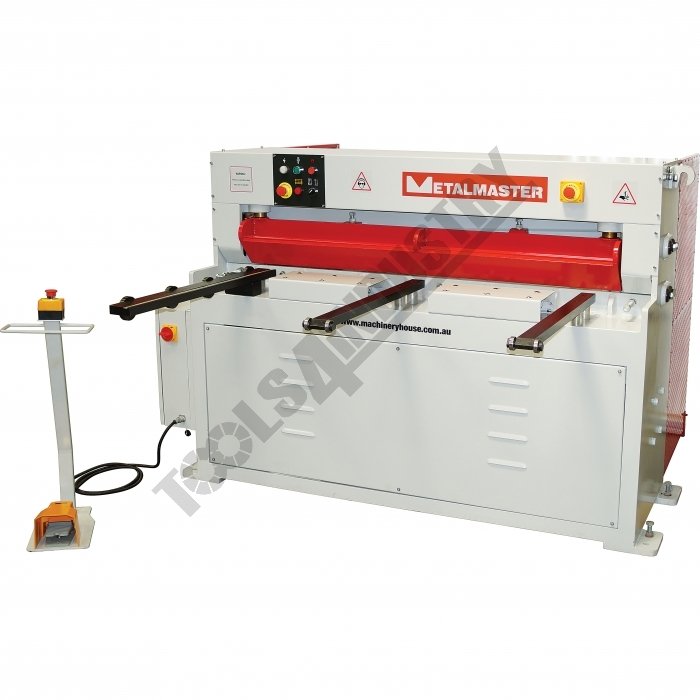

MG-440 Mechanical Guillotine QLD Schools / TAFE QLD Contract
Features
- 1300mm x 4mm cutting capacity
- 4kW / 5.3hp 415V brake motor

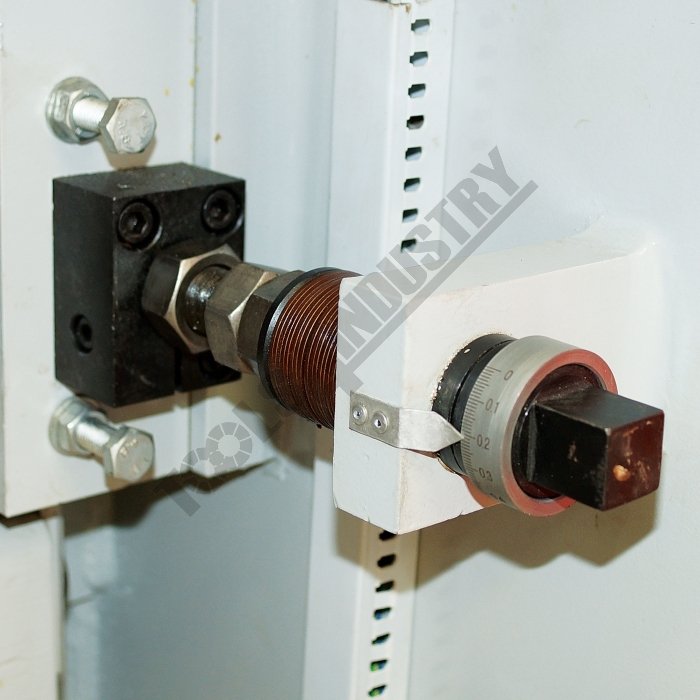

- Quick action blade clearance adjustment for shearing material 1 - 4mm
- Full length material clamp bar load spring assisted

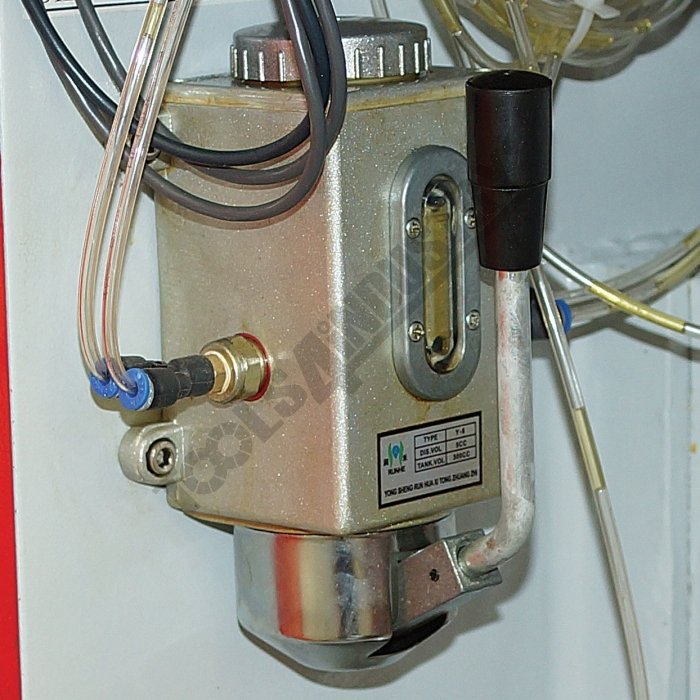

- One shot lubrication pump & reservoir for slideway protection

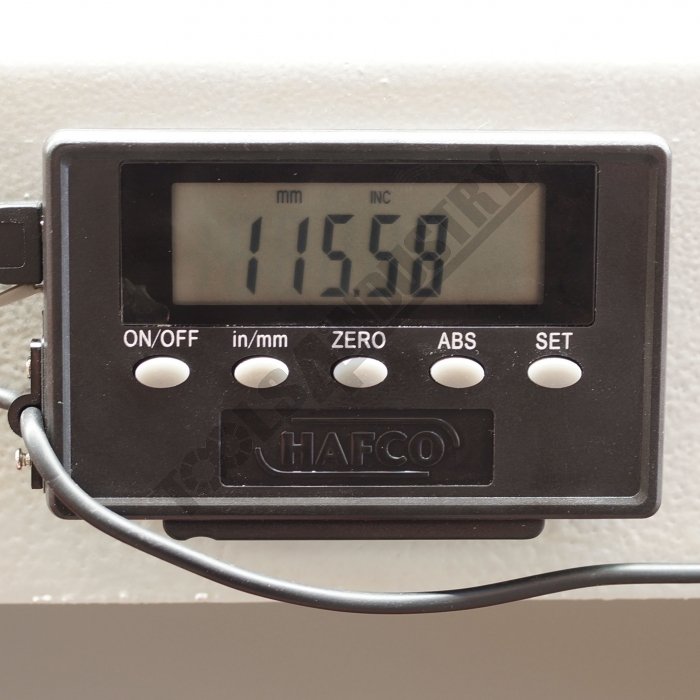

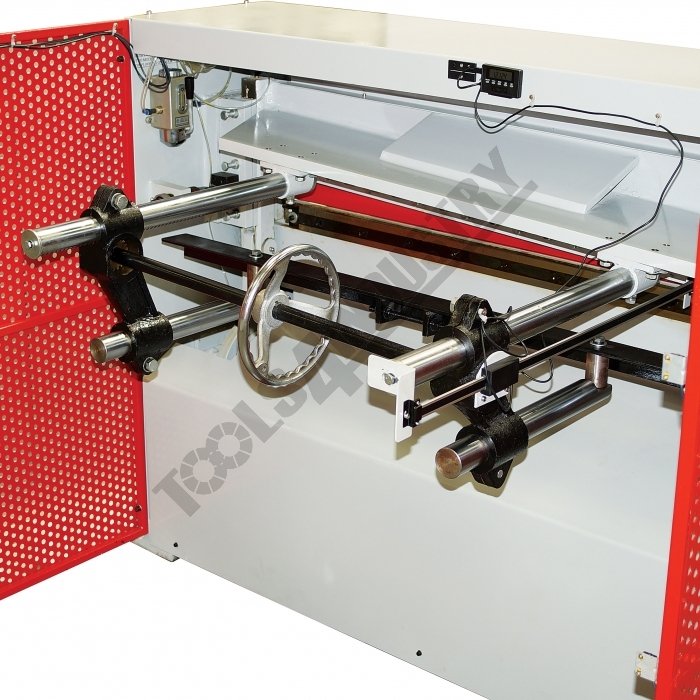

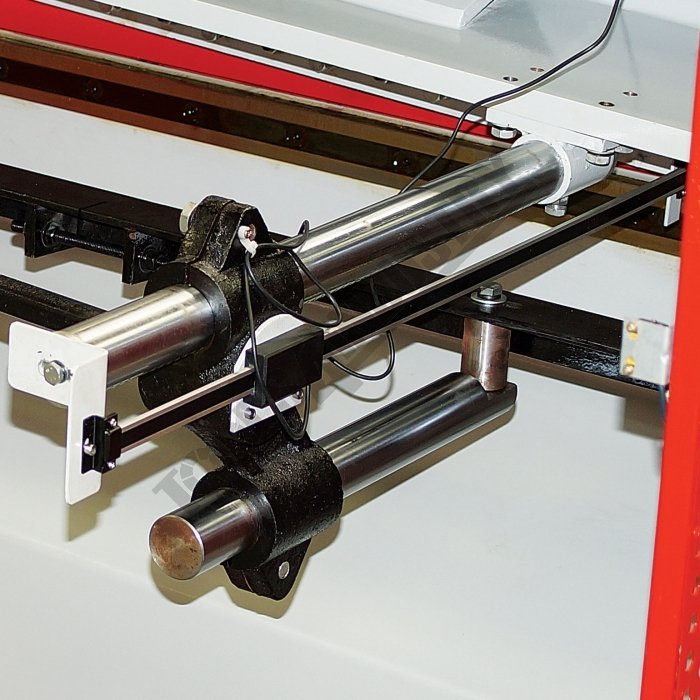

- Manual backgauge with digital scale display unit
- Equipped with shadow line lighting-alignment device

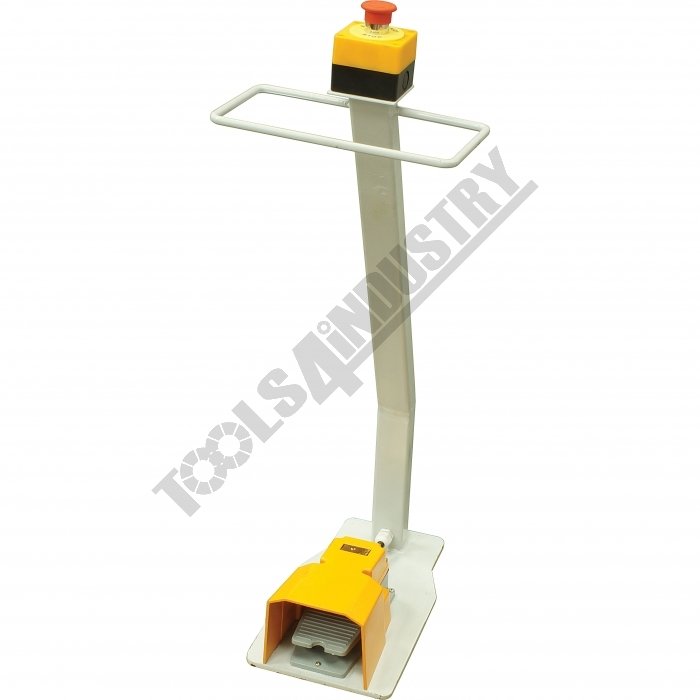

- Roving foot pedal control
- Clamp beam design allows clear view to shadow line on material
- Blades made from 9CrSi material suitable for cutting stainless steel

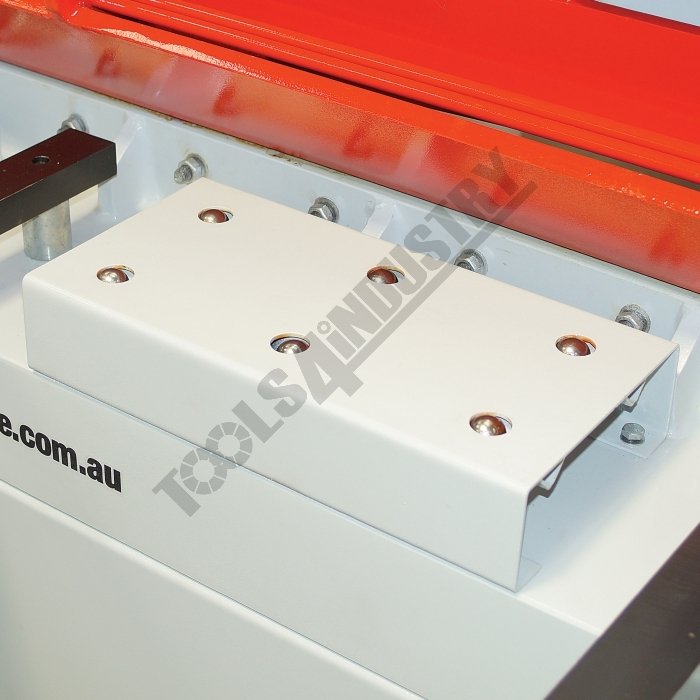

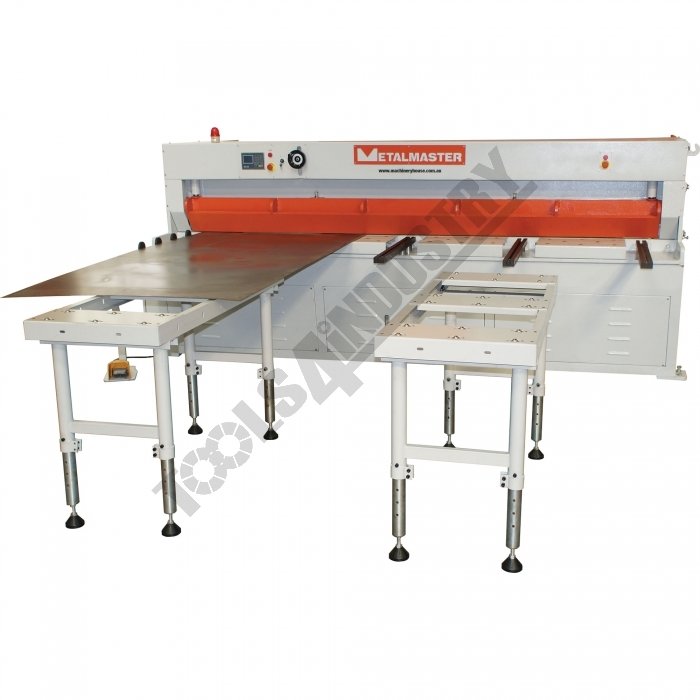

- Plate support tables with transfer balls for quick & easy material alignment and manoeuvrability

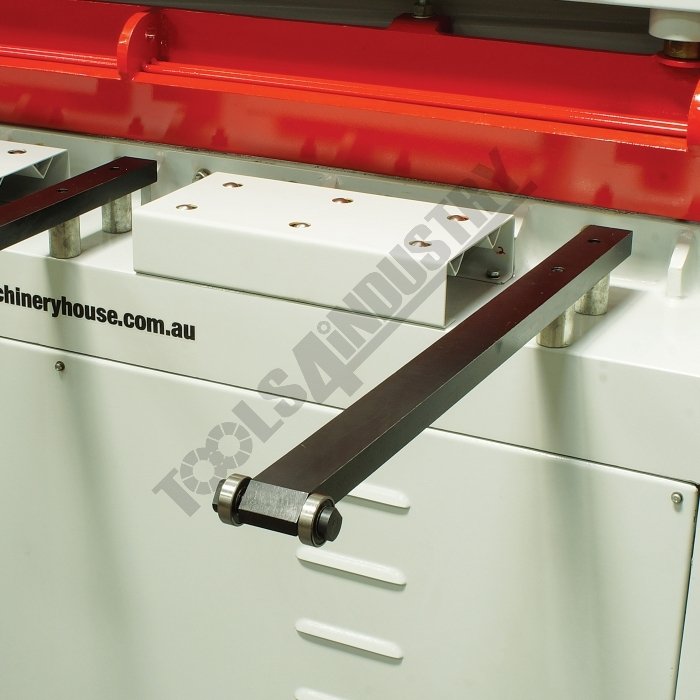

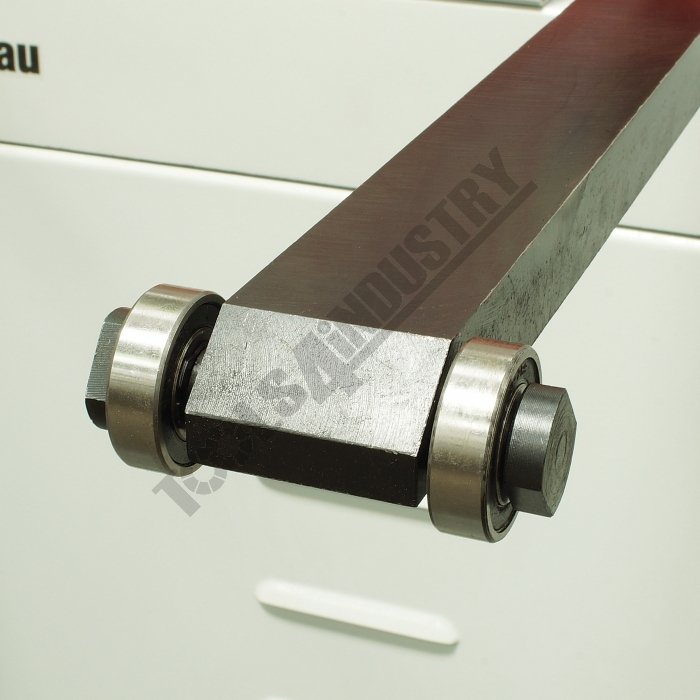

- Front sheet supports with ball bearing guides preventing material damage when setting up

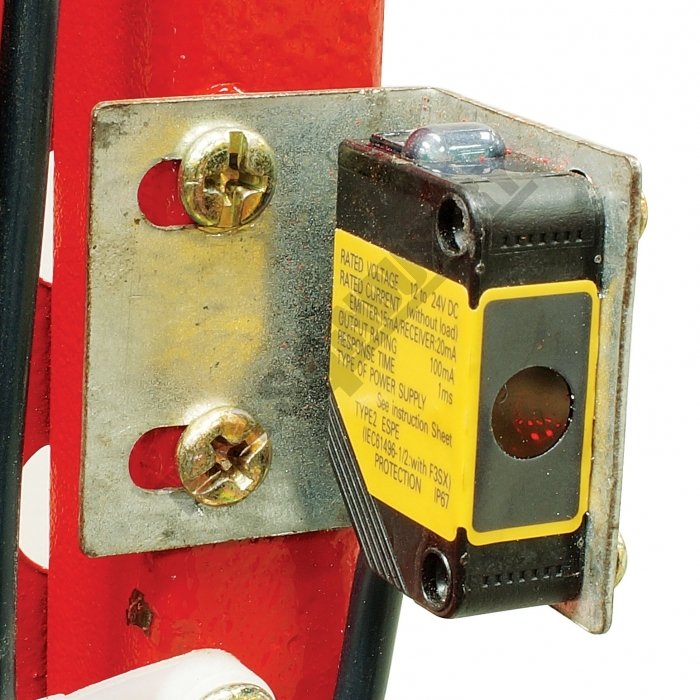

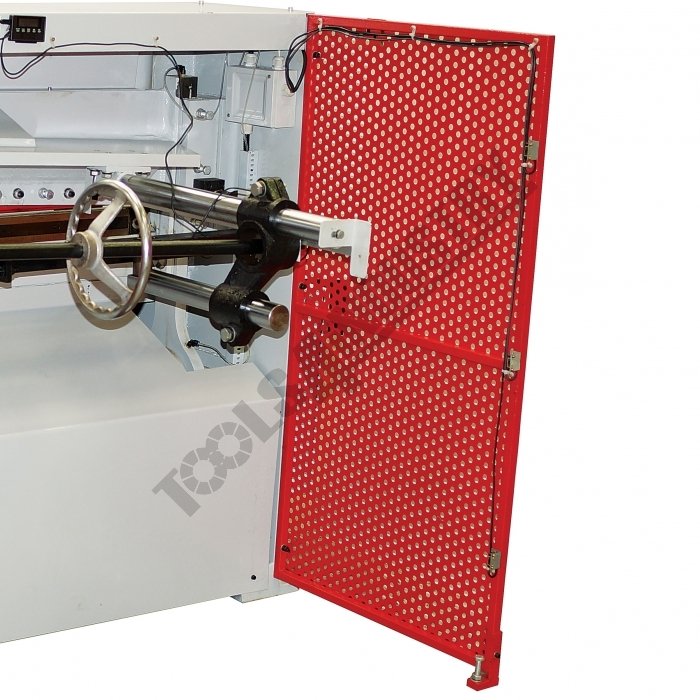

- Three safety photo electric light beams on rear guarding

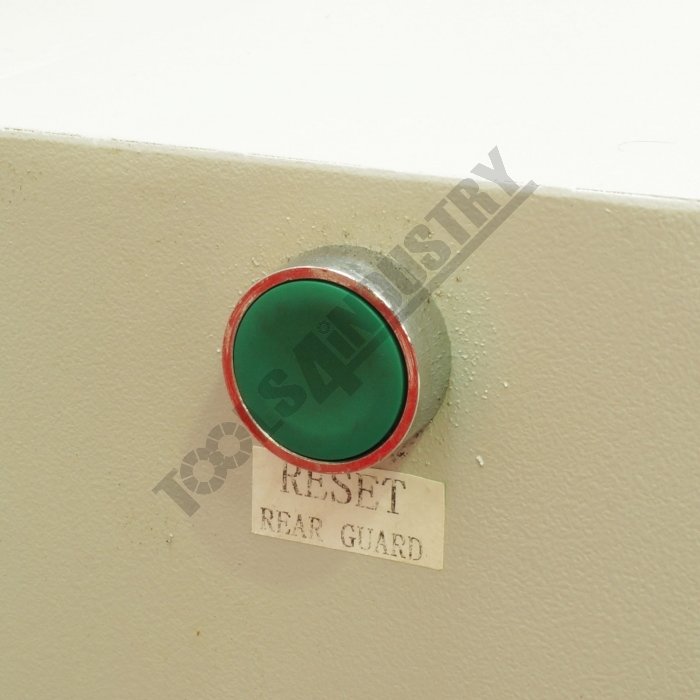

- Safety reset rear guarding button mounted to back of electrical box
- Mild steel capacity is rated on hot rolled material with 250MPA
- Pre-Commissioning:
- 1. Guillotine is run & tested prior delivery
- SAFETY FEATURES
- Roving Foot Pedal
- Rear light curtain

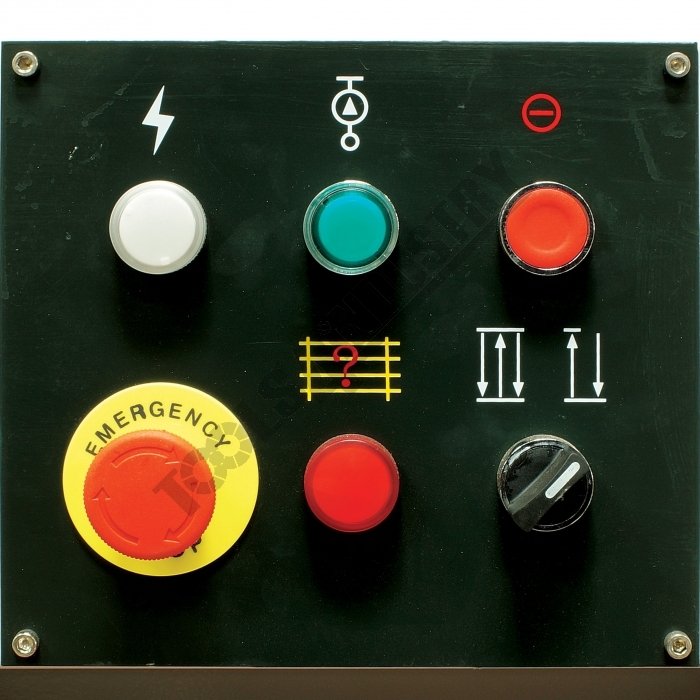

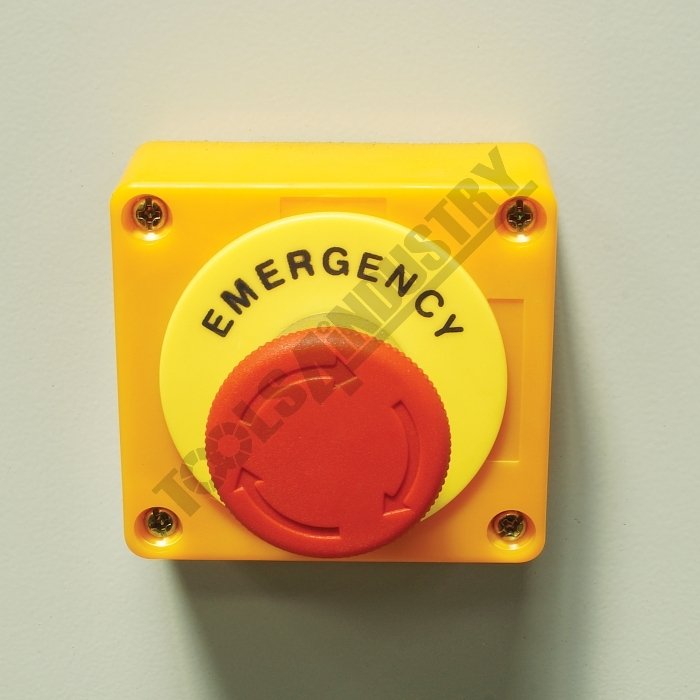

- Emergency stop switch
Specifications
- Compare 3 Products
- ORDER CODE
- NSW DOE Item No.
- QLD DOE Item No.
- MODEL
- Shearing Thicknessmm
- Shearing Lengthmm
- Nett Weightkg
| ORDER CODE | ~ |
|---|---|
| NSW DOE Item No. | ~ |
| QLD DOE Item No. | School / TAFEMG-440 |
| MODEL | 4 |
| Shearing Thicknessmm | 1300 |
| Shearing Lengthmm | 1450 |
| Nett Weightkg |
