| Code | S7401 |
|---|---|
| Model | HK-50A |
| Weight (kg) | 490 |
| Weight (m3) | 1.503 |
| Weight (Freight) | 500.499 |
| Dimensions (cm) | 113 x 76 x 175 |
| Only Available From | (Limited Availability) |

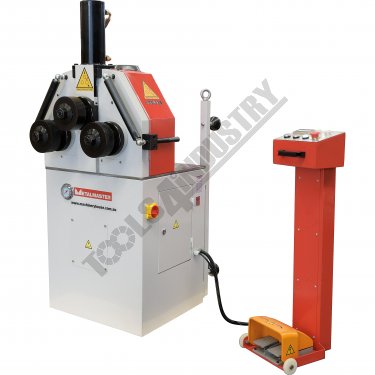

Section & Pipe Rolling Machine HK-50A
Features

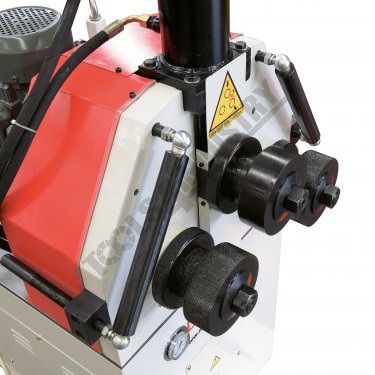

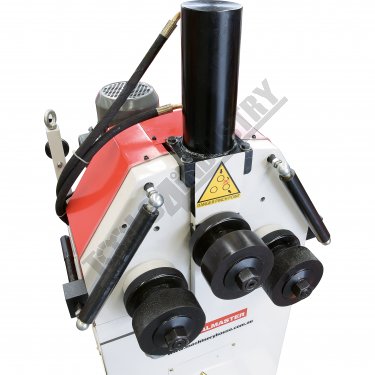

- Rolls are made from high quality steel
- 50mm hardened and ground drive shafts with quality roller bearings & supports
- Two rollers are powered for better drive & grip

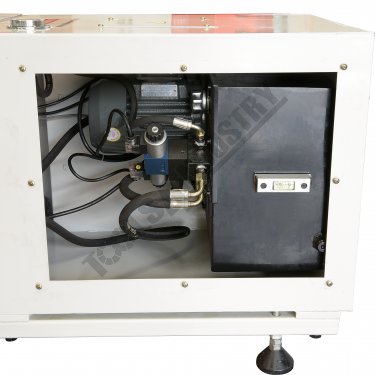

- Hydraulic top bending roller adjustment with DRO counter for position

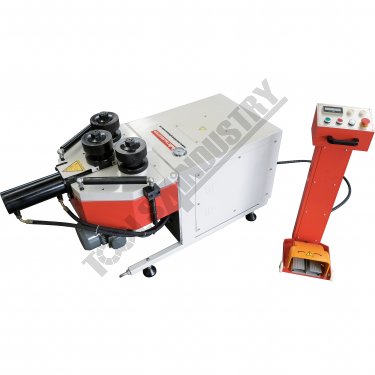

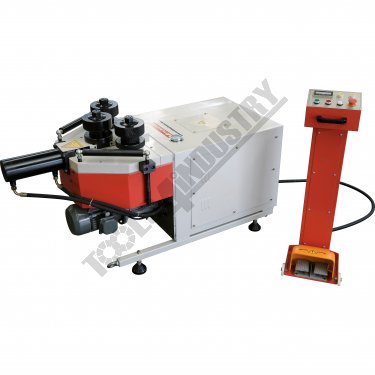

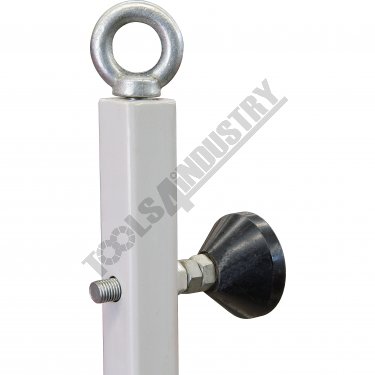

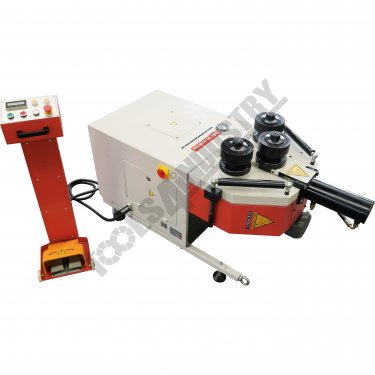

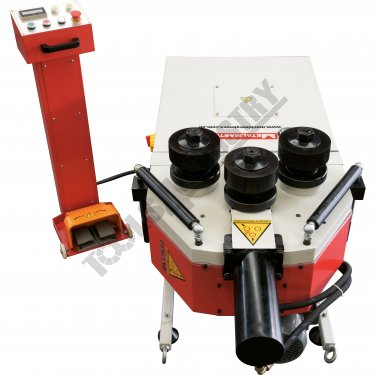

- Machine suitable for vertical or horizontal working position

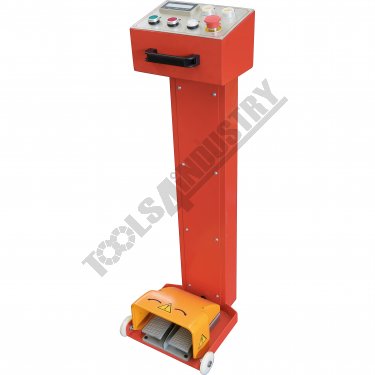

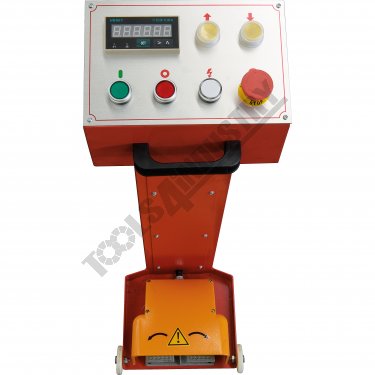

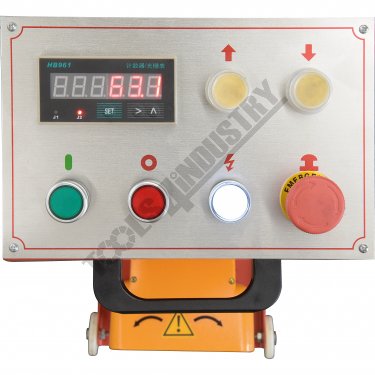

- Roving foot pedal control with emergency stop & DRO

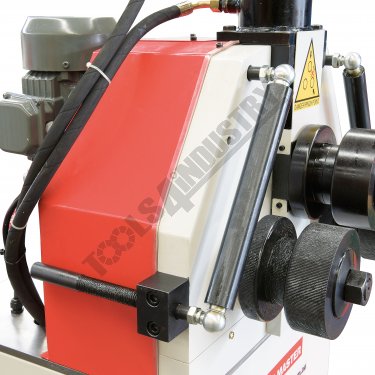

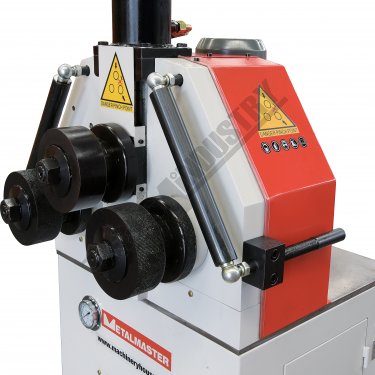

- Adjustable lateral side guide rollers to help guide material

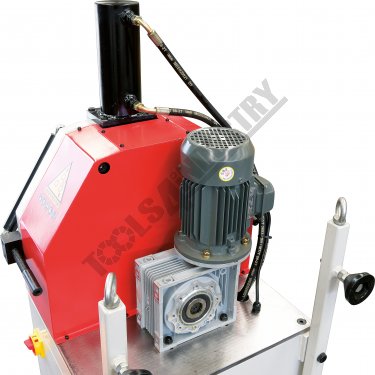

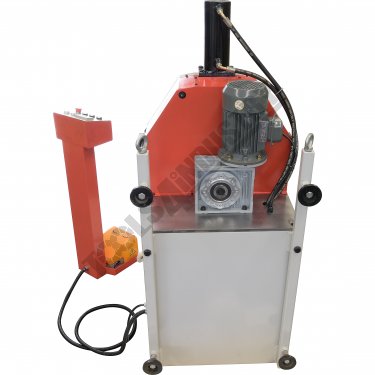

- Rollers are geared driven via motor & gearbox
- Standard rolls and guide rolls are included
Includes
- Forward & reverse foot pedal switches
- Set of standard rolls
Specifications
- Compare 9 Products
- ORDER CODE
- MODEL
- Powered Driven RollsQty
- Bending RollsType
- Top Roll Shaft Diameter (Ø)mm
- Lower Roll Shaft Diameter (Ø)mm
- Top Roll Diameter (Ø)mm
- Lower Roll Diameter (Ø)mm
- Flat Bar Edge Capacity - MS (size / Ø)mm
- Flat Bar Capacity - MS (size / Ø)mm
- Square Bar Solid Capacity - MS (size / Ø)mm
- Rectangle Tube Capacity - MS (size / Ø)mm
- Square Tube Capacity - MS (size / Ø)mm
- Round Bar Solid Capacity - MS (size / Ø)mm
- Round Tube Capacity - MS (size / Ø)mm
- Round Pipe Capacity - MS (size / Ø)inch / mm
- Angle Capacity - MS (size / Ø)mm
- Motor PowerkW / hp
- Voltage / AmperageV / amp
- Dimensions (L x W x H)mm
- Note: Requires Additional ToolingNo / Yes*
- Nett Weightkg
- S7401
- HK-50A
- 2
- Hydraulic Top
- 50
- 50
- 155
- ~
- 60 x 10 / 500
- 100 x 15 / 450
- 35 x 35 / 900
- 50 x 40 x 3 / 1200*
- 50 x 50 x 3 / 1700*
- Ø35 / 600*
- Ø70 x 2 / 1000*
- Ø2" x 2.9mm / 1000mm*
- 50 x 50 x 5 / 1000*
- 1.5 / 2
- 415
- 750 x 900 x 1550
- Yes*
- 490
- S750
- HPK-50
- 3
- Hydraulic Top
- 50
- 50
- 152
- 162
- 60 x 10 / 600
- 100 x 15 / 600
- 35 x 35 / 600
- 70 x 30 x 3 / 1500*
- 50 x 50 x 3 / 1600*
- Ø35 / 600*
- Ø70 x 2 / 1200*
- Ø2" x 2.9mm / 1000mm*
- 50 x 50 x 6 / 600
- 1.1 / 1.5
- 415
- 810 x 950 x 1500
- Yes*
- 500
- S754
- HPK-65
- 3
- Hydraulic - Left & Right
- ~
- ~
- 180
- ~
- 60 x 10 / 500
- 80 x 20 / 500
- 32 x 32 / 400
- 50 x 25 x 3 / 450*
- 45 x 45 x 3 / 600*
- Ø35 / 350*
- Ø60 x 2 / 600*
- Ø2" x 3.91mm / 400mm*
- 60 x 60 x 6 / 650
- 3 / 4
- 415
- 1200 x 850 x 1200
- Yes*
- 1000
- S680
- RR-5G
- 2 x Manual
- Manual Bottom Right
- ~
- ~
- ~
- ~
- ~
- 25 x 3 / 125
- ~
- ~
- ~
- Ø5 / 125
- ~
- ~
- ~
- ~
- ~
- 360 x 190 x 180
- No
- 6
- S6805
- RR-6
- 2 x Manual
- Manual Bottom Right
- ~
- ~
- ~
- ~
- ~
- 40 x 6 /
- ~
- ~
- ~
- Ø10
- ~
- ~
- ~
- ~
- ~
- 200 x 200 x 310 (without handle)
- No
- 15.2
- S681
- RR-10
- 2 x Manual
- Manual Top
- ~
- ~
- 98
- ~
- 30 x 10 / 500 - (20 x 5 / 190)
- 50 x 10 / 400 - (20 x 5 / 160)
- 20 x 20 / 500 - (10 x 10 / 160)
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- 500 x 480 x 680
- No
- 185
- S682
- RR-24
- 2
- Manual Top
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- 50 x 50 x 1.6 / 1000
- ~
- Ø76 x 2 / 1520
- ~
- ~
- 1.1 / 1.5
- 240 / 10
- 740 x 630 x 1030
- No
- 287
- S745
- PK-35F
- 2
- Manual Top
- 50
- 50
- 155
- 155
- 60 x 10 / 500
- 100 x 15 / 450
- 35 x 35 / 900
- 50 x 40 x 3 / 1200*
- 50 x 50 x 3 / 1700*
- Ø35 / 600*
- Ø70 x 2 / 1000*
- Ø2" x 2.9mm / 1000mm*
- 50 x 50 x 5 / 1000 mm*
- 1.5 / 2
- 240 / 10
- 750 x 1000 x 1400
- Yes* (S7455 for angle capacity)
- 400
- S749
- HPK-45
- 2
- Manual Top
- 50
- 50
- 155
- 155
- 60 x 10 / 500
- 100 x 15 / 450
- 35 x 35 / 900
- 50 x 40 x 3 / 1200*
- 50 x 50 x 3 / 1700*
- Ø35 / 600*
- Ø70 x 2 / 1000*
- Ø2" x 2.9mm / 1000mm*
- 50 x 50 x 5 / 1000 mm*
- 1.5 / 2
- 415
- 90 x 1360 x 1450
- Yes* (S7455 for angle capacity)
- 400
| ORDER CODE | HK-50A |
|---|---|
| MODEL | 2 |
| Powered Driven RollsQty | Hydraulic Top |
| Bending RollsType | 50 |
| Top Roll Shaft Diameter (Ø)mm | 50 |
| Lower Roll Shaft Diameter (Ø)mm | 155 |
| Top Roll Diameter (Ø)mm | ~ |
| Lower Roll Diameter (Ø)mm | 60 x 10 / 500 |
| Flat Bar Edge Capacity - MS (size / Ø)mm | 100 x 15 / 450 |
| Flat Bar Capacity - MS (size / Ø)mm | 35 x 35 / 900 |
| Square Bar Solid Capacity - MS (size / Ø)mm | 50 x 40 x 3 / 1200* |
| Rectangle Tube Capacity - MS (size / Ø)mm | 50 x 50 x 3 / 1700* |
| Square Tube Capacity - MS (size / Ø)mm | Ø35 / 600* |
| Round Bar Solid Capacity - MS (size / Ø)mm | Ø70 x 2 / 1000* |
| Round Tube Capacity - MS (size / Ø)mm | Ø2" x 2.9mm / 1000mm* |
| Round Pipe Capacity - MS (size / Ø)inch / mm | 50 x 50 x 5 / 1000* |
| Angle Capacity - MS (size / Ø)mm | 1.5 / 2 |
| Motor PowerkW / hp | 415 |
| Voltage / AmperageV / amp | 750 x 900 x 1550 |
| Dimensions (L x W x H)mm | Yes* |
| Note: Requires Additional ToolingNo / Yes* | 490 |
| Nett Weightkg |
