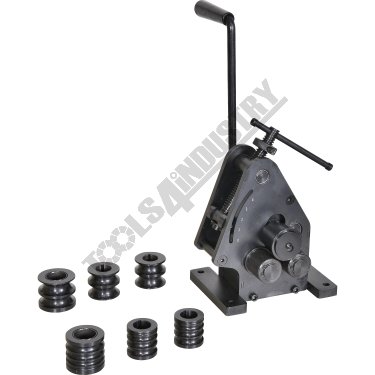

Wire Dies And Tube Rolling Dies Included

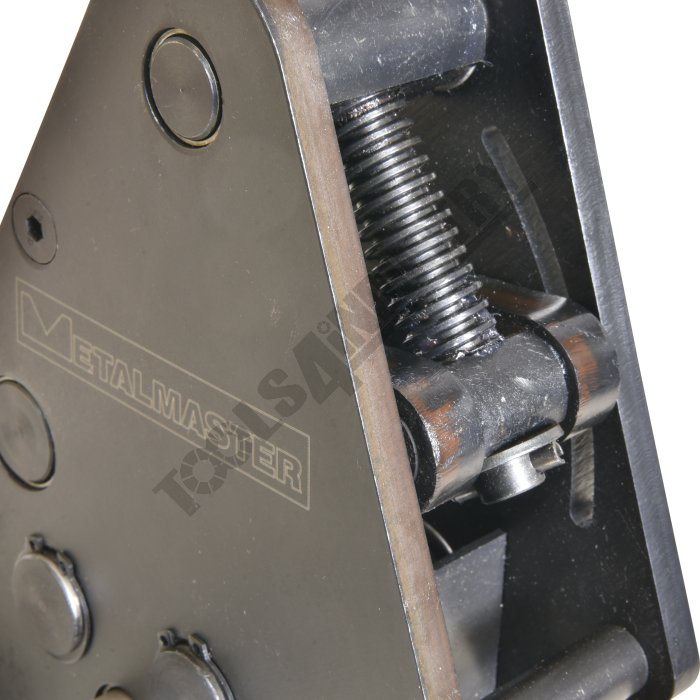

10mm Steel Plate Frame

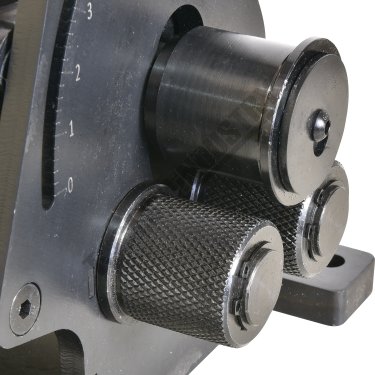

Heat Treated And Hardened Rolls

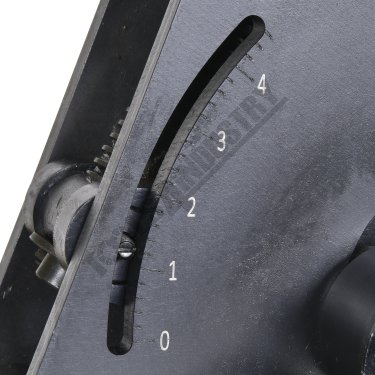

Position Indicator Laser Engraved

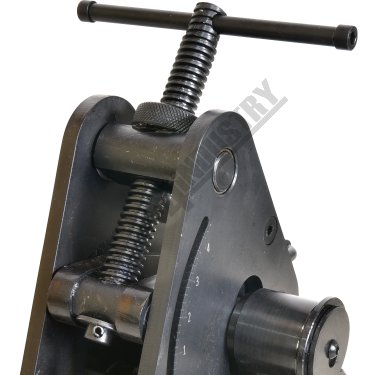

Adjustment Leadscrew With Locking Nut

Code	S6805
Model	RR-6
Capacity	40 x 6mm Mild Steel Flat Bar Capacity
Weight (kg)	16
Weight (m³)	0.021
Weight (Freight)	16
Dimensions (cm)	41 x 23 x 22

Product Brochure Section Rolls - Manual Risk Assessment

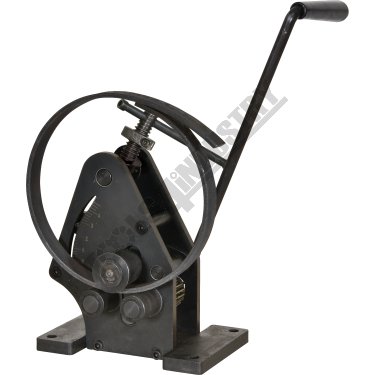

Manual Ring Rolling Machine RR-6 40 x 6mm Mild Steel Flat Bar Capacity

Description

The RR-6 heavy duty manual section rolling machine offers an economical solution for rolling round, square & flat material. The machine frame is laser cut from 10mm steel plate to resist torsional stresses caused during rolling. The bronze bushes ensure smooth operation & the gearing is low enough to roll shapes with ease. The base has holes to conveniently mount to a stand or onto a bench top.

Features

Heavy machine frame laser cut manufactured from 10mm steel plate
Precision machined heat-treated and hardened rolls
All shafts include bronze bushes
Acme thread adjustment leadscrew with locking nut
Position indicator laser engraved into the main frame
40 x 6mm mild steel flat bar capacity
10mm mild steel round & square bar capacity

Includes

Knurled flat bar dies
1 set of wiring dies to suit 3.2mm, 6.5mm, 8mm & 10mm
1 set of tube rolling dies to suit 5/8" & 3/4" OD tube
400mm Crank handle

Videos

Specifications

Compare 9 Products
ORDER CODE
MODEL
Powered Driven RollsQty
Bending RollsType
Top Roll Shaft Diameter (Ø)mm
Lower Roll Shaft Diameter (Ø)mm
Top Roll Diameter (Ø)mm
Lower Roll Diameter (Ø)mm
Flat Bar Edge Capacity - MS (size / Ø)mm
Flat Bar Capacity - MS (size / Ø)mm
Square Bar Solid Capacity - MS (size / Ø)mm
Rectangle Tube Capacity - MS (size / Ø)mm
Square Tube Capacity - MS (size / Ø)mm
Round Bar Solid Capacity - MS (size / Ø)mm
Round Tube Capacity - MS (size / Ø)mm
Round Pipe Capacity - MS (size / Ø)inch / mm
Angle Capacity - MS (size / Ø)mm
Motor PowerkW / hp
Voltage / AmperageV / amp
Dimensions (L x W x H)mm
Note: Requires Additional ToolingNo / Yes*
Nett Weightkg

S6805
RR-6
2 x Manual
Manual Bottom Right
~
~
~
~
~
40 x 6 /
~
~
~
Ø10
~
~
~
~
~
200 x 200 x 310 (without handle)
No
15.2

S681
RR-10
2 x Manual
Manual Top
~
~
98
~
30 x 10 / 500 - (20 x 5 / 190)
50 x 10 / 400 - (20 x 5 / 160)
20 x 20 / 500 - (10 x 10 / 160)
~
~
~
~
~
~
~
~
500 x 480 x 680
No
185

S682
RR-24
2
Manual Top
~
~
~
~
~
~
~
~
50 x 50 x 1.6 / 1000
~
Ø76 x 2 / 1520
~
~
1.1 / 1.5
240 / 10
740 x 630 x 1030
No
287

S745
PK-35F
2
Manual Top
50
50
155
155
60 x 10 / 500
100 x 15 / 450
35 x 35 / 900
50 x 40 x 3 / 1200*
50 x 50 x 3 / 1700*
Ø35 / 600*
Ø70 x 2 / 1000*
Ø2" x 2.9mm / 1000mm*
50 x 50 x 5 / 1000 mm*
1.5 / 2
240 / 10
750 x 1000 x 1400
Yes* (S7455 for angle capacity)
400

S749
HPK-45
2
Manual Top
50
50
155
155
60 x 10 / 500
100 x 15 / 450
35 x 35 / 900
50 x 40 x 3 / 1200*
50 x 50 x 3 / 1700*
Ø35 / 600*
Ø70 x 2 / 1000*
Ø2" x 2.9mm / 1000mm*
50 x 50 x 5 / 1000 mm*
1.5 / 2
415
90 x 1360 x 1450
Yes* (S7455 for angle capacity)
400

S7401
HK-50A
2
Hydraulic Top
50
50
155
~
60 x 10 / 500
100 x 15 / 450
35 x 35 / 900
50 x 40 x 3 / 1200*
50 x 50 x 3 / 1700*
Ø35 / 600*
Ø70 x 2 / 1000*
Ø2" x 2.9mm / 1000mm*
50 x 50 x 5 / 1000*
1.5 / 2
415
750 x 900 x 1550
Yes*
490

S750
HPK-50
3
Hydraulic Top
50
50
152
162
60 x 10 / 600
100 x 15 / 600
35 x 35 / 600
70 x 30 x 3 / 1500*
50 x 50 x 3 / 1600*
Ø35 / 600*
Ø70 x 2 / 1200*
Ø2" x 2.9mm / 1000mm*
50 x 50 x 6 / 600
1.1 / 1.5
415
810 x 950 x 1500
Yes*
500

S754
HPK-65
3
Hydraulic - Left & Right
~
~
180
~
60 x 10 / 500
80 x 20 / 500
32 x 32 / 400
50 x 25 x 3 / 450*
45 x 45 x 3 / 600*
Ø35 / 350*
Ø60 x 2 / 600*
Ø2" x 3.91mm / 400mm*
60 x 60 x 6 / 650
3 / 4
415
1200 x 850 x 1200
Yes*
1000

S680
RR-5G
2 x Manual
Manual Bottom Right
~
~
~
~
~
25 x 3 / 125
~
~
~
Ø5 / 125
~
~
~
~
~
360 x 190 x 180
No
6

ORDER CODE	RR-6
MODEL	2 x Manual
Powered Driven RollsQty	Manual Bottom Right
Bending RollsType	~
Top Roll Shaft Diameter (Ø)mm	~
Lower Roll Shaft Diameter (Ø)mm	~
Top Roll Diameter (Ø)mm	~
Lower Roll Diameter (Ø)mm	~
Flat Bar Edge Capacity - MS (size / Ø)mm	40 x 6 /
Flat Bar Capacity - MS (size / Ø)mm	~
Square Bar Solid Capacity - MS (size / Ø)mm	~
Rectangle Tube Capacity - MS (size / Ø)mm	~
Square Tube Capacity - MS (size / Ø)mm	Ø10
Round Bar Solid Capacity - MS (size / Ø)mm	~
Round Tube Capacity - MS (size / Ø)mm	~
Round Pipe Capacity - MS (size / Ø)inch / mm	~
Angle Capacity - MS (size / Ø)mm	~
Motor PowerkW / hp	~
Voltage / AmperageV / amp	200 x 200 x 310 (without handle)
Dimensions (L x W x H)mm	No
Note: Requires Additional ToolingNo / Yes*	15.2
Nett Weightkg
