This Product Is No Longer Available

P404

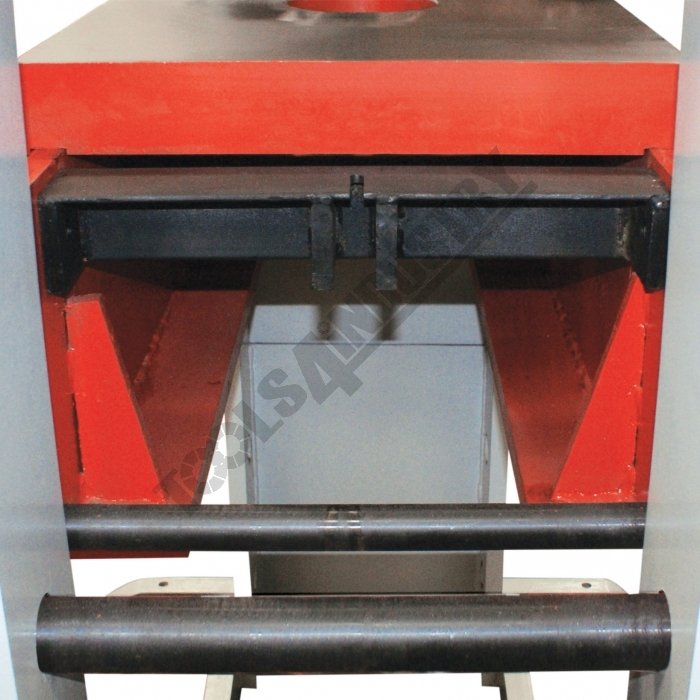

Lifting Parts For Table Height Adjustment

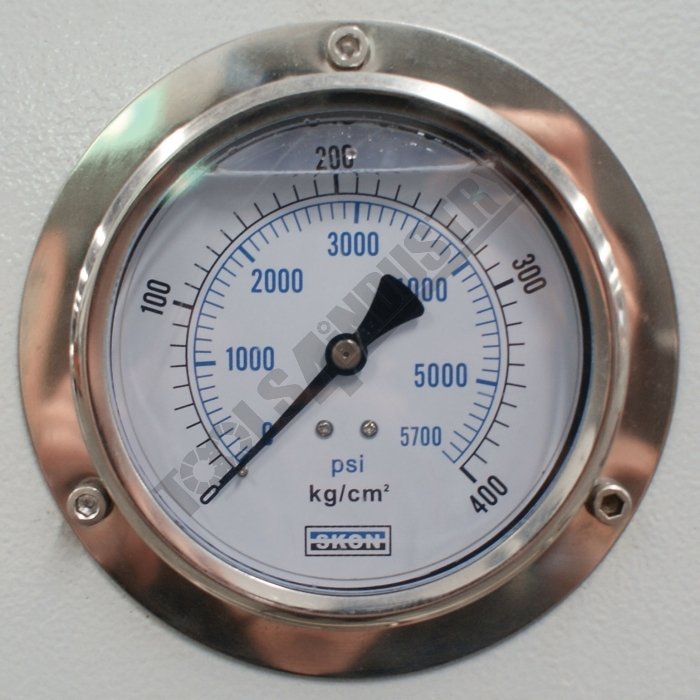

Pressure Gauge

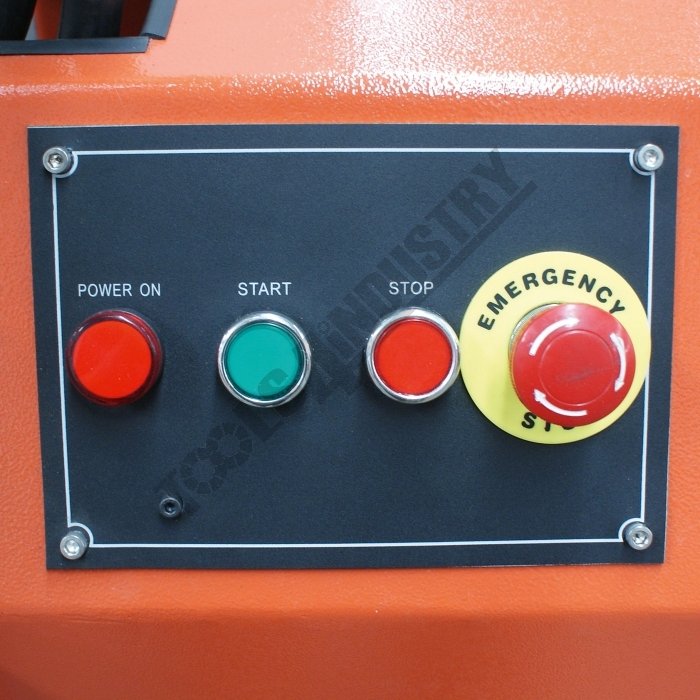

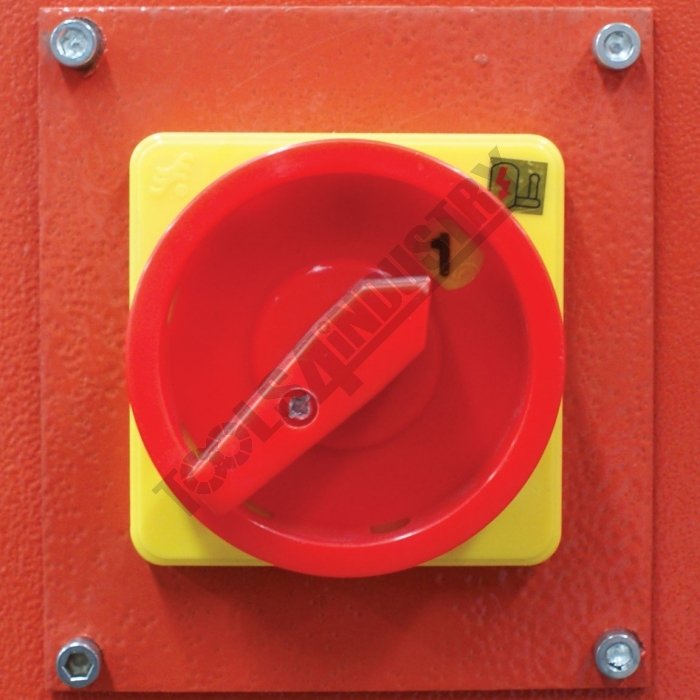

Isolation Switch

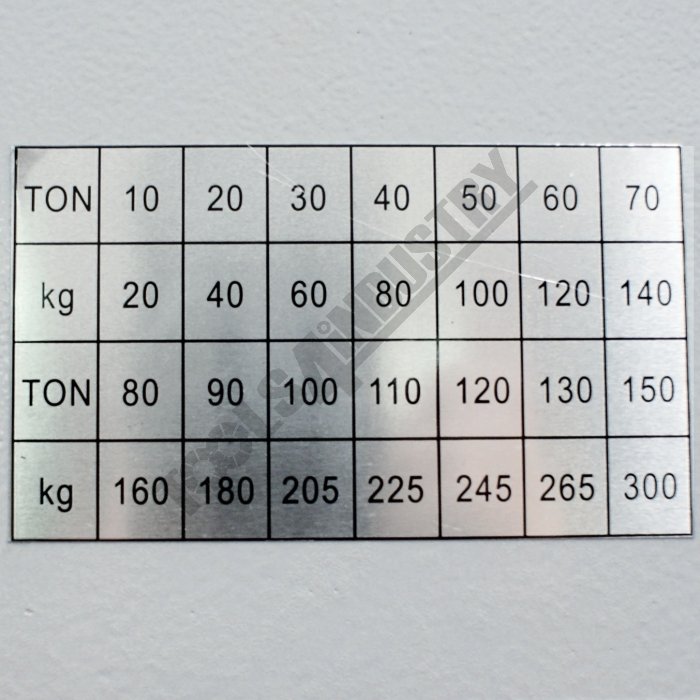

Chart

Code	P404
Model	HP-150T
Weight (kg)	1950
Weight (m³)	4.887
Weight (Freight)	1950
Dimensions (cm)	202 x 112 x 216

Product Brochure Instruction Manual [4 MB] Hydraulic Press Recommended Circuit Breaker [80 KB]Press - Electric Hydraulic Risk Assessment

This Product Is No Longer Available

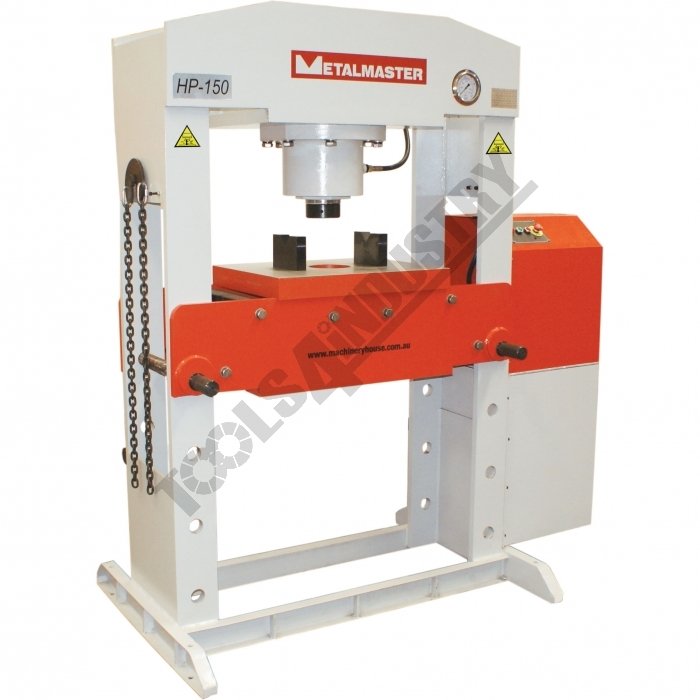

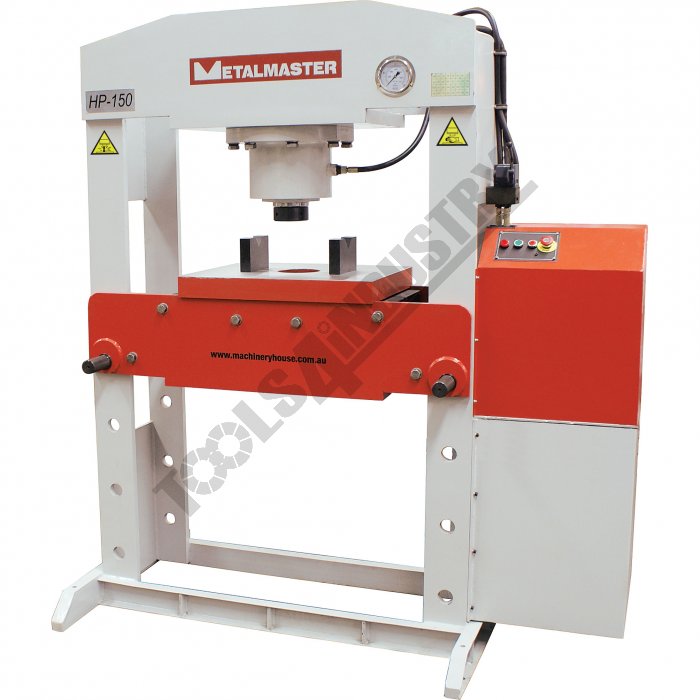

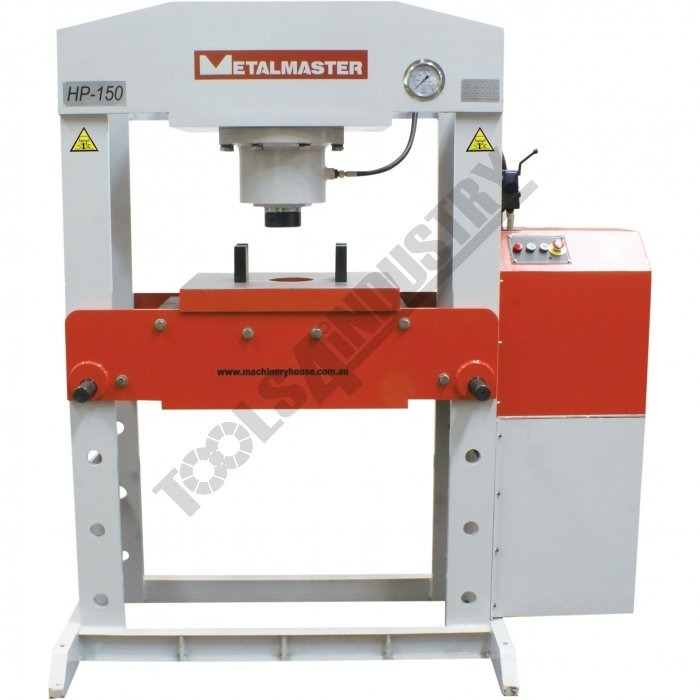

Industrial Hydraulic Press - 150 Tonne HP-150T

Description

150 Tonne Industrial Hydraulic Press
Suited for the Industrial workshop, for pressing of bearings, bushings & straightening shafts, bending steel as well has all general pressing applications

Features

Easy to use and powerful press for most applications
Ideal for the repair of axles, shafts, & press fit of bearings & bushings
Ram speed down 5.0mm/sec, returns 6.4mm/sec
Heavy duty welded steel fabricated frame

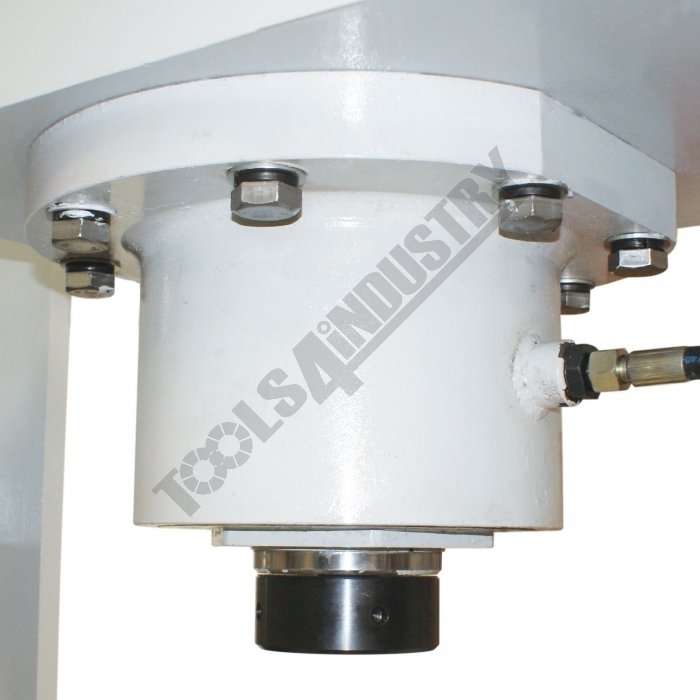

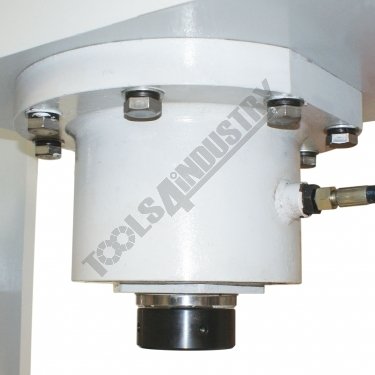

Strong hydraulic cylinder ensures precise pressing during operation
Fitted with pressure gauge
Safety overload valve

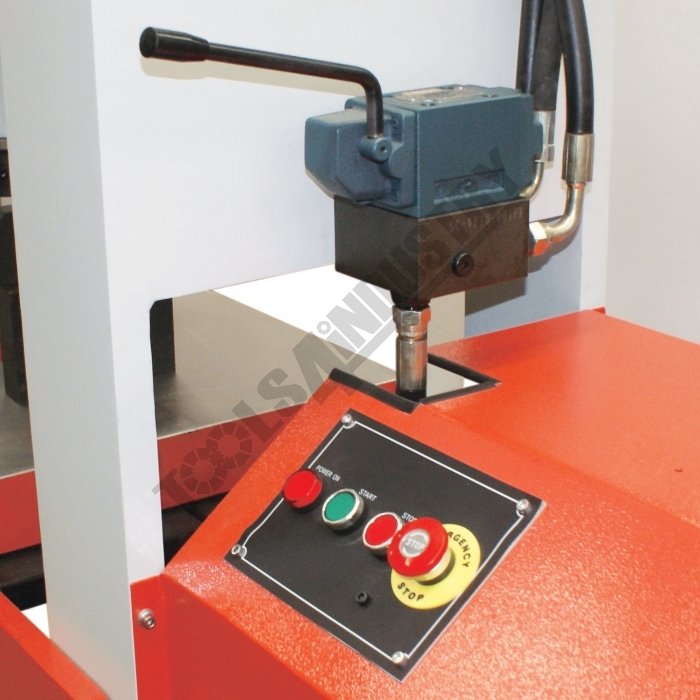

Hydraulic joystick control lever
Powerful TEFC motor
Heavy duty one piece table plate insert

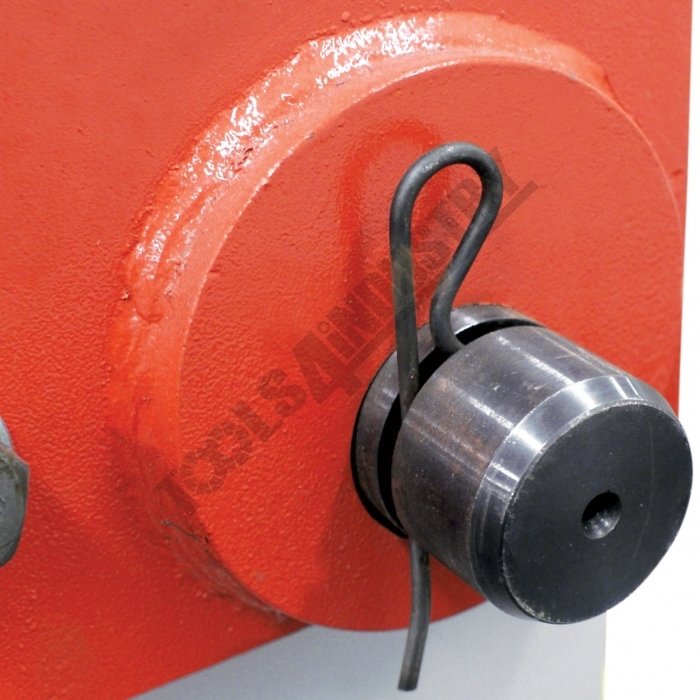

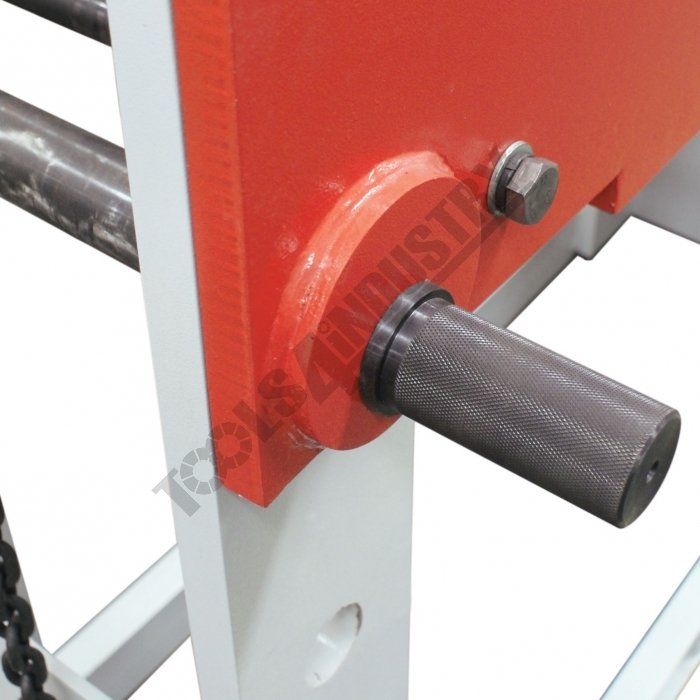

Extra heavy duty table support with high tensile setting pins

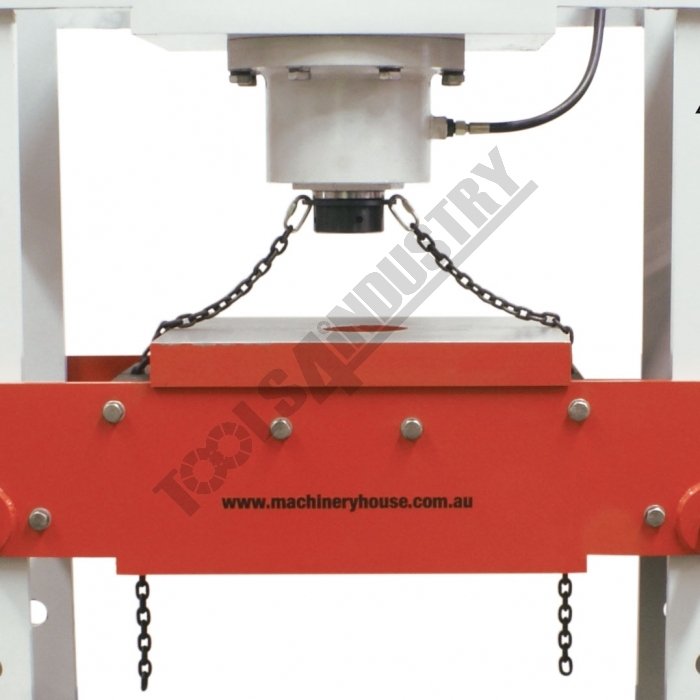

Table can be adjusted for height using chains and Hydraulic ram

Pre-Commissioning:
1. Press is run & tested prior delivery
2. Hydraulic oil is included with machine

Includes

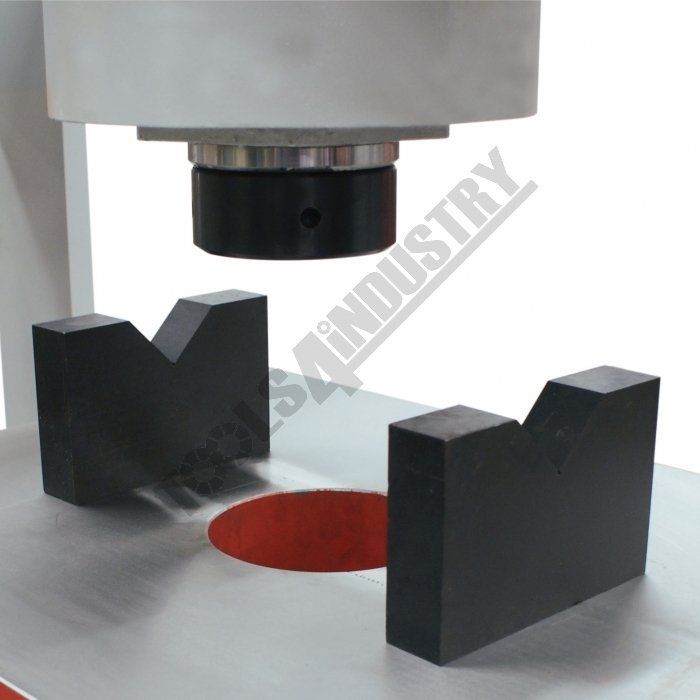

Includes support plate & V blocks

Specifications

Compare 33 Products
ORDER CODE
MODEL
Pressing CapacityTonne
Hydraulic Ram OperationType
Sliding Ram (left-right)Yes / No
Width Between Front Postsmm
Width Between Side Postsmm
Table Top Opening - (Front to Back)mm
Ram To Table (Max.)mm
Cylinder Strokemm
Ram Diametermm
Piston Diametermm
Minimum Air Flow Rate requiredL/Min
Motor PowerkW / hp
VoltageV
Floor Space (W x D x H)mm
Nett Weightkg

P404
HP-150T
150
Motorised System
No
1100
400
465
900
390
Ø130
~
~
7.5 / 10
415
2020 x 1120 x 2160
1950

P408
HP-300T
300
Motorised System
No
1190
495
580
900
380
Ø200
~
~
22 / 30
415
2360 x 1220 x 2470
3700

P141
PP-10HD
10
Manual Hand Lever
Yes
340
95
120
335
180
Ø40
Ø45
~
~
~
755 x 540 x 800
57.2

P142
HP-20PP
20
Manual Hand Lever
Yes
541
85
105
980
185
Ø48
Ø60
~
~
~
1100 x 800 x 1780
114.5

P150
HPF-20
20
Manual Hand Lever /
Foot Pedal System
Yes
510
132
152
1118
150
Ø48
Ø60
~
~
~
1000 x 800 x 1830
147

P145
HP-30P
30
Manual Hand Lever /
Pneumatic System
Yes
460
135
155
1095
165
Ø70
Ø80
~
~
~
1000 x 800 x 1950
180

P130M
HPM-30
30
Manual Hand Lever /
Pneumatic System
Yes
535
138
160
1035
155
Ø70
Ø80
200
~
~
950 x 700 x 1800
200

P130M
HPM-30
30
Manual Hand Lever /
Pneumatic System
Yes
535
138
160
1035
155
Ø70
Ø80
200
~
~
950 x 700 x 1800
200

P129
HDP-35
35
Manual Hand Lever
Yes
790
208
240
730
130
Ø80
Ø125
~
~
~
1170 x 850 x 1870
358

P147
HP-45P
45
Manual Hand Lever /
Pneumatic System
No
825
185
195
855
190
Ø58
Ø95
200
~
~
1550 x 1050 x 1720
340

P152
HPF-50
50
Manual Hand Lever /
Foot Pedal System
Yes
730
205
185
1050
200
Ø75
Ø100
~
~
~
1360 x 800 x 1900
340

P152
HPF-50
50
Manual Hand Lever /
Foot Pedal System
Yes
730
205
185
1050
200
Ø75
Ø100
~
~
~
1360 x 800 x 1900
340

P131M
HPM-50
50
Motorised System
Yes
730
205
185
1050
200
Ø75
~
~
1.5 / 2
240
1530 x 800 x 1840
409

P131M
HPM-50
50
Motorised System
Yes
730
205
185
1050
200
Ø75
~
~
1.5 / 2
240
1530 x 800 x 1840
409

P400
HP-63T
63
Motorised System
No
895
275
325
900
300
Ø80
~
~
4 / 5.3
415
1700 x 1000 x 2080
869

P400M
HPM-63T
63
Motorised System
Yes
895
275
325
900
300
Ø80
~
~
4 / 5.3
415
1700 x 1000 x 2080
912

P154
HPM-75P
75
Hydraulic & Pneumatic
Yes
800
215
205
884
250
Ø100
~
300
~
~
1140 x 800 x 1896
451

P156
HPM-100P
100
Hydraulic & Pneumatic
Yes
786
265
230
993
300
Ø100
~
200
~
~
1400 x 1000 x 1880
658

P402
HP-100T
100
Motorised System
No
1050
310
363
900
350
Ø100
~
~
7.5 / 10
415
1920 x 1000 x 2220
1342

P402T
HPR-100T
100
Motorised System
Yes
1060
310
~
890
350
Ø100
~
~
7.5 / 10
415
1780 x 1865 x 2655
1960

P402M
HPM-100T
100
Motorised System
Yes
1050
310
363
900
350
Ø100
~
~
7.5 / 10
415
1920 x 1000 x 2450
1384

P136
DPM-1070
100
Motorised System
No
1070
250
305
800
300
Ø220
~
~
5.5 / 7.5
415
2100 x 1050 x 2200
1500

P136P
AP-1020/100 - Pressbrake
100
Motorised System
No
1020
~
~
~
300
Ø220
~
~
7.5 / 10
415
2100 x 1050 x 2220
1900

P404M
HPM-150T
150
Motorised System
Yes
1100
400
465
900
350
Ø130
~
~
7.5 / 10
415
1970 x 1100 x 2150
1792

P138
DPM-1570
150
Motorised System
No
1570
285
355
800
300
Ø280
~
~
11 / 15
415
2660 x 1050 x 2480
2100

P406M
HPM-200T
200
Motorised System
Yes
1250
420
500
700
350
Ø160
~
~
7.5 / 10
415
2150 x 1110 x 2210
2400

P408M
HPM-300T
300
Motorised System
Yes
1300
510
600
860
370
Ø200
~
~
22 / 30
415
2380 x 1210 x 2525
3900

P127
HDP-15
15
Manual Hand Lever
Yes
628
140
170
840
130
Ø69
~
~
~
~
970 x 745 x 1830
226

P148
HP-50
50
Manual Hand Lever
No
815
210
240
680
220
Ø63
~
~
~
~
1450 x 800 x 1900
326

P149
HPT-40P
40
Manual Hand Lever /
Pneumatic System
No
660
160
190
1100
170
Ø63
~
~
~
~
1100 x 860 x 1910
240

P143
PP-20
20
Manual Hand Lever
Yes
550
~
94
950
140
Ø48
~
~
~
~
830 x 690 x 1720
103

P1475
HPT-30P
30
Manual Hand Lever /
Pneumatic System
Yes
480
~
145
940
150
Ø56
~
~
~
~
695 x 700 x 1800
127

P406
HP-200T
200
Motorised System
No
1050
420
500
830
420
Ø160
~
~
7.5 / 10
415
1960 x 1110 x 2220
2250

ORDER CODE	HP-150T
MODEL	150
Pressing CapacityTonne	Motorised System
Hydraulic Ram OperationType	No
Sliding Ram (left-right)Yes / No	1100
Width Between Front Postsmm	400
Width Between Side Postsmm	465
Table Top Opening - (Front to Back)mm	900
Ram To Table (Max.)mm	390
Cylinder Strokemm	Ø130
Ram Diametermm	~
Piston Diametermm	~
Minimum Air Flow Rate requiredL/Min	7.5 / 10
Motor PowerkW / hp	415
VoltageV	2020 x 1120 x 2160
Floor Space (W x D x H)mm	1950
Nett Weightkg
