| Code | L110 |
|---|---|
| Model | DS-1632 |
| Capacity | 400mm Single Pass & 800mm Double Pass Capacity |
| Weight (kg) | 70 |
| Weight (m3) | 0.426 |
| Weight (Freight) | 141.858 |
| Dimensions (cm) | 95 x 65 x 69 |

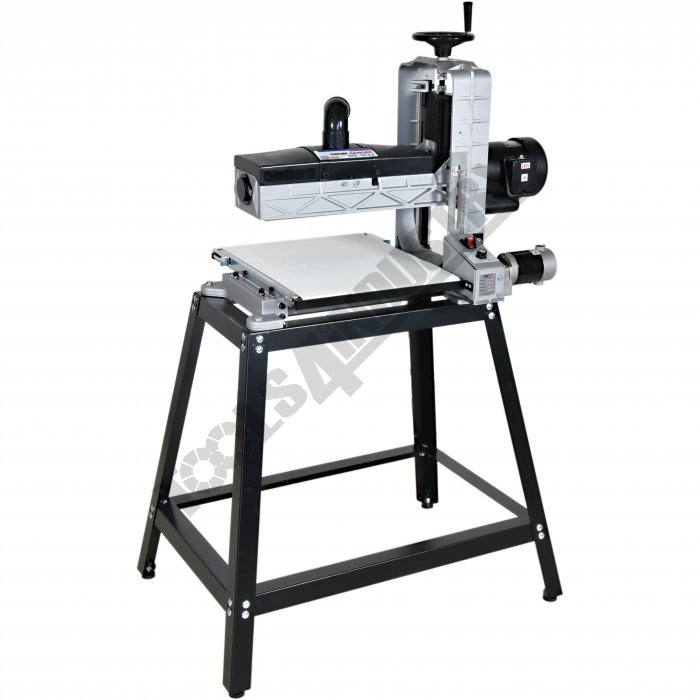

DS-1632 Drum Sander - Open End 400mm Single Pass & 800mm Double Pass Capacity
Description
Manufactured in TaiwanThe DS-1632 wide drum sander offers a unique open end sanding system that provides a maximum of 800mm sanding capacity with two passes, with a generous height capacity of 127mm down to a minimum of 3.2mm.

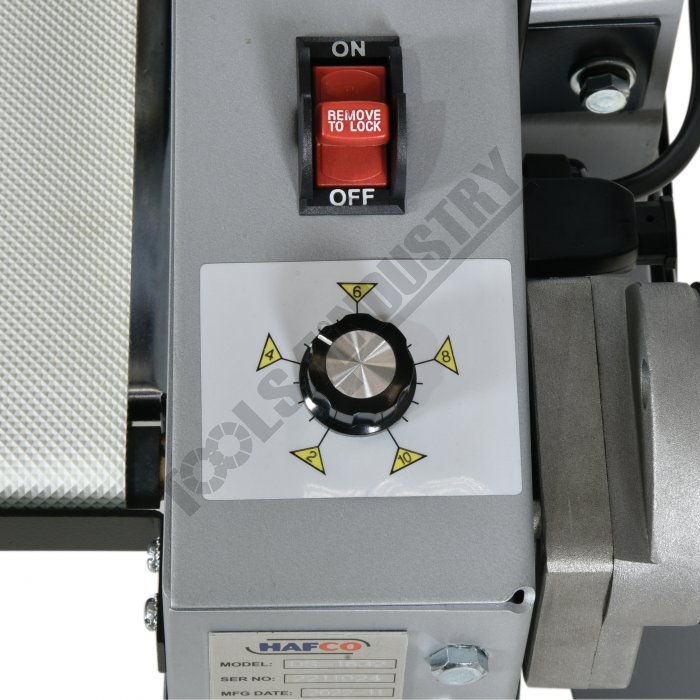

This machine is constructed from high grade cast aluminium to enable portability from site to site with ease. Fitted to this machine as standard feature is a variable table feed dial enabling operator to finely adjust surface finish required. It is recommended by the manufacturer to use a dust extraction system (not included) please refer to optional accessories.
Features
- Open side configuration with sanding capacity (400mm with 1 Pass) & (800mm with 2 Passes)
- Variable feed speeds from 0.6-3 M/min to suit various sanding requirements and material widths

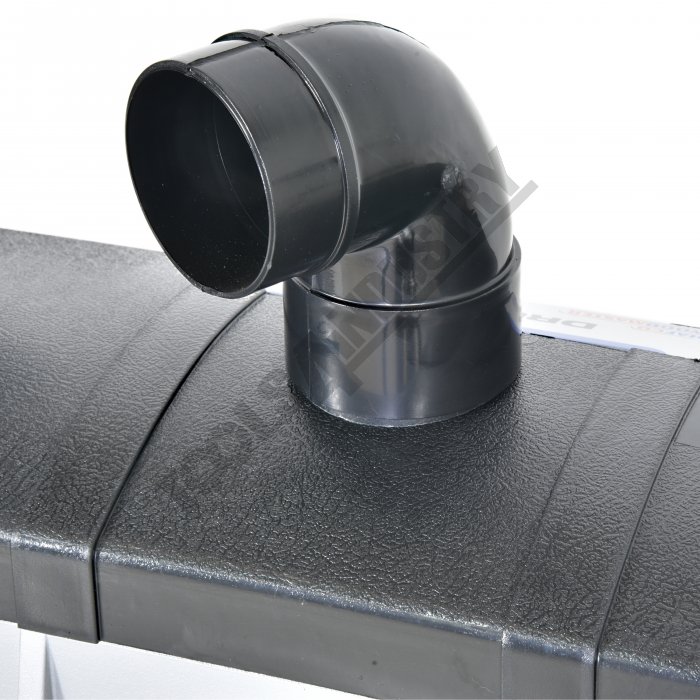

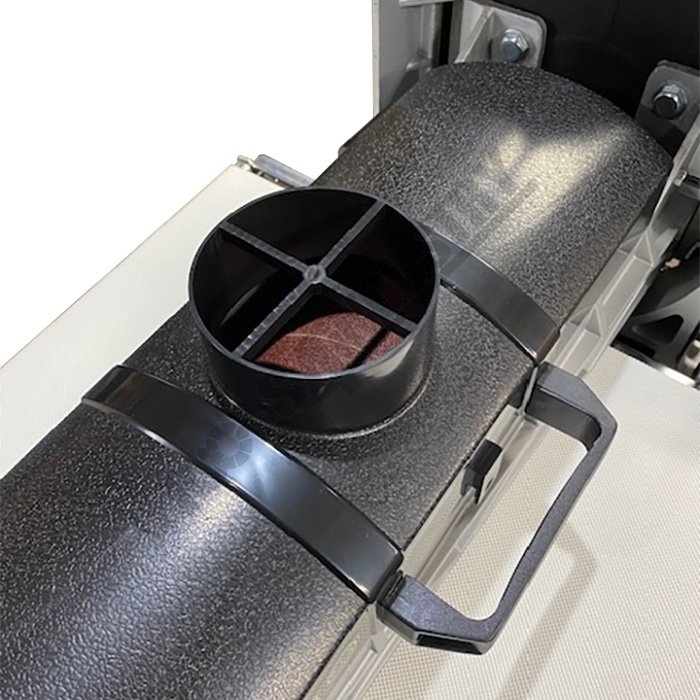

- Ø63.5mm diameter dust hood outlet

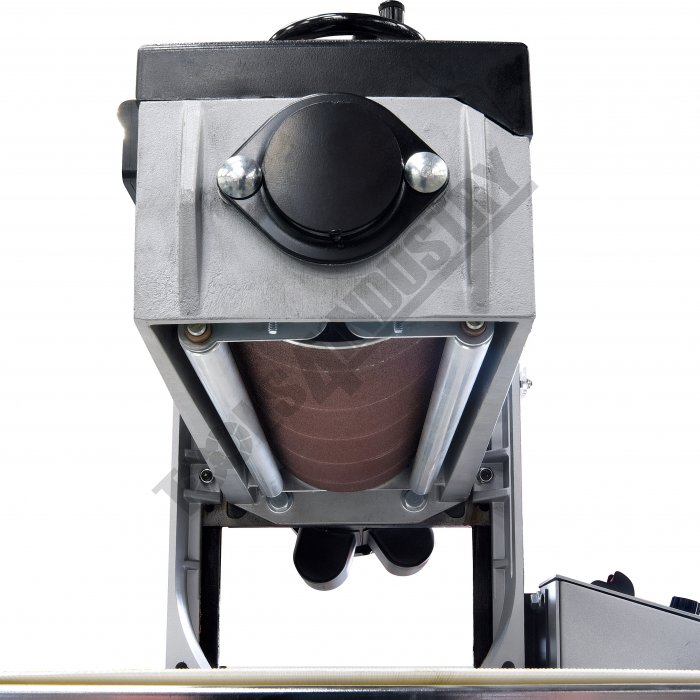

- Rugged aluminium drum supports frame

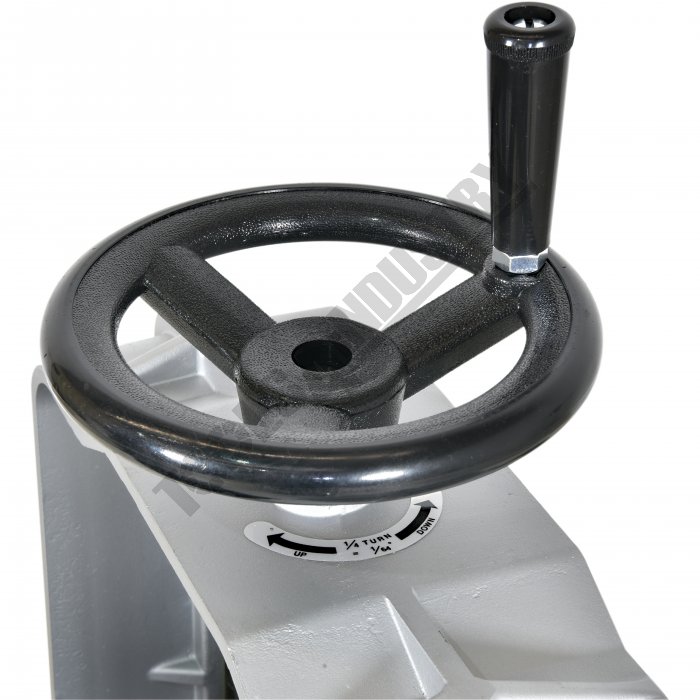

- Drum height is adjusted by turning a control hand wheel

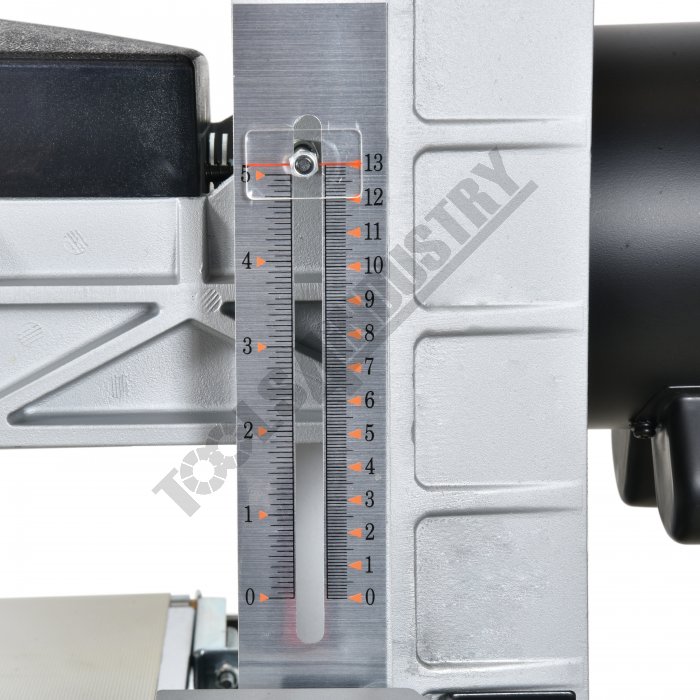

- Depth scale provided on the drum support frame for accurate reading of height adjustment

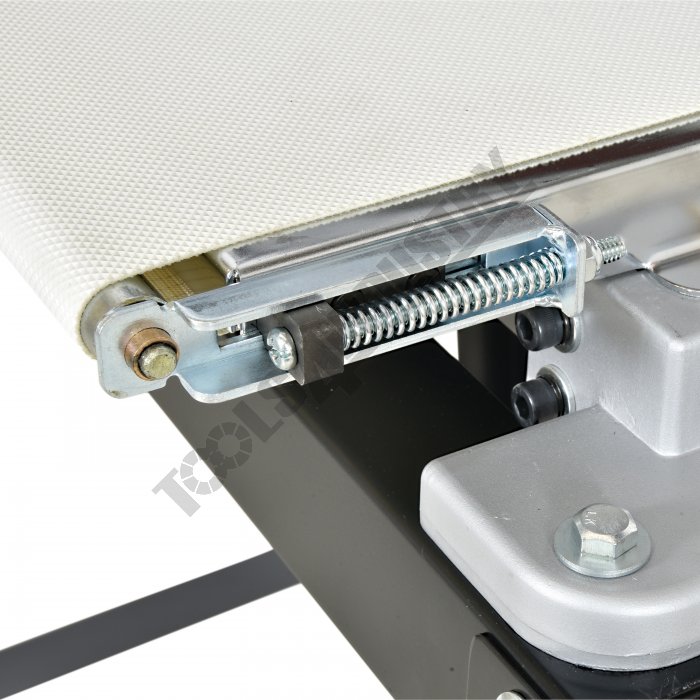

- Conveyor belt tracking is easy to adjust
- Quality Taiwanese
Includes
- Stand
Specifications
- Compare 2 Products
- ORDER CODE
- MODEL
- Variable Table Feed Speedm/min
- Sanding Drum Speedrpm
- Belt Sizemm
- Drum Diametermm
- Maximum Material Widthmm
- Maximum Material Thicknessmm
- Minimum Material Thicknessmm
- Dust Collector Port DiameterQty x mm
- Feed Motor Powerhp
- Motor PowerkW / hp
- Voltage / AmperageV / amp
- Floor Space (W x D x H)mm
- Nett Weightkg
| ORDER CODE | DS-1632 |
|---|---|
| MODEL | 0.6 - 3 |
| Variable Table Feed Speedm/min | 1720 |
| Sanding Drum Speedrpm | 2330 x 78 |
| Belt Sizemm | 127 |
| Drum Diametermm | 400 |
| Maximum Material Widthmm | 127 |
| Maximum Material Thicknessmm | 3.2 |
| Minimum Material Thicknessmm | 1 x Ø63.5 |
| Dust Collector Port DiameterQty x mm | 1/8 |
| Feed Motor Powerhp | 0.75 / 1 |
| Motor PowerkW / hp | 240 / 10 |
| Voltage / AmperageV / amp | 1050 x 700 x 1545 |
| Floor Space (W x D x H)mm | 70 |
| Nett Weightkg |
