This Product Is No Longer Available
| Code | D9505 |
|---|---|
| Model | HF-30A |
| Capacity | Includes 3 x Automatic Feeding Speeds |
| Weight (kg) | 21.6 |
| Weight (m3) | 0.074 |
| Weight (Freight) | 24.642 |
| Dimensions (cm) | 57.5 x 24.5 x 52.5 |

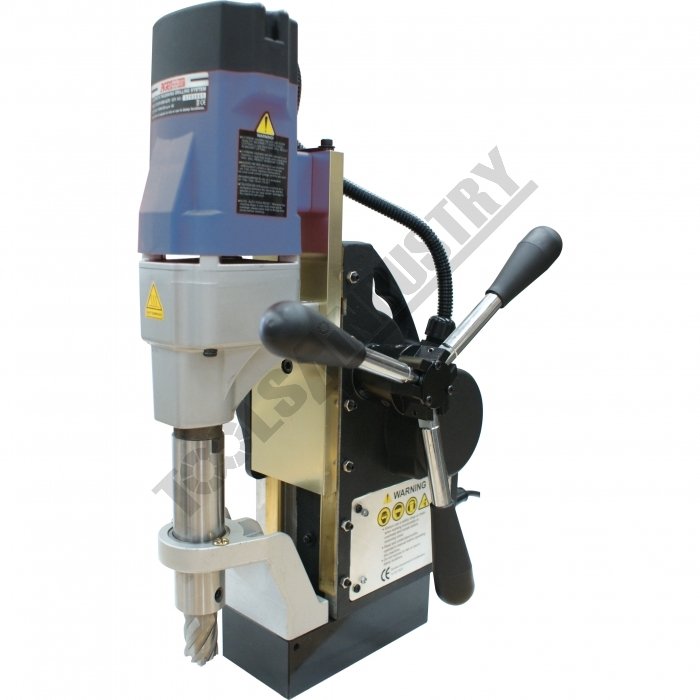

Portable Magnetic Drill HF-30A Includes 3 x Automatic Feeding Speeds
Description
Manufactured in TaiwanHafco HF-30A features automatic feed for where repetitive productivity is required
On-site hole cutting in steel plates, H-Beams shaped bars, framework, ship building, bridge construction and repair, steel reinforcements, and many other metal working and construction jobs.
NOTE: Shown with optional broach cutter
Features
- Compact design with heavy duty magnet
- Drills up to 30mm diameter through 50mm plate in the automatic feed mode, and 35mm diameter through 50mm plate with manual feed
- Sturdy feed handles

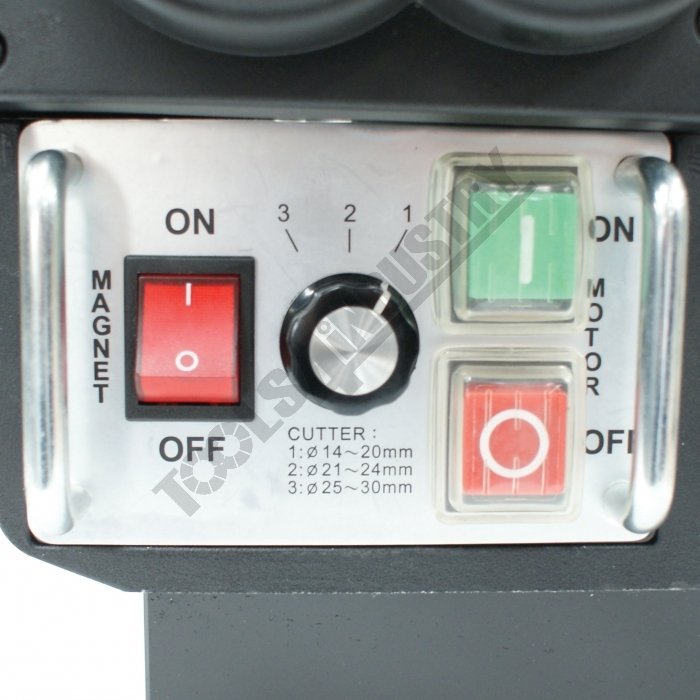

- 3 speed feed motor to accommodate different size cutters
- CE approved
- NOTE: HSS jobber drills with optional drill chuck can only be used in manual feed
Includes

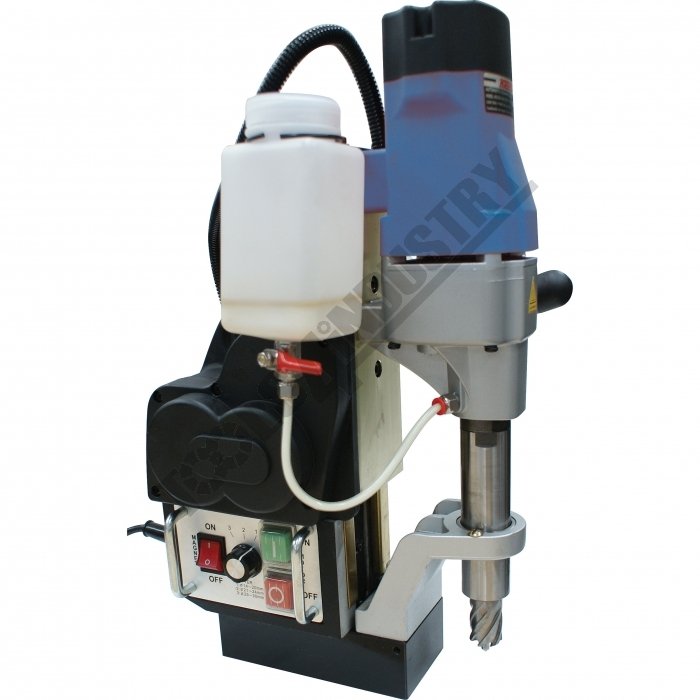

- Coolant tank kit
- Safety chain

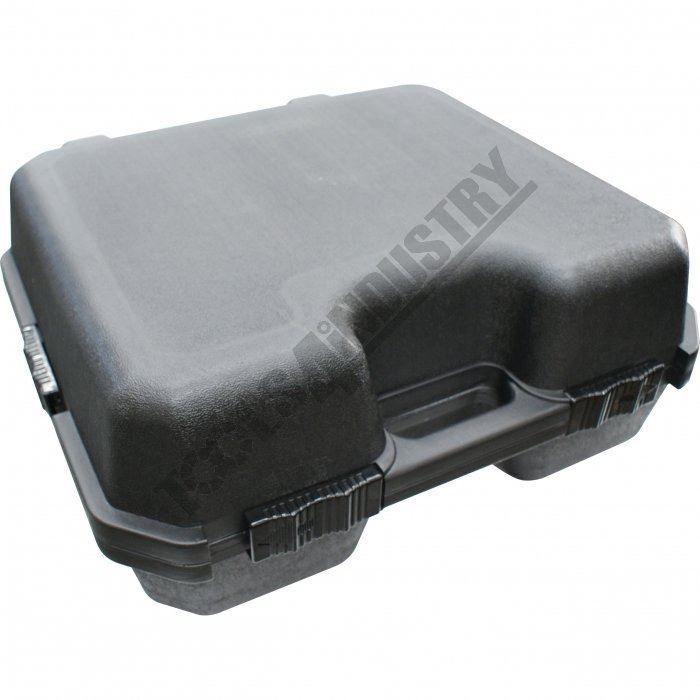

- Blow mould plastic case
Specifications
- Compare 6 Products
- ORDER CODE
- MODEL
- Feed
- Drilling Capacity Range - Manualmm
- Drilling Capacity Range - Auto Feedmm
- Height Adjustmentmm
- Strokemm
- Maximum Thicknessmm
- Suits Cutter Shank Sizemm
- Number of Drilling SpeedsNo.
- Full Load Drilling Speedsrpm
- No Load Drilling Speedsrpm
- Magnetic Holding Powerkg/f
- Motor PowerkW / hp
- Voltage / AmperageV / amp
- Machine Weight Onlykg
- Nett Weightkg
- D9505
- HF-30A
- Automatic
- 12 - 35
- 12 - 30
- ~
- ~
- 50
- 19
- 1
- 330
- 550
- 1529
- 1.1 / 1.46
- 240 / 10
- ~
- 21.6
- D9506
- HFLP-35
- Manual
- 12 - 35
- ~
- ~
- ~
- 35
- 19
- 1
- 390
- 650
- 1500
- 1.1 / 1.46
- 240 / 10
- 10
- 14
- D950
- HF-35
- Manual
- 12 - 35
- ~
- ~
- ~
- 50
- 19
- 1
- 330
- 550
- 1529
- 1.1 / 1.46
- 240 / 10
- 12.6
- 17.5
- D9509
- HF-42
- Manual
- 12 - 42
- ~
- ~
- ~
- 50
- 19
- 1
- 270
- 450
- 1733
- 1.1 / 1.46
- 240 / 10
- 12.6
- 17.5
- D9508
- HF-50
- Manual
- 12 - 50
- ~
- ~
- ~
- 50
- 19
- 2
- 180 / 270
- 300 / 450
- 1733
- 1.1 / 1.46
- 240 / 10
- 14
- 17.5
- D9507
- HF-750
- Manual
- 12 - 75
- ~
- ~
- ~
- 50
- 19
- 4
- 90 / 120 / 180 / 230
- 150 / 200 / 300 / 380
- 3263
- 1.8 / 2.4
- 240 / 10
- 24.8
- 31
| ORDER CODE | HF-30A |
|---|---|
| MODEL | Automatic |
| Feed | 12 - 35 |
| Drilling Capacity Range - Manualmm | 12 - 30 |
| Drilling Capacity Range - Auto Feedmm | ~ |
| Height Adjustmentmm | ~ |
| Strokemm | 50 |
| Maximum Thicknessmm | 19 |
| Suits Cutter Shank Sizemm | 1 |
| Number of Drilling SpeedsNo. | 330 |
| Full Load Drilling Speedsrpm | 550 |
| No Load Drilling Speedsrpm | 1529 |
| Magnetic Holding Powerkg/f | 1.1 / 1.46 |
| Motor PowerkW / hp | 240 / 10 |
| Voltage / AmperageV / amp | ~ |
| Machine Weight Onlykg | 21.6 |
| Nett Weightkg |
