Code D9554
Model D9554
Capacity Suits Toolmaster Magnetic Base Drills
Weight (kg) 0.1
Weight (m3) 0.000
Weight (Freight) 0.1
Dimensions (cm) 6 x 3 x 3
TOOLMASTER

D9554 HSS Drill Broach Cutter Suits Toolmaster Magnetic Base Drills

Description

Ultra hardened High Speed Steel Universal Broach Cutter, designed to be used with a Magnetic Base Drill; where a quick and portable solution is required when drilling into Cast Iron, Cast Steel, Carbon Steel, Alloy Steel, Stainless Steel, Copper or Aluminium.

Features

  • Made of Quality, ultra hardened High Speed Steel
  • Single pass cutting - does not need a pilot hole
  • Produces less swarf than conventional drilling

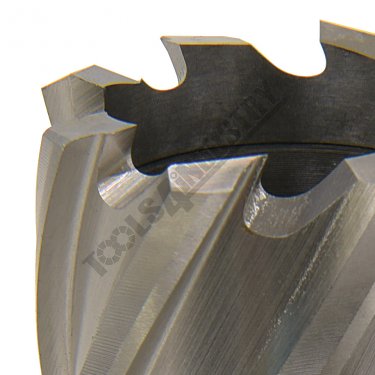

  • Cuts only thin width from outer edge of the hole, reducing drilling time

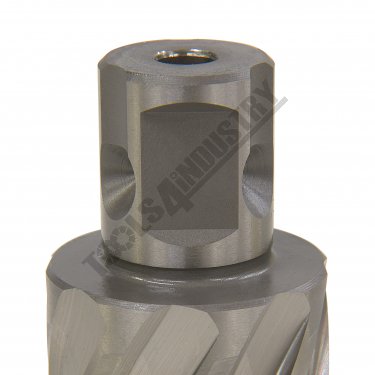

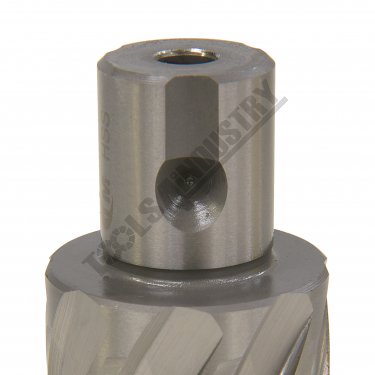

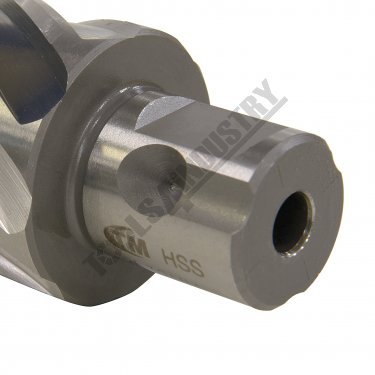

  • Ø19mm universal shank to fit most magnetic base drills
  • Also fits into most quick change systems

Specifications

ORDER CODEToolmaster
BrandØ18
Drill Diametermm50
Drill Depthmm~
Countersink / ChamferØ19
Shank DiametermmØ6.35
Pin Diametermm
