Code	D9511
Capacity	Ø6.34mm x 103mm
Weight (kg)	0.1
Weight (m³)	0.000
Weight (Freight)	0.1
Dimensions (cm)	6 x 3 x 3

TOOLMASTER

Product Brochure

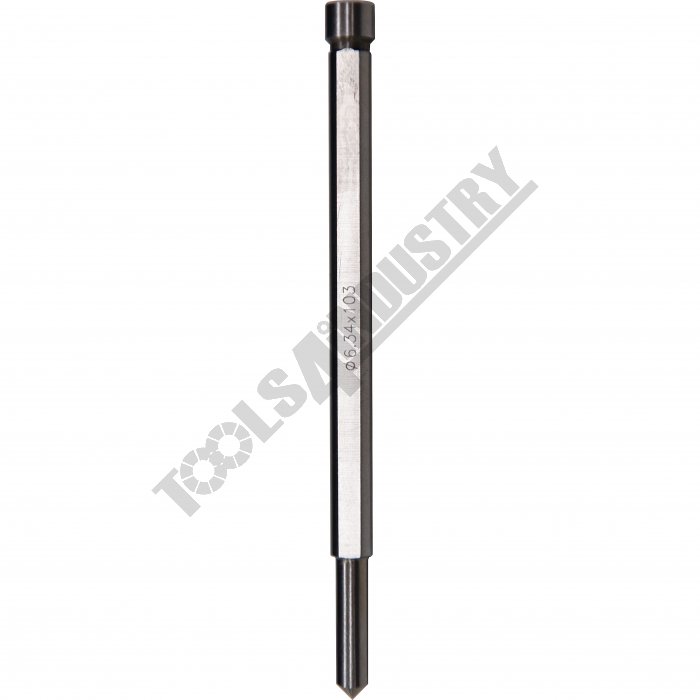

Broach Locating Pin - Toolmaster Ø6.34mm x 103mm

Description

Locating pin to suit Toolmaster 50mm cutters.
The spring-loaded pilot pin quickly picks up the location of the hole from a centre punch mark.
It also is used to eject the slug at the completion of the cut.
Note! It is not recommended to use the cutter without the pilot pin

Specifications

Compare 3 Products
ORDER CODE
Brand
Pin Diametermm / inch
Pin Lengthmm
Suits Broach Cutter - Drill Depth

D9511
Toolmaster
Ø6.34
103
50

D9102
Excision
Ø6.35
102
50

D9510
Toolmaster
Ø6.34
77
30

ORDER CODE	Toolmaster
Brand	Ø6.34
Pin Diametermm / inch	103
Pin Lengthmm	50
Suits Broach Cutter - Drill Depth
