Code	C854
Capacity	Ø2-Ø13mm Range
Weight (kg)	0.38
Weight (m³)	0.000
Weight (Freight)	0.38
Dimensions (cm)	14 x 4 x 4

TOOLMASTER

1 Year Warranty

Taiwan

Product Brochure

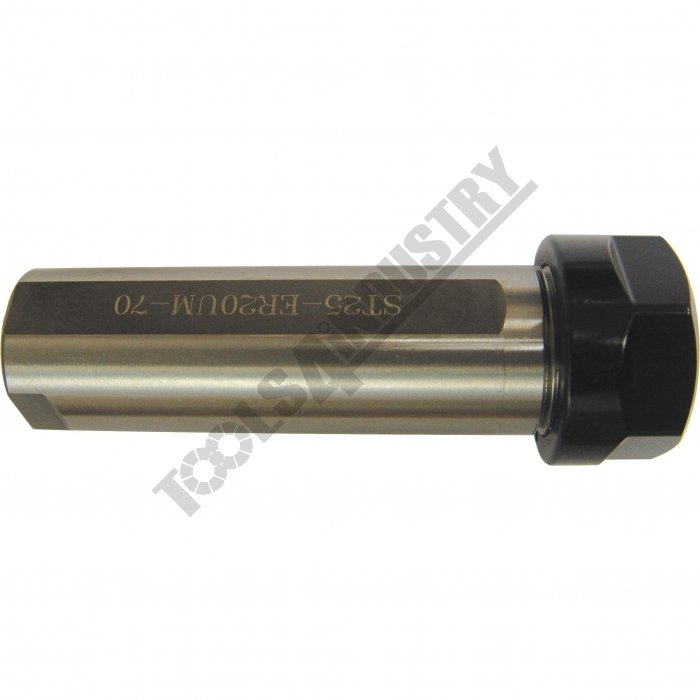

Collet Chuck - 25 x 70L x ER20 Straight Ø2-Ø13mm Range

Description

Toolmaster Straight shanked ER collet chucks are suitable for applications such as turret work or can be used as an extension when a long reach is required
Note: Spanner not included

Features

Precision ground
Clamping flat
No step or shoulder on collet chuck

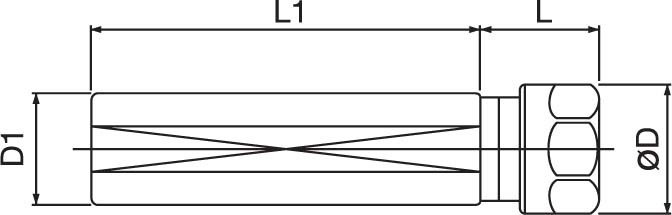

Specifications

Compare 5 Products
ORDER CODE
MODEL
Shoulder TypeYes / No
Dmm
D1mm
Lmm
L1mm
Nett Weightkg

C854
25 x 70L x ER20
No
34
25
23
70
0.3

C864
25 x 150 x ER25
Yes
42
25
43
150
0.78

C931
32 x 100 x ER32
Yes
50
32
54
100
1.1

C835
16 x 100 x ER16
Yes
28
16
30
100
0.3

C836
20 x 100 x ER16
Yes
28
20
30
100
0.3

ORDER CODE	25 x 70L x ER20
MODEL	No
Shoulder TypeYes / No	34
Dmm	25
D1mm	23
Lmm	70
L1mm	0.3
Nett Weightkg

Recommended Accessories

C842

ER20 Collet Chuck Wrench

Code: C842

C850

ER20 Collet Set - 12 Piece

Collet Range Ø1 - Ø13mm
"Made in Taiwan"

Code: C850
