| Code | C835 |
|---|---|
| Capacity | Ø1-Ø10mm Range |
| Weight (kg) | 0.32 |
| Weight (m3) | 0.000 |
| Weight (Freight) | 0.32 |
| Dimensions (cm) | 14 x 4 x 4 |

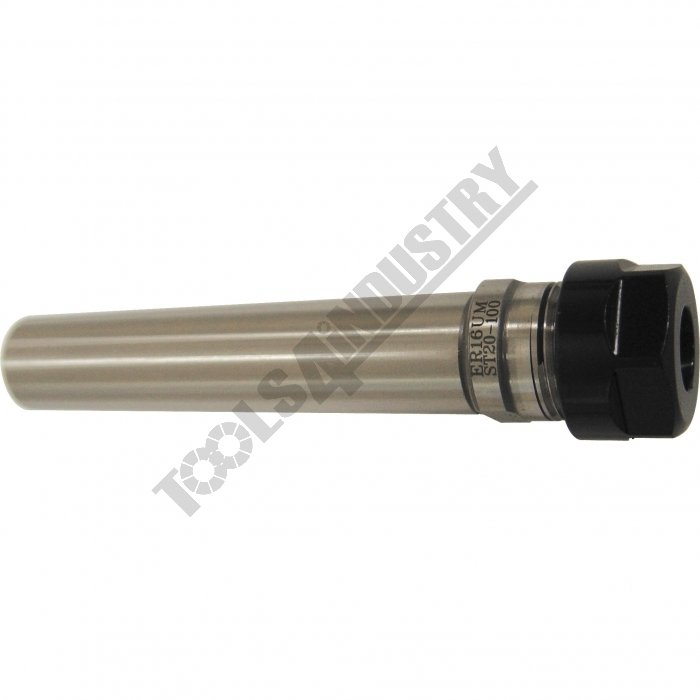

16 x 100 x ER16 Collet Chuck - Straight Ø1-Ø10mm Range
Description
Toolmaster Straight shanked ER collet chucks are suitable for applications such as turret work or can be used as an extension when a long reach is requiredNote: Spanner not included
Features
- Precision ground
- Clamping flat
Specifications
- Compare 5 Products
- ORDER CODE
- MODEL

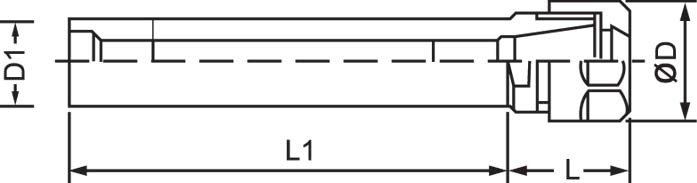

- Shoulder TypeYes / No
- Dmm
- D1mm
- Lmm
- L1mm
- Nett Weightkg
| ORDER CODE | 16 x 100 x ER16 |
|---|---|
| MODEL | Yes |
| Shoulder TypeYes / No | 28 |
| Dmm | 16 |
| D1mm | 30 |
| Lmm | 100 |
| L1mm | 0.3 |
| Nett Weightkg |
