| Code | C7007 |
|---|---|
| Model | SK-10 |
| Capacity | Ø273mm |
| Weight (kg) | 32 |
| Weight (m3) | 0.031 |
| Weight (Freight) | 32 |
| Dimensions (cm) | 35 x 35 x 25 |

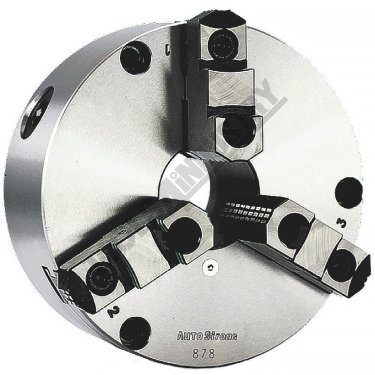

High Precision 3 Jaw Self Centering Lathe Chuck SK-10 Ø273mm
Description
Auto Strong are one of the world’s leading manufacturers of lathe chucks. The SK Series are manufactured in Taiwan with a high precision gripping accuracy of 0.03mm and with a Meehanite casting body they are suitable for high-speed applications.Features
- 3 Jaw self centering lathe chuck
- High precision gripping accuracy of 0.03mm (0.0012”) T.I.R
- 2 Piece hard jaws could be used as internal jaws and external jaws
- Meehanite chuck body suitable for high speed (Max. 1800rpm)
- Plain back suitable for front or rear back plate mounting

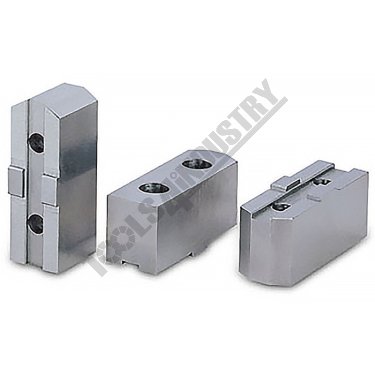

- Optional bolt on soft jaws are available
Includes
- Chuck key

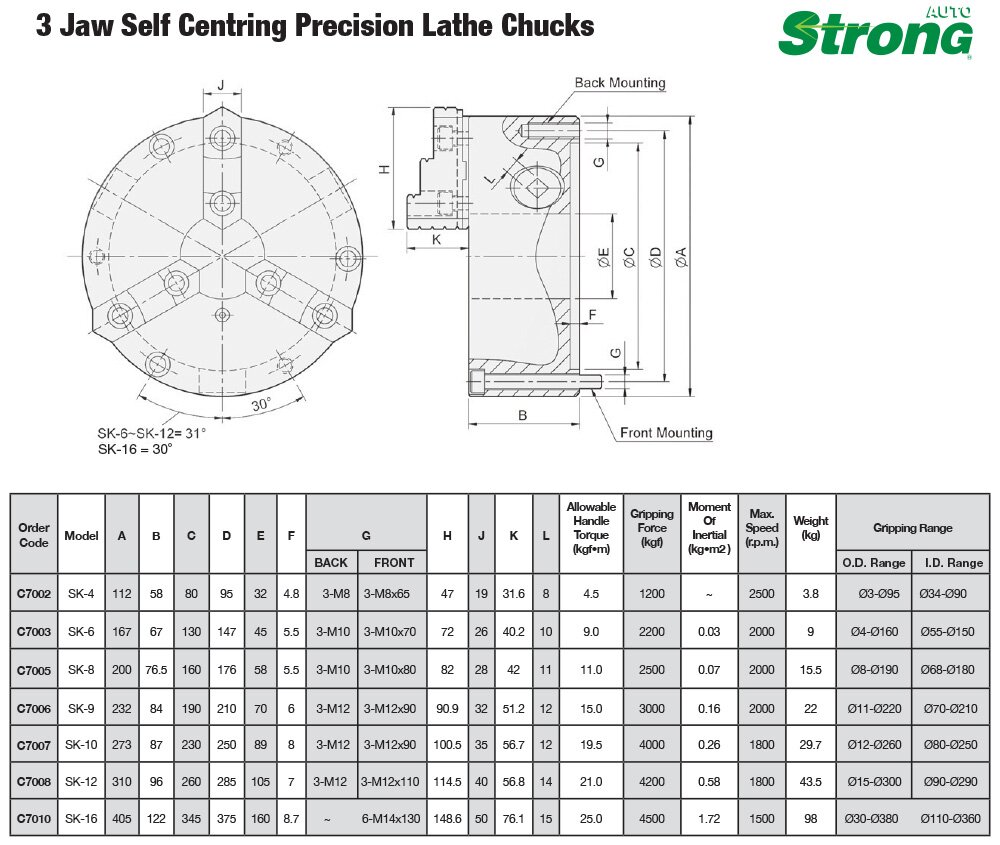

Specifications
- Compare 4 Products
- ORDER CODE
- Model
- Chuck Sizemm
- Bore / Through Hole Sizemm
- Mounting Type
- Gripping Force(kgf)
- Gripping Range ODmm
- Gripping Range IDmm
- Max Speed Ratingrpm
- Nett WeightKg
| ORDER CODE | SK-10 |
|---|---|
| Model | Ø273 |
| Chuck Sizemm | Ø89 |
| Bore / Through Hole Sizemm | Back Plate |
| Mounting Type | 4000 |
| Gripping Force(kgf) | Ø12 - 260 |
| Gripping Range ODmm | Ø80 - 250 |
| Gripping Range IDmm | 1800 |
| Max Speed Ratingrpm | 32 |
| Nett WeightKg |
