| Code | C7002 |
|---|---|
| Model | SK-4 |
| Capacity | Ø112mm |
| Weight (kg) | 6 |
| Weight (m3) | 0.003 |
| Weight (Freight) | 6 |
| Dimensions (cm) | 15 x 15 x 13 |
High Precision 3 Jaw Self Centering Lathe Chuck SK-4 Ø112mm
Description
Auto Strong are one of the world’s leading manufacturers of lathe chucks. The SK Series are manufactured in Taiwan with a high precision gripping accuracy of 0.03mm and with a Meehanite casting body they are suitable for high-speed applications.Features
- 3 Jaw self centering lathe chuck
- High precision gripping accuracy of 0.03mm (0.0012”) T.I.R

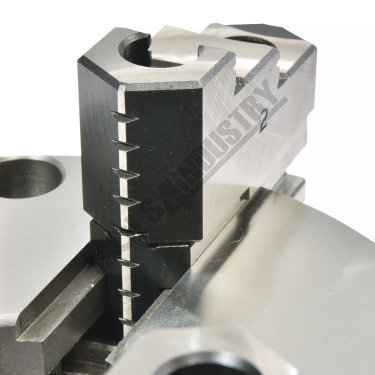

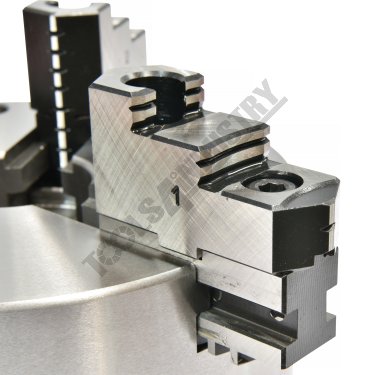

- 2 Piece hard jaws could be used as internal jaws and external jaws
- Meehanite chuck body suitable for high speed (Max. 2500rpm)

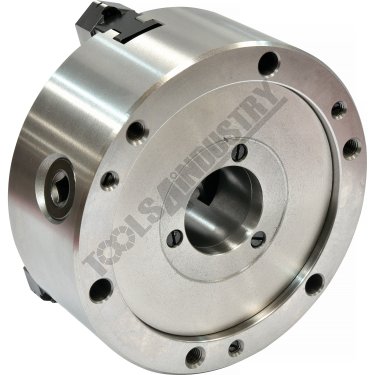

- Plain back suitable for front or rear back plate mounting

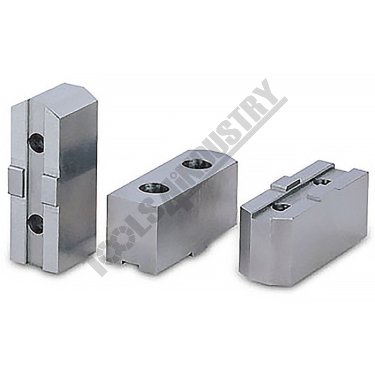

- Optional bolt on soft jaws are available
Includes

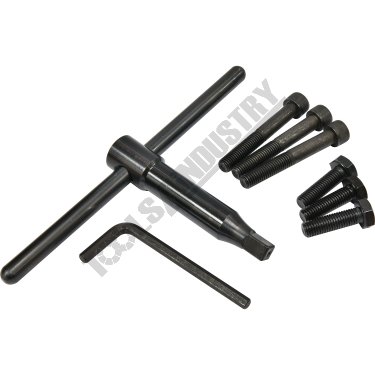

- Chuck key

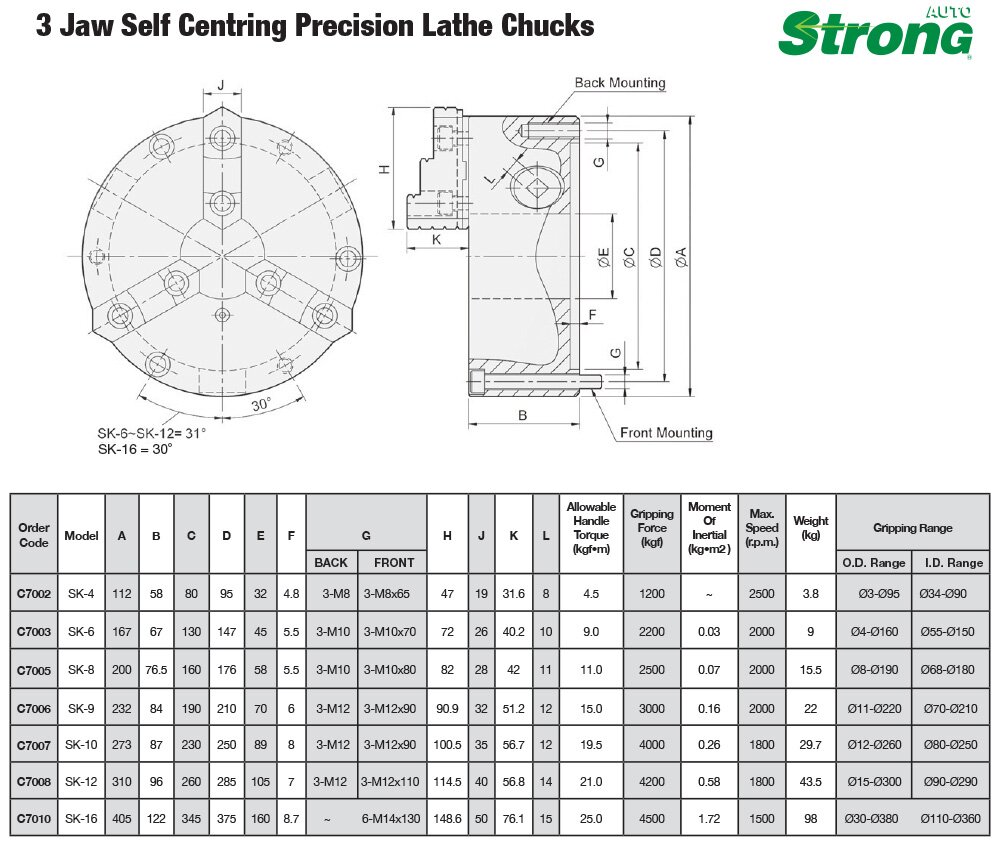

Specifications
- Compare 4 Products
- ORDER CODE
- Model
- Chuck Sizemm
- Bore / Through Hole Sizemm
- Mounting Type
- Gripping Force(kgf)
- Gripping Range ODmm
- Gripping Range IDmm
- Max Speed Ratingrpm
- Nett WeightKg
| ORDER CODE | SK-4 |
|---|---|
| Model | Ø112 |
| Chuck Sizemm | Ø32 |
| Bore / Through Hole Sizemm | Back Plate |
| Mounting Type | 1200 |
| Gripping Force(kgf) | Ø3 - 95 |
| Gripping Range ODmm | Ø34 - 90 |
| Gripping Range IDmm | 2500 |
| Max Speed Ratingrpm | 3.8 |
| Nett WeightKg |
