| Code | C7006 |
|---|---|
| Model | SK-9 |
| Capacity | Ø232mm |
| Weight (kg) | 24 |
| Weight (m3) | 0.020 |
| Weight (Freight) | 24 |
| Dimensions (cm) | 28 x 28 x 25 |

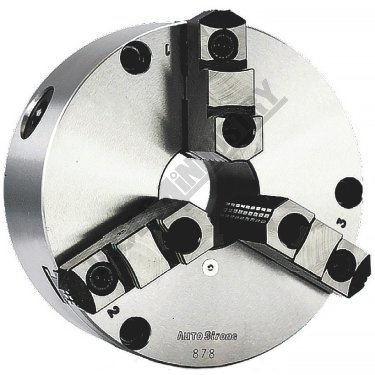

High Precision 3 Jaw Self Centering Lathe Chuck SK-9 Ø232mm
Description
Auto Strong are one of the world’s leading manufacturers of lathe chucks. The SK Series are manufactured in Taiwan with a high precision gripping accuracy of 0.03mm and with a Meehanite casting body they are suitable for high-speed applications.Features
- 3 Jaw self centering lathe chuck
- High precision gripping accuracy of 0.03mm (0.0012”) T.I.R

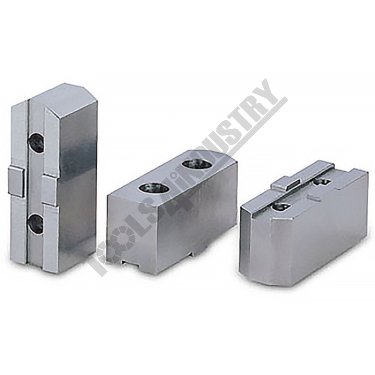

- 2 Piece hard jaws could be used as internal jaws and external jaws
- Meehanite chuck body suitable for high speed (Max. 2000rpm)
- Plain back suitable for front or rear back plate mounting
- Optional bolt on soft jaws are available
Includes
- Chuck key

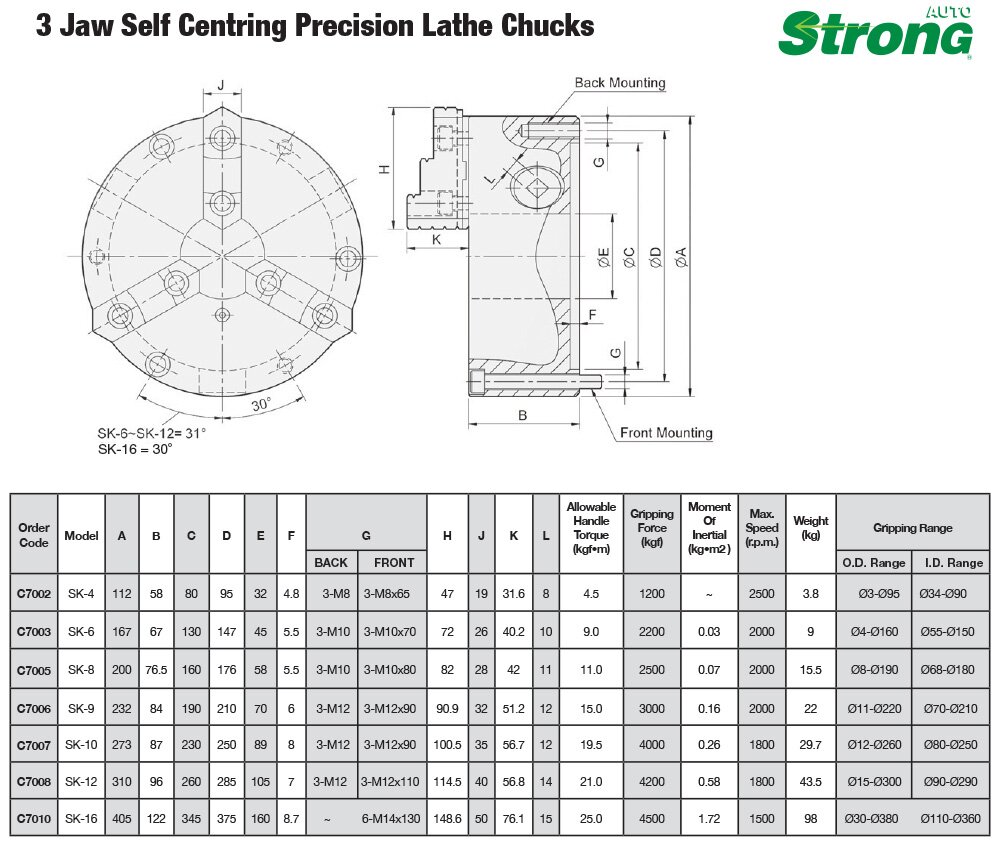

Specifications
- Compare 4 Products
- ORDER CODE
- Model
- Chuck Sizemm
- Bore / Through Hole Sizemm
- Mounting Type
- Gripping Force(kgf)
- Gripping Range ODmm
- Gripping Range IDmm
- Max Speed Ratingrpm
- Nett WeightKg
| ORDER CODE | SK-9 |
|---|---|
| Model | Ø232 |
| Chuck Sizemm | Ø70 |
| Bore / Through Hole Sizemm | Back Plate |
| Mounting Type | 3000 |
| Gripping Force(kgf) | Ø11 - 220 |
| Gripping Range ODmm | Ø70 - 210 |
| Gripping Range IDmm | 2000 |
| Max Speed Ratingrpm | 24 |
| Nett WeightKg |
