| Code | C413 |
|---|---|
| Model | CW-150 |
| Capacity | Ø150mm Wheels |
| Weight (kg) | 15.73 |
| Weight (m3) | 0.021 |
| Weight (Freight) | 15.73 |
| Dimensions (cm) | 40 x 35 x 15 |

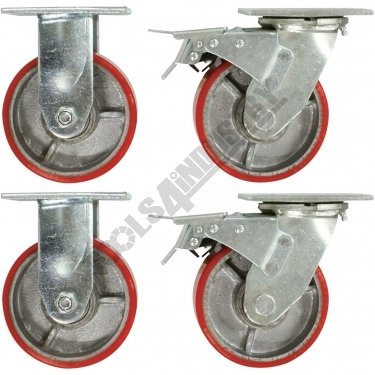

Industrial Caster Wheel Set CW-150 Ø150mm Wheels
Description
Industrial quality Ø150mm caster wheels, Tyre is made from tough elastic rubber with an load capacity of up to 450kg per caster.Features
- Ø150mm x 50mm wide steel wheel with bonded polyurethane
- 2 x fixed wheels
- 2 x swivel wheels with brake
- 450kg each wheel capacity

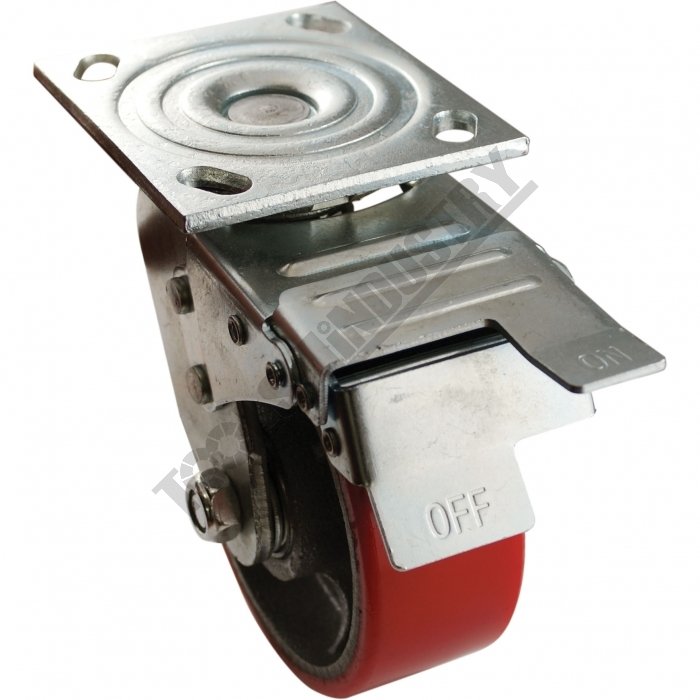

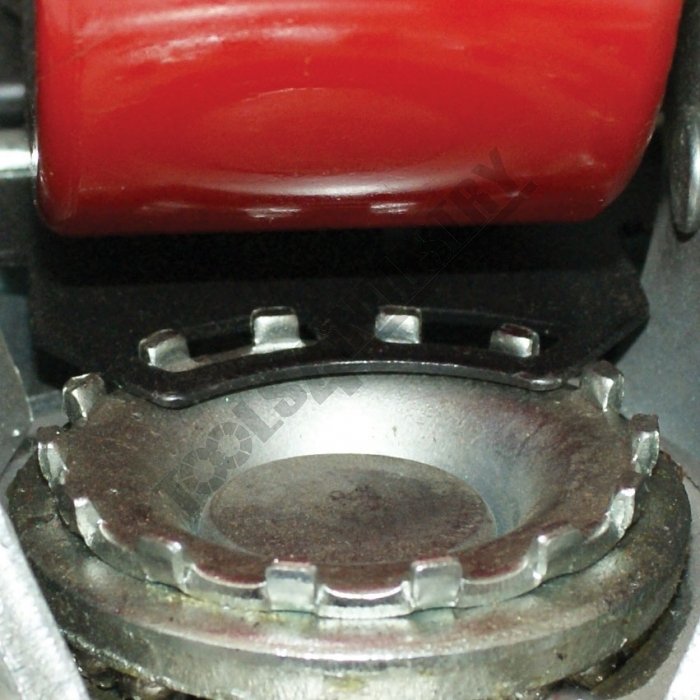

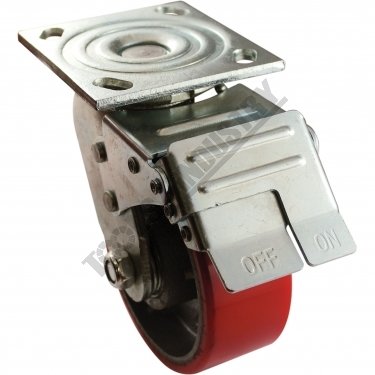

- Brake also locks wheel from swivelling

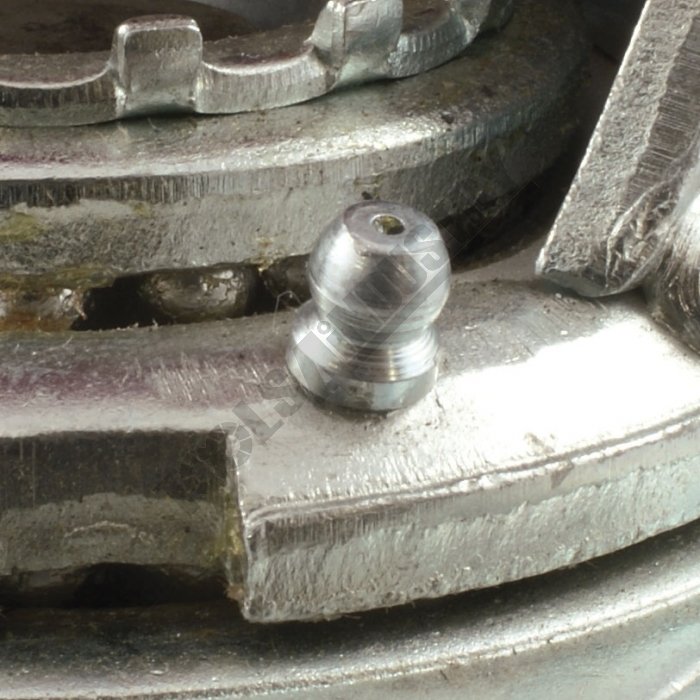

- Swivel base incorporates ball bearings
- Ball bearing sealed race on main shaft

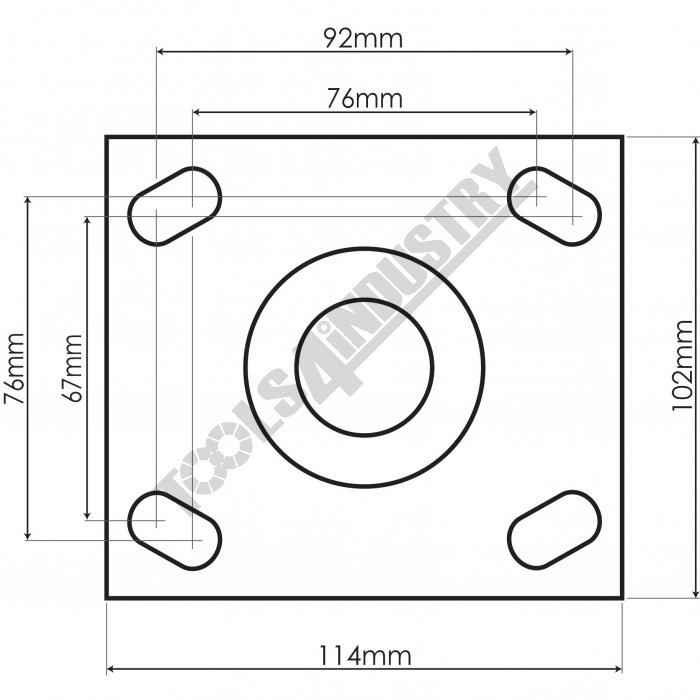

- Mounting plate 114 x 102mm with 4 slotted holes
Specifications
- Compare 11 Products
- ORDER CODE
- MODEL
- Quantity of Wheels in PackNo.
- Wheel Type
- Wheel Diametermm
- Wheel Widthmm
- Total Height to Top of Platemm
- Load Capacity per Wheelkg
- Load Capacity per Set kg
- Nett Weightkg
- C413
- CW-150
- 4
- 2 Fixed, 2 Swivel/Brake
- Ø150
- 50
- ~
- 450
- 1800
- 16
- C414
- CW-150S
- 2
- 2 Swivel/Brake
- Ø150
- 50
- ~
- 450
- 900
- 9
- C4064
- GD-80F
- 1
- Foot Swivel Caster Wheel - Adjustable Stop
- 63
- 28
- 103
- 500
- ~
- 1.04
- C4068
- GD-120F
- 1
- Foot Caster Wheel - Adjustable Stop
- 75
- 30
- 120
- 1000
- ~
- 1.6
- W07748
- TMLC600
- 1
- ~
- ~
- ~
- ~
- ~
- ~
- 1.95
- W935
- CW-63
- 4
- Foot Lock & Lift Release
- Ø63
- 25
- ~
- 63
- 252
- 3.5
- C410
- CW-100
- 4
- 2 Fixed, 2 Swivel/Brake
- Ø100
- 35
- 127
- 70
- 280
- 4
- C408
- CW-102
- 4
- 2 Fixed, 2 Swivel/Brake
- Ø100
- 50
- 145
- 400
- 11
- C411
- CW-125
- 4
- 2 Fixed, 2 Swivel/Brake
- Ø125
- 50
- 165
- 410
- 1640
- 16
- C409
- CW-102S
- 2
- 2 Swivel/Brake
- Ø100
- 50
- 145
- 400
- 6
- C412
- CW-125S
- 2
- 2 Swivel/Brake
- Ø125
- 50
- 165
- 410
- 820
- 8
| ORDER CODE | CW-150 |
|---|---|
| MODEL | 4 |
| Quantity of Wheels in PackNo. | 2 Fixed, 2 Swivel/Brake |
| Wheel Type | Ø150 |
| Wheel Diametermm | 50 |
| Wheel Widthmm | ~ |
| Total Height to Top of Platemm | 450 |
| Load Capacity per Wheelkg | 1800 |
| Load Capacity per Set kg | 16 |
| Nett Weightkg |
