Caster Wheel Set

Caster Wheel Set

Code	C410
Model	CW-100
Capacity	Ø100mm Wheels
Weight (kg)	3
Weight (m³)	0.003
Weight (Freight)	3
Dimensions (cm)	17 x 12.5 x 13.5

HAFCO

1 Year Warranty

Product Brochure

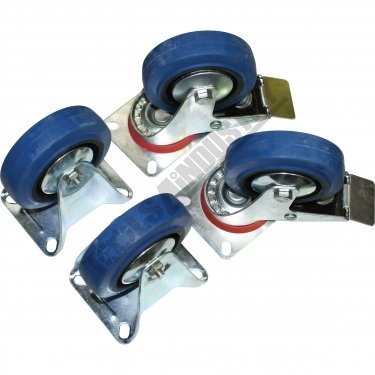

Heavy Duty Caster Wheel Set CW-100 Ø100mm Wheels

Description

Heavy Duty Ø100mm caster wheels, tyre is made from tough elastic rubber with a capacity of 70kg per caster. Suitable for warehouse trolleys and similar applications

Features

Ø100mm Wheel made from a blue elastic rubber
35mm wide wheel

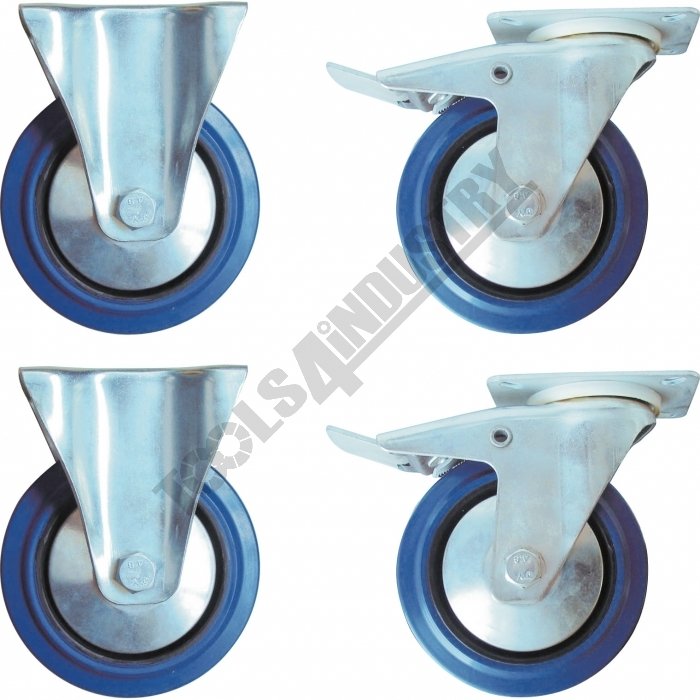

2 x fixed wheels
2 x swivel wheels with Brake
Total height from base of wheel to top of plate is 127mm
70kg each wheel capacity
Industrial caster with steel plate inserts
Mounting plate 102 x 80mm with 4 holes

Specifications

Compare 11 Products
ORDER CODE
MODEL
Quantity of Wheels in PackNo.
Wheel Type
Wheel Diametermm
Wheel Widthmm
Total Height to Top of Platemm
Load Capacity per Wheelkg
Load Capacity per Set kg
Nett Weightkg

C410
CW-100
4
2 Fixed, 2 Swivel/Brake
Ø100
35
127
70
280
4

C408
CW-102
4
2 Fixed, 2 Swivel/Brake
Ø100
50
145
400
11

C411
CW-125
4
2 Fixed, 2 Swivel/Brake
Ø125
50
165
410
1640
16

C409
CW-102S
2
2 Swivel/Brake
Ø100
50
145
400
6

C412
CW-125S
2
2 Swivel/Brake
Ø125
50
165
410
820
8

C413
CW-150
4
2 Fixed, 2 Swivel/Brake
Ø150
50
~
450
1800
16

C414
CW-150S
2
2 Swivel/Brake
Ø150
50
~
450
900
9

C4064
GD-80F
1
Foot Swivel Caster Wheel - Adjustable Stop
63
28
103
500
~
1.04

C4068
GD-120F
1
Foot Caster Wheel - Adjustable Stop
75
30
120
1000
~
1.6

W07748
TMLC600
1
~
~
~
~
~
~
1.95

W935
CW-63
4
Foot Lock & Lift Release
Ø63
25
~
63
252
3.5

ORDER CODE	CW-100
MODEL	4
Quantity of Wheels in PackNo.	2 Fixed, 2 Swivel/Brake
Wheel Type	Ø100
Wheel Diametermm	35
Wheel Widthmm	127
Total Height to Top of Platemm	70
Load Capacity per Wheelkg	280
Load Capacity per Set kg	4
Nett Weightkg
