Code	C112
Model	NT40 x ER32
Capacity	Ø2-Ø20mm
Weight (kg)	1.1
Weight (m³)	0.001
Weight (Freight)	1.1
Dimensions (cm)	18 x 7 x 7

TOOLMASTER

1 Year Warranty

Taiwan

Product Brochure How to Install ER Collets [83 KB]

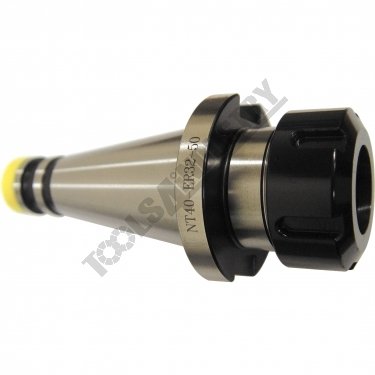

Collet Chuck NT40 - ER32 NT40 x ER32 Ø2-Ø20mm

Description

All ER collet chucks meet the specifications of machine tool builders (DIN 2080 taper Shank Grade AT-3 - 85% taper contact)
Maintain a high level of accuracy.

Features

Precision Ground
Rated to 10,000rpm

Specifications

Compare 9 Products
ORDER CODE
Collet Type
Maximum Capacitymm
Taper (J)
Draw Bar (G)
Lmm
ØDmm
Nett Weightkg

C112
ER32
20
NT40
M16 x 2.0
50
50
1.0

C106
ER32
20
R8
7/16" x 20UNF
40
50
0.6

C111
ER40
26
NT30
M12 x 1.75
70
63
1.0

C114
ER40
26
NT40
M16 x 2.0
60
63
1.3

C138
ER40
26
R8
7/16" x 20UNF
70
63
1.0

C105
ER32
20
3MT
1/2" Whitworth
50
50
0.6

C1054
ER40
26
3MT
1/2" Whitworth
70
63
1.3

C1056
ER32
20
4MT
M16
50
50
0.9

C110
ER32
20
NT30
M12 x 1.75
55
50
0.6

ORDER CODE	ER32
Collet Type	20
Maximum Capacitymm	NT40
Taper (J)	M16 x 2.0
Draw Bar (G)	50
Lmm	50
ØDmm	1.0
Nett Weightkg

Recommended Accessories

C932

ER32 Collet Chuck Wrench

Code: C932

C117

Collet Nut ER32

Suits ER32 Collet Chucks

Code: C117

C921

ER32 Collet Set - 6 Piece

Collet Range Ø5 - Ø20mm
"Made in Taiwan"

Code: C921

C922

ER32 Collet Set - 18 Piece

Collet Range Ø2 - Ø20mm
"Made in Taiwan"

Code: C922

C925

Collet & Chuck Set - 8 Piece
NT40 x ER32
Collet Range Ø5 - Ø20mm
"Made in Taiwan"

Code: C925

C929

Collet & Chuck Set - 20 Piece
NT40 x ER32
Collet Range Ø2 - Ø20mm
"Made in Taiwan"

Code: C929

C903

ER32 Collet

Ø3-Ø2mm
"Made in Taiwan"

Code: C903
