Code	C106
Model	R8 x ER32
Capacity	Ø2-Ø20mm
Weight (kg)	0.78
Weight (m³)	0.000
Weight (Freight)	0.78
Dimensions (cm)	16.4 x 5.4 x 5.5

TOOLMASTER

1 Year Warranty

Taiwan

Product Brochure How to Install ER Collets [83 KB]

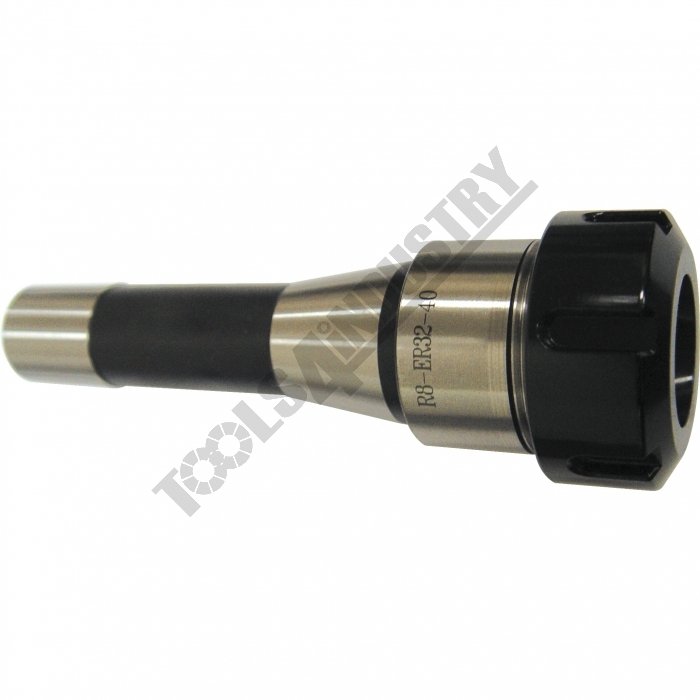

Collet Chuck - R8 x ER32 R8 x ER32 Ø2-Ø20mm

Description

All ER collet chucks meet the specifications of machine tool builders (DIN 2080 taper Shank Grade AT-3 - 85% taper contact)
Maintain a high level of accuracy.

Features

Precision Ground
Rated to 10,000rpm

Specifications

Compare 9 Products

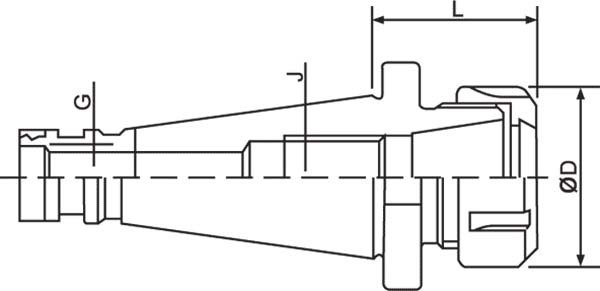

ORDER CODE
Collet Type
Maximum Capacitymm
Taper (J)
Draw Bar (G)
Lmm
ØDmm
Nett Weightkg

C106
ER32
20
R8
7/16" x 20UNF
40
50
0.6

C111
ER40
26
NT30
M12 x 1.75
70
63
1.0

C114
ER40
26
NT40
M16 x 2.0
60
63
1.3

C138
ER40
26
R8
7/16" x 20UNF
70
63
1.0

C105
ER32
20
3MT
1/2" Whitworth
50
50
0.6

C1054
ER40
26
3MT
1/2" Whitworth
70
63
1.3

C1056
ER32
20
4MT
M16
50
50
0.9

C110
ER32
20
NT30
M12 x 1.75
55
50
0.6

C112
ER32
20
NT40
M16 x 2.0
50
50
1.0

ORDER CODE	ER32
Collet Type	20
Maximum Capacitymm	R8
Taper (J)	7/16" x 20UNF
Draw Bar (G)	40
Lmm	50
ØDmm	0.6
Nett Weightkg
