Code	C111
Model	NT30 x ER40
Capacity	Ø3-Ø26mm
Weight (kg)	1.12
Weight (m³)	0.001
Weight (Freight)	1.12
Dimensions (cm)	18 x 7 x 6.8

TOOLMASTER

1 Year Warranty

Taiwan

Product Brochure How to Install ER Collets [83 KB]

Collet Chuck - NT30 x ER40 NT30 x ER40 Ø3-Ø26mm

Description

All ER collet chucks meet the specifications of machine tool builders (DIN 2080 taper Shank Grade AT-3 - 85% taper contact)
Maintain a high level of accuracy.

Features

Precision Ground
Ball Bearing Nut
Rated to 10,000rpm

Specifications

Compare 9 Products

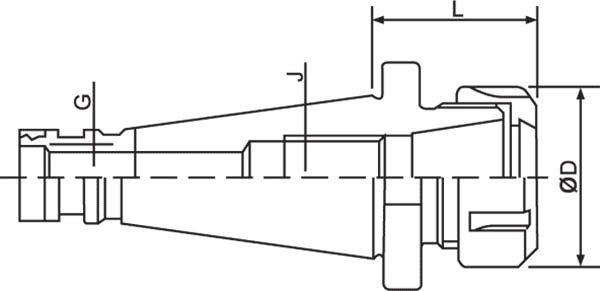

ORDER CODE
Collet Type
Maximum Capacitymm
Taper (J)
Draw Bar (G)
Lmm
ØDmm
Nett Weightkg

C111
ER40
26
NT30
M12 x 1.75
70
63
1.0

C114
ER40
26
NT40
M16 x 2.0
60
63
1.3

C138
ER40
26
R8
7/16" x 20UNF
70
63
1.0

C105
ER32
20
3MT
1/2" Whitworth
50
50
0.6

C1054
ER40
26
3MT
1/2" Whitworth
70
63
1.3

C1056
ER32
20
4MT
M16
50
50
0.9

C110
ER32
20
NT30
M12 x 1.75
55
50
0.6

C112
ER32
20
NT40
M16 x 2.0
50
50
1.0

C106
ER32
20
R8
7/16" x 20UNF
40
50
0.6

ORDER CODE	ER40
Collet Type	26
Maximum Capacitymm	NT30
Taper (J)	M12 x 1.75
Draw Bar (G)	70
Lmm	63
ØDmm	1.0
Nett Weightkg
