Code B8064
Model DS-180-2000T-R700
Capacity 177.8mm CLR, Made from Steel
Weight (kg) 32.7
Weight (m3) 0.024
Weight (Freight) 32.7
Dimensions (cm) 50 x 30 x 16
BAILEIGH
1 Year
U.S.A

DS-180-2000T-R700 50.8mm OD x 180º Round Tube Die Set 177.8mm CLR, Made from Steel

Description

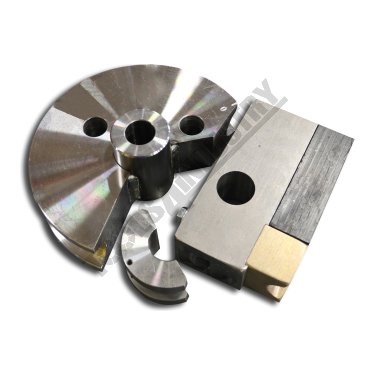

This is a complete die set, including 50.8mm OD round tube forming die, counter die and hook sleeve for making 180 degree bends on the RDB-050 manual tube bender.

Features

  • 50.8mm OD steel former with 177.8mm centre line radius for 180 degree bends
  • 2.0mm recommended minimum wall thickness
  • 180 degree maximum bend angle
  • Set includes forming die, counter die, and hook sleeve

Specifications

ORDER CODEDS-180-2000T-R700
MODEL1003675
Part NumberRound Tube Die Set
Type180º
Degree of Bend (Max)Deg50.8 OD


Sizeinch / mm177.8
CLR - Centre Line Radiusinch / mm2.0
Recommended Min. Wall Thicknessinch / mm~
Material ODinch / mm~
Suits Spigot Sizeinch / mmRDB-050
Suits Machine Model32.7
Nett Weightkg
