Code B8050
Model DS-180-1250T-R500
Capacity 127mm CLR, Made from Steel
Weight (kg) 15.9
Weight (m3) 0.017
Weight (Freight) 15.9
Dimensions (cm) 40 x 26 x 16
BAILEIGH
1 Year
U.S.A

DS-180-1250T-R500 31.75mm OD x 180º Round Tube Die Set 127mm CLR, Made from Steel

Description

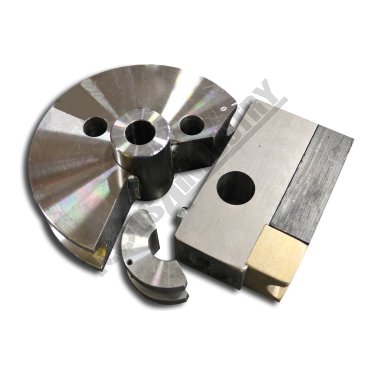

This is a complete die set, including 31.75mm OD round tube forming die, counter die and hook sleeve for making 180 degree bends on the RDB-050 manual tube bender.

Features

  • 31.75mm OD steel former with 127mm centre line radius for 180 degree bends
  • 1.1mm recommended minimum wall thickness
  • 180 degree maximum bend angle
  • Set includes forming die, counter die, and hook sleeve

Specifications

ORDER CODEDS-180-1250T-R500
MODEL1003660
Part NumberRound Tube Die Set
Type180º
Degree of Bend (Max)Deg31.75 OD


Sizeinch / mm127
CLR - Centre Line Radiusinch / mm1.1
Recommended Min. Wall Thicknessinch / mm~
Material ODinch / mm~
Suits Spigot Sizeinch / mmRDB-050
Suits Machine Model15.9
Nett Weightkg
