Code	B8056
Model	DS-180-1500T-R600
Capacity	152.4mm CLR, Made from Steel
Weight (kg)	17.7
Weight (m³)	0.017
Weight (Freight)	17.7
Dimensions (cm)	40 x 26 x 16
Only Available From	Sydney, Melbourne

BAILEIGH

1 Year Warranty

U.S.A

Product Brochure B-Lube Brochure [99 KB] RDB-050 Tooling List [141 KB]

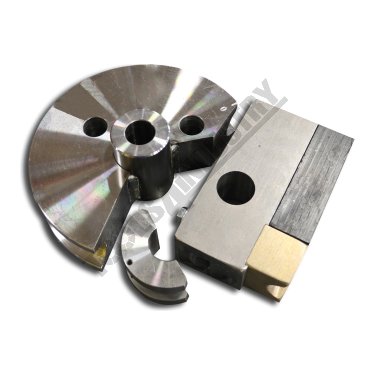

38.1mm OD x 180º Round Tube Die Set DS-180-1500T-R600 152.4mm CLR, Made from Steel

Description

This is a complete die set, including 38.1mm OD round tube forming die, counter die and hook sleeve for making 180 degree bends on the RDB-050 manual tube bender.

Features

38.1mm OD steel former with 152.4mm centre line radius for 180 degree bends
1.3mm recommended minimum wall thickness
180 degree maximum bend angle
Set includes forming die, counter die, and hook sleeve

Specifications

Compare 18 Products
ORDER CODE
MODEL
Part Number
Type
Degree of Bend (Max)Deg
Sizeinch / mm
CLR - Centre Line Radiusinch / mm
Recommended Min. Wall Thicknessinch / mm
Material ODinch / mm
Suits Spigot Sizeinch / mm
Suits Machine Model
Nett Weightkg

B8056
DS-180-1500T-R600
1003667
Round Tube Die Set
180º
38.1 OD
152.4
1.3
~
~
RDB-050
17.7

B8064
DS-180-2000T-R700
1003675
Round Tube Die Set
180º
50.8 OD
177.8
2.0
~
~
RDB-050
32.7

B8305
DS-1750T-R600
~
Round Tube Die Set
180º
44.45 OD
152.4
2.413
~
~
RDB Series (Not RDB-050)
7

P102
PBF-12
~
Pipe Bender Former
~
1/2" NB
~
~
~
20
PPB-2 & MPB-2 Pipe Benders
~

P103
PBF-19
~
Pipe Bender Former
~
3/4" NB
~
~
~
20
PPB-2 & MPB-2 Pipe Benders
~

3PL0100
~
~
Pipe Bender Former
~
1" NB
~
~
~
31.8
MPB-2SH Pipe Bender
~

3PL0125
~
~
Pipe Bender Former
~
1 1/4" NB
~
~
~
31.8
MPB-2SH Pipe Bender
~

3PL0150
~
~
Pipe Bender Former
~
1 1/2" NB
~
~
~
31.8
MPB-2SH Pipe Bender
~

3PL0200
~
~
Pipe Bender Former
~
2" NB
~
~
~
31.8
~
~

T610
TBF-S253238
~
Round Tube Former Set
~
25.4, 31.8, 38.1 OD
~
~
~
~
TB-42,60,70 Pipe/Tube Benders
~

T610A
TBF-25
~
Round Tube Counter Former
~
25.4 OD
~
~
~
~
TB-42,60,70 Pipe/Tube Benders
~

T611
TBF-3238
~
Round Tube Counter Former
~
31.8, 38.1 OD
~
~
~
~
TB-42,60,70 Pipe/Tube Benders
~

T620
TBF-S51
~
Round Tube Former Set
~
50.8 OD x 1.6mm Wall
~
~
~
~
TB-60, 70 Pipe/Tube Benders
~

T620A
TBF-51
~
Round Tube Counter Former
~
51 OD
~
~
~
~
TB-60, 70 Pipe/Tube Benders
~

T614
PBF-1.5
~
Round Pipe Former Set
~
1-1/2" NB
~
~
~
~
TB-70 Pipe & Tube Bender
~

T615
PBF-2
~
Round Pipe Former Set
~
2" NB
~
~
~
~
TB-70 Pipe & Tube Bender
~

B8045
DS-180-1000T-R450
1003652
Round Tube Die Set
180º
25.4 OD
114.3
0.8
~
~
RDB-050
7.2

B8050
DS-180-1250T-R500
1003660
Round Tube Die Set
180º
31.75 OD
127
1.1
~
~
RDB-050
15.9

ORDER CODE	DS-180-1500T-R600
MODEL	1003667
Part Number	Round Tube Die Set
Type	180º
Degree of Bend (Max)Deg	38.1 OD
Sizeinch / mm	152.4
CLR - Centre Line Radiusinch / mm	1.3
Recommended Min. Wall Thicknessinch / mm	~
Material ODinch / mm	~
Suits Spigot Sizeinch / mm	RDB-050
Suits Machine Model	17.7
Nett Weightkg
