| Code | B064V |
|---|---|
| Model | EB-285DSV |
| Capacity | Electronic Variable Blade Speed 20-90mpm, Dual Mitre Cuts Up To 60º, Quick Action Material Clamp & Includes Hydraulic Downfeed Control |
| Weight (kg) | 280 |
| Weight (m3) | 1.001 |
| Weight (Freight) | 333.333 |
| Dimensions (cm) | 158 x 66 x 96 |

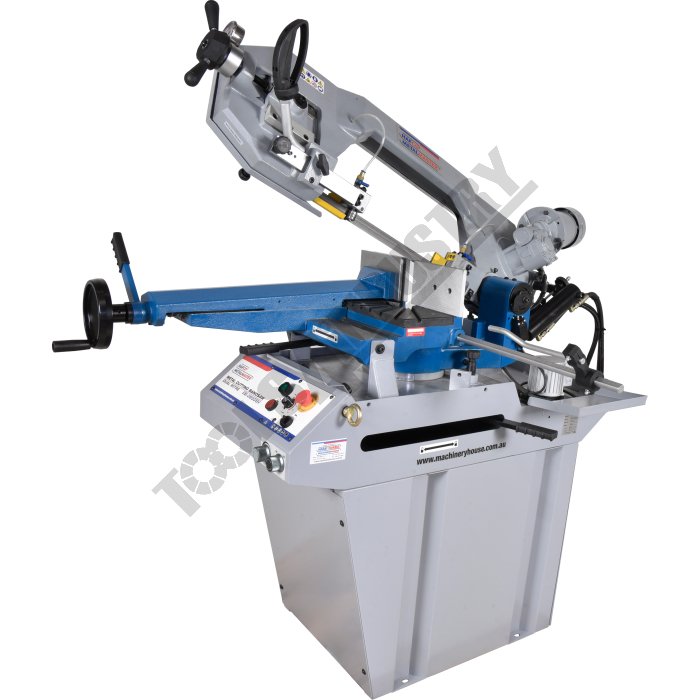

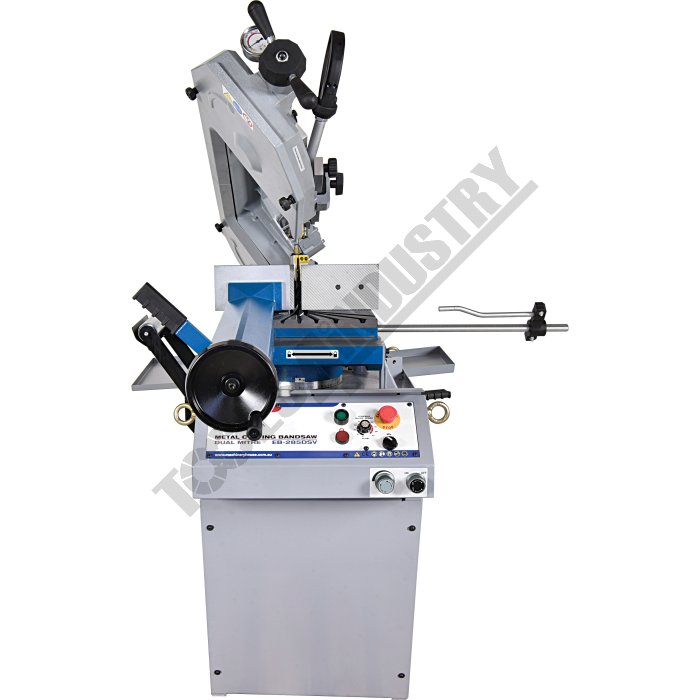

Swivel Head-Dual Mitre Metal Cutting Band Saw EB-285DSV Electronic Variable Blade Speed 20-90mpm, Dual Mitre Cuts Up To 60º, Quick Action Material Clamp & Includes Hydraulic Downfeed Control
Description
Manufactured in TaiwanFeatures
- 265 x 200mm rectangular capacity
- Electronic variable blade speed, 240V motor
- Larger cutting capacity than conventional cold saws

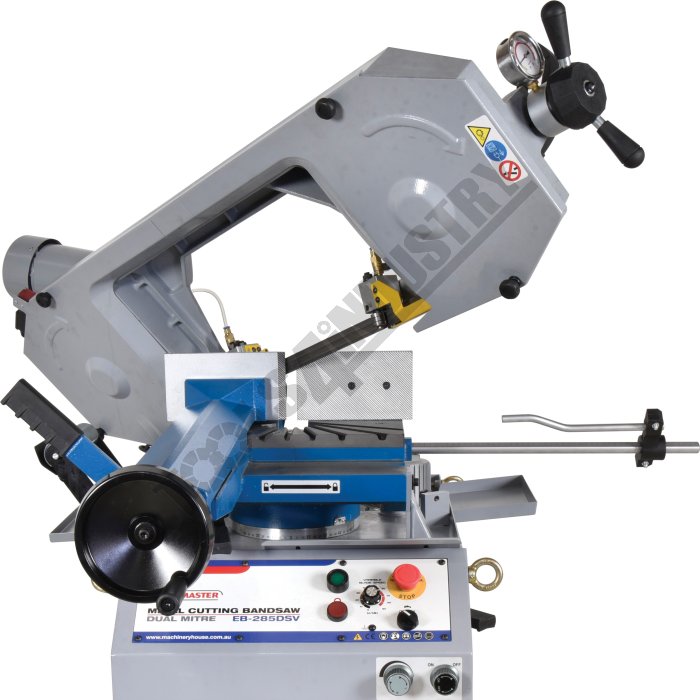

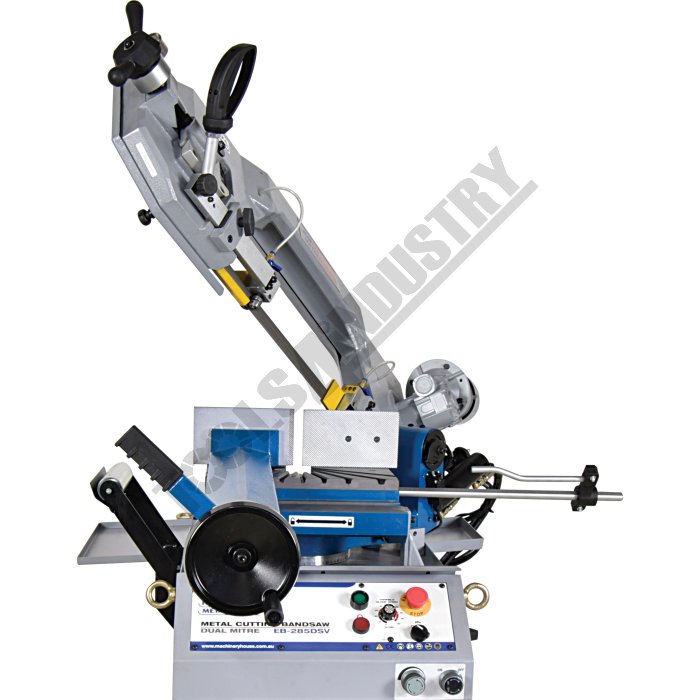

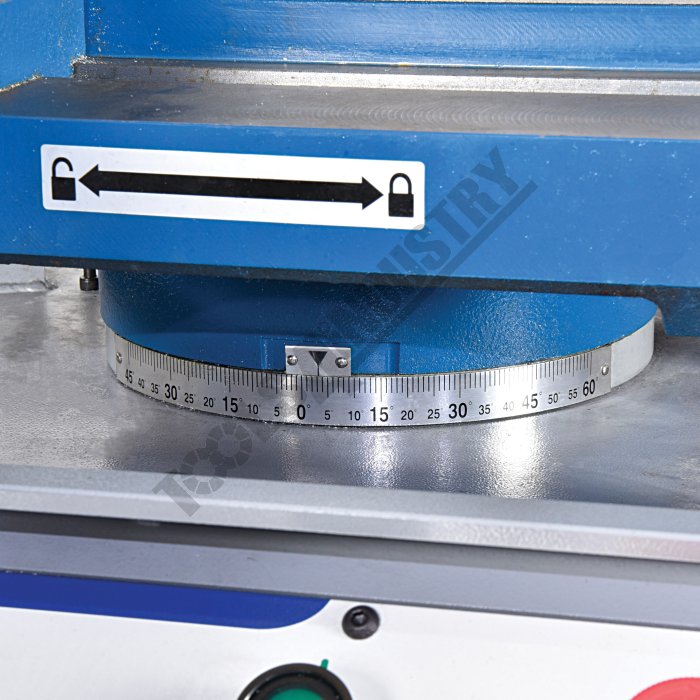

- Swivel head double mitre cut to 45º right & left, 60º right
- Quick action lock/release lever for swivel head
- Heavy-duty gear drive system

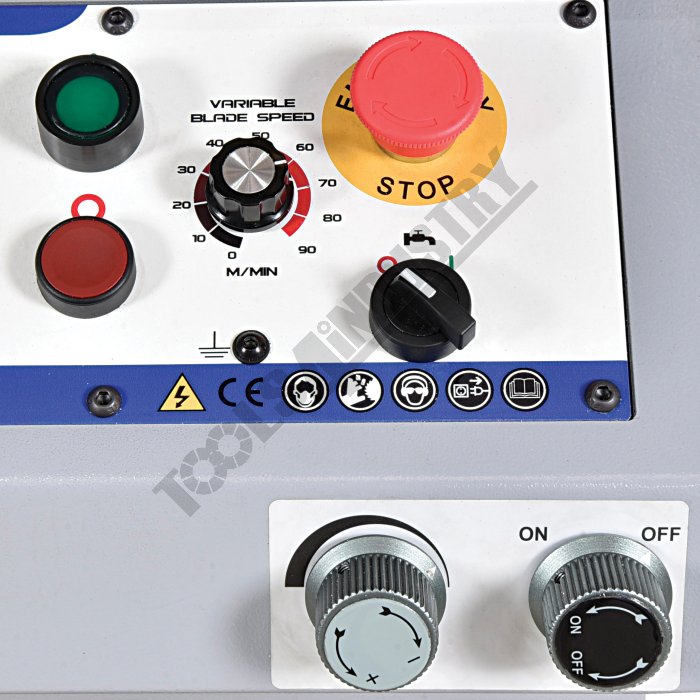

- Control panel mounted on stand for easy access

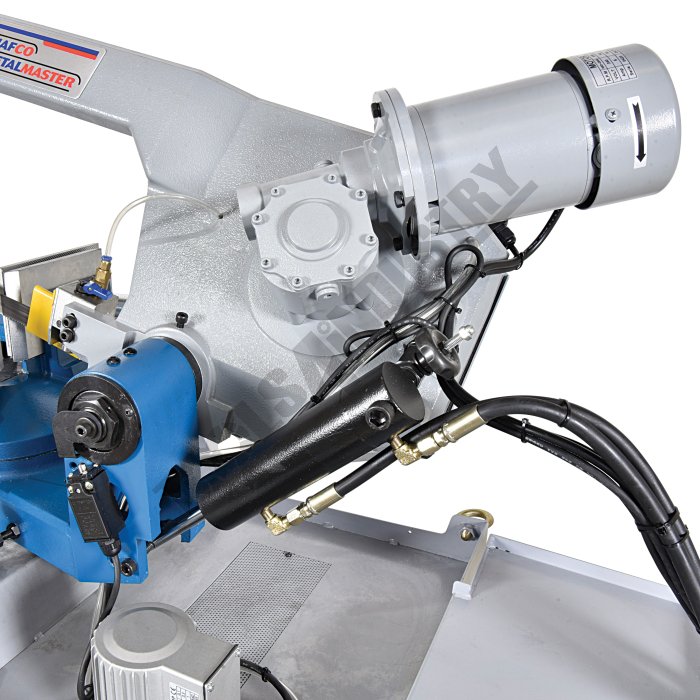

- Heavy duty hydraulic down feed cylinder

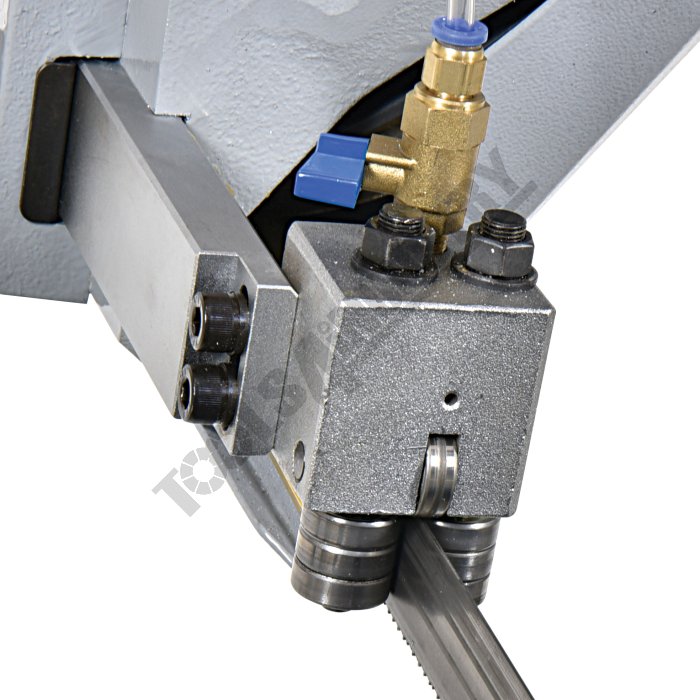

- Ball bearing blade guides ensures minimal blade clearance wear and increases blade life due to less friction

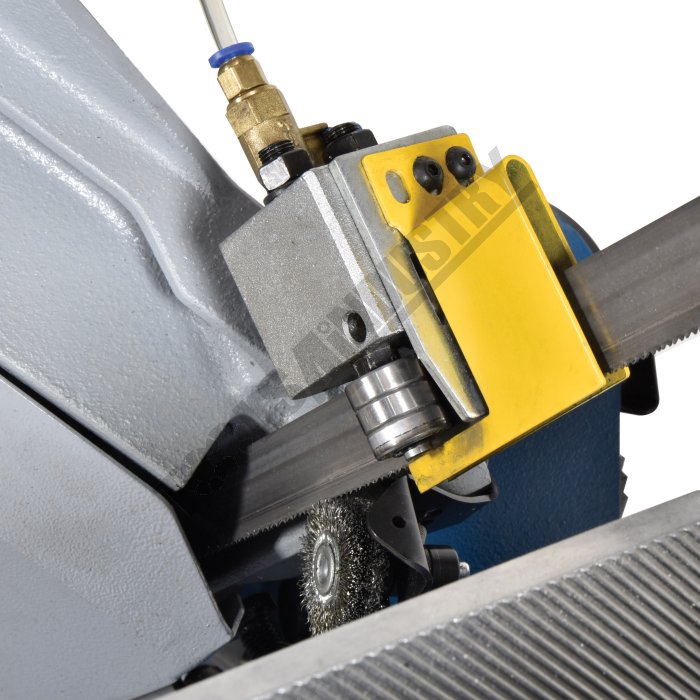

- Blade cleaning brush incorporated into blade guide system

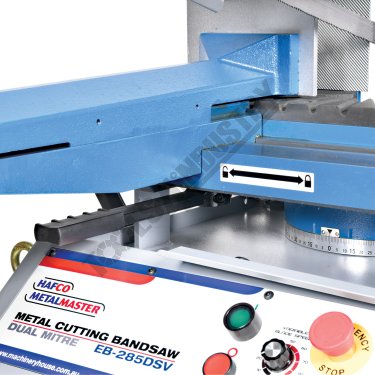

- Quick-action lock/release vice

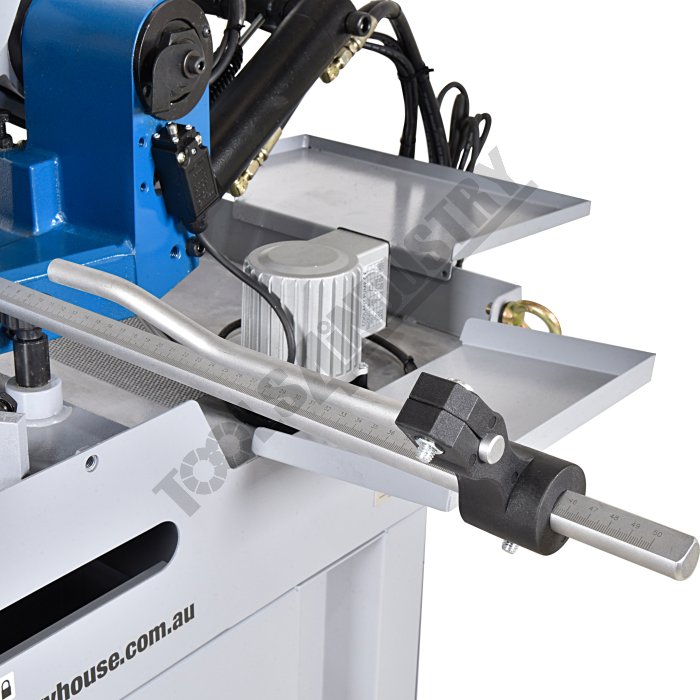

- Adjustable length stop for repetition cutting

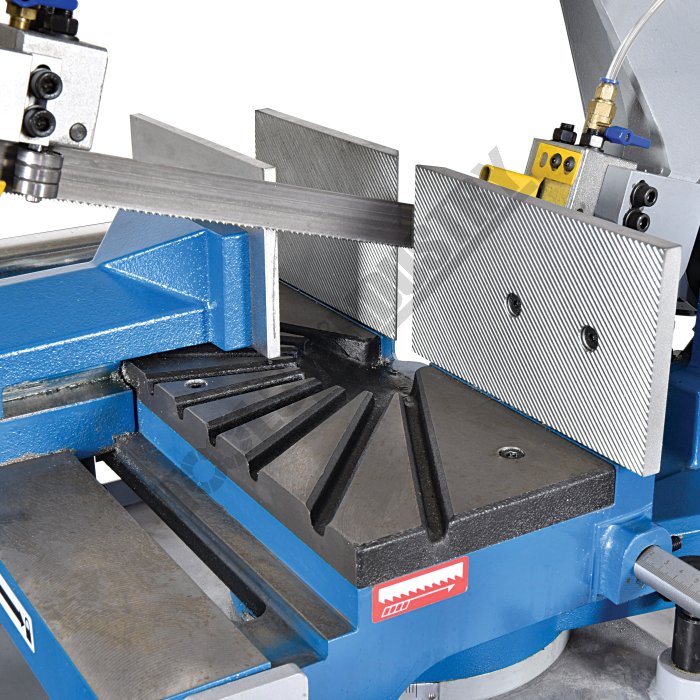

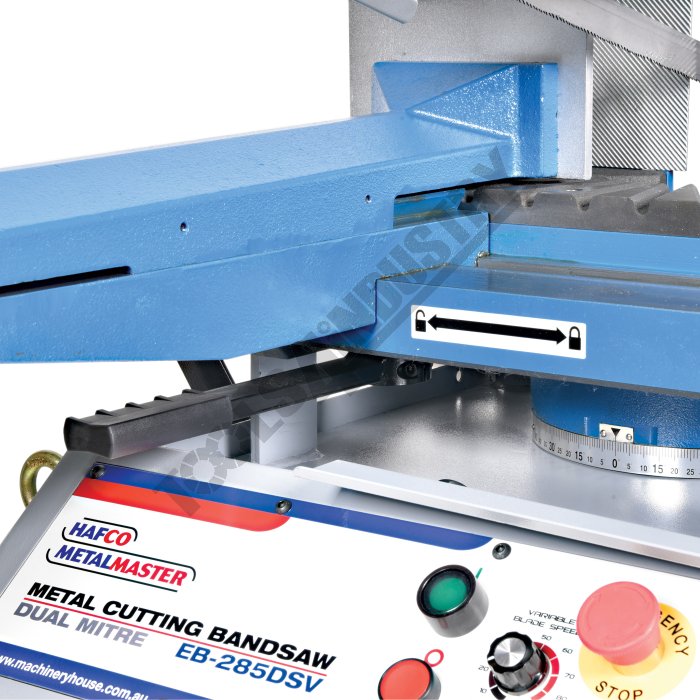

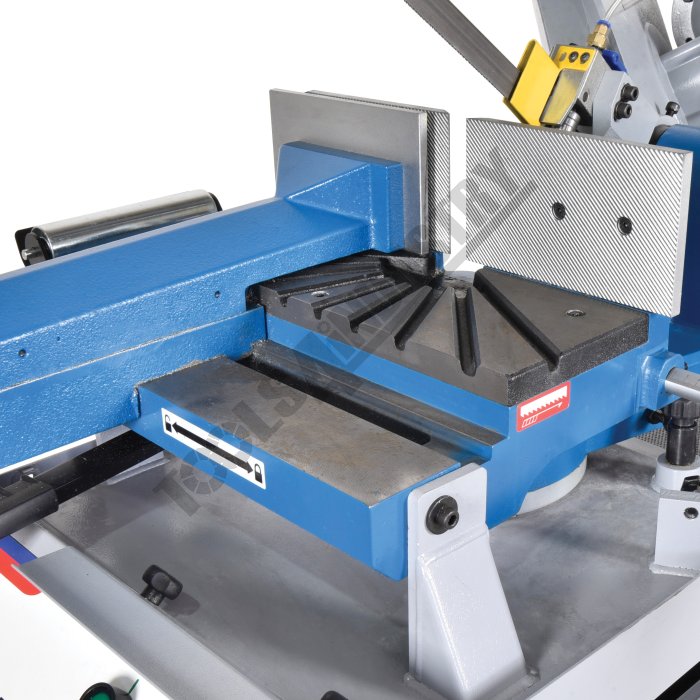

- Unique sliding vice design for dual mitre operation

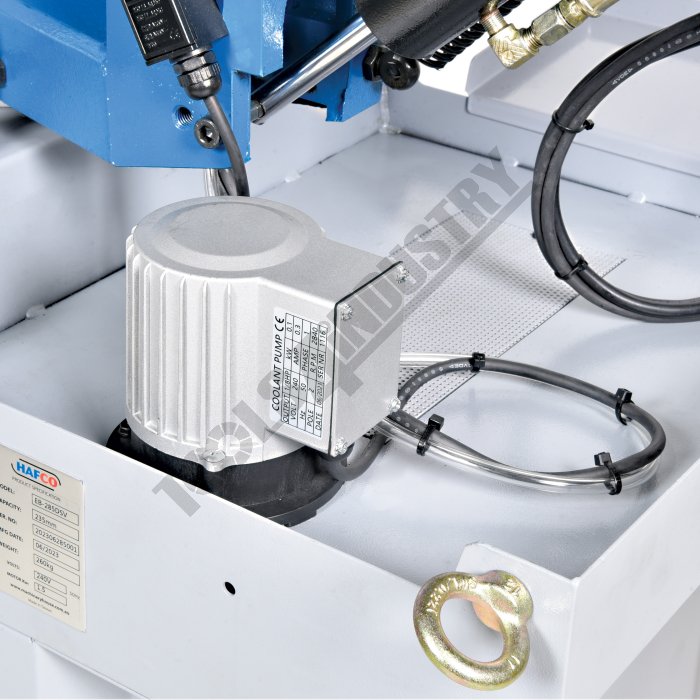

- Coolant system for cutting efficiency and blade life

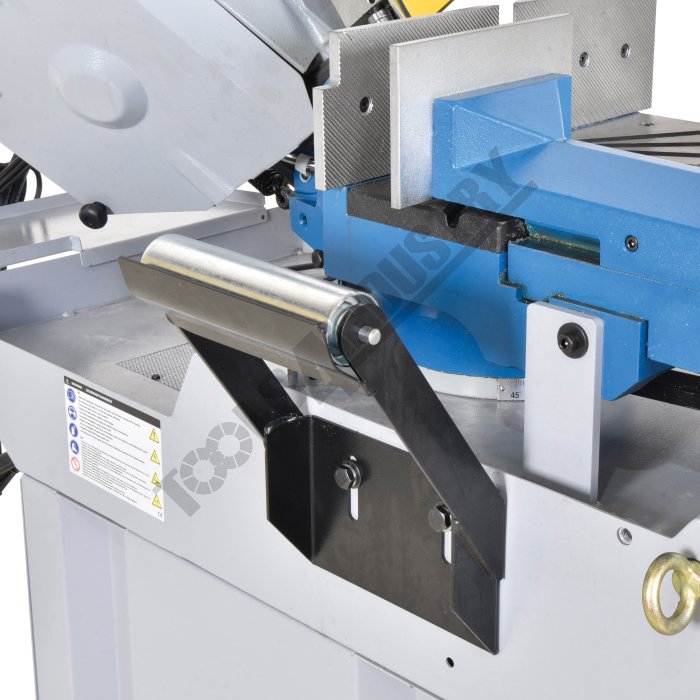

- Material support roller for long stock

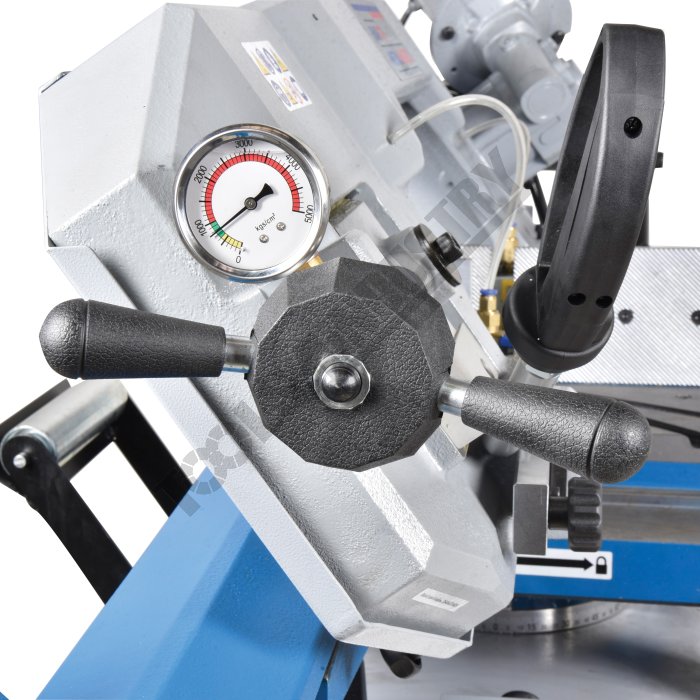

- User friendly blade tension system with gauge
- Vibration free, low noise operation ensures clean & high precision cuts
- Machine stand with integrated coolant tank as standard
Specifications
- Compare 17 Products
- ORDER CODE
- MODEL
- Operation Type
- Round @ 90ºmm
- Round @ 45ºmm
- Round @ 60ºmm
- Square @ 90ºmm
- Square @ 45ºmm
- Square @ 60ºmm
- Rectangle (W x H) @ 90ºmm
- Rectangle (W x H) @ 45ºmm
- Rectangle (W x H) @ 60ºmm
- Coolant System
- Table Working Heightmm
- Cutting Head Beam Type
- Cutting Head Beam Return
- Cutting Head Down Feed Control
- Vice Clamping Fixture
- Bundle Cutting Fixture
- Blade Steps / SpeedsM/Min
- Blade Size (L x W x T)mm
- Motor PowerkW / hp
- Voltage / AmperageV / amp
- Nett Weightkg
- B064V
- EB-285DSV
- Swivel Head - Dual Mitre
- 235
- 190
- 120
- 225
- 185
- 120
- 265 x 200
- 180 x 200
- 115 x 120
- Yes
- 990
- Manual
- Manual Return
- Adjustable Hydraulic
- Manual - Quick Action
- ~
- Variable 20-90
- 2645 x 27 x 0.9
- 1.5 / 2
- 240 / 10
- 260
- B067
- EB-320DS
- Swivel Head - Dual Mitre
- 255
- 220
- 125
- 205
- 200
- 125
- 310 x 205
- 205 x 200
- 125 x 125
- Yes
- 950
- Manual
- Manual Return
- Adjustable Hydraulic
- Manual - Quick Action
- ~
- 35-70
- 2750 x 27 x 0.9
- 1.5 / 2
- 415
- 371
- B075
- EB-330DSC
- Swivel Head - Dual Mitre
- 260
- 240
- 160
- 230
- 210
- 130
- 295 x 230
- 225 x 210
- 160 x 130
- Yes
- 950
- Manual
- Manual Return
- Adjustable Hydraulic
- Manual - Quick Action
- ~
- 36, 72
- 2965 x 27 x 0.9
- 1.2 / 1.6
- 415
- 404
- B072
- EB-351DSA
- Swivel Head - Dual Mitre
Semi - Automatic - 270
- 230
- 135
- 260
- 210
- 150
- 345 x 205
- 230 x 150
- 135 x 135
- Yes
- 950
- Semi-Automatic
- Auto-Hydraulic Return
- Adjustable Hydraulic
- Automatic-Hydraulic
- ~
- 36-72
- 2925 x 27 x 0.9
- 1.87 / 2.5
- 415
- 650
- B029
- BS-10AS
- Swivel Head
Semi - Automatic - 250
- 250
- ~
- 230
- 175
- ~
- 400 x 230
- 205 x 155
- ~
- Yes
- 650
- Semi-Automatic
- Auto-Hydraulic Return
- Adjustable Hydraulic
- Manual
- ~
- 24-38-53-81
- 3352 x 27 x 0.9
- 1.5 / 2
- 415
- 610
- B030
- BS-13DS
- Swivel Head - Dual Mitre
Semi - Automatic - 330
- 330
- 204
- 330
- 280
- 160
- 458 x 235
- 310 x 170
- 204 x 80
- Yes
- 840
- Semi-Automatic
- Auto-Hydraulic Return
- Adjustable Hydraulic
- Automatic-Hydraulic
- ~
- Variable 19-102
- 3810 x 27 x 0.9
- 1.5 / 2
- 415
- 600
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- B002
- BS-4A
- Fixed Head
- 100
- 75
- ~
- 100
- 75
- ~
- 150 x 100
- 75 x 100
- ~
- ~
- 620
- Manual
- Manual Return
- Adjustable Spring Type
- Manual
- ~
- 20-29-50
- 1645 x 12.7 x 0.65
- 0.375 / 0.5
- 240 / 10
- 65
- B004
- BS-5V
- Swivel Head
- 125
- 80
- 50
- 125
- 80
- 50
- 130 x 125
- 80 x 80
- 50 x 50
- ~
- 110
- Manual Return
- Spring Assist Return
- Manual
- Manual
- ~
- Variable 30-80
- 1440 x 12.7 x 0.65
- 1 / 1.3
- 240 / 10
- 23
- B005
- BS-6V
- Swivel Head
- 170
- 125
- 75
- 170
- 125
- 70
- 170 x 170
- 125 x 125
- 75 x 70
- ~
- 137
- Manual Return
- Spring Assist Return
- Manual
- Manual
- ~
- Variable 30-80
- 2035 x 19 x 0.8
- 1.65 / 2.2
- 240 / 10
- 38
- B003
- BS-5S
- Swivel Head
- 110
- 80
- ~
- 110
- 75
- ~
- 180 x 110
- 110 x 72
- ~
- ~
- 680
- Manual
- Manual Return
- Fixed Spring Type
- Manual
- ~
- 20-29-50
- 1727 x 12.7 x 0.65
- 0.375 / 0.5
- 240 / 10
- 70
- B007
- BS-7
- Fixed Head
- 180
- 110
- ~
- 180
- 110
- ~
- 300 x 180
- 110 x 180
- ~
- Yes
- 550
- Manual
- Manual Return
- Adjustable Hydraulic
- Manual
- ~
- 34, 41, 59, 98
- 2362 x 19 x 0.8
- 0.75 / 1
- 240 / 10
- 166
- B008
- BS-8DS
- Swivel Head
- 205
- 143
- ~
- 205
- ~
- ~
- 215 x 205
- 143 x 115
- ~
- Yes
- ~
- Manual
- Manual Return
- Adjustable Hydraulic
- Manual - Quick Action
- ~
- 24-41-61-82
- 2360 x 19 x 0.9
- 1.1 / 1.5
- 240
- 190
- B014
- BS-912
- Fixed Head
- 230
- 150
- ~
- 230
- 127
- ~
- 305 x 178
- 150 x 127
- ~
- Yes
- 640
- Manual
- Manual Return
- Adjustable Hydraulic
- Manual
- ~
- 26-50-73-96
- 2654 x 27 x 0.9
- 0.75 / 1
- 240 / 10
- 185
- B015
- BS-916A
- Fixed Head
- 228
- 180
- ~
- 228
- 150
- ~
- 350 x 228
- 240 x 180
- ~
- Yes
- 675
- Manual
- Manual Return
- Adjustable Hydraulic
- Manual
- ~
- 29-50-73-96
- 2908 x 27 x 0.9
- 1.1 / 1.5
- 240 / 15
- 290
- B021
- BS-10LS
- Swivel Head
- 250
- 235
- ~
- 250
- 235
- ~
- 468 x 250
- 250 x 240
- ~
- Yes
- 570
- Manual
- Manual Return
- Adjustable Hydraulic
- Manual
- ~
- Variable 18-102
- 3090 x 27 x 0.9
- 1.5 / 2
- 415
- 380
- B062V
- EB-260V
- Swivel Head
- 225
- 150
- 100
- 180
- 140
- 100
- 225 x 180
- 140 x 140
- 100 x 100
- Yes
- 950
- Manual
- Manual Return
- Adjustable Hydraulic
- Manual - Quick Action
- ~
- Variable 20-90
- 2480 x 27 x 0.9
- 1.5 / 2
- 240 / 10
- 200
| ORDER CODE | EB-285DSV |
|---|---|
| MODEL | Swivel Head - Dual Mitre |
| Operation Type | 235 |
| Round @ 90ºmm | 190 |
| Round @ 45ºmm | 120 |
| Round @ 60ºmm | 225 |
| Square @ 90ºmm | 185 |
| Square @ 45ºmm | 120 |
| Square @ 60ºmm | 265 x 200 |
| Rectangle (W x H) @ 90ºmm | 180 x 200 |
| Rectangle (W x H) @ 45ºmm | 115 x 120 |
| Rectangle (W x H) @ 60ºmm | Yes |
| Coolant System | 990 |
| Table Working Heightmm | Manual |
| Cutting Head Beam Type | Manual Return |
| Cutting Head Beam Return | Adjustable Hydraulic |
| Cutting Head Down Feed Control | Manual - Quick Action |
| Vice Clamping Fixture | ~ |
| Bundle Cutting Fixture | Variable 20-90 |
| Blade Steps / SpeedsM/Min | 2645 x 27 x 0.9 |
| Blade Size (L x W x T)mm | 1.5 / 2 |
| Motor PowerkW / hp | 240 / 10 |
| Voltage / AmperageV / amp | 260 |
| Nett Weightkg |
