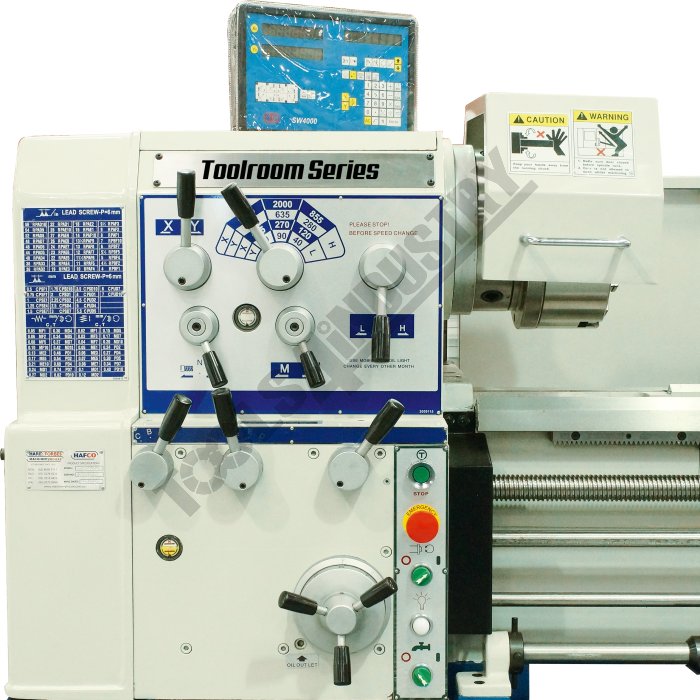

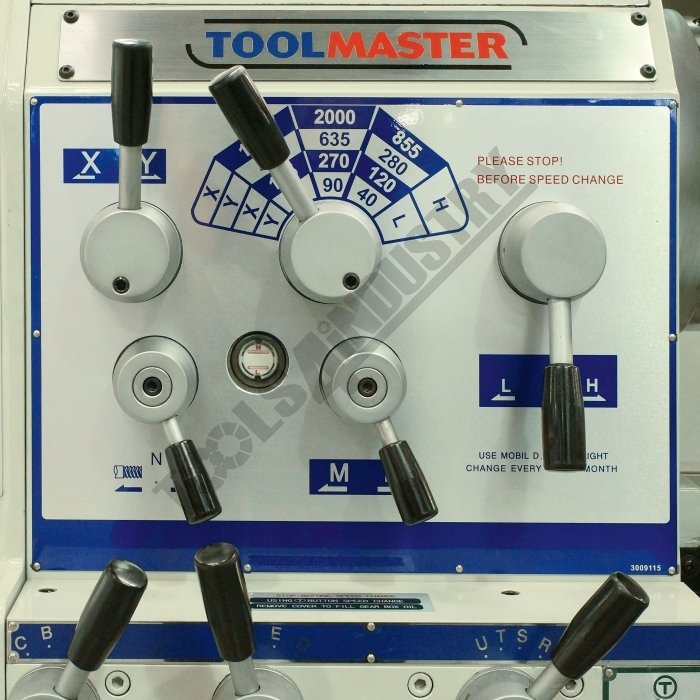

Headstock

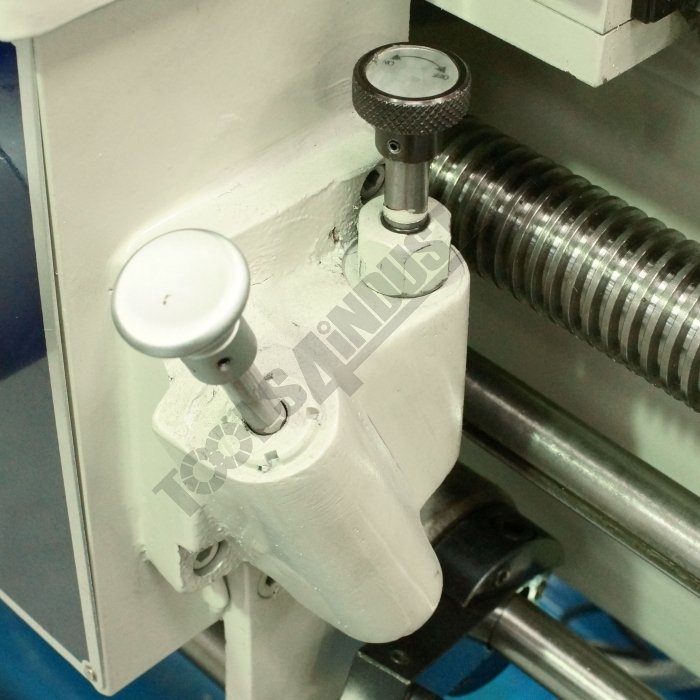

One Shot Slide Lubrication

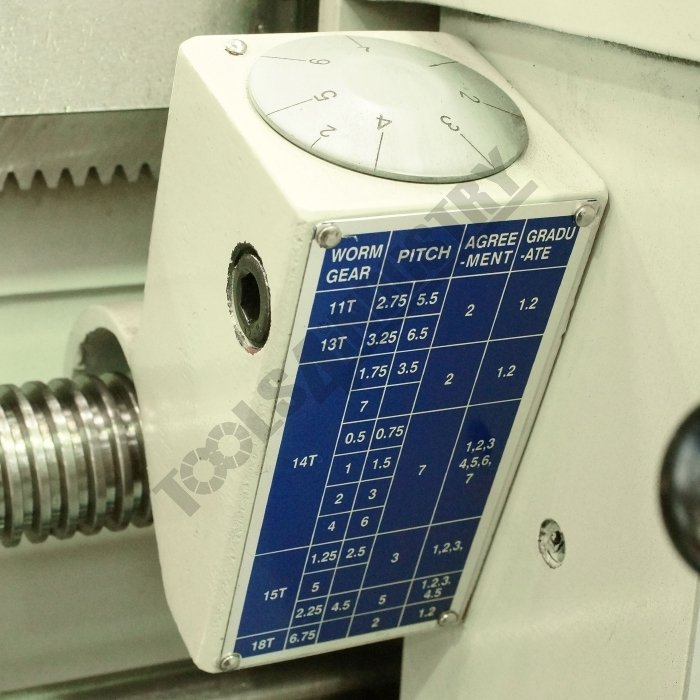

Thread Chasing Dial

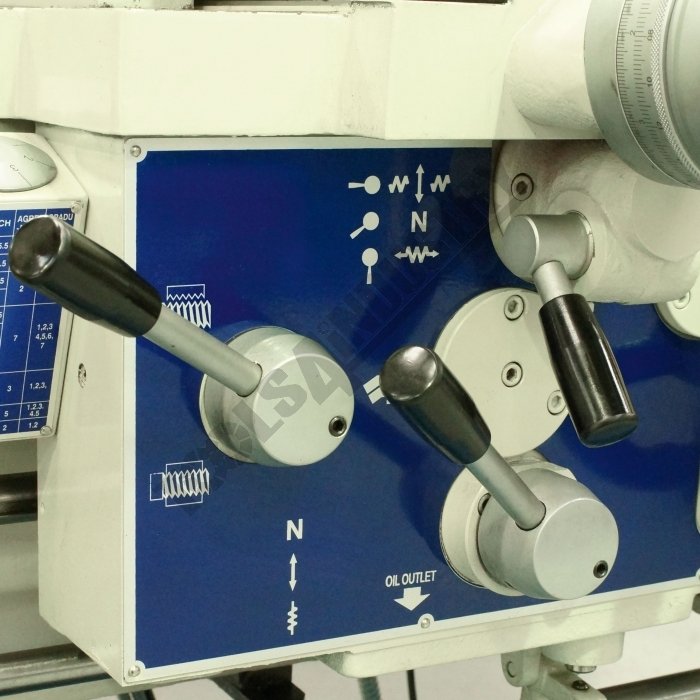

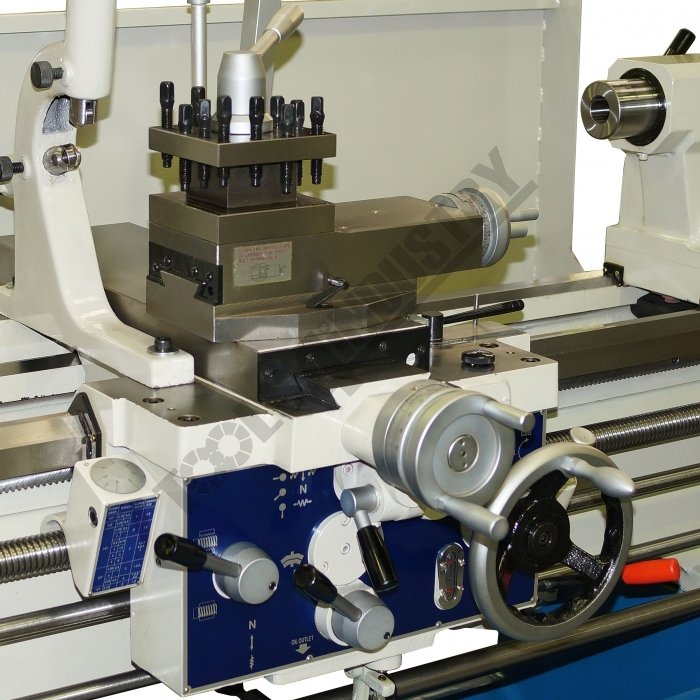

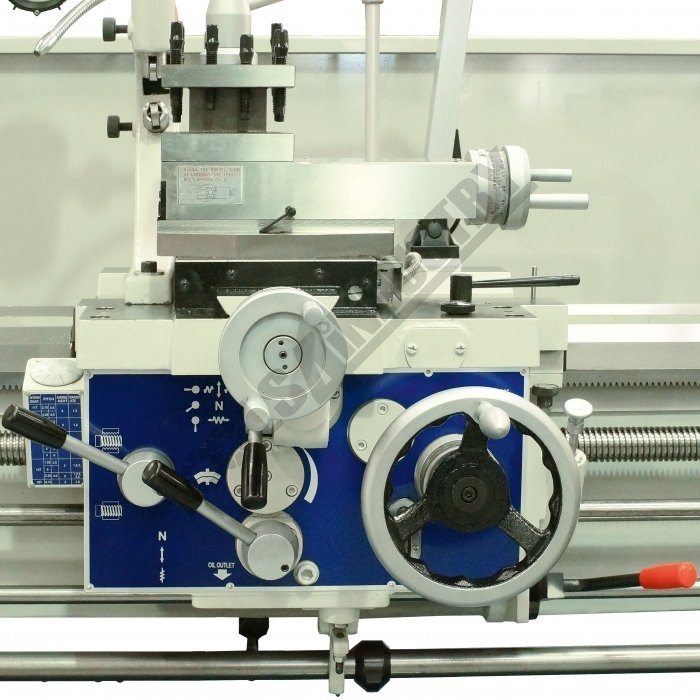

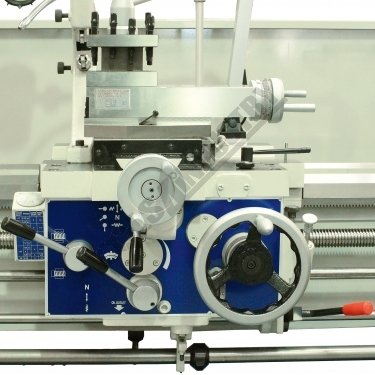

Feed and Threading Levers

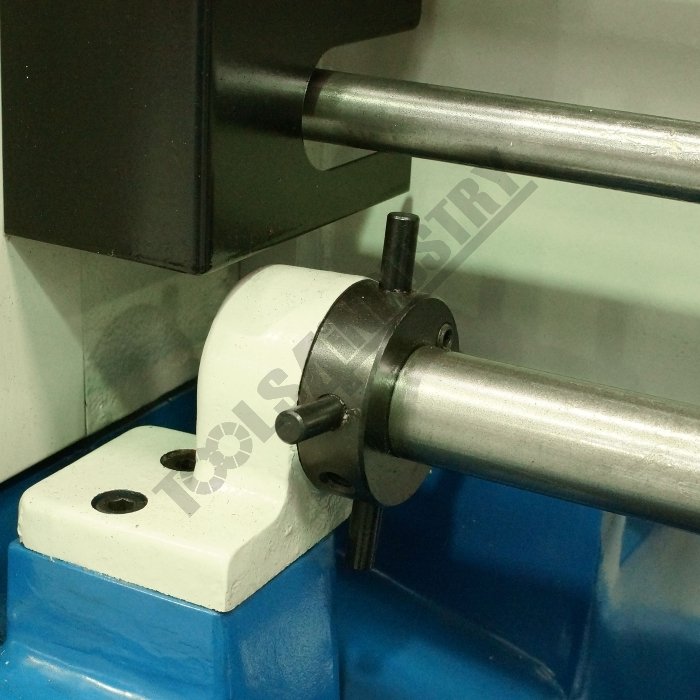

Adjustable Auto Feed Knockout

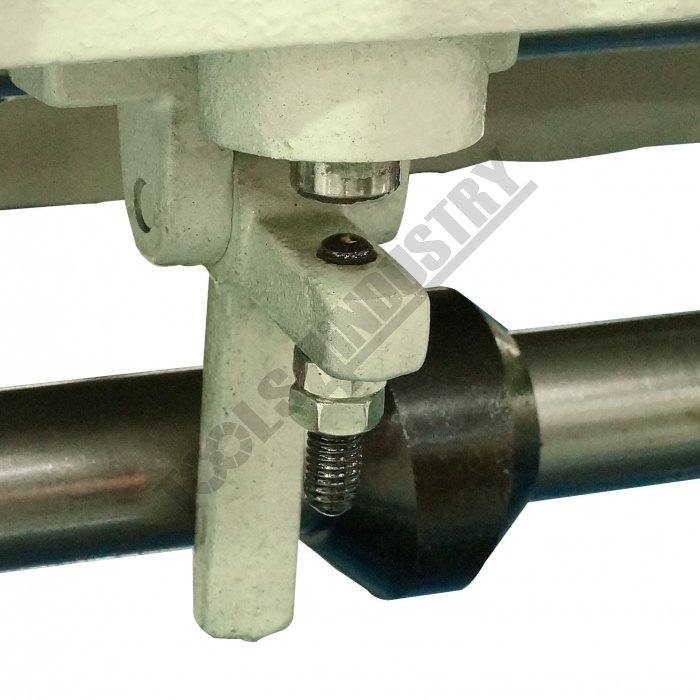

Auto Feed Knockout System

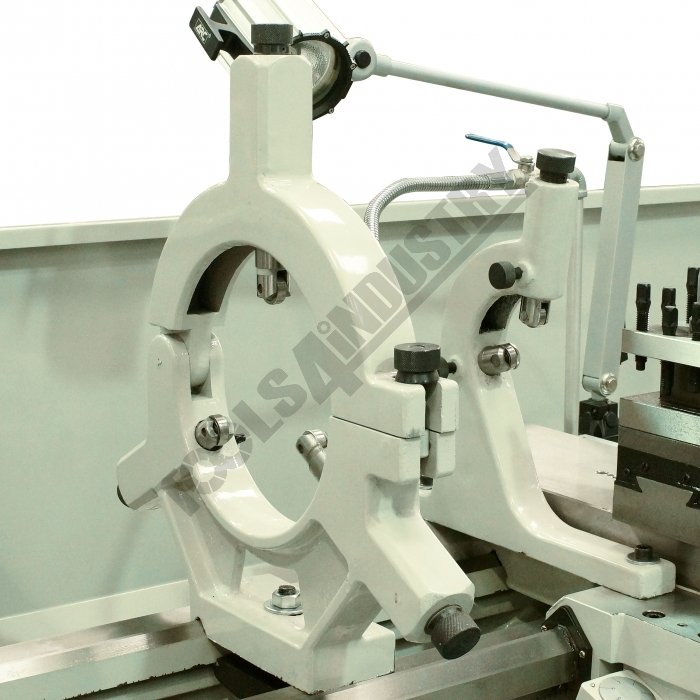

Fixed & Travelling Steadies

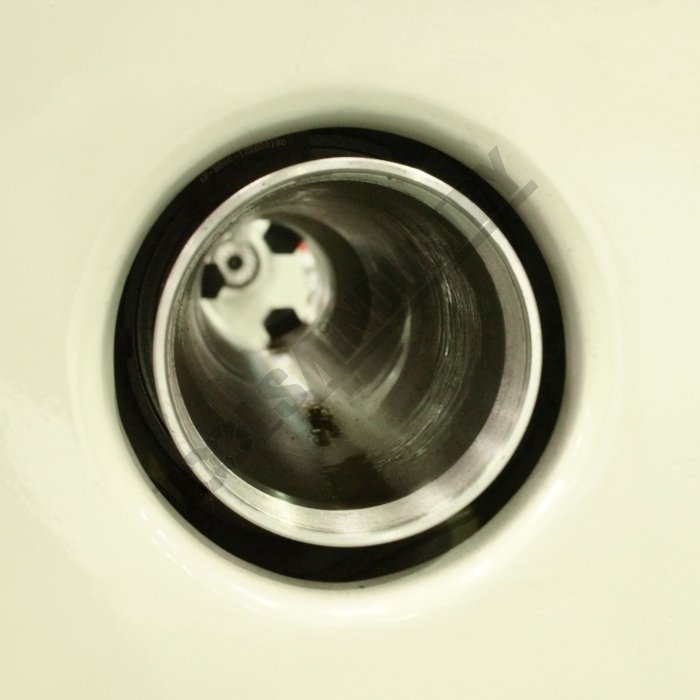

80mm Spindle Bore

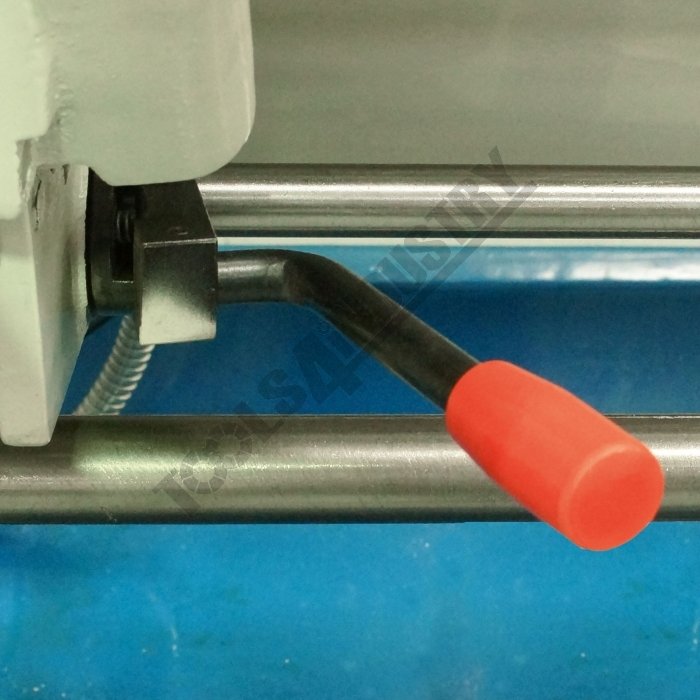

Spindle Engagement Lever

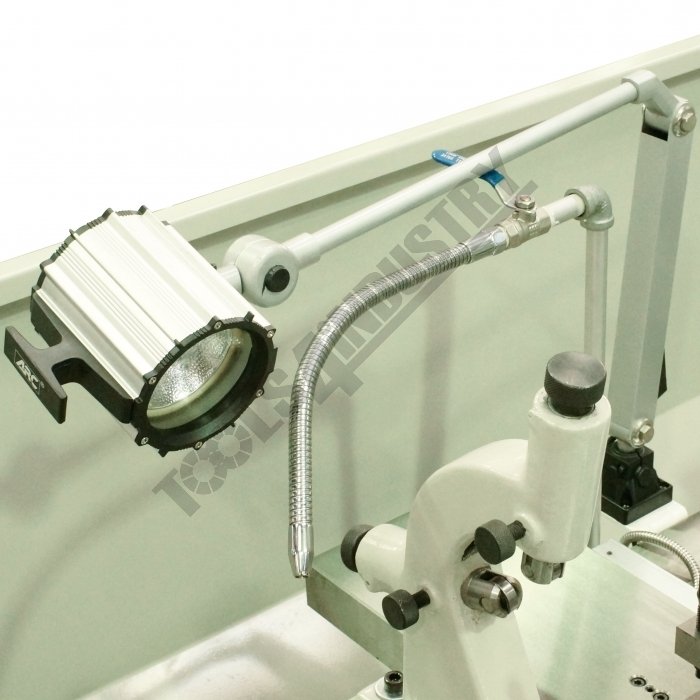

LED Work Light and Coolant Hose

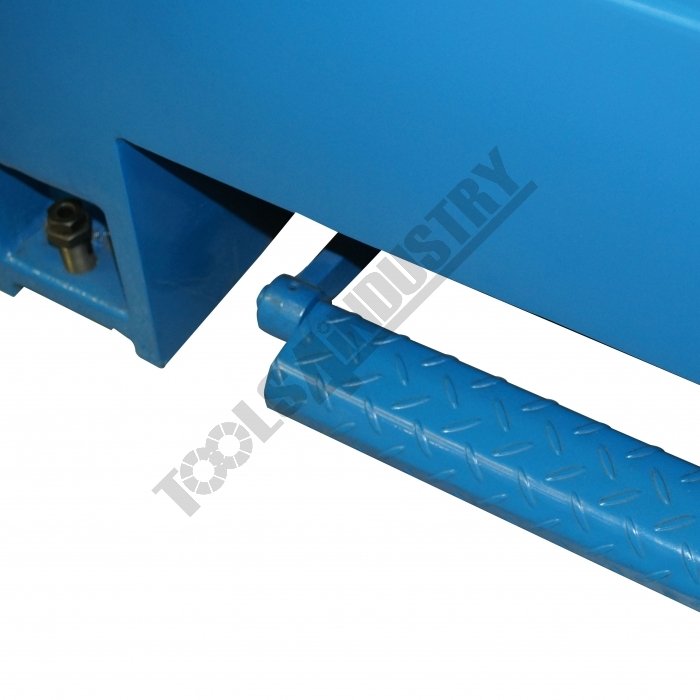

Foot Brake

Code	Z02790
Model	TM-1740G
Capacity	Ø430 x 1000mm Turning Capacity - Ø80mm Spindle Bore
Weight (kg)	1670
Weight (m³)	3.477
Weight (Freight)	1670
Dimensions (cm)	228 x 93 x 164

Product Brochure Instruction Manual [6 MB] Parts List [4 MB] Carmar DRO Operation Manual [5 MB]Lathe - Metal Risk Assessment

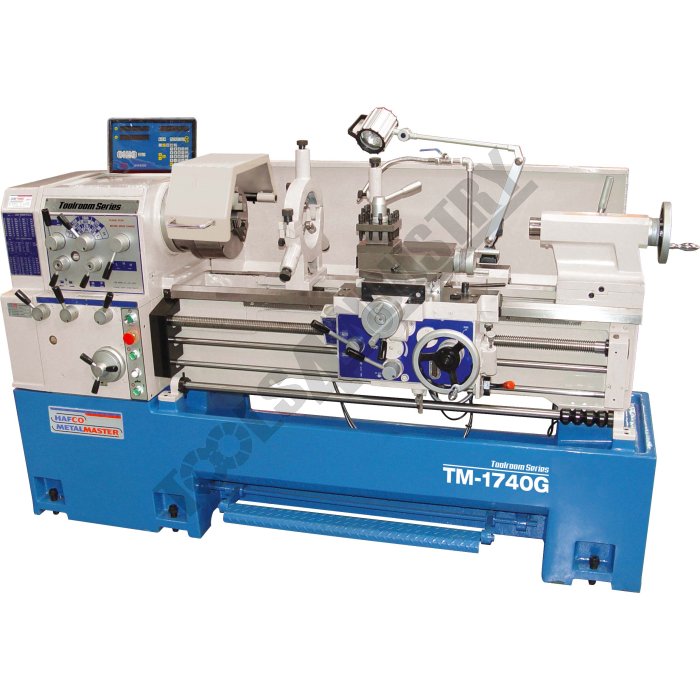

Centre Lathe TM-1740G Ø430 x 1000mm Turning Capacity - Ø80mm Spindle Bore

Description

The TM-1740G industrial centre lathe is manufactured in Taiwan to precision standards, delivering the accuracy, durability and reliability demanded by professional machinists.

Designed for heavy-duty performance, it features three premium German SKF spindle bearings for exceptional spindle support under high cutting loads, while the Meehanite® cast iron bed provides superior rigidity, stability and long service life.

Supplied with all the essential features expected of a high-quality precision lathe, the TM-1740G is built to consistently produce accurate, professional results for years to come.

Backed by a comprehensive 2-year machine warranty for added peace of mind

Features

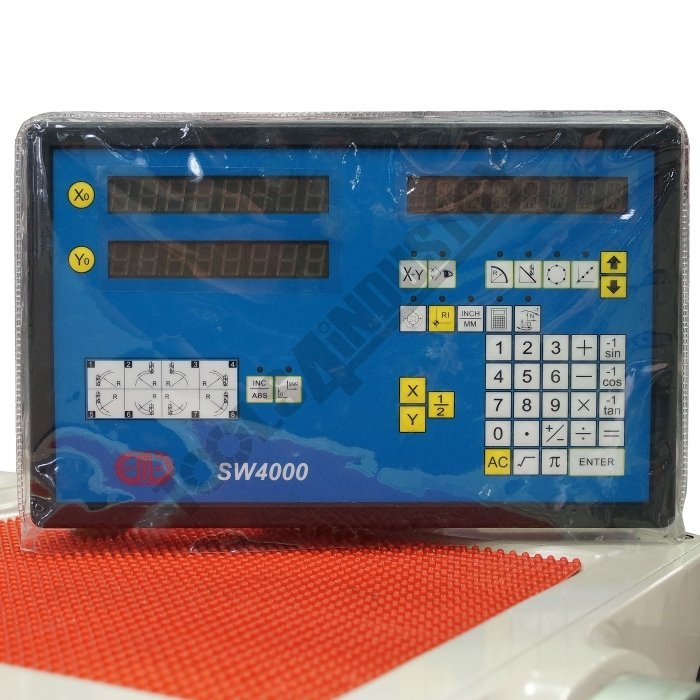

2 axis digital readout system
Triple SKF German made bearings supporting headstock spindle
Adjustable taper roller bearings providing spindle accuracy
Precision 'V'-beds & headstock gears are all hardened & ground

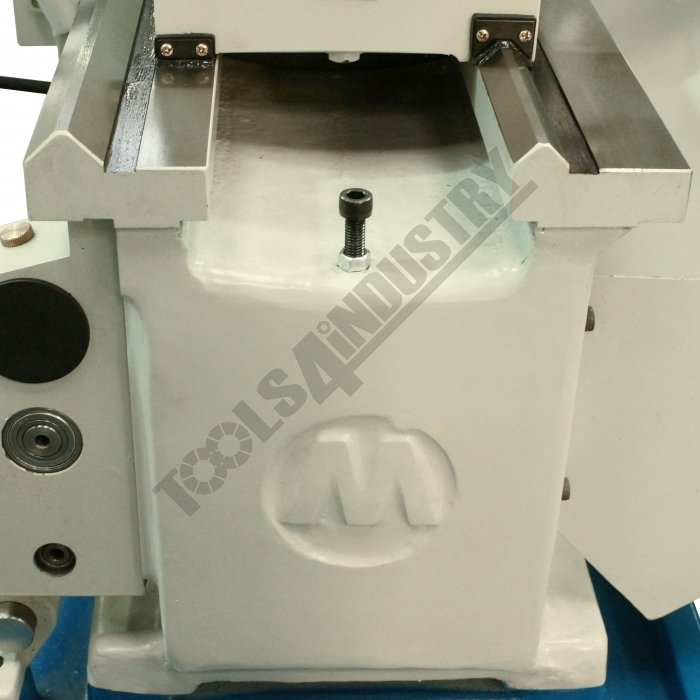

High quality one-piece Meehanite cast base increases rigidity
Overload protection on drive motor and coolant system

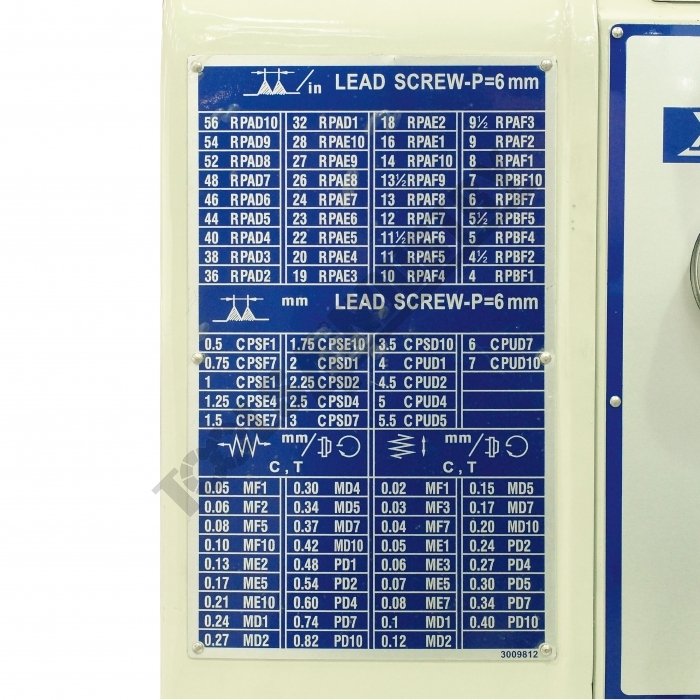

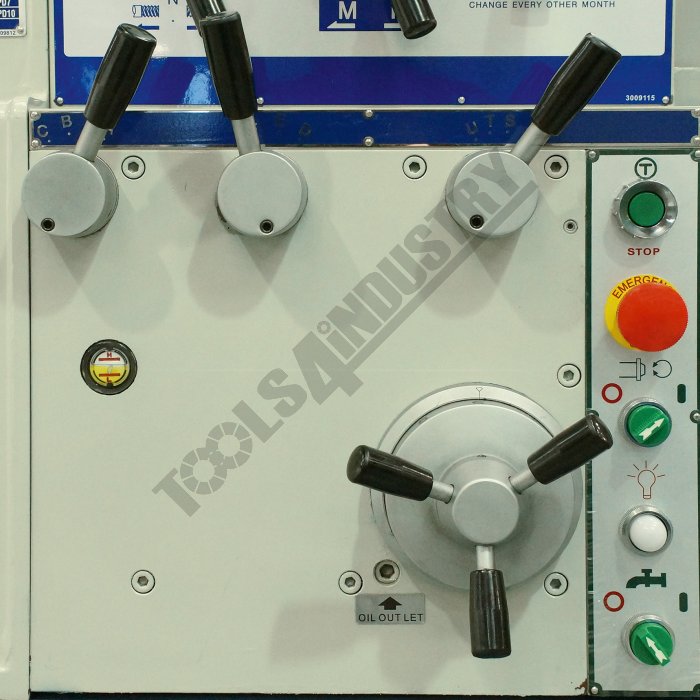

Universal enclosed gearbox incorporating metric & imperial thread capabilities
Inching button incorporated on the control panel for convenient spindle speed selection
Foot operated spindle brake with safety cut out switch
300mm Wide induction hardened heavy duty cast iron bed
Removable gap bed allowing work piece to swing up to 650mm

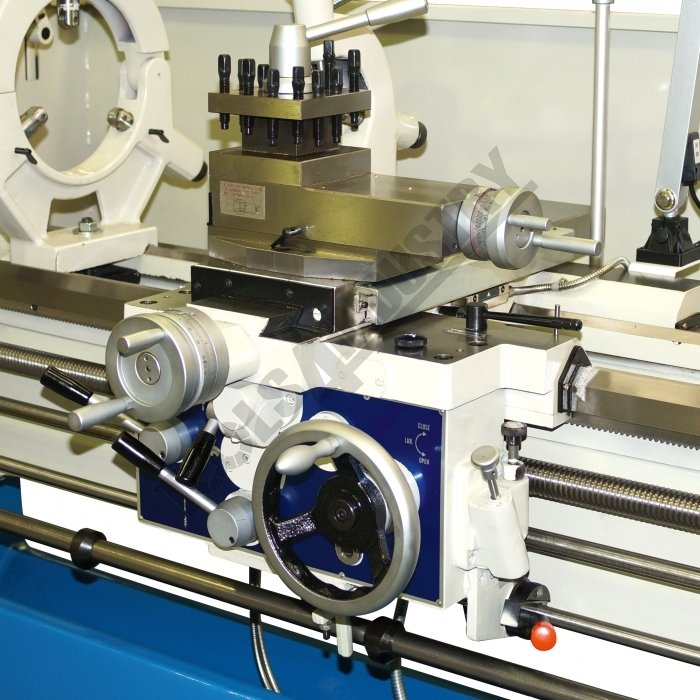

Powered longitudinal and cross feeds
Adjustable 4 position length-stop mechanism for accurate repetitive operation

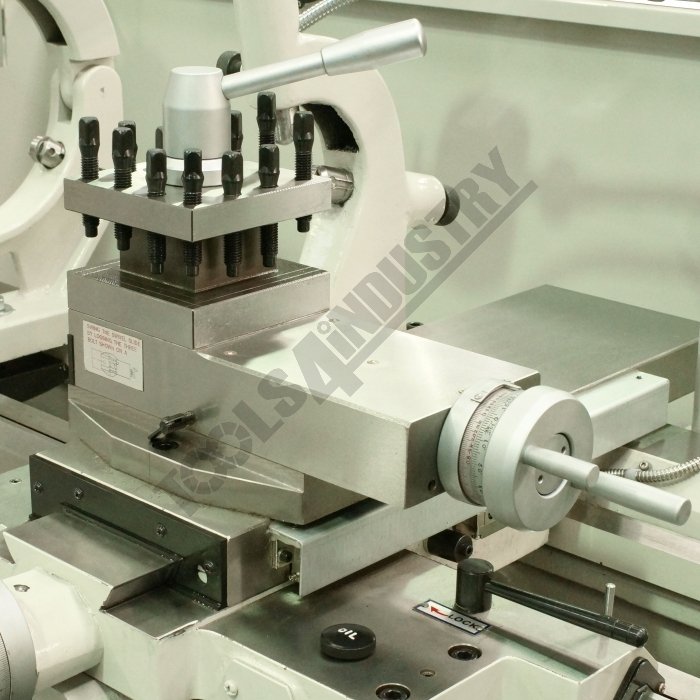

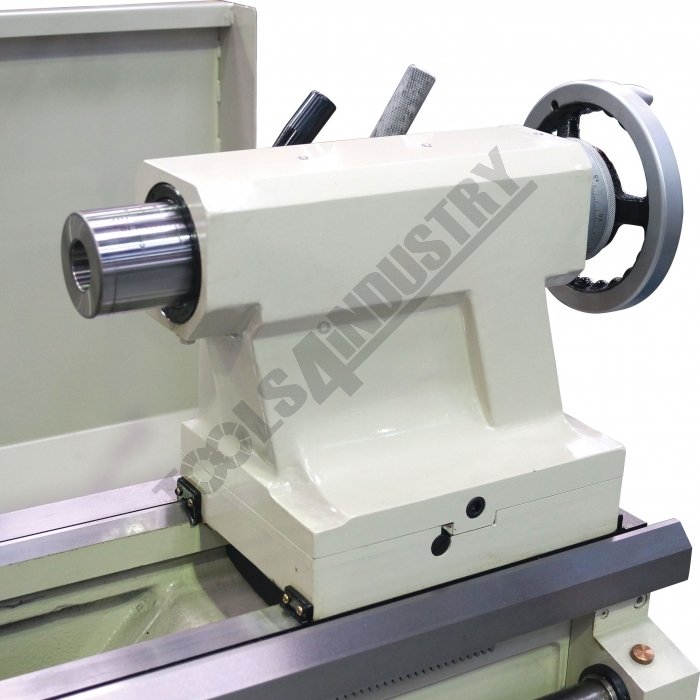

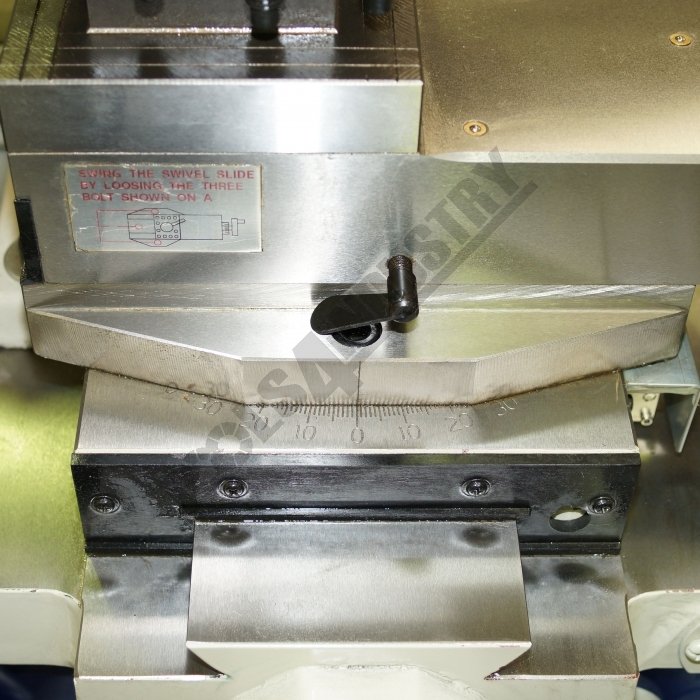

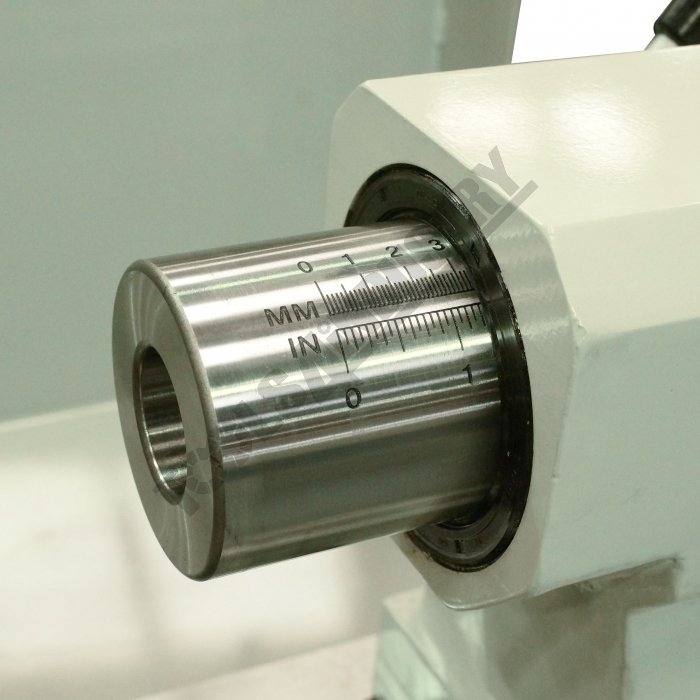

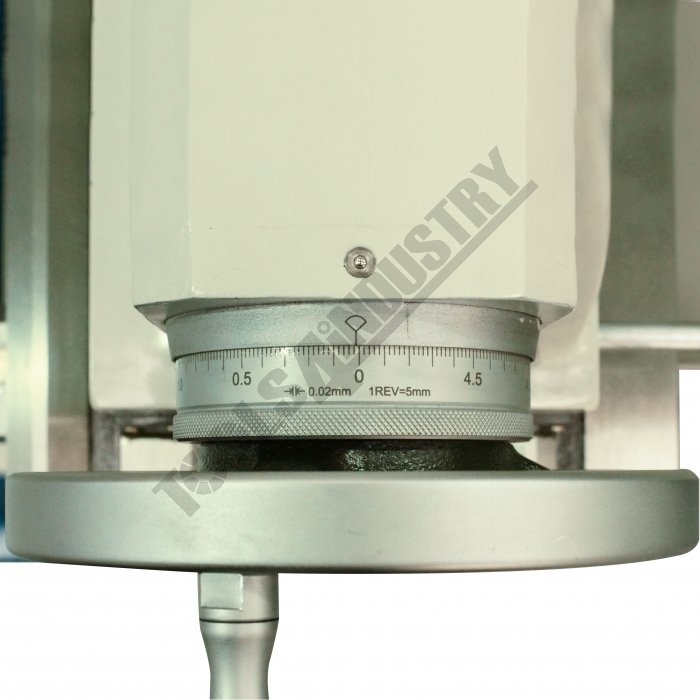

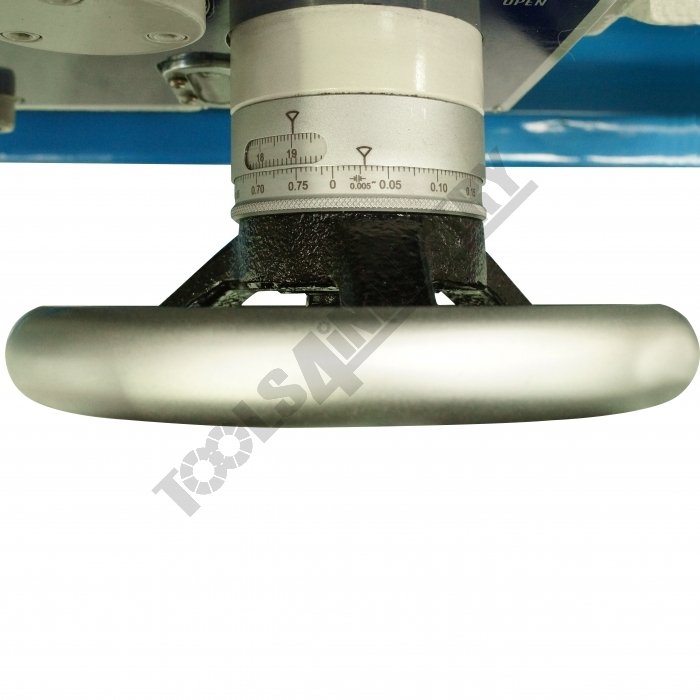

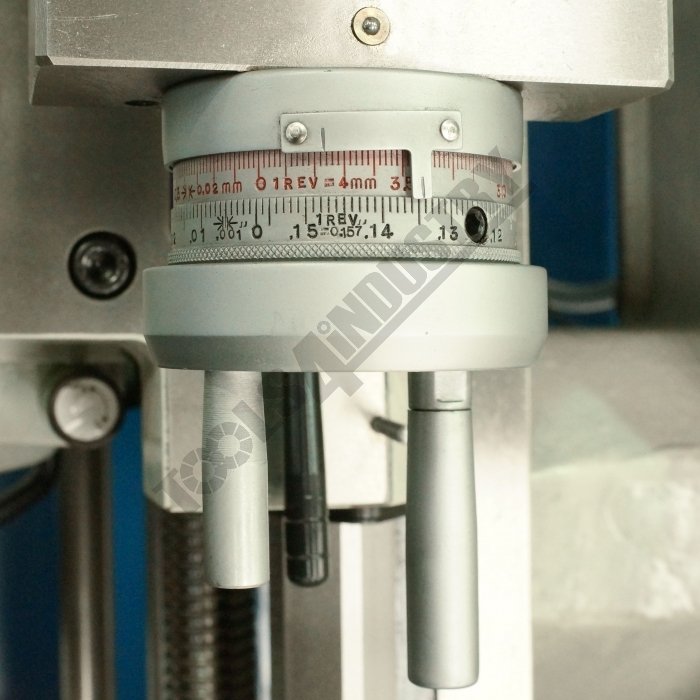

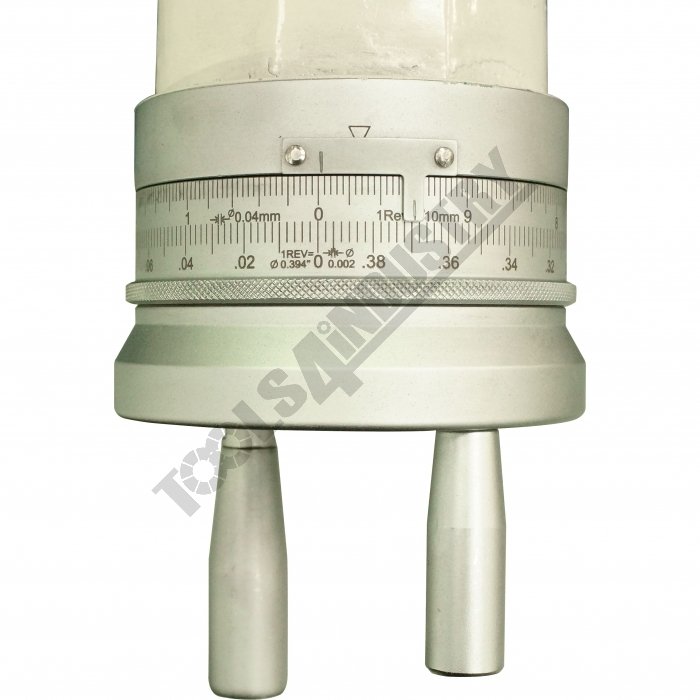

Metric calibrated dials to apron, cross slide, compound slide and tailstock
Coolant system with flexible hose enabling operator to manipulate flow direction
Oil sight glass for head stock, gearbox and apron
Low voltage LED work light

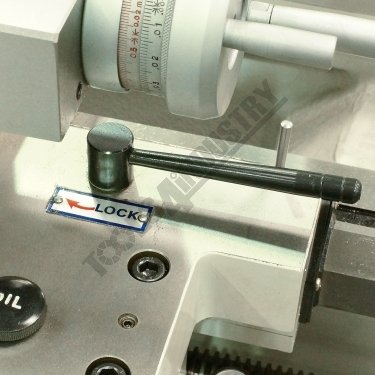

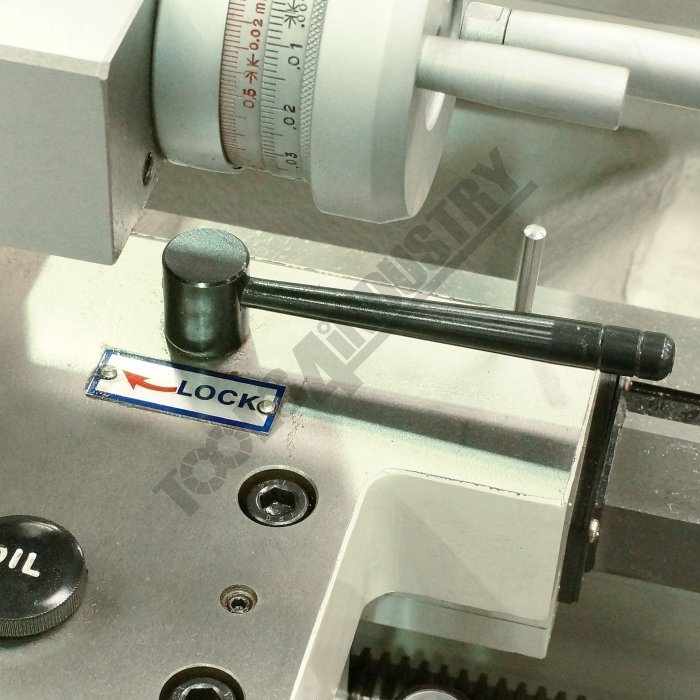

Lubrication pump on saddle oiling slides
D1-8 camlock spindle for quick chuck removal
12 Spindle speeds from 40 - 2000rpm
Large 80mm spindle bore
5.5kW / 7.5HP 415V IE-3 main motor

Includes

2 Axis digital readout system

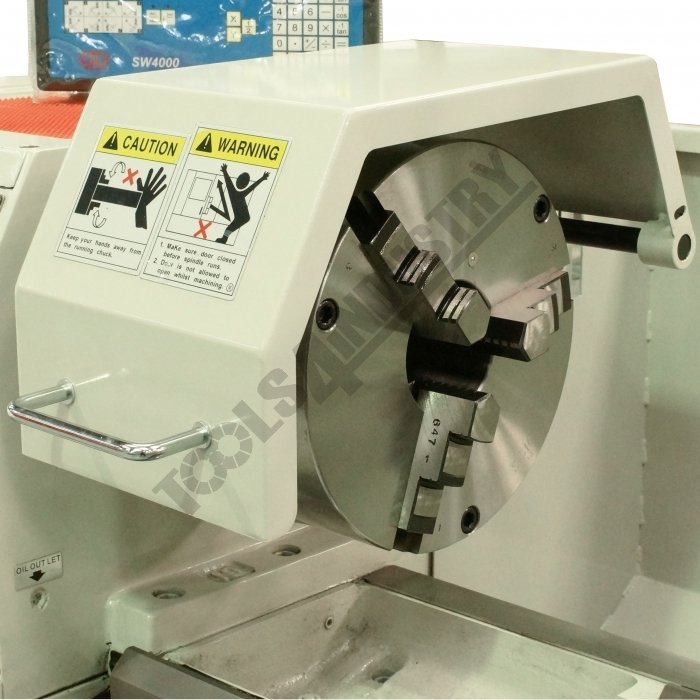

275mm 3-jaw chuck with reverse jaws
320mm 4-jaw chuck
356mm face plate
Fixed Steady with roller bearings
Travelling steady with roller bearings

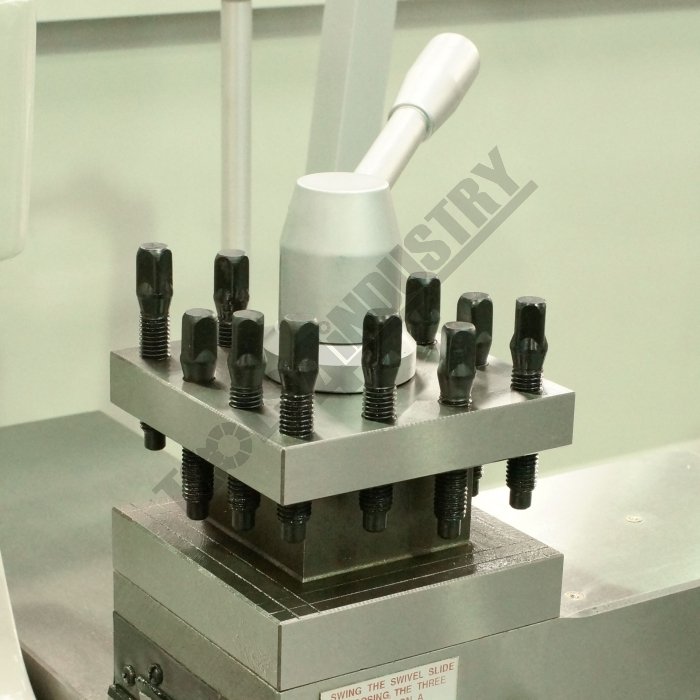

Quick change toolpost with 4 holders
Taper turning attachment
Leadscrew cover
4-position knock out feed system
Dead centres
Thread chasing dial
Foot brake
Coolant system
LED Work light
Rear splash guard
Spindle reducing bush
Instruction booklet

Specifications
