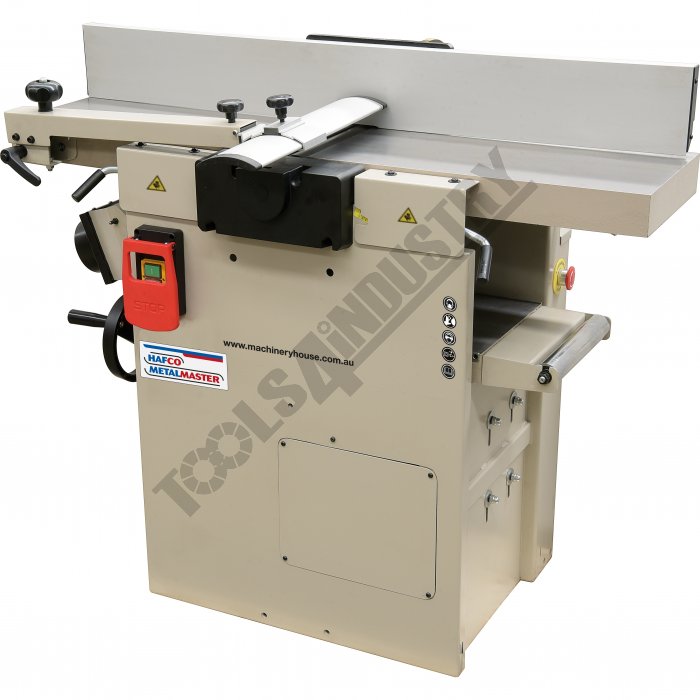

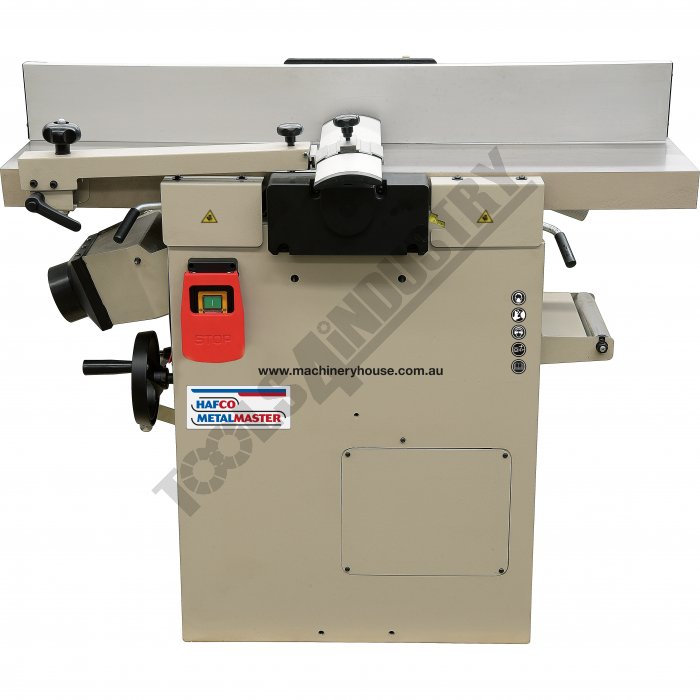

Planer & Thicknesser Combination - Spiral Cutter Head PT-254S 254mm Wide Planer Capacity

Description

You now don't have to choose between buying a seperate planer or a thicknesser – with the PT-254S you can have the best of both worlds in one machine. Hafco Woodmaster has designed a machine now that includes a "Spiral Cutter Head" that cuts your timber effortlessly smoother and quieter than the conventional HSS blades.

The surfacing tables are 1100mm long, made from cast iron and precision ground finish to ensure material to slide smoothly to produce accurate results. The spiral cutter head is fitted with German quality carbide inserts and powered by a powerful 2.2kW / 3hp, 240V motor that can handle the toughest timbers to achieve superior finish every time.

This versatile machine features an extra heavy duty cast aluminium extruded fence with centered controls for quick adjustments, and a built-in dust chute capable of handling both operations.

Features

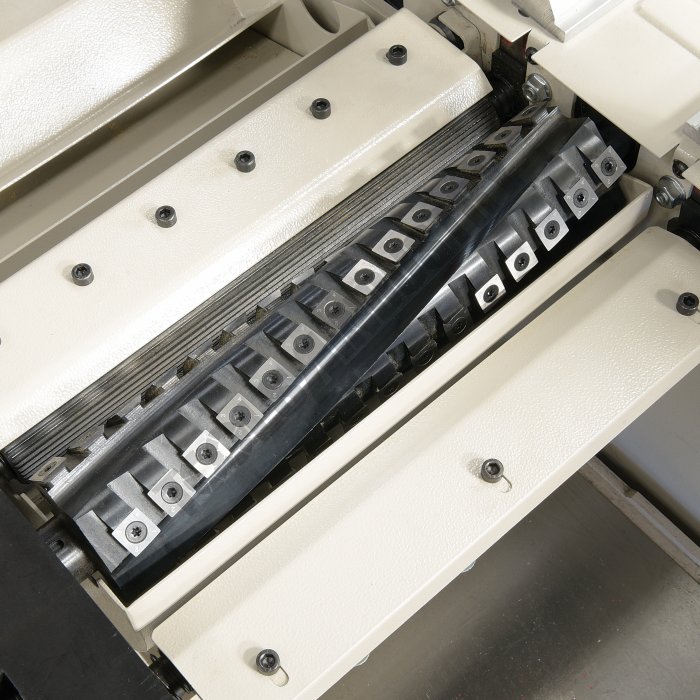

• Spiral cutter head with 44 carbide inserts
• Heavy-duty 2.2kW / 3hp 240V motor

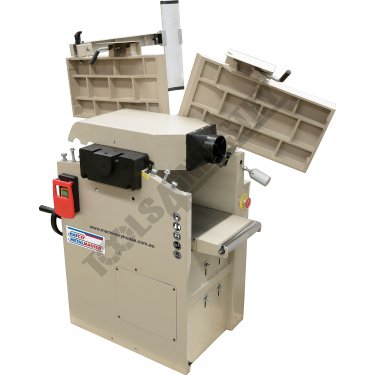

• 254mm wide x 190mm high thicknesser capacity
• Auto-feed thicknesser rollers 5m/min
• 4800rpm cutter head speed
• 1100 x 265mm jointer table size

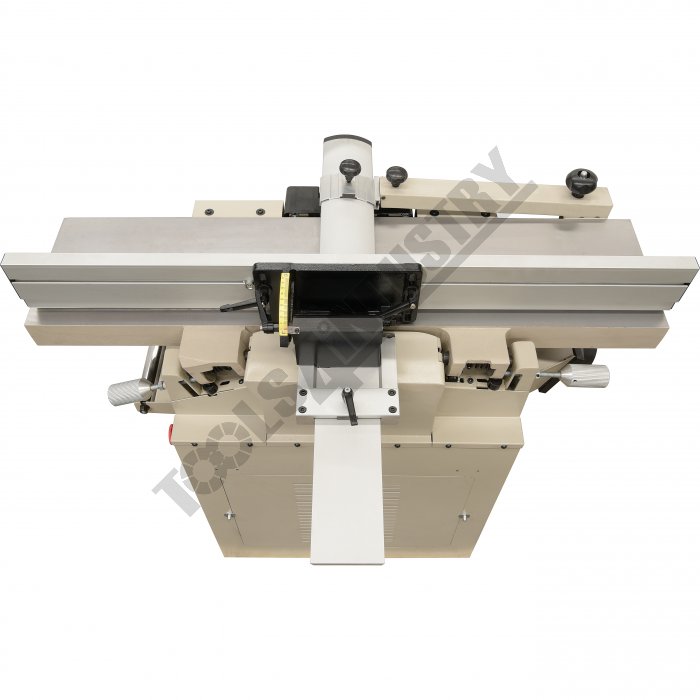

• Large aluminium fence tilts 45-90º with lever locking system and unique sliding design
• Heavy duty cast iron tables with ground finish to ensure accuracy and flatness

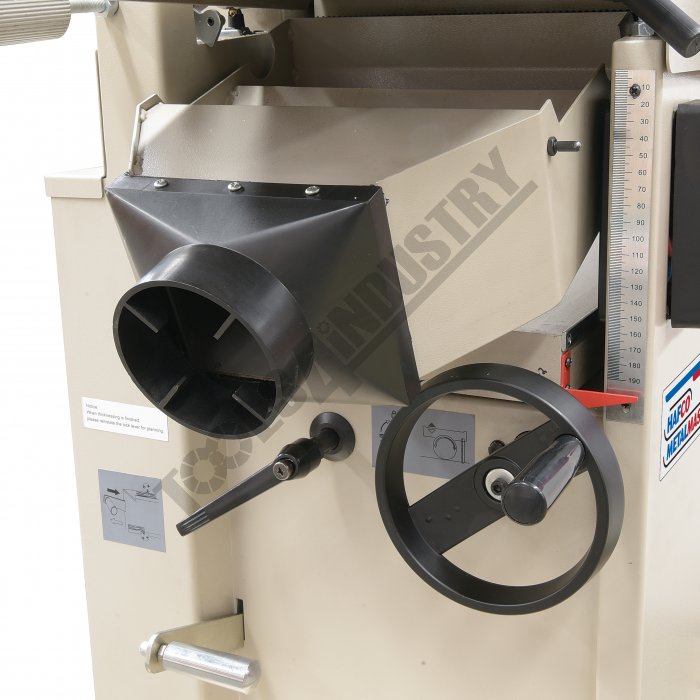

• Large hand-wheel for quick and precise adjustments of thickness height

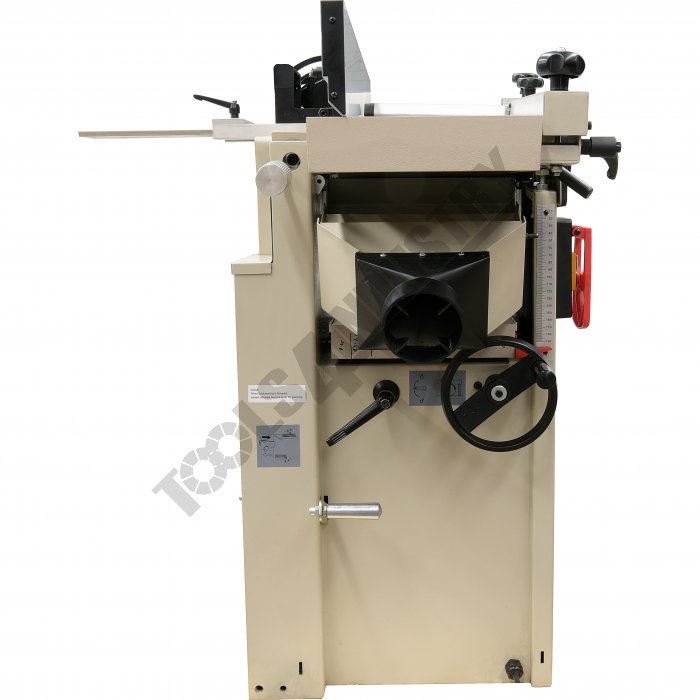

• 100mm dust chute

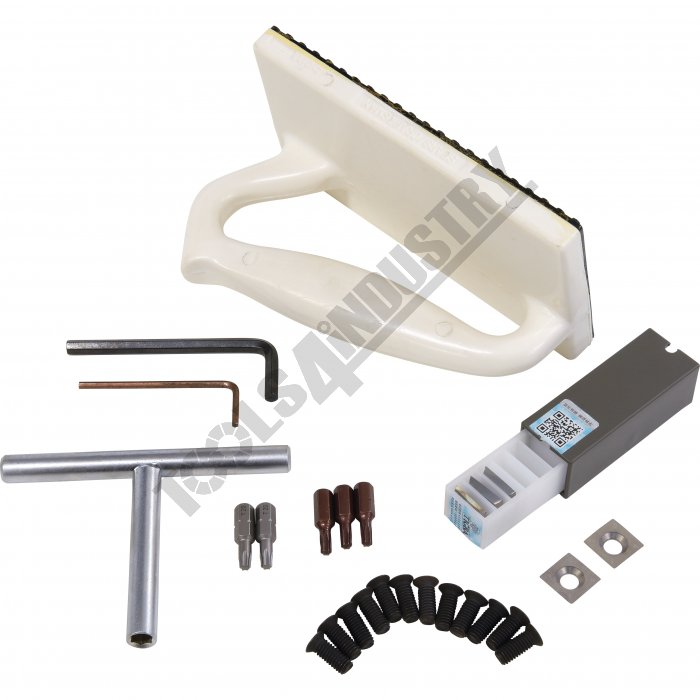

Includes

• 5 x spare carbide inserts
• 10 x spare insert screws

Optional Accessories

• 4 x Machine Mounts - (M001)
