| Code | W07837 |
|---|---|
| Model | WT16-RC9 |
| Capacity | 93mm Throat Depth, 100mm Height Opening |
| Weight (kg) | 0.49 |
| Weight (m3) | 0.001 |
| Weight (Freight) | 0.49 |
| Dimensions (cm) | 30 x 11 x 3 |

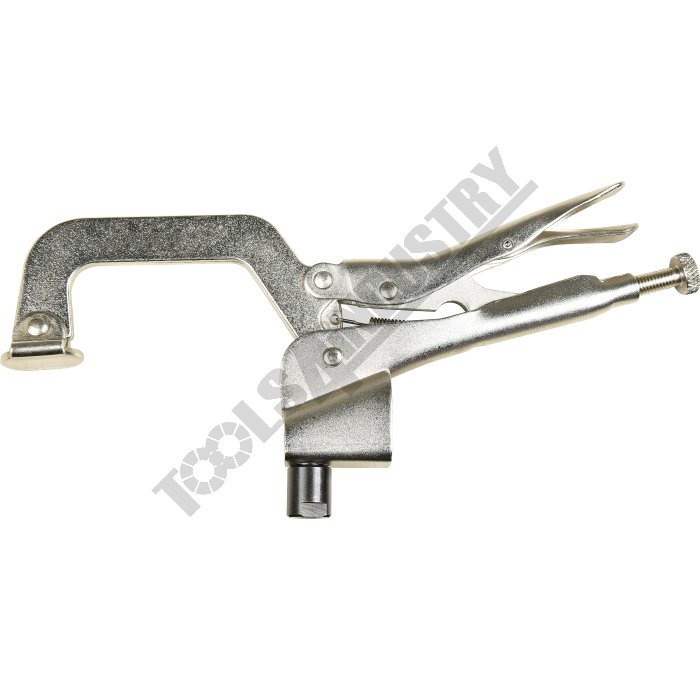

Welding Table Rapid Clamp WT16-RC9 93mm Throat Depth, 100mm Height Opening
Description

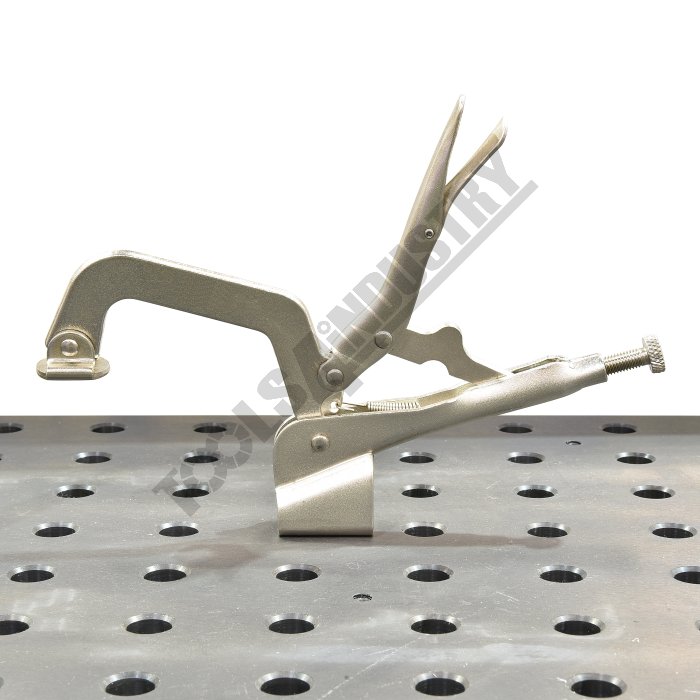

Designed to simply insert into any 16mm welding table holes for rapid clamping particularly for repetitive work. Adjustable clamping height capacity it provides a compact & easy to use rapid clamping solution. With a M12 female threaded base allow you adapt any of our multi-purpose stops for increased height or use in conjunction with our optional magnetic V-Pads on the clamp pad to aid in clamping of round material.Features
- Pin type spigot suits welding tables with Ø16mm holes
- 93mm throat depth
- 100mm Jaw Height Opening
- Removable M12 threaded spigot pin
Specifications
- Compare 22 Products
- ORDER CODE
- MODEL
- Mount Type
- Suits Table Hole SizeØ
- Throat Depthmm
- Clamp Height Openingmm
- Clamping Forcekg
- Quantity Per PackNo.
- Nett Weightkg
- W07837
- WT16-RC9
- Ø16mm Spigot
- 16mm
- 93
- 100
- ~
- 1
- ~
- W07839
- WT16-RC14
- Ø16mm Spigot
- 16mm
- 159
- 120
- ~
- 1
- ~
- W08508
- SDC-50
50mm - Ø16mm Spigot
- 16mm
- ~
- ~
- ~
- 2
- 1.0
- W08509
- SC-50
- Thread & Nut
- 16mm
- 50
- 130
- ~
- 2
- 0.7
- W08511
- SC-80
- Thread & Nut
- 16mm
- 80
- 200
- ~
- 2
- 1.5
- W08510
- SC-60
- Thread & Nut
- 16mm
- 60
- 125
- ~
- 2
- 5.30
- W08511
- SC-80
- Thread & Nut
- 16mm
- 80
- 200
- ~
- 2
- 1.5
- W08512
- SC-100
Weld Clamps with Locking Nuts (2 Piece Pack) - ~
- 16mm
- 100
- 200
- ~
- ~
- 2.3
- W08520
- SC-140A
- Ø16mm Shank
- 16mm
- 25~140
- 100
- ~
- 2
- 1.8
- W07826
- WT16-UNIV
- Ø16mm Shank
- 16mm
- 130
- 100
- ~
- 1
- 0.60
- W07834
- WT16-C1220R
- Ø16mm Spigot
- 16mm
- 120
- 200
- ~
- 1
- 1.2
- W07835
- WT16-C1230R
- Ø16mm Spigot
- 16mm
- 120
- 300
- ~
- 1
- 1.4
- W07829
- WT16-C815
- Ø16mm Spigot
- 16mm
- 80
- 150
- ~
- 1
- 0.60
- W07831
- WT16-C1020
- Ø16mm Spigot
- 16mm
- 100
- 200
- ~
- 1
- 0.90
- W07830
- WT16-C825
- Ø16mm Spigot
- 16mm
- 80
- 250
- ~
- 1
- 0.70
- W07832
- WT16-C1030
- Ø16mm Spigot
- 16mm
- 100
- 300
- ~
- 1
- 1.0
- W07833
- WT16-C1050
- Ø16mm Spigot
- 16mm
- 100
- 500
- ~
- 1
- 1.37
- W08304
- WT28-C90T
90 Degree - Ø28mm Shank
- 28mm
- ~
- ~
- ~
- 1
- 1.47
- W08301
- WT28-C180T
180 Degree - Ø28mm Shank
- 28mm
- ~
- ~
- ~
- 1
- 2.14
- W08307
- WT28-C45T
45 Degree - Ø28mm Shank
- 28mm
- ~
- ~
- ~
- 1
- 2.12
- W07950
- XDSM
Clamp Model UDN6150 - Sidekick
- ~
- ~
- ~
- ~
- 1
- 0.3
- W07836
- WT16-RC6
- Ø16mm Spigot
- 16mm
- 65
- 60
- ~
- 1
- ~
| ORDER CODE | WT16-RC9 |
|---|---|
| MODEL | Ø16mm Spigot |
| Mount Type | 16mm |
| Suits Table Hole SizeØ | 93 |
| Throat Depthmm | 100 |
| Clamp Height Openingmm | ~ |
| Clamping Forcekg | 1 |
| Quantity Per PackNo. | ~ |
| Nett Weightkg |
