| Code | W07835 |
|---|---|
| Model | WT16-C1230R |
| Capacity | 120mm Throat Depth, 300mm Height Opening |
| Weight (kg) | 1.4 |
| Weight (m3) | 0.004 |
| Weight (Freight) | 1.4 |
| Dimensions (cm) | 35 x 20 x 5 |

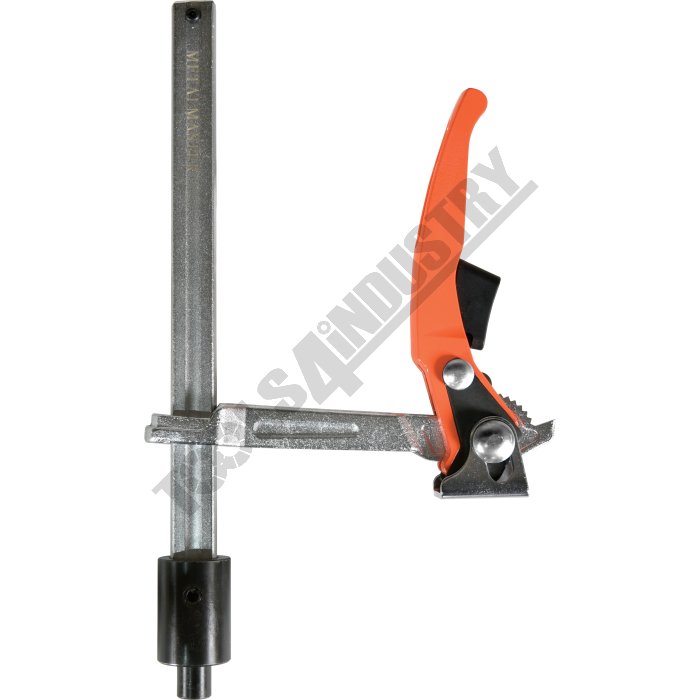

Ratchet Welding Table Clamp WT16-C1230R 120mm Throat Depth, 300mm Height Opening
Description

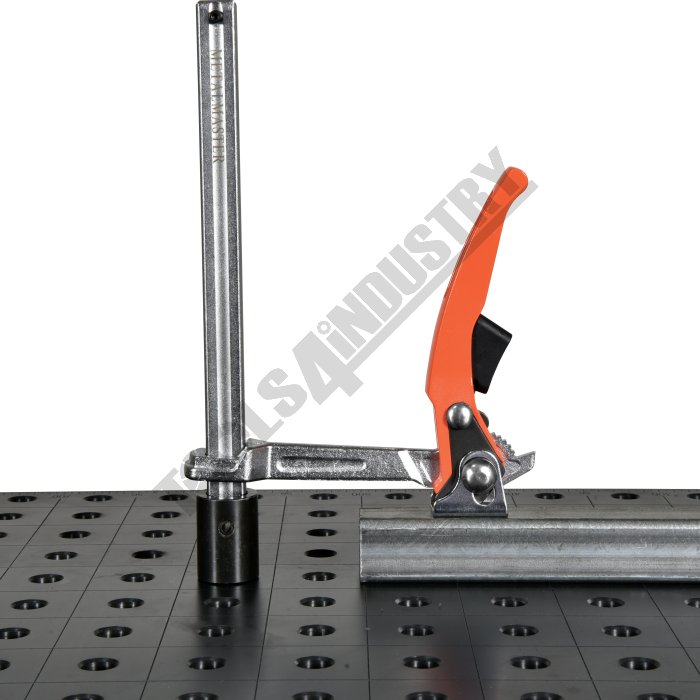

Designed to simply insert into any 16mm welding table holes with the added efficiency gained by the quick action ratchet action handle. The 120mm throat & 300mm clamping height capacity it provides a compact & easy to use clamping solution. Use in conjunction with our optional magnetic V-Pads on the clamp pad to aid in clamping of round material.Features
- Forged clamp arm
- Ratchet handle
- 120mm throat depth
- 300mm clamp height opening
- Suits welding tables with Ø16mm holes
Specifications
- Compare 22 Products
- ORDER CODE
- MODEL
- Mount Type
- Suits Table Hole SizeØ
- Throat Depthmm
- Clamp Height Openingmm
- Clamping Forcekg
- Quantity Per PackNo.
- Nett Weightkg
- W07835
- WT16-C1230R
- Ø16mm Spigot
- 16mm
- 120
- 300
- ~
- 1
- 1.4
- W07829
- WT16-C815
- Ø16mm Spigot
- 16mm
- 80
- 150
- ~
- 1
- 0.60
- W07831
- WT16-C1020
- Ø16mm Spigot
- 16mm
- 100
- 200
- ~
- 1
- 0.90
- W07830
- WT16-C825
- Ø16mm Spigot
- 16mm
- 80
- 250
- ~
- 1
- 0.70
- W07832
- WT16-C1030
- Ø16mm Spigot
- 16mm
- 100
- 300
- ~
- 1
- 1.0
- W07833
- WT16-C1050
- Ø16mm Spigot
- 16mm
- 100
- 500
- ~
- 1
- 1.37
- W08304
- WT28-C90T
90 Degree - Ø28mm Shank
- 28mm
- ~
- ~
- ~
- 1
- 1.47
- W08301
- WT28-C180T
180 Degree - Ø28mm Shank
- 28mm
- ~
- ~
- ~
- 1
- 2.14
- W08307
- WT28-C45T
45 Degree - Ø28mm Shank
- 28mm
- ~
- ~
- ~
- 1
- 2.12
- W07950
- XDSM
Clamp Model UDN6150 - Sidekick
- ~
- ~
- ~
- ~
- 1
- 0.3
- W07836
- WT16-RC6
- Ø16mm Spigot
- 16mm
- 65
- 60
- ~
- 1
- ~
- W07837
- WT16-RC9
- Ø16mm Spigot
- 16mm
- 93
- 100
- ~
- 1
- ~
- W07839
- WT16-RC14
- Ø16mm Spigot
- 16mm
- 159
- 120
- ~
- 1
- ~
- W08508
- SDC-50
50mm - Ø16mm Spigot
- 16mm
- ~
- ~
- ~
- 2
- 1.0
- W08509
- SC-50
- Thread & Nut
- 16mm
- 50
- 130
- ~
- 2
- 0.7
- W08511
- SC-80
- Thread & Nut
- 16mm
- 80
- 200
- ~
- 2
- 1.5
- W08510
- SC-60
- Thread & Nut
- 16mm
- 60
- 125
- ~
- 2
- 5.30
- W08511
- SC-80
- Thread & Nut
- 16mm
- 80
- 200
- ~
- 2
- 1.5
- W08512
- SC-100
Weld Clamps with Locking Nuts (2 Piece Pack) - ~
- 16mm
- 100
- 200
- ~
- ~
- 2.3
- W08520
- SC-140A
- Ø16mm Shank
- 16mm
- 25~140
- 100
- ~
- 2
- 1.8
- W07826
- WT16-UNIV
- Ø16mm Shank
- 16mm
- 130
- 100
- ~
- 1
- 0.60
- W07834
- WT16-C1220R
- Ø16mm Spigot
- 16mm
- 120
- 200
- ~
- 1
- 1.2
| ORDER CODE | WT16-C1230R |
|---|---|
| MODEL | Ø16mm Spigot |
| Mount Type | 16mm |
| Suits Table Hole SizeØ | 120 |
| Throat Depthmm | 300 |
| Clamp Height Openingmm | ~ |
| Clamping Forcekg | 1 |
| Quantity Per PackNo. | 1.4 |
| Nett Weightkg |
