| Code | W07712A |
|---|---|
| Model | TMA61210 |
| Capacity | Reversible Table Plates |
| Weight (kg) | 188 |
| Weight (m3) | 0.290 |
| Weight (Freight) | 188 |
| Dimensions (cm) | 116 x 100 x 25 |
| Only Available From | Melbourne |

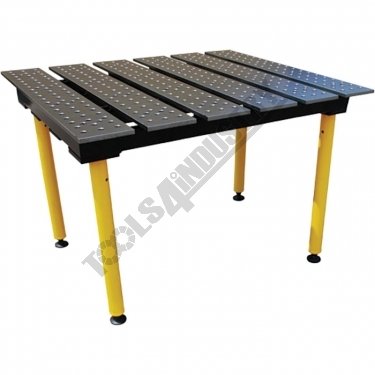

1160 x 1000mm BuildPro Modular Welding Table - Standard Finish TMA61210 Reversible Table Plates
Description
BuildPro® ModelsNEW REVERSIBLE SELF-LOCATING TABLE PLATES!

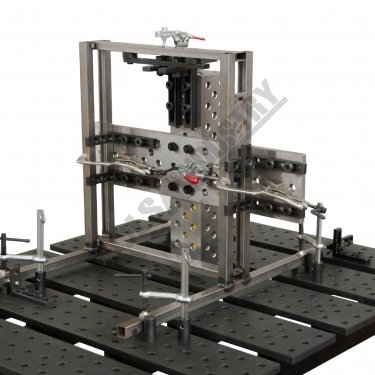

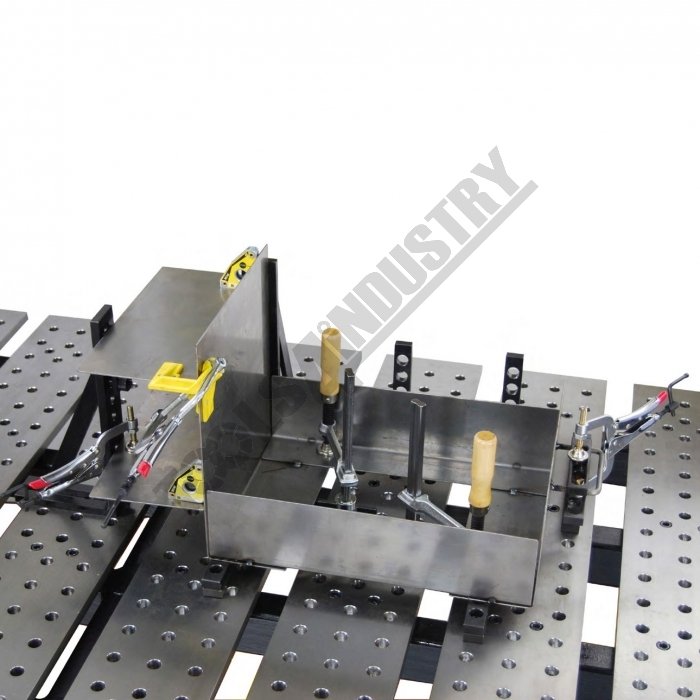

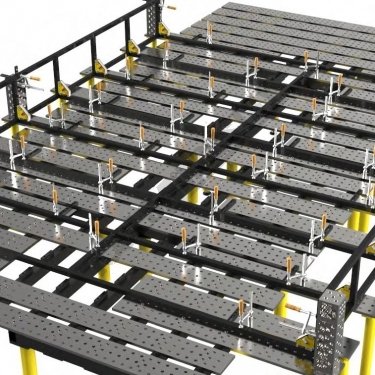

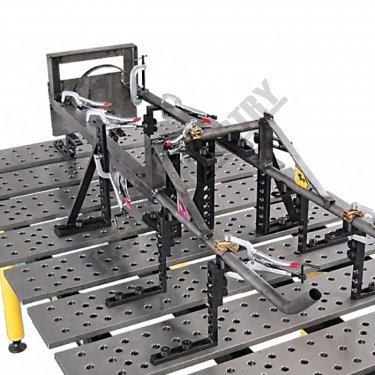

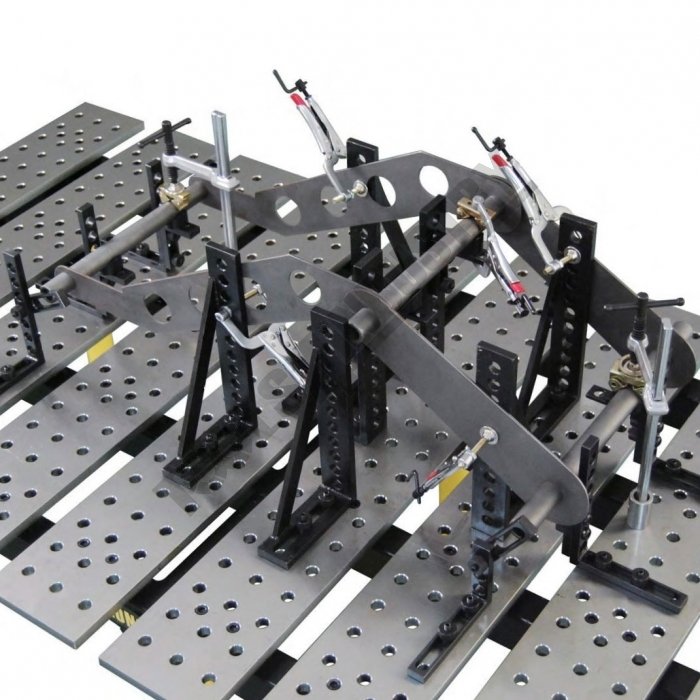

The very practical, modular design of the BuildPro® Table makes it easy to set-up and tear down for job at hand, big or small. Save time and money by holding, positioning and locating quickly and easily with a wide variety of BuildPro® clamps and accessories.
In this economy, we know you need to be flexible and responsive to new business opportunities by reducing set-up time, improving consistency and work quality and remaining competitive in both pricing and delivery in a wide variety of jobs; short runs, volume production, prototypes, and multiple jobs in fabrication, repairs, and maintenance.
Accuracy:
Table flatness : 0.30mm / 914.4mm
Hole diameter : 16mm + 0.05mm
Hole spacing : 50mm ± 0.038mm
Plate thickness : 16mm ± 0.10mm
All BuildPro® Tables have 16mm thick steel plate with Ø16mm holes in a 50mm grid pattern. All tables, except BuildPro® MAX, have 40mm slots between plates.
Features
- Standard table material finish
- Ø16mm holes
- 16mm thick plate
- 50 x 50mm grid pattern
- 900mm table height
- Includes legs
Videos
Specifications
- Compare 7 Products
- ORDER CODE
- MODEL
- Table Top FinishType
- Table Top Sizemm
- Table Heightmm
- Table Side Heightmm
- Top Plate Thicknessmm
- Grid Patternmm
- Table Hole DiameterØ
- Table Slotsmm
- Static Load Capacitykg
- Total W.L.L.kg
- Number of LegsNo.
- Nett Weightkg
- W07712A
- TMA61210
- Standard Finish
- 1160 x 1000
- 900
- ~
- 16
- 50 x 50
- 16
- 40
- 2200
- ~
- ~
- 187
- W07716A
- TMA62010
- Standard Finish
- 1960 x 1000
- 900
- ~
- 16
- 50 x 50
- 16
- 40
- 2500
- ~
- ~
- 306
- W07717A
- TMQA62010
- Nitrided Finish
- 1960 x 1000
- 900
- ~
- 16
- 50 x 50
- 16
- 40
- 2500
- ~
- ~
- 306
- W07720A
- TMD625125
- Standard Finish
- 2560 x 1250
- 900
- ~
- 16
- 50 x 50
- 16
- 40
- 2500
- ~
- ~
- 449
- W07721A
- TMQD625125
- Nitrided Finish
- 2560 x 1250
- 900
- ~
- 16
- 50 x 50
- 16
- 40
- 2500
- ~
- ~
- 449
- W07725A
- TMQD626125F
- BuildPro Max Table
- 2550 x 1250
- 900
- ~
- 16
- 50 x 50
- 16
- ~
- 3000
- ~
- ~
- 654
- W07705
- TDQ612075
- Nitrided Black Oxide
- 1200 x 750
- 910
- ~
- 16
- 50 x 50
- 16
- ~
- 700
- ~
- ~
- 195
| ORDER CODE | TMA61210 |
|---|---|
| MODEL | Standard Finish |
| Table Top FinishType | 1160 x 1000 |
| Table Top Sizemm | 900 |
| Table Heightmm | ~ |
| Table Side Heightmm | 16 |
| Top Plate Thicknessmm | 50 x 50 |
| Grid Patternmm | 16 |
| Table Hole DiameterØ | 40 |
| Table Slotsmm | 2200 |
| Static Load Capacitykg | ~ |
| Total W.L.L.kg | ~ |
| Number of LegsNo. | 187 |
| Nett Weightkg |
