Code	V3582
Model	MD-200A
Weight (kg)	9.1
Weight (m³)	0.001
Weight (Freight)	9.1
Dimensions (cm)	20 x 10 x 7
Only Available From	Sydney

SAFEWAY

1 Year Warranty

Taiwan

Product Brochure

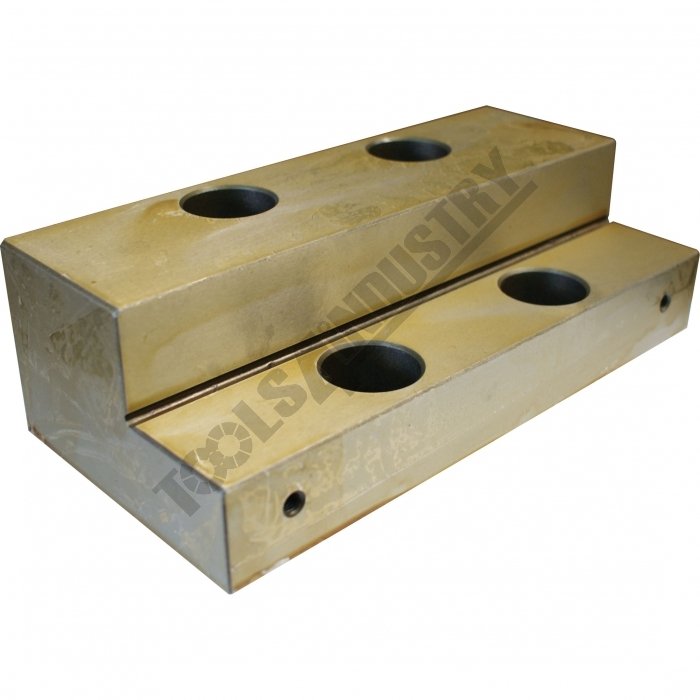

Safeway Stepped Moveable Hardened Jaw - 200mm MD-200A

Description

Additional stepped stationary jaw designed to be used when thin work is to be held.

Suits - SAFEWAY VHV-200V - Compact Hydraulic Machine Vice (V3565)

Features

Hardened and Ground to HRC52º-55º
Easy to change

Specifications

Compare 15 Products

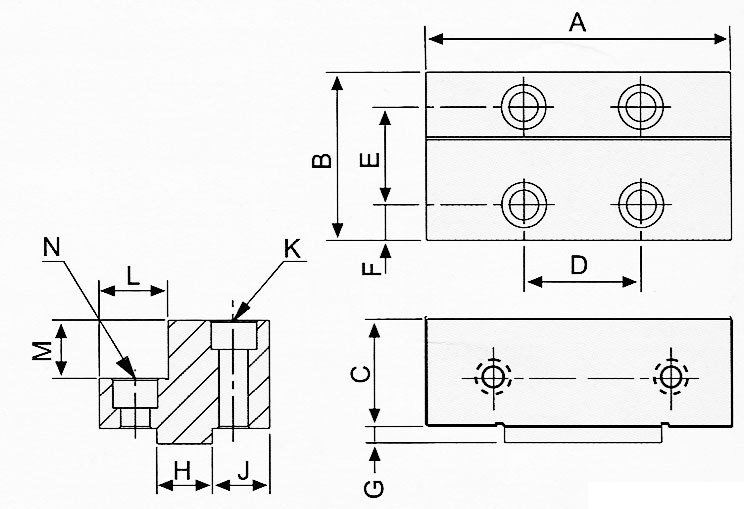

ORDER CODE
MODEL
Type
Amm
Bmm
Cmm
Dmm
Emm
Fmm
Gmm
Hmm
Jmm
Kmm
Lmm
Mmm
Nmm
Nett Weightkg

V3582
MD-200A
Step Jaw - Moveable
200
97
60
74
59
19
9.5
28
34.5
M16 x 70 Long
38
30
M16 x 40 Long
7

V3196
SJ-100V
Step Jaws
60
100
22
48
15
M10 x 20 Long
43
5
~
5
10
~
~
3

V3197
SJ-130V
Step Jaws
90
130
25
55
15
M10 x 20 Long
50
5
~
5
10
~
~
3

V3202
PJ-130V
Standard Jaws
90
130
25
55
15
M10 x 20 Long
~
~
~
~
~
~
~
3

V3203
PJ-160V
Standard Jaws
90
160
25
58
15
M10 x 20 Long
~
~
~
~
~
~
~
4

V3204
LJ-160V
End Mount Jaws
90
160
25
73
23
M10 x 20 Long
M14 x 55 Long
~
~
~
~
~
~
3

V3218
LJ-200V
End Mount Jaws
120
200
28
88
30
M12 x 35 Long
M16 x 65 Long
~
~
~
~
~
~
3

V3211
RJ-130V
Serrated Jaws
90
130
25
55
15
M10 x 20 Long
~
~
~
~
~
~
~
3

V3212
RJ-160V
Serrated Jaws
90
160
25
58
15
M10 x 20 Long
~
~
~
~
~
~
~
4

V3213
RJ-200V
Serrated Jaws
120
200
28
63
18
M12 x 25 Long
~
~
~
~
~
~
~
4

V3208
CJ-160
Vee Jaw - Single
90
160
25
58
30
55
12
25
~
~
M10 x 16 Long
~
~
3

V3209
CJ-200
Vee Jaw - Single
120
200
28
63
36
70
12
30
~
~
M12 x 16 Long
~
~
3

V3561
MC-160A
Step Jaw - Fixed
160
86
55
124
50
18
8
28
29
M14 x 65 Long
35
30
M14 x 30 Long
4.2

V3562
MD-160A
Step Jaw - Moveable
160
86
55
60
50
18
8.5
28
29
M14 x 65 Long
35
30
M14 x 30 Long
4.2

V3581
MC-200A
Step Jaw - Fixed
200
100
60
150
62
19
9.5
28
36
M16 x 70 Long
38
30
M16 x 40 Long
7

ORDER CODE	MD-200A
MODEL	Step Jaw - Moveable
Type	200
Amm	97
Bmm	60
Cmm	74
Dmm	59
Emm	19
Fmm	9.5
Gmm	28
Hmm	34.5
Jmm	M16 x 70 Long
Kmm	38
Lmm	30
Mmm	M16 x 40 Long
Nmm	7
Nett Weightkg
