This Product Is No Longer Available
| Code | V338 |
|---|---|
| Model | CV-130V |
| Capacity | 131 x 180mm |
| Weight (kg) | 7 |
| Weight (m3) | 0.014 |
| Weight (Freight) | 7 |
| Dimensions (cm) | 30 x 30 x 15 |
Product Brochure
This Product Is No Longer Available

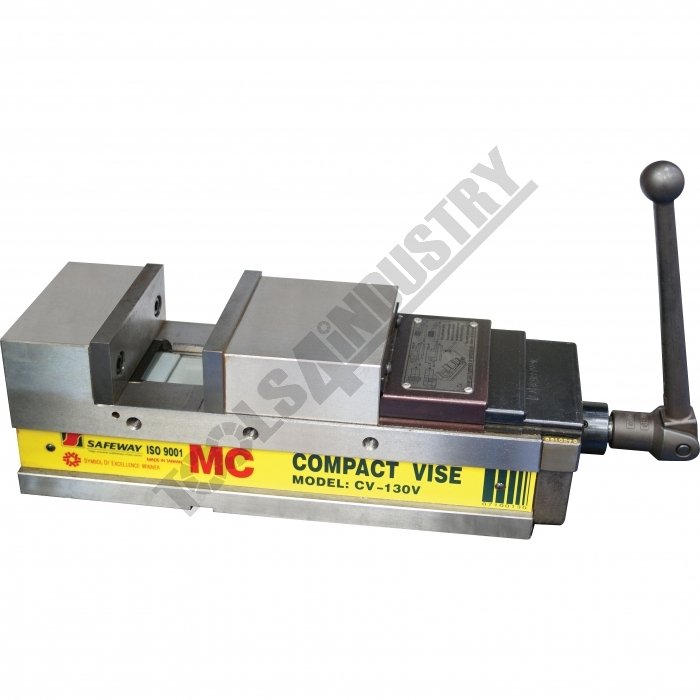

Safeway Compact Mechanical Machine Vice CV-130V 131 x 180mm
Description
Precision Machine Vice with replaceable jaws allow for special purpose holding of components.Features
- Semi-spherical segment eliminates jaw lifting& work piece tilting
- One piece casting bed and fixed jaw
- Rigid material- Ductile Iron FCD60 JIS. Equal to GGG60. 80,000 psi tensile strength.
- Maximum opening capacity yet compact in overall length
- Tolerance all over for use with other vices as matched pairs
- Flame hardened to HRC 45
- Chip cover to protect leadscrew
- Jaws hardened to HRC 52-55

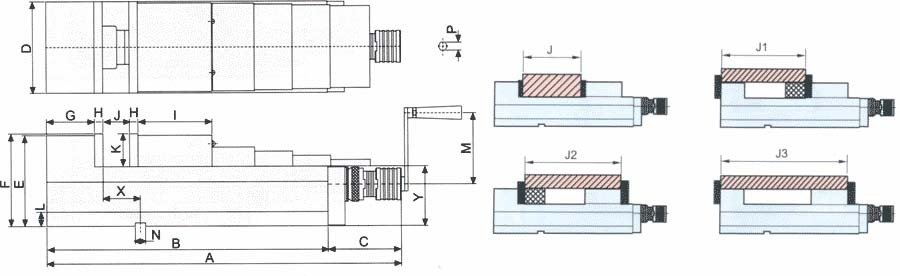

Specifications
- Compare 4 Products
- ORDER CODE
- MODEL
- Jaw Widthmm
- Pressurekgf
- Amm
- Bmm
- Cmm
- Dmm
- Emm
- Fmm
- Gmm
- Imm
- Jmm
- Kmm
- Mmm
- Nmm
- Xmm
- Ymm
- Nett Weightkg
| ORDER CODE | CV-130V |
|---|---|
| MODEL | 131 |
| Jaw Widthmm | 5292 |
| Pressurekgf | 495 |
| Amm | 405 |
| Bmm | 90 |
| Cmm | 131 |
| Dmm | 147 |
| Emm | 150 |
| Fmm | 70 |
| Gmm | 115 |
| Imm | 0 - 180 |
| Jmm | 55 |
| Kmm | 260 |
| Mmm | 18 |
| Nmm | 65 |
| Xmm | 95 |
| Ymm | 39 |
| Nett Weightkg |
