| Code | S804 |
|---|---|
| Model | PR-136A |
| Capacity | 1300 x 6.5mm Mild Steel Capacity |
| Weight (kg) | 1292 |
| Weight (m3) | 1.606 |
| Weight (Freight) | 1292 |
| Dimensions (cm) | 193 x 73 x 114 |

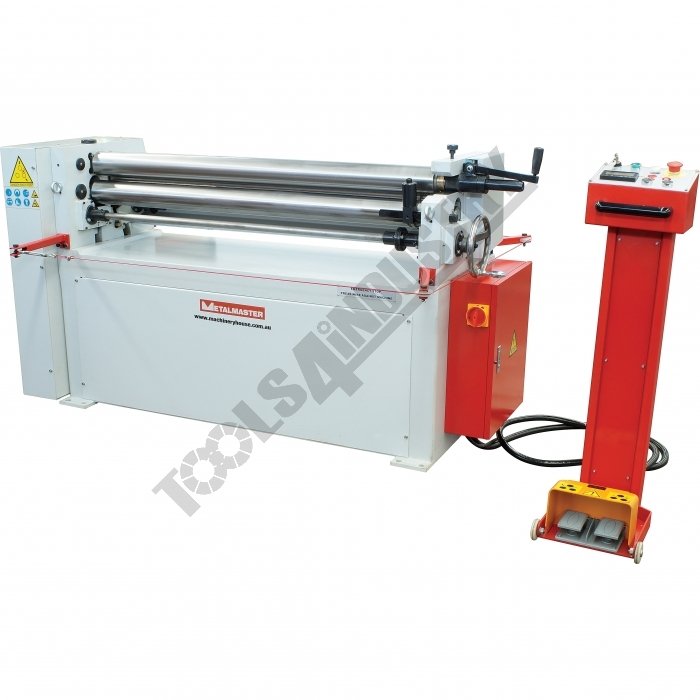

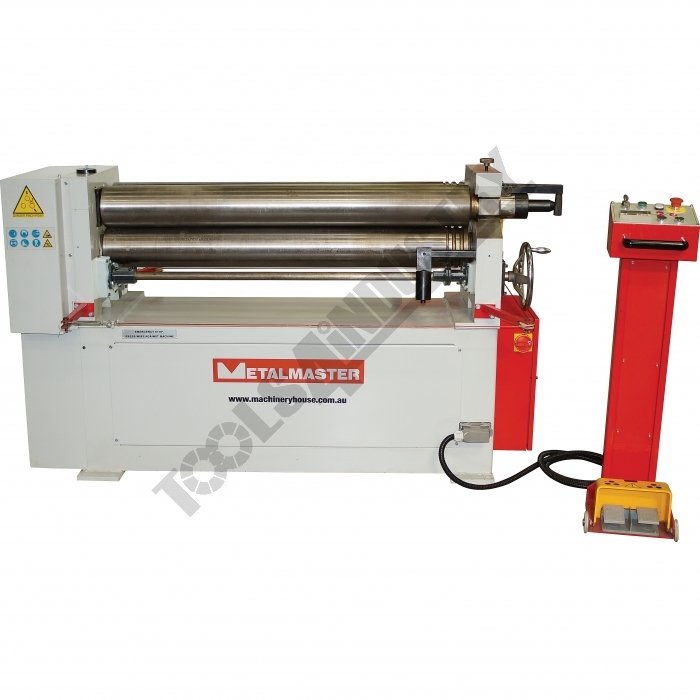

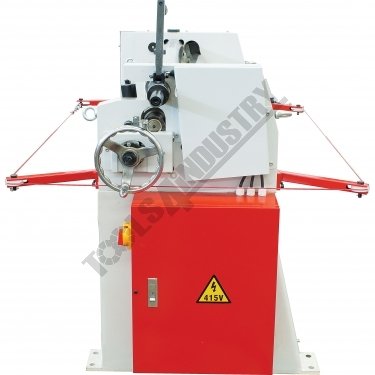

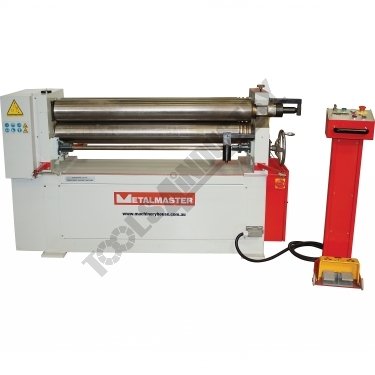

Motorised Plate Curving Rolls PR-136A 1300 x 6.5mm Mild Steel Capacity
Features

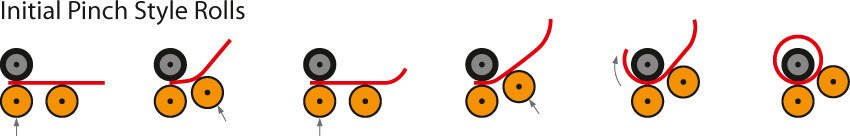

- Initial pinch rolls with pre-bending

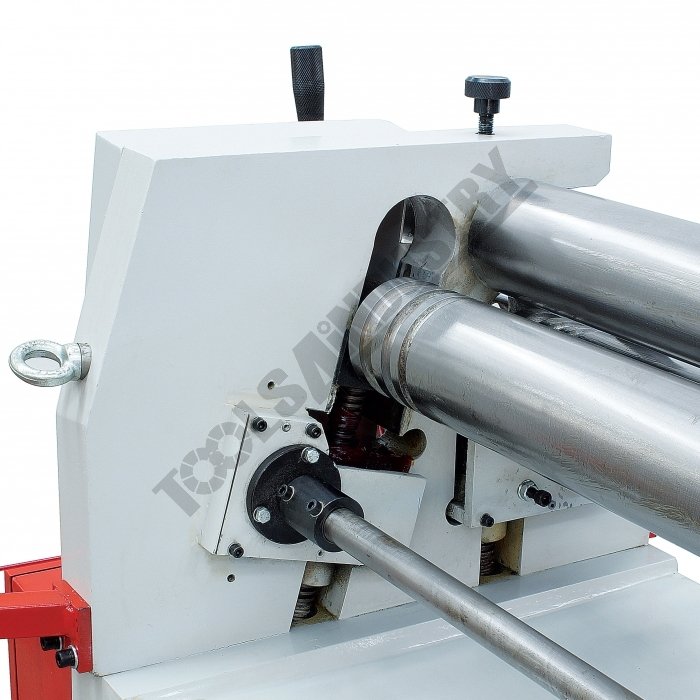

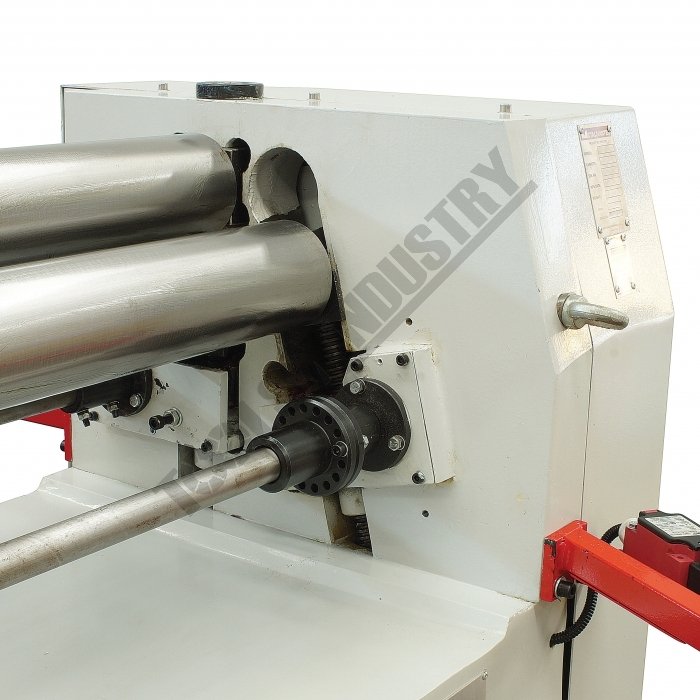

- Motorised up & down rear curving roll enables quick & easy pre-bending
- Digital readout display on rear curving roll position

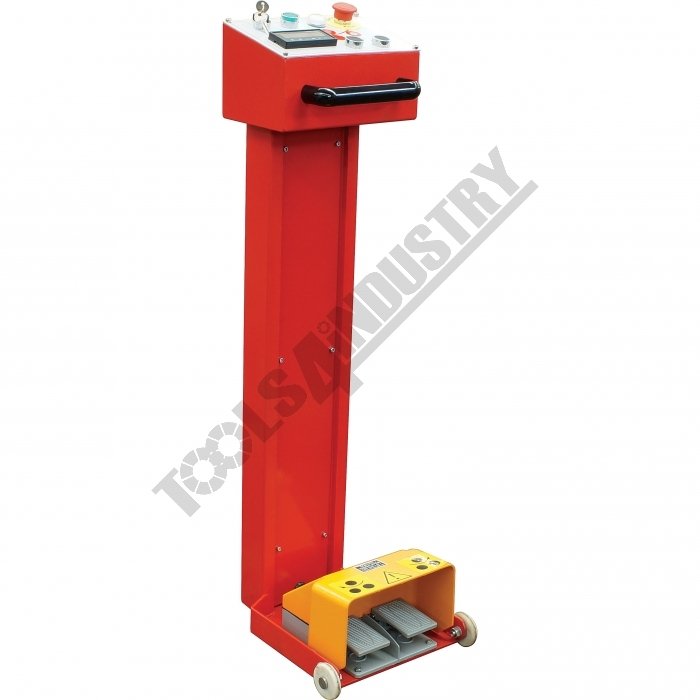

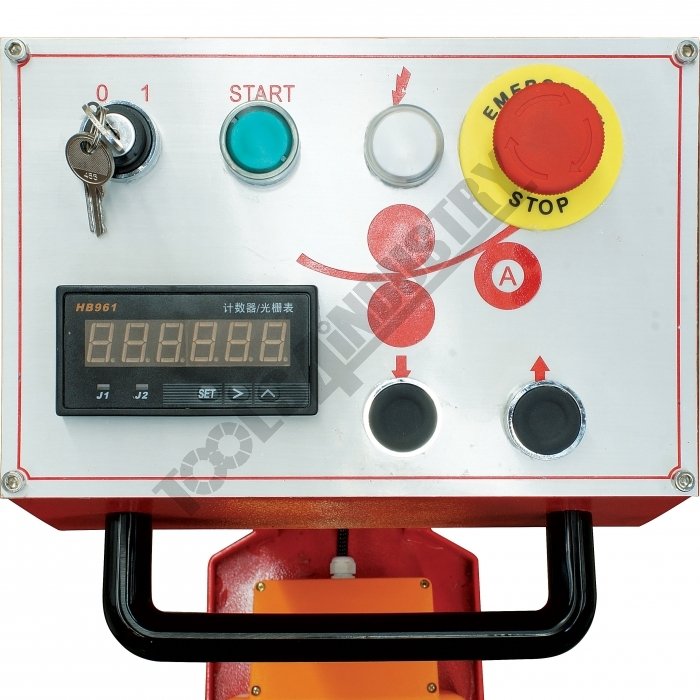

- Mobile foot pedal control with digital readout display
- Two rolls are powered by reduction gearbox drive system

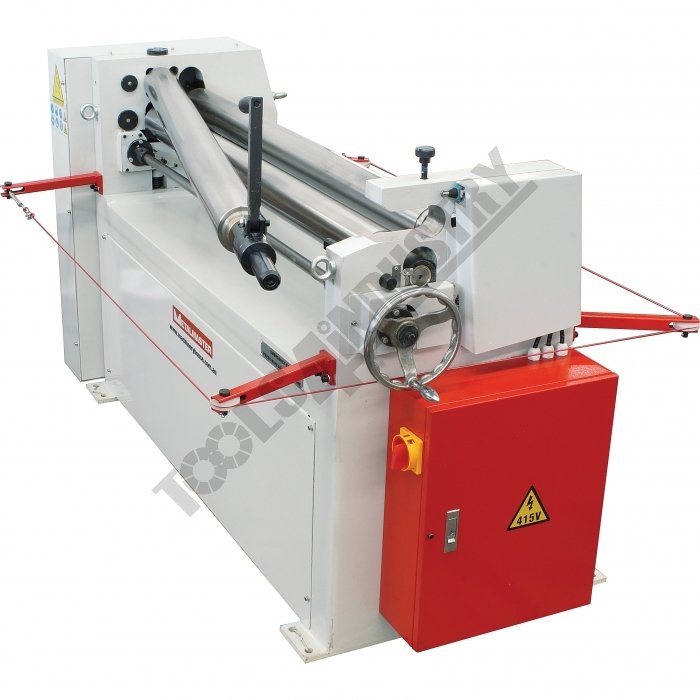

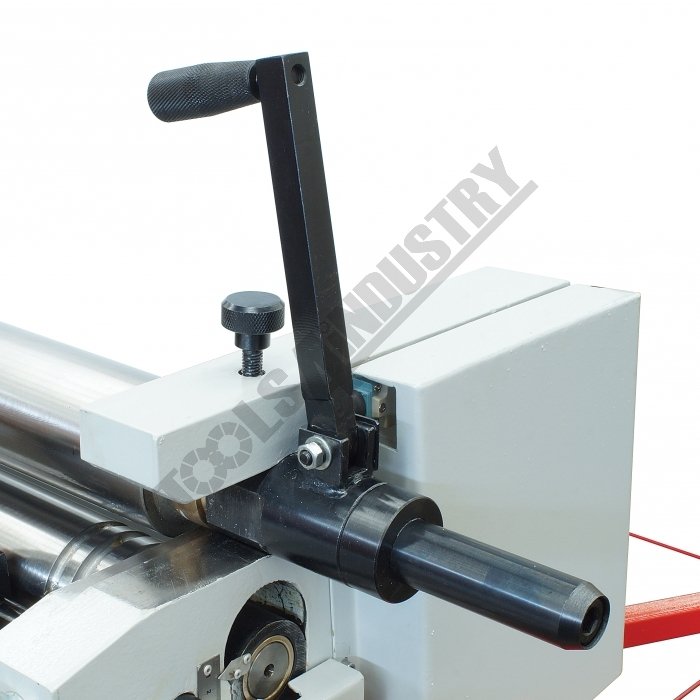

- Swing out top roller enables cone or cylinder to be removed

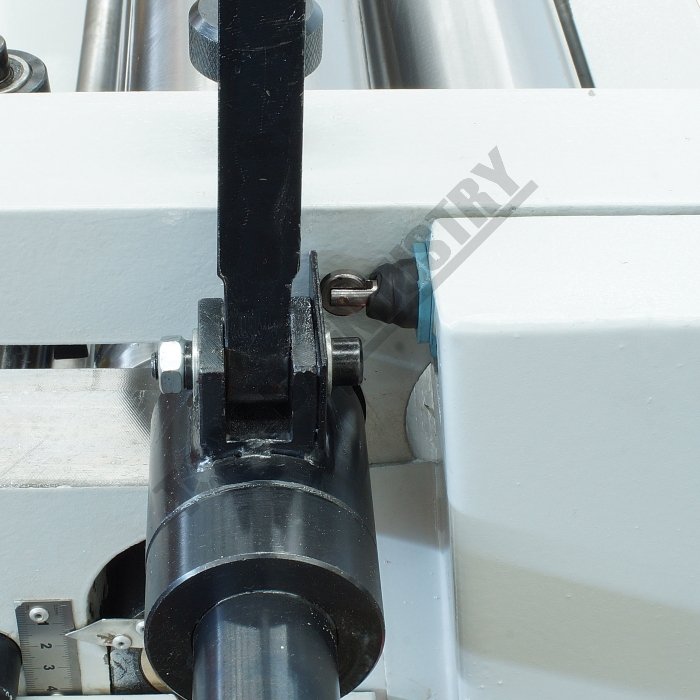

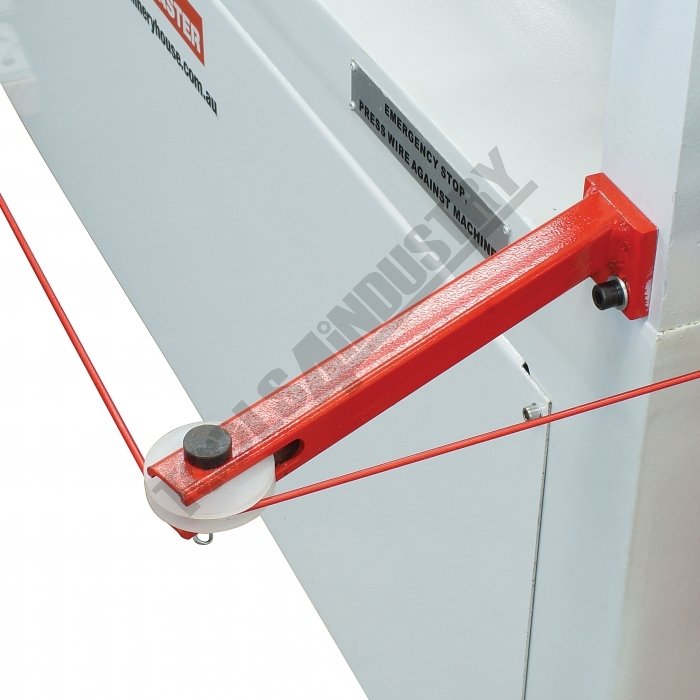

- Safety wire interlock system with emergency shut-off

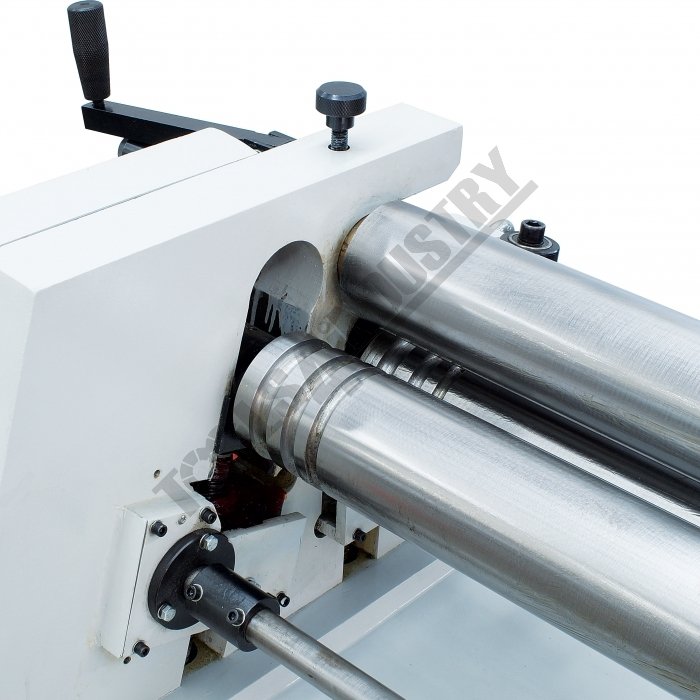

- Rolls include wiring grooves

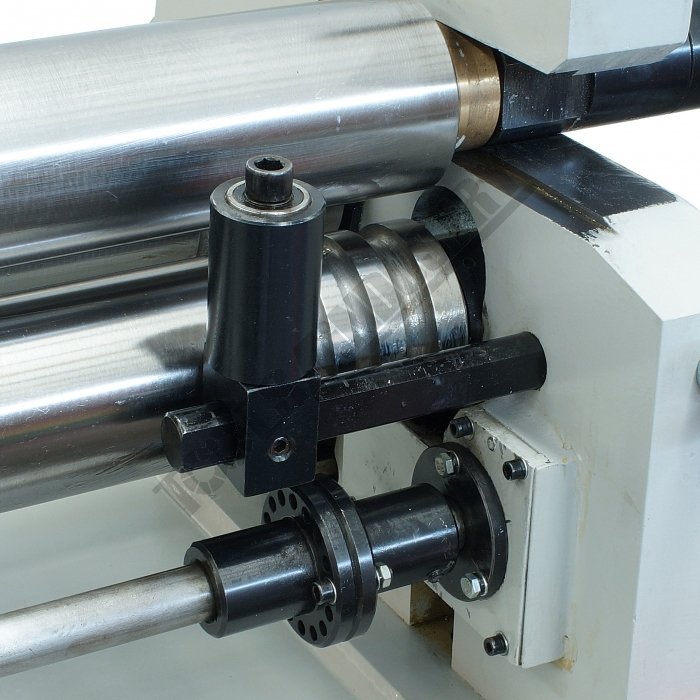

- Includes a conical bending guide roller
- Mild steel capacity is rated on hot rolled material with 250MPA
Specifications
- Compare 14 Products
- ORDER CODE
- MODEL
- Curving System Type
- Curving Material Lengthmm
- Curving Plate Thickness - Mild Steelmm
- Minimum Rolling Diametermm
- Roll Diametermm
- Motor PowerkW / hp
- Voltage / AmperageV / amp
- Dimensions (LxWxH)mm
- Floor Space (L x W x H)mm
- Nett Weightkg
- S804
- PR-136A
- Initial Pinch
- 1300
- 6.5
- 225
- 150
- 2.2 / 3
- 415
- 2300 x 800 x 1340
- 1995 x 1050 x 1215
- 1320
- S778C
- 4R HSS NC 30-280
- 4 Roll System
- 3100
- 12
- 420
- 280
- 15 / 20
- 415
- 5850 x 1750 x 1850
- ~
- 10000
- S785
- IRM1270x140
- Initial Pinch
- 1270
- 5
- 210
- 140
- 2.2 / 3
- 415
- 2470 x 750 x 1000
- ~
- 1350
- S805
- PR-204A
- Initial Pinch
- 2000
- 4
- 225
- 150
- 2.2 / 3
- 415
- 2530 x 740 x 1200
- 2695 x 1050 x 1215
- 1620
- S7965
- MRM-S 1550x130
- Initial Pinch
- 1550
- 6
- 195
- 130
- 2.2 / 3
- 415
- 3250 x 650 x 1020
- ~
- 1400
- S7968
- MRM-S 2550x150
- Initial Pinch
- 2550
- 4
- 225
- 150
- 2.2 / 3
- 415
- 4250 x 650 x 1020
- ~
- 2150
- S797
- MRM-S 2550x190
- Initial Pinch
- 2550
- 6
- 285
- 190
- 4 / 5
- 415
- 4700 x 950 x 1300
- ~
- 3400
- S770
- PR-3108
- Pyramid
- 3100
- 8
- 400
- 210
- 5.5 / 7.37
- 415
- 4700 x 1100 x 1450
- ~
- 4500
- S763A
- PR-132H
- Initial Pinch
- 1300
- 1.6
- 112
- 75
- 0.75 / 1
- 240 / 10
- 1920 x 610 x 1340
- ~
- 400
- S7760
- 4R HS 25-245
- 4 Roll System
- 2550
- 10
- 370
- 245
- 7.5 / 10
- 415
- 4800 x 1425 x 1470
- ~
- 5700
- S802
- PR-133A
- Initial Pinch
- 1300
- 2.5
- 135
- 90
- 1.1 / 1.5
- 415
- 1800 x 640 x 1000
- 1855 x 1030 x 1000
- 645
- S7760
- 4R HS 25-245
- 4 Roll System
- 2550
- 10
- 370
- 245
- 7.5 / 10
- 415
- 4800 x 1425 x 1470
- ~
- 5700
- S803
- PR-134A
- Initial Pinch
- 1300
- 4.0
- 180
- 120
- 2.2 / 3
- 415
- 1810 x 640 x 1050
- 1855 x 1030 x 1050
- 855
- S7775
- 4R HS 30-260
- 4 Roll System
- 3100
- 10
- 390
- 260
- 7.5 / 10
- 415
- 5350 x 1460 x 1550
- ~
- 7500
| ORDER CODE | PR-136A |
|---|---|
| MODEL | Initial Pinch |
| Curving System Type | 1300 |
| Curving Material Lengthmm | 6.5 |
| Curving Plate Thickness - Mild Steelmm | 225 |
| Minimum Rolling Diametermm | 150 |
| Roll Diametermm | 2.2 / 3 |
| Motor PowerkW / hp | 415 |
| Voltage / AmperageV / amp | 2300 x 800 x 1340 |
| Dimensions (LxWxH)mm | 1995 x 1050 x 1215 |
| Floor Space (L x W x H)mm | 1320 |
| Nett Weightkg |
