| Code | S2172 |
|---|---|
| Model | AS-50ZNY |
| Capacity | 50.8mm width |
| Weight (kg) | 1.6 |
| Weight (m3) | 0.004 |
| Weight (Freight) | 1.6 |
| Dimensions (cm) | 21 x 21 x 9 |

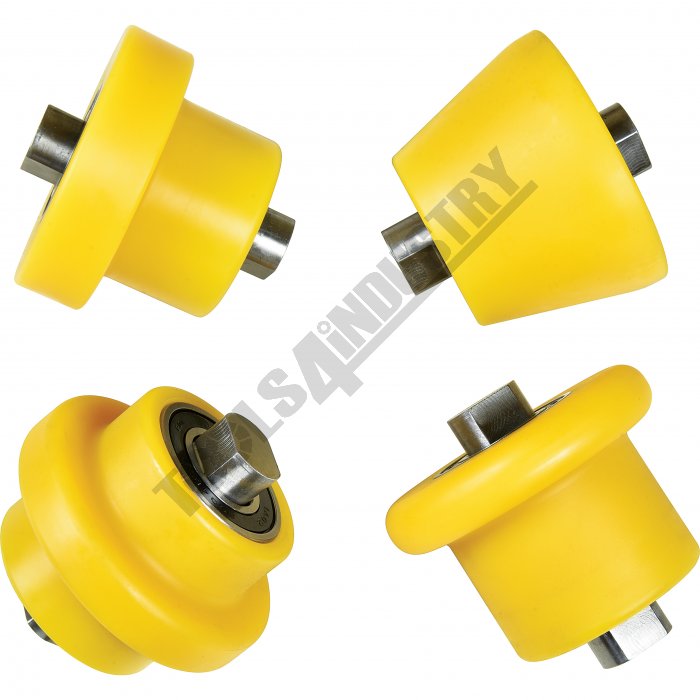

4pc Nylon Lower Anvil Set AS-50ZNY 50.8mm width
Description
These English Wheel lower anvils are made from MC Nylon with a shore scale hardness of D84, slightly harder than a bowling ball, to allow you to form the material rather than stretching it when using standard steel anvils plus with the added benefit of having a non-marking finish they are perfect when shaping aluminium or material requiring a mirror finish eg. Stainless Steel. Anvils are reversible to suit your application.Features
- Anvils are reversible to suit your application
Includes

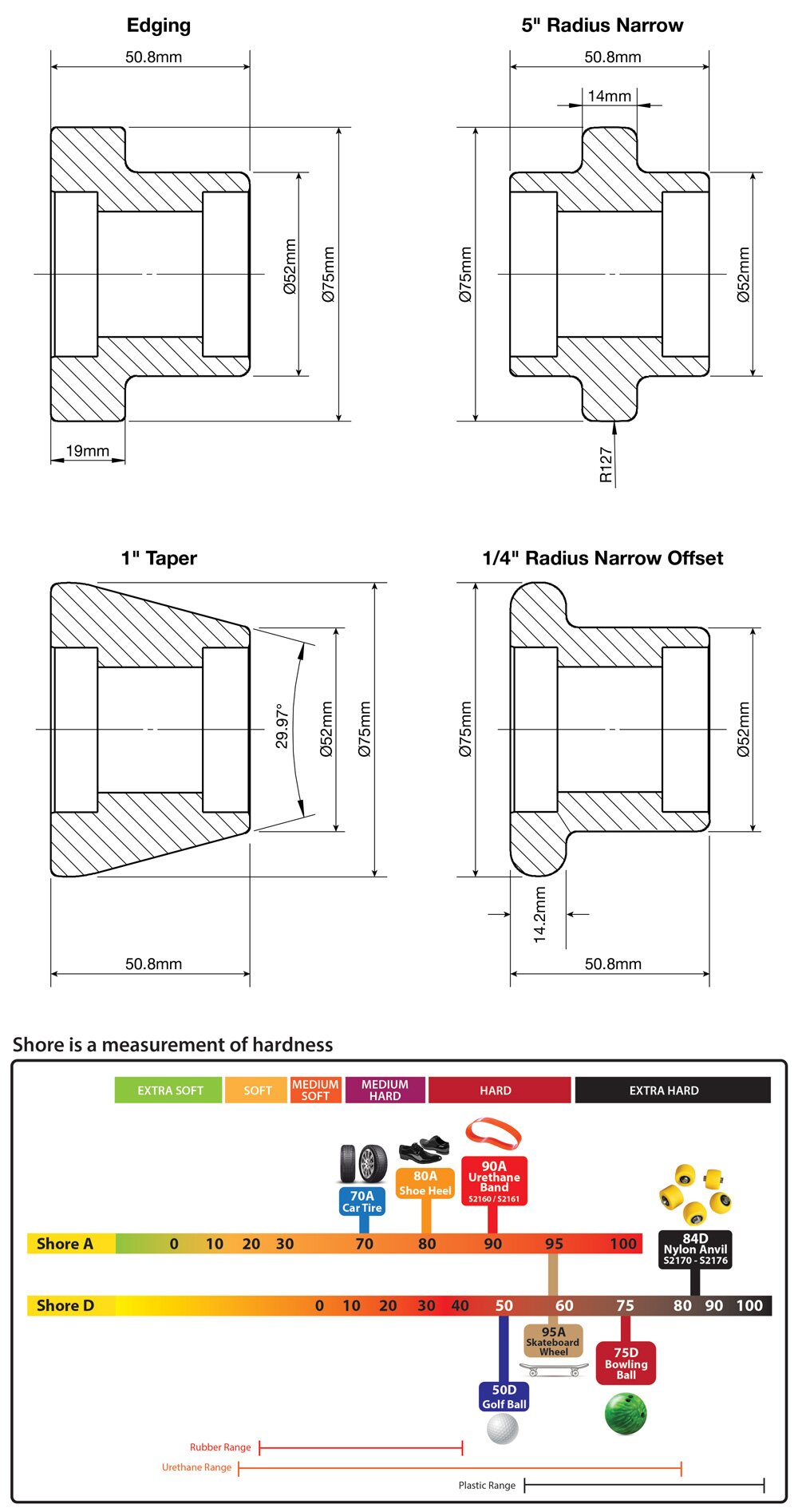

- 1/4" Radius Offset Narrow Anvil

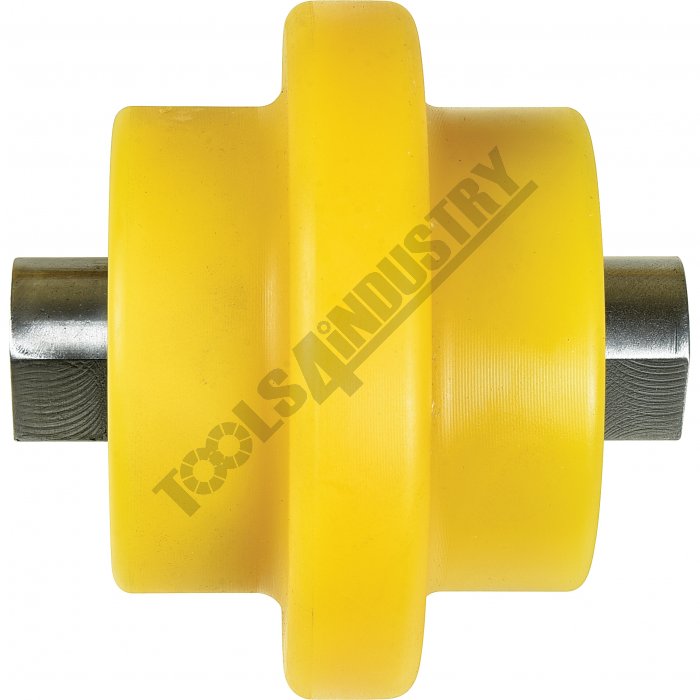

- 5" Radius Narrow Anvil

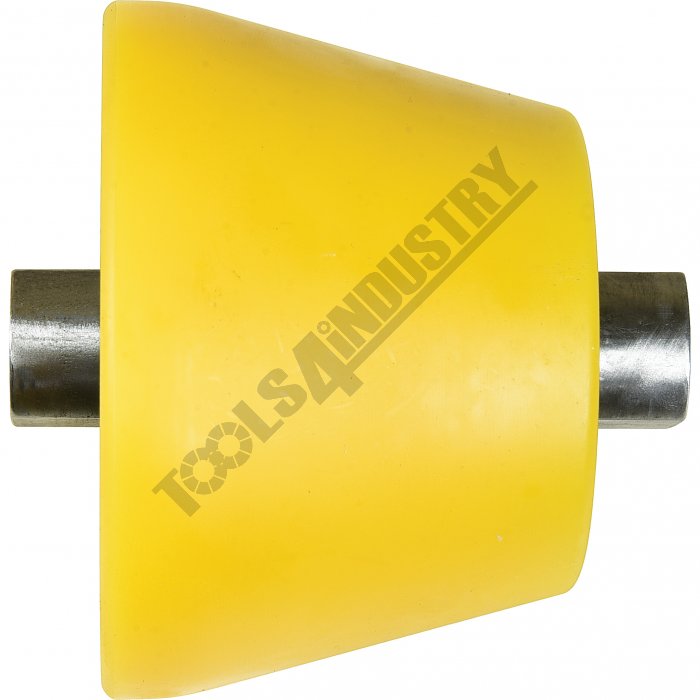

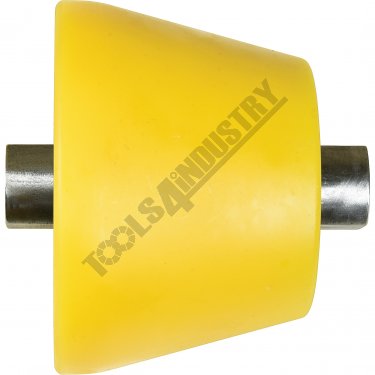

- 1" Taper Anvil

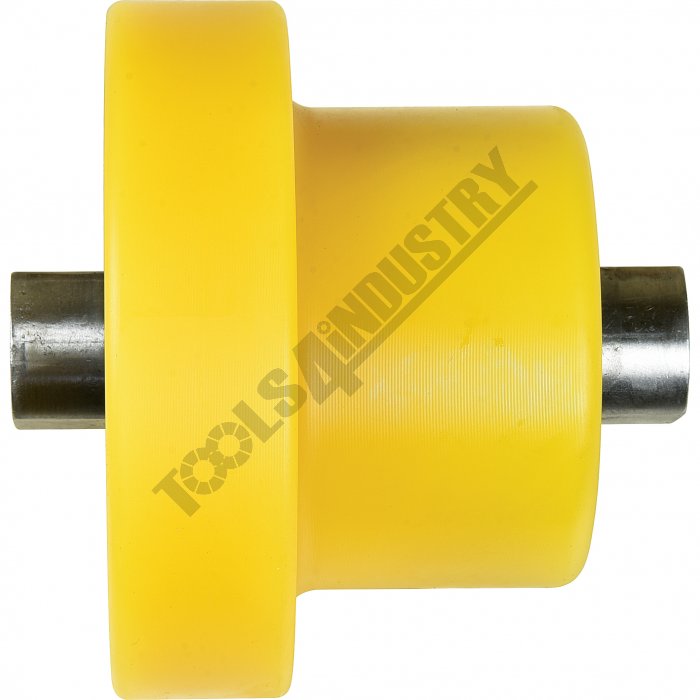

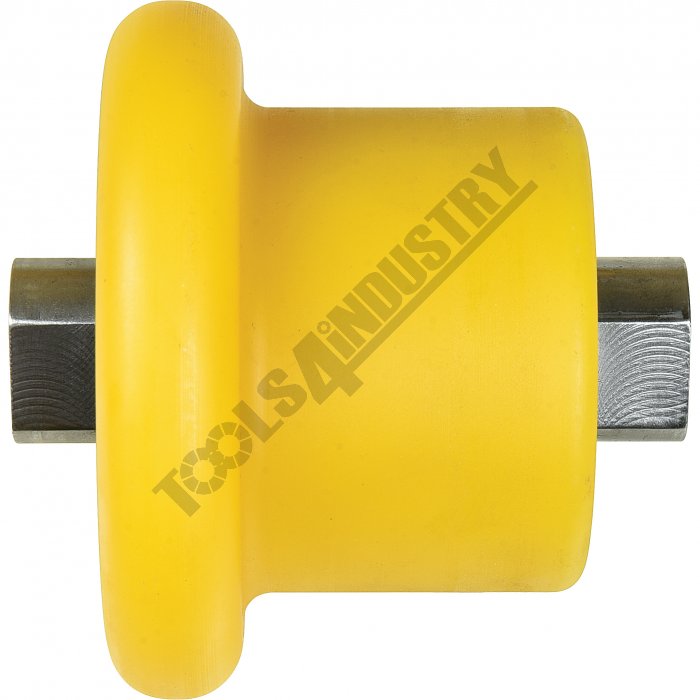

- Edging Anvil
- 4pcs of anvil shafts supplied
Specifications
- Compare 7 Products
- ORDER CODE
- MODEL
- Size
- Anvil Widthmm
- Anvil Radiusmm/inch
- No. of Pieces in Set
- Suits English Wheel
- S2172
- AS-50ZNY
- ~
- 50.8
- 1/4" Narrow Offset, 5" Narrow,
1" Taper, Edging
- 4
- EWM-75 & EWHD-65
- S2176
- AS-70ZNY
- ~
- 70
- 1/4" Narrow Offset, 5" Narrow,
1" Taper, Edging
- 4
- EWHD-80
- S2170
- AS-50NY
- ~
- 50.8
- 31.8mm (1-1/4"), 50.8mm (2"),
101.6mm (4"), 203.2mm (8")
& Flat - 5
- EWM-75 & EWHD-65
- S2174
- AS-70NY
- ~
- 70
- 31.8mm (1-1/4"), 50.8mm (2"),
101.6mm (4"), 203.2mm (8")
& Flat - 5
- EWHD-80
- S2160
- EWUB-82
- 50.8 x 203mm
- ~
- ~
- 1
- EWM-75 & EWHD-65
- S2162
- EWUB-254
- 76.2 x 254mm
- ~
- ~
- 1
- EWHD-100
- S2161
- EWUB-197
- 70 x 197mm
- ~
- ~
- 1
- EWHD-80
| ORDER CODE | AS-50ZNY |
|---|---|
| MODEL | ~ |
| Size | 50.8 |
| Anvil Widthmm | 1/4" Narrow Offset, 5" Narrow, 1" Taper, Edging |
| Anvil Radiusmm/inch | 4 |
| No. of Pieces in Set | EWM-75 & EWHD-65 |
| Suits English Wheel |
