| Code | S2160 |
|---|---|
| Model | EWUB-82 |
| Capacity | 50.8 x 203mm |
| Weight (kg) | 0.17 |
| Weight (m3) | 0.002 |
| Weight (Freight) | 0.666 |
| Dimensions (cm) | 40 x 10 x 5 |

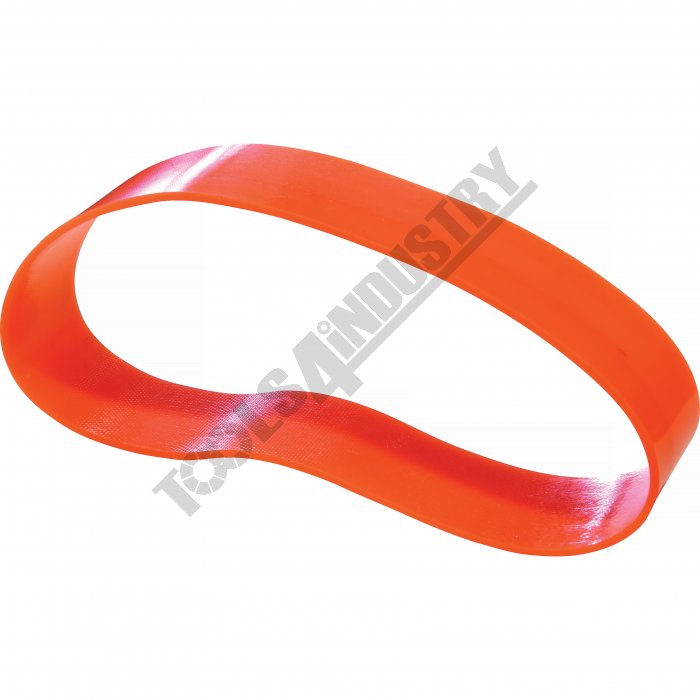

Urethane Band EWUB-82 50.8 x 203mm
Description

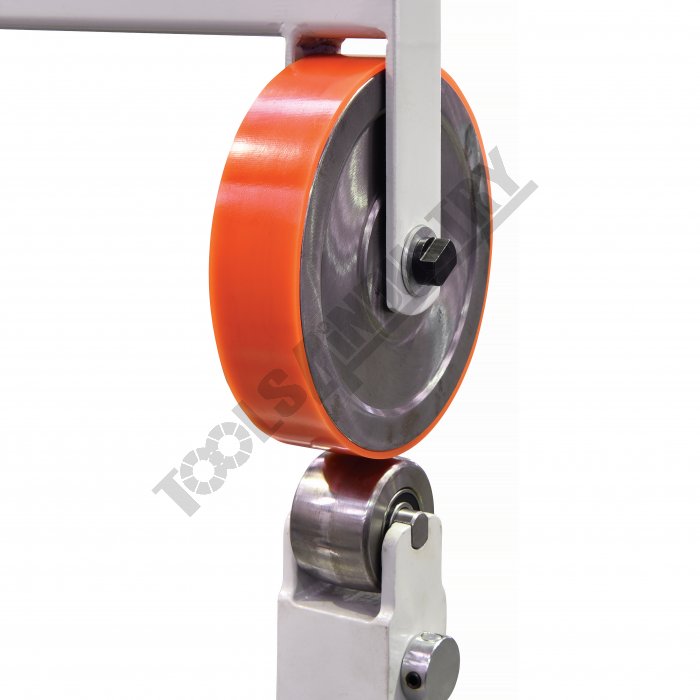

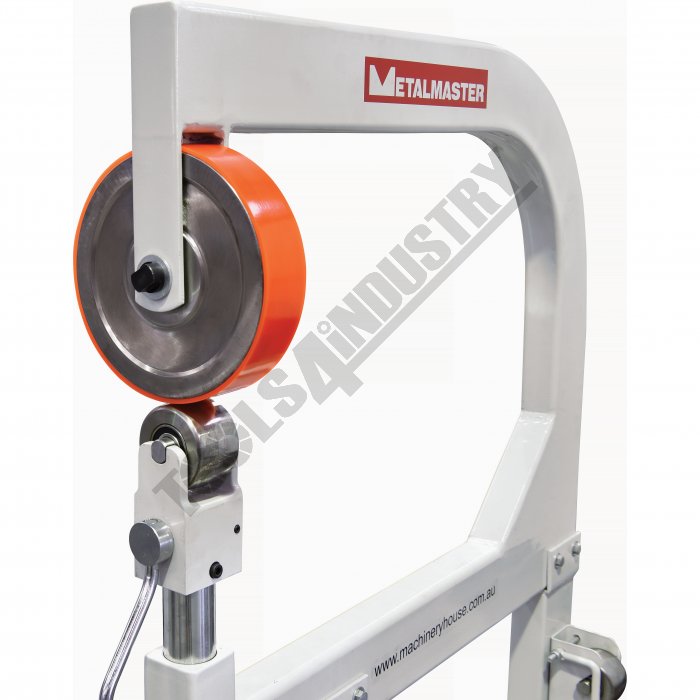

This Urethane Band is designed to slide over the top anvil or the English Wheel used for light pressure metal forming of 2D curves.Features
- For Light pressure metal forming up to 1mm thick sheet Steel or 1.6mm Aluminium
- Will not leave tracking marks
- Main purpose is creating 2D curves
- Can be used to smooth out a 3D compound curve
Specifications
- Compare 7 Products
- ORDER CODE
- MODEL
- Size
- Anvil Widthmm
- Anvil Radiusmm/inch
- No. of Pieces in Set
- Suits English Wheel
- S2160
- EWUB-82
- 50.8 x 203mm
- ~
- ~
- 1
- EWM-75 & EWHD-65
- S2162
- EWUB-254
- 76.2 x 254mm
- ~
- ~
- 1
- EWHD-100
- S2161
- EWUB-197
- 70 x 197mm
- ~
- ~
- 1
- EWHD-80
- S2172
- AS-50ZNY
- ~
- 50.8
- 1/4" Narrow Offset, 5" Narrow,
1" Taper, Edging
- 4
- EWM-75 & EWHD-65
- S2176
- AS-70ZNY
- ~
- 70
- 1/4" Narrow Offset, 5" Narrow,
1" Taper, Edging
- 4
- EWHD-80
- S2170
- AS-50NY
- ~
- 50.8
- 31.8mm (1-1/4"), 50.8mm (2"),
101.6mm (4"), 203.2mm (8")
& Flat - 5
- EWM-75 & EWHD-65
- S2174
- AS-70NY
- ~
- 70
- 31.8mm (1-1/4"), 50.8mm (2"),
101.6mm (4"), 203.2mm (8")
& Flat - 5
- EWHD-80
| ORDER CODE | EWUB-82 |
|---|---|
| MODEL | 50.8 x 203mm |
| Size | ~ |
| Anvil Widthmm | ~ |
| Anvil Radiusmm/inch | 1 |
| No. of Pieces in Set | EWM-75 & EWHD-65 |
| Suits English Wheel |
